Jumo 00300204 N/A 1 pc(s)

  • item model number: D389962
A sensor with metal and plastic components, on a white background. Black connector part at the top, cylindrical metal tips at the bottom.

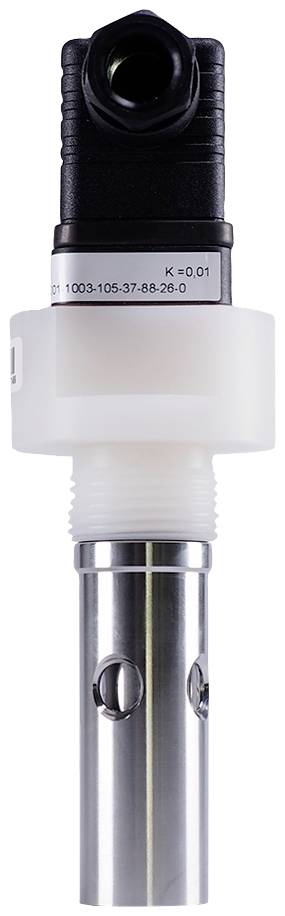

Industrial metal and plastic sensor, cylindrical with electronic connection at the top, typical for liquid measurements.

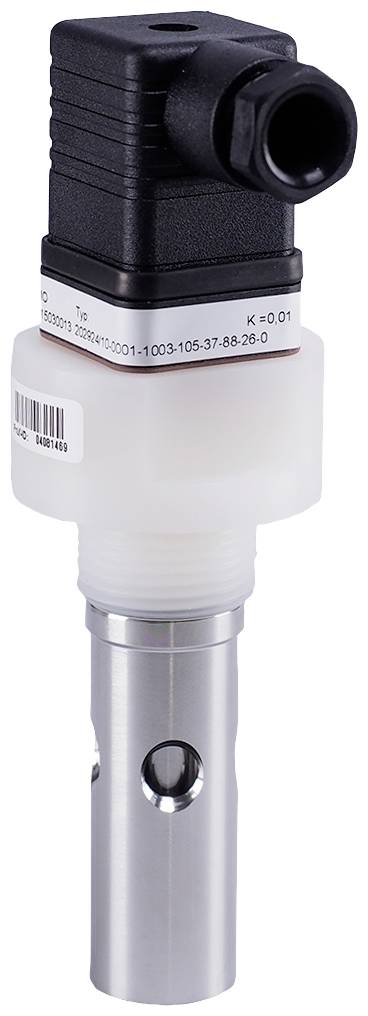

A sensor with a black housing and a white, cylindrical connector for industrial applications.
A white wheel with a metallic inner section, likely part of a skateboard or longboard, against a white background.
CHF 796.05
VAT included
plus
Delivery time: 3-4 days
available from 25/09/2026
30 days free return shipment
Jumo 00300204 N/A 1 pc(s)
CHF 796.05
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 788.08 1,0 % savings
from 5 piece : CHF 780.12 2,0 % savings
from 10 piece : CHF 772.16 3,0 % savings

Product description

Description

This conductive conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.05 to 10 US/cm or 0.1 to 20 MOhm/cm). The installation is done via the process connection G 3/4A made of PVDF. An angular device plug to DIN 43650 is available as an electrical connection. The material of the electrode is stainless steel (1.4571). Installed length 76 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 9 bar at 60 °C.

Keywords

Jumo, 00300204, meter accessories, meter replacement, meter spare part, meter replacement part

A sensor with metal and plastic components, on a white background. Black connector part at the top, cylindrical metal tips at the bottom.
Industrial metal and plastic sensor, cylindrical with electronic connection at the top, typical for liquid measurements.
A sensor with a black housing and a white, cylindrical connector for industrial applications.
A white wheel with a metallic inner section, likely part of a skateboard or longboard, against a white background.
