Jumo 00350625 N/A 1 pc(s)

  • item model number: D389152

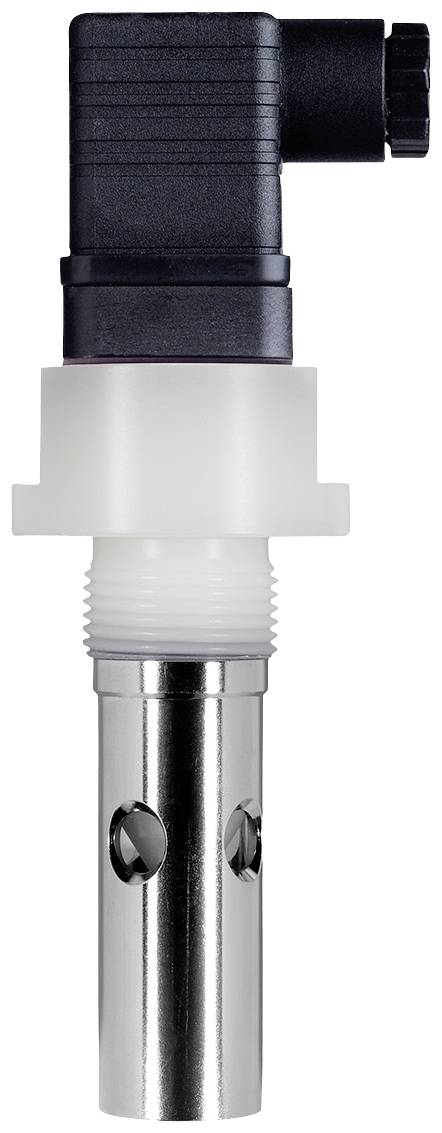

An electronic sensor with a black connector head and a silver, tubular housing featuring three openings.
CHF 704.95
VAT included
plus
Delivery time: 3-4 days
available from 08/09/2026
30 days free return shipment
Jumo 00350625 N/A 1 pc(s)
CHF 704.95
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 697.90 1,0 % savings
from 5 piece : CHF 690.85 2,0 % savings
from 10 piece : CHF 683.80 3,0 % savings

Product description

Description

This conductive conductivity sensor has a cell constant of K=0.01 (0.05 to 10 US/cm or 0.1 to 20 MOhm/cm) as well as a measuring insert Pt100 in two-wire circuit. The installation takes place via the process connection G 1/2A made of PVDF. An angular device plug to DIN 43650 is available as an electrical connection. The material of the electrode is stainless steel (1.4571). Installed length 74 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 9 bar at 60 °C.

Keywords

Jumo, 00350625, meter accessories, meter replacement, meter spare part, meter replacement part

Product specifications

Downloads

Reviews
