Jumo 00456809 N/A 1 pc(s)

  • item model number: D382592

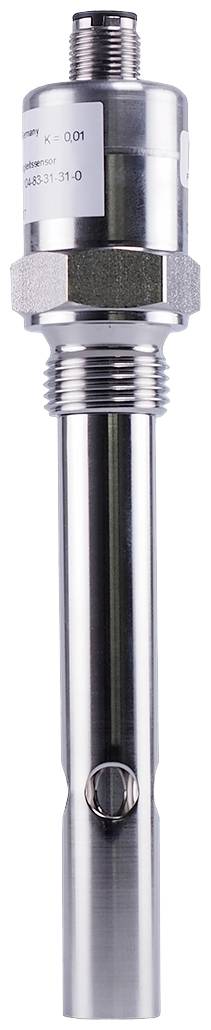

Metallic sensor rod with thread and rounded tip, potentially for technical or industrial applications.

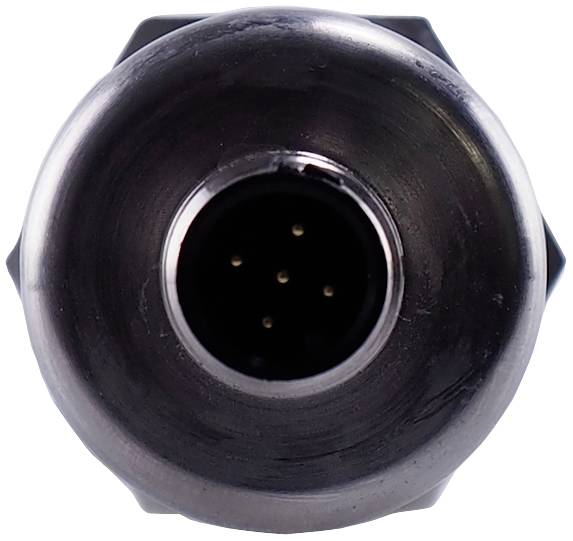

Close-up of a round, black connector with multiple metal pins in the centre.

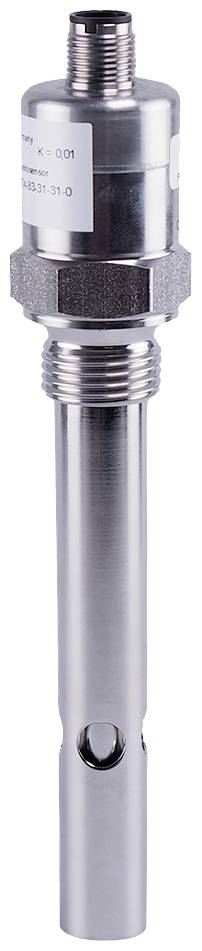

A cylindrical metal sensor with threaded connections, likely used for measuring pressure or liquids in industrial applications.

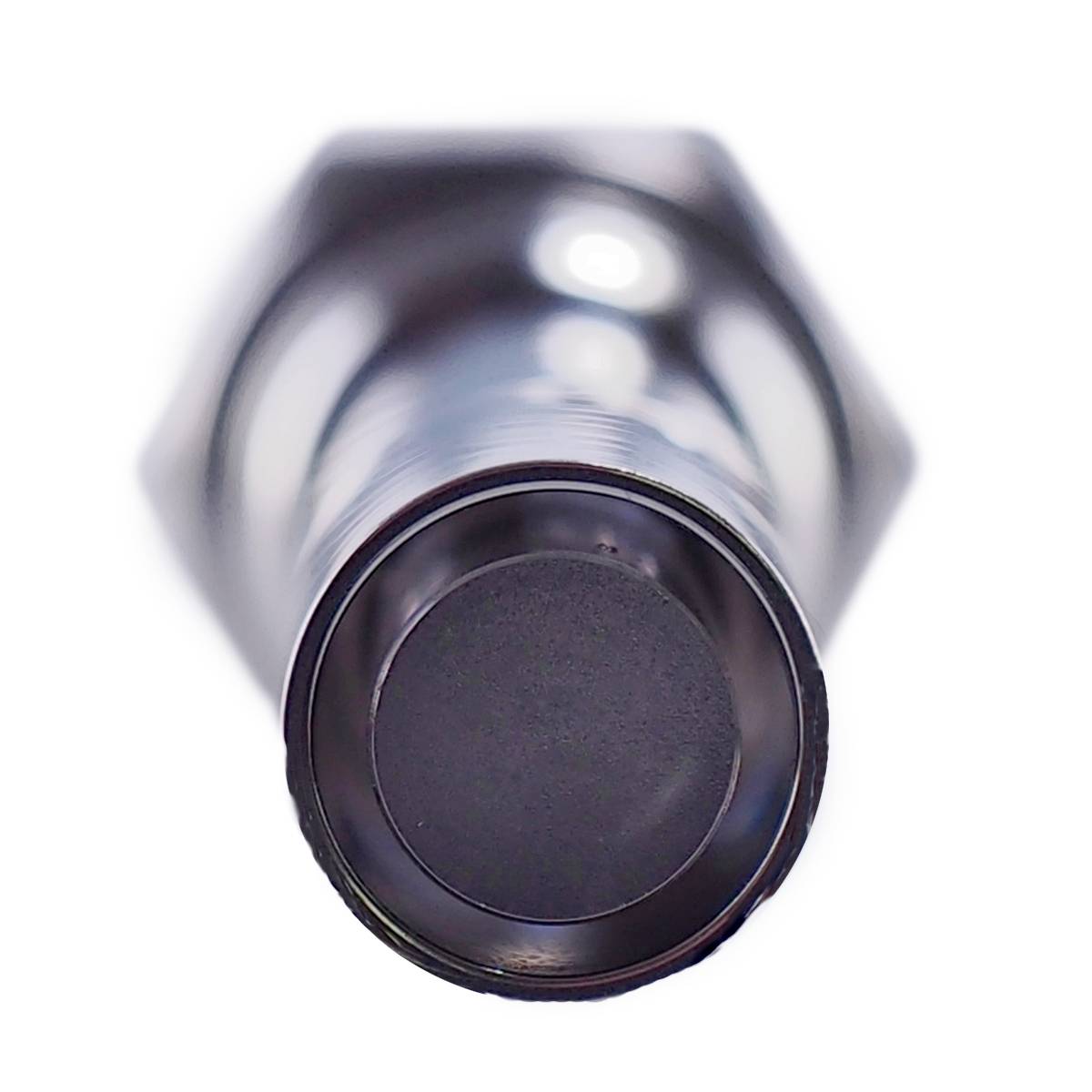

A close-up of a shiny metallic surface in cylindrical form, resembling the end of a bolt or a screw.
CHF 906.05
VAT included
plus
Delivery time: 3-4 days
available from 09/09/2026
30 days free return shipment
Jumo 00456809 N/A 1 pc(s)
CHF 906.05
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 896.98 1,0 % savings
from 5 piece : CHF 887.92 2,0 % savings
from 10 piece : CHF 878.86 3,0 % savings

Product description

Description

This conductive conductivity sensor has a cell constant of K=0.01 (for measurement ranges 0.1 to 1000 US/cm) as well as a Pt100 measurement insert in two-wire circuit. The installation is made using the G 1/2A process connection made of stainless steel (1.4435). An M12 plug is available as an electrical connection. The material of the electrode is stainless steel (1.4435). Installed length 110 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 1 bar at 135 °C.

Keywords

Jumo, 00456809, meter accessories, meter replacement, meter spare part, meter replacement part

Metallic sensor rod with thread and rounded tip, potentially for technical or industrial applications.
Close-up of a round, black connector with multiple metal pins in the centre.
A cylindrical metal sensor with threaded connections, likely used for measuring pressure or liquids in industrial applications.
A close-up of a shiny metallic surface in cylindrical form, resembling the end of a bolt or a screw.
