Description

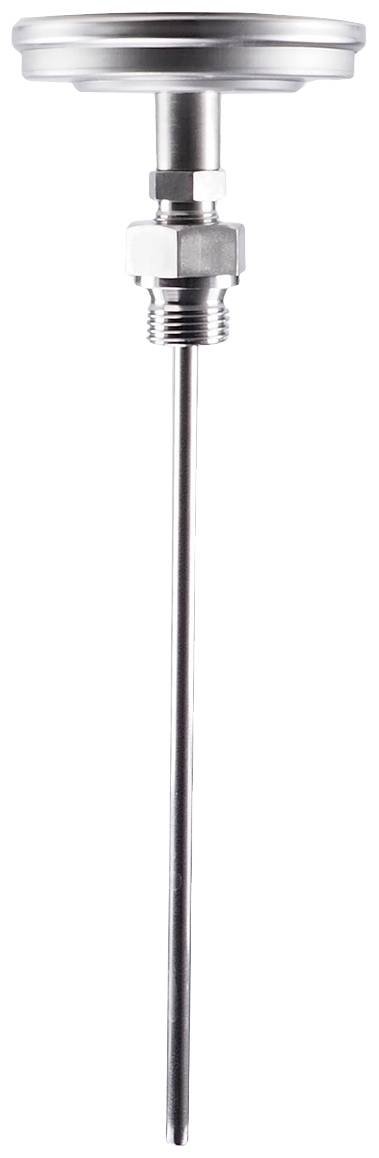

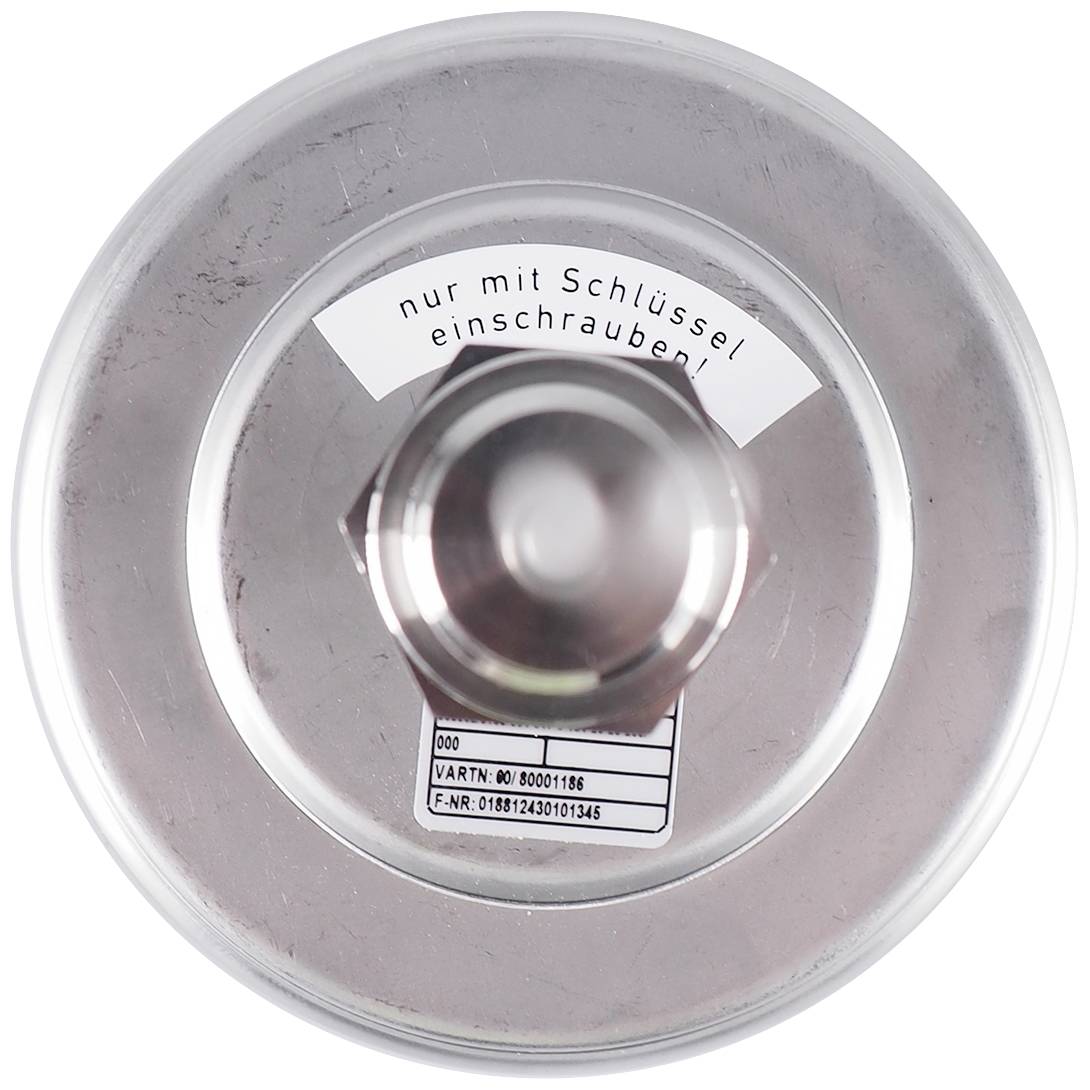

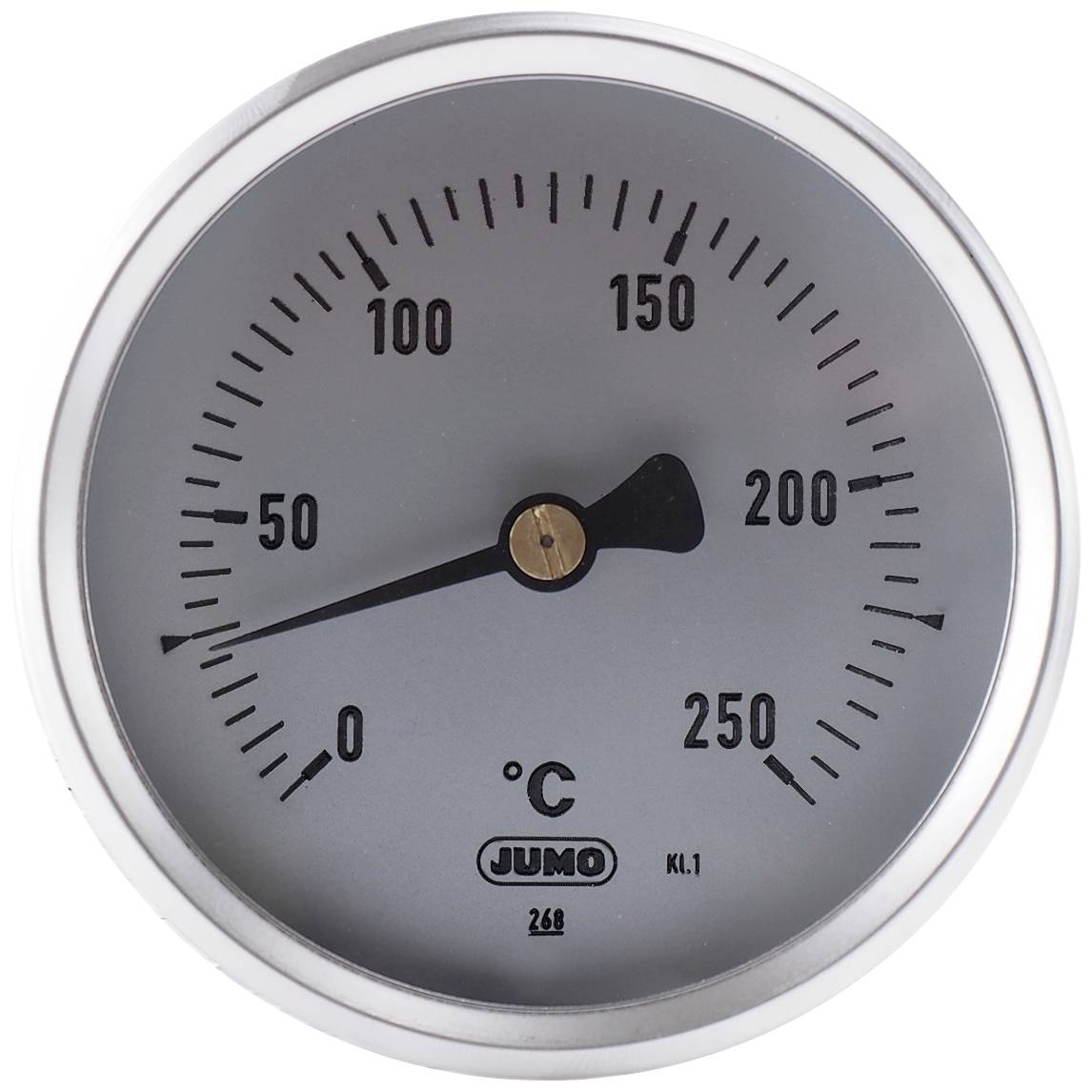

The thermometer has a stainless steel housing with a diameter of 80 mm. The measuring system used operates according to the principle of the bimetal spiral, which acts directly on the pointer over an axis. The temperature can be read on an aluminum scale with black writing, which is protected by a glass panel. The housing has protection class IP54 and can be used at temperature limits from -30 to 80 °C; the nominal position is arbitrary. The device is fixed by a high-grade steel screw joint, which can be moved as desired on the stainless steel dip pipe with a diameter of 6 mm. The thread of the screw connection is G 1/2 Form A according to DIN 3852/2. The dip pipe branch is Axial toward the back of the housing. Since no additional power supply is required the device is optimally suitable for an energy-saving temperature measurement. Furthermore, it is insensitive to ambient temperature influences. The device can be used universally and is suitable for local temperature measurements.
