Red Pitaya STEMlab 125-14 Starter Kit USB Oscilloscope 1 Set

Overview

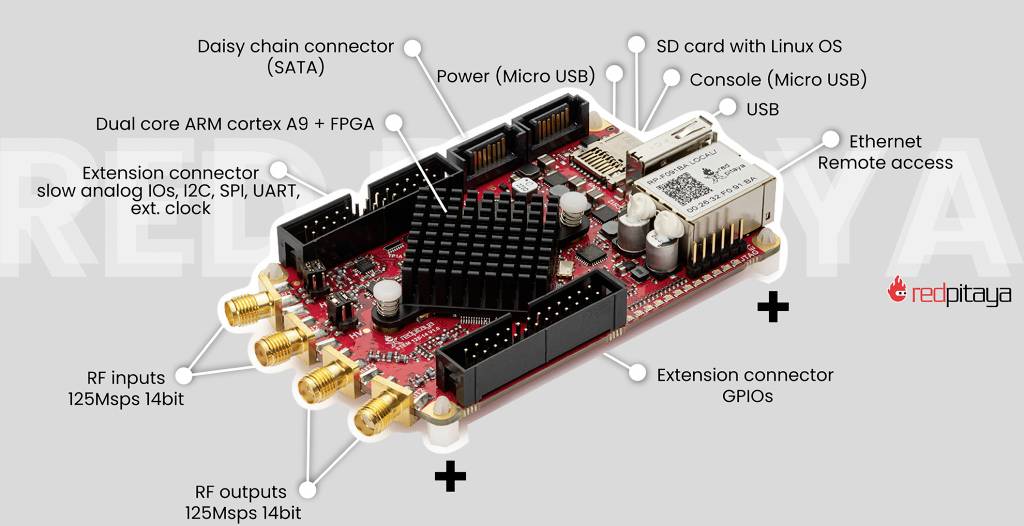

RF signal acquisition and generation platform of the size of a credit card
Ethernet connectivity
Xilinx SoC (CPU & FPGA)
Two fast analogue inputs and two outputs
Possibility of integration in own system/product
Open software source code available
Compatible with Linux or Windows-PC
Can be used as an oscilloscope and signal generator, spectrum analyzer, ground analyzer, logic analyzer, LCR measuring device*, streaming, SDR or vector network analyzer*
Can be remote controlled via LabVIEW, MATLAB, Python or Scilab
Can be reprogrammed for adaptation to individual requirements
Supported by a APP marketplace with several free apps available
* Requires expansion module.

Description

STEMlab 125-14 is our most versatile and popular product launched in 2013 when Red Pitaya was founded. Since then, it has been used in a wide range of areas, from hobbyists and amateur radio operators to industry, research and space applications.

It has two 125Mbps 14-bit inputs and two 14-bit outputs, a Xilinx Zynq 7010 FPGA, and provides remote access via an online APP user interface that can be accessed via Ethernet or Wi-Fi.

Use cases:

Open-source high frequency lock-in amplifier
FPGA-based digital readout system for a multi-channel X-ray and gamma ray spectrometer
16-channel electrical impedance tomography system using Red Pitaya
3D robot ultrasound system
Interdigital electrode biosensor for detecting DNA sequences
PyRPL (Python Red Pitaya Lockbox) - an open source software package for FPGA-controlled quantum optics experiments
NMR relaxation spectrometer
Ground radar

Uses:

Automated testing
Portable test and measurement device
Multi-channel data acquisition
Lock-in amplifier
OEM-DAQ device
Radar devices
Quantum computing experiments
Aerospace and military RF applications
Skimmer server
Reverse beacon network (RBN)

Characteristics

RAM 512 MB (4 GB)
System memory: Micro SD up to 32 GB
Ethernet 1 Gb
USB 2.0
Wi-Fi: Use a Wi-Fi dongle
RF inputs 2 channels
Sampling rate 125 MS/s
ADC resolution 14-bit
Voltage range in full: ± 1V / ± 20V
Input coupling: Direct current (DC)
Bandwidth DC-60MHz
Input impedance 1M Ω
RF outputs 2 channels
Sampling rate 125 MS/s
DAC resolution 14-bit
Voltage range in full: ± 1V
Load impedance 50 Ω
Short-circuit protection: Yes
Typical rise/fall time: 2V / 10 ns
Bandwidth DC-60MHz
Digital inputs/outputs: 16
Analogue inputs: 4 channels 0-3.5V 12 Bit
Analogue outputs 4 channels 0-1.8V 12-bit
COMMUNICATION INTERFACES I2C, SPI, UART
Available voltages: - 4V, + 3.3V, + 5V
Trigger input: Via expansion connector
Daisy chain connection: Via SATA connection
Ref. Clock Input: Not available
Application: Science, industry
Weight: 0.5 kg
Dimensions 22 × 15 × 7 cm

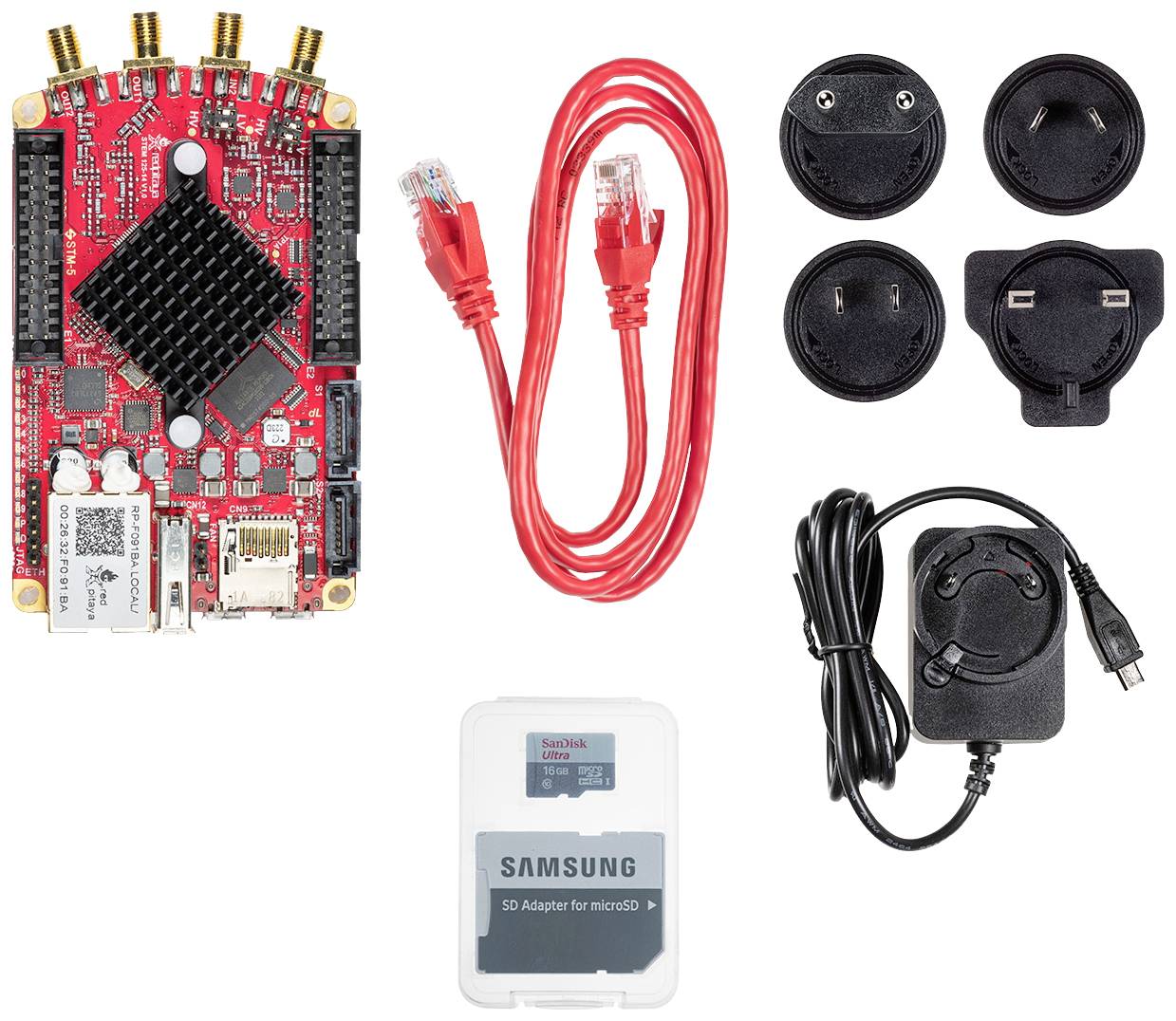

Delivery content

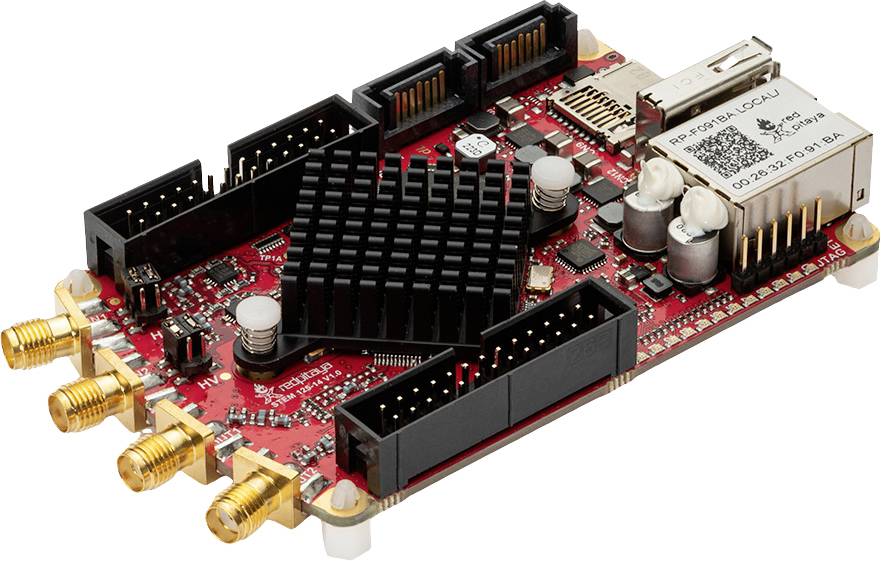

• Red Pitbull Stemlab 125-14 board

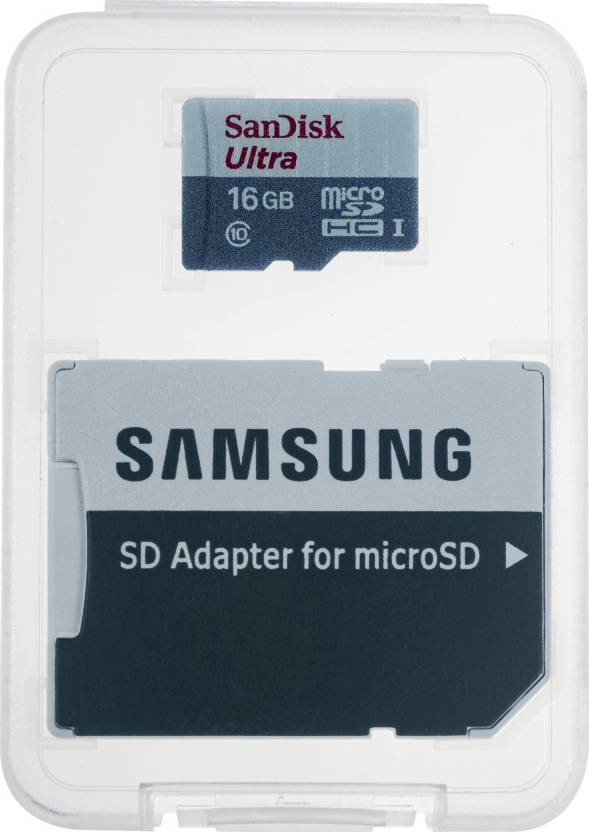

• SD card (16GB, class 10)

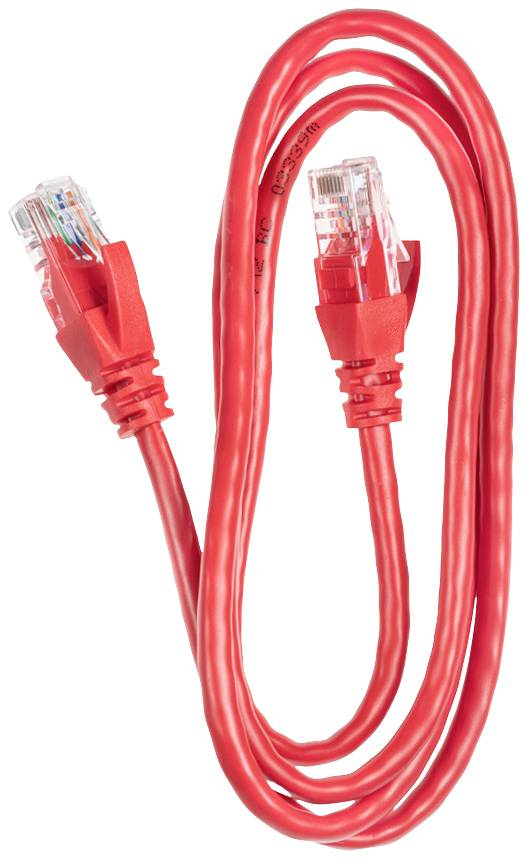

• Ethernet cable (1m)

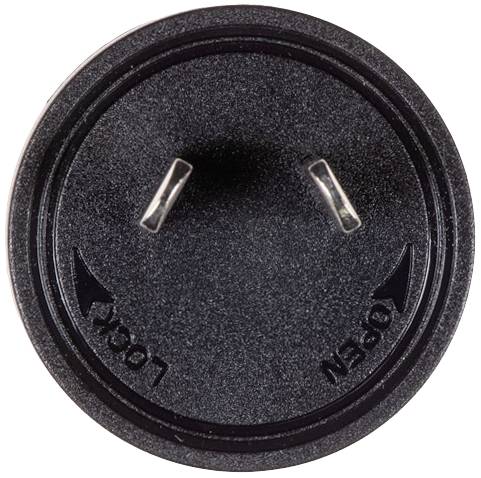

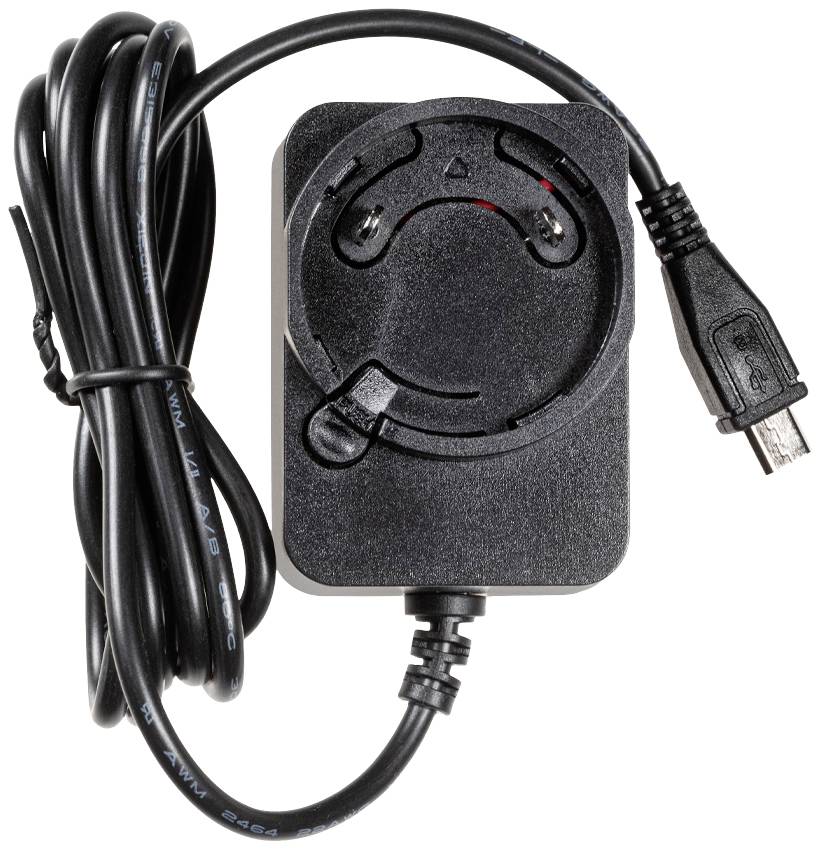

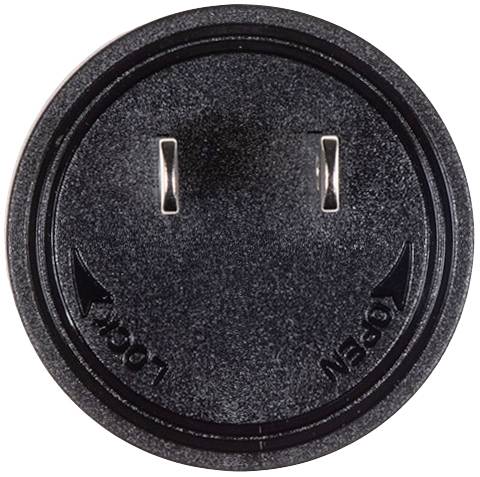

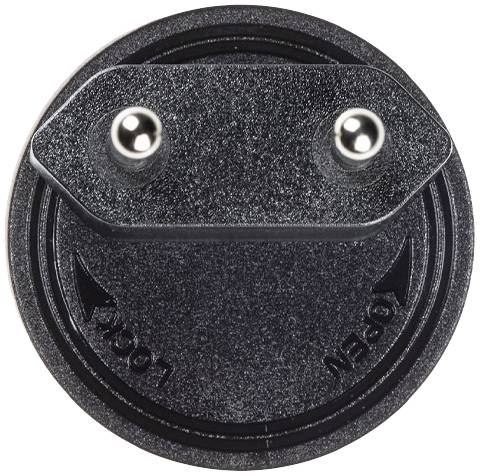

• Power supply (5V, 2A)

Requirements

Linux or Windows-PC
