Red Pitaya STEMlab 125-14 Diagnostic Kit USB Oscilloscope 1 Set

Overview

RF signal acquisition and generation platform of the size of a credit cardEthernet connectivityXilinx SoC (CPU & FPGA)Two fast analogue inputs and two outputsPossibility of integration in own system/productOpen software source code availableCompatible with Linux or Windows-PCCan be used as an oscilloscope and signal generator, spectrum analyzer, ground analyzer, logic analyzer, LCR measuring device*, Streaming, SDR or vector network analyzer*Can be remote controlled via LabVIEW, MATLAB, Python or ScilabCan be reprogrammed for adaptation to individual requirementsSupported by an App marketplace with several free apps available* Requires expansion module.

Description

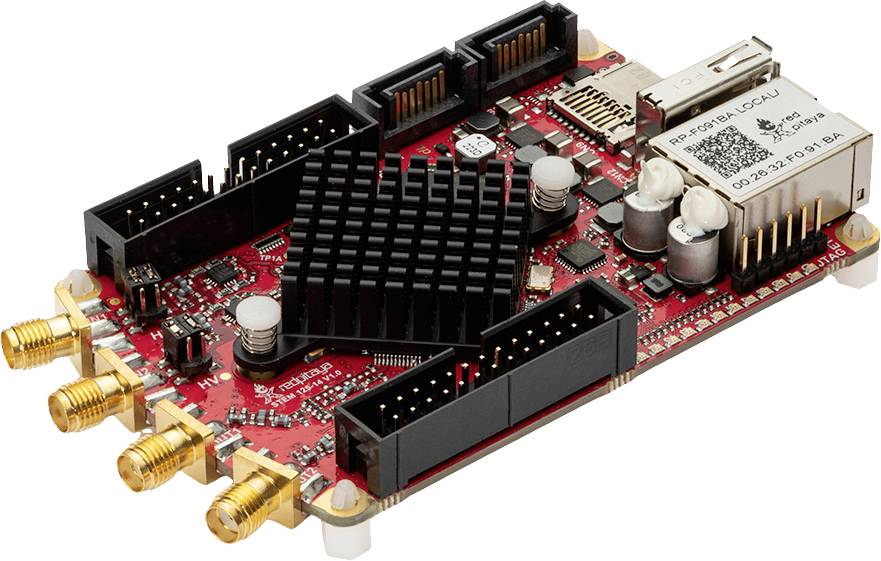

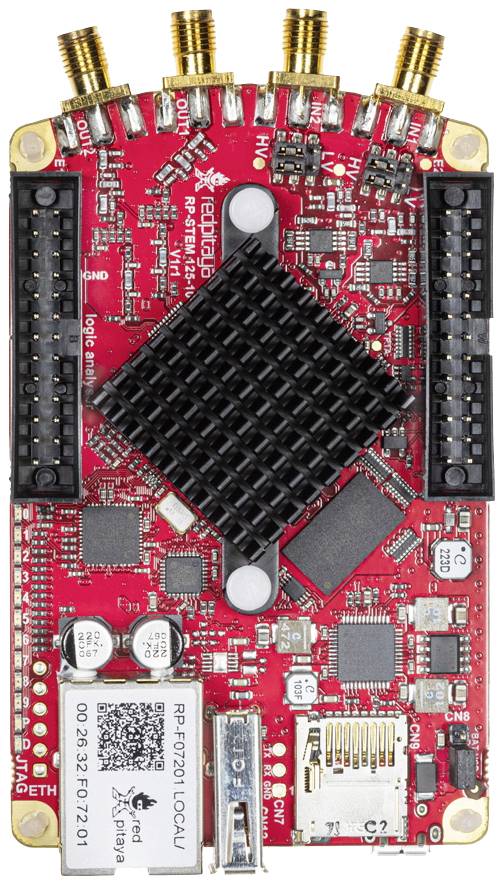

STEMlab 125-14 is our most versatile and popular product launched in 2013 when Red Pitaya was founded. Since then, it has been used in a wide range of areas, from hobbyists and amateur radio operators to industry, research and space applications.It features two 125Mbps 14-bit inputs and two 14-bit outputs, a Xilinx Zynq 7010 FPGA, and provides remote access via an online app user interface accessible via Ethernet or Wi-Fi.Use cases:Open-source high frequency lock-in amplifierFPGA-based digital readout system for a multi-channel X-ray and gamma ray spectrometer16-channel electrical impedance tomography system using Red Pitaya3D robot ultrasound systemInterdigital electrode biosensor for detecting DNA sequencesPyRPL (Python Red Pitaya Lockbox) - an open source software package for FPGA-controlled quantum optics experimentsNMR relaxation spectrometerGround radarUses:Automated testingPortable test and measurement deviceMulti-channel data acquisitionLock-in amplifierOEM-DAQ deviceRadar devicesQuantum computing experimentsAerospace and military RF applicationsSkimmer serverReverse beacon network (RBN)

Characteristics

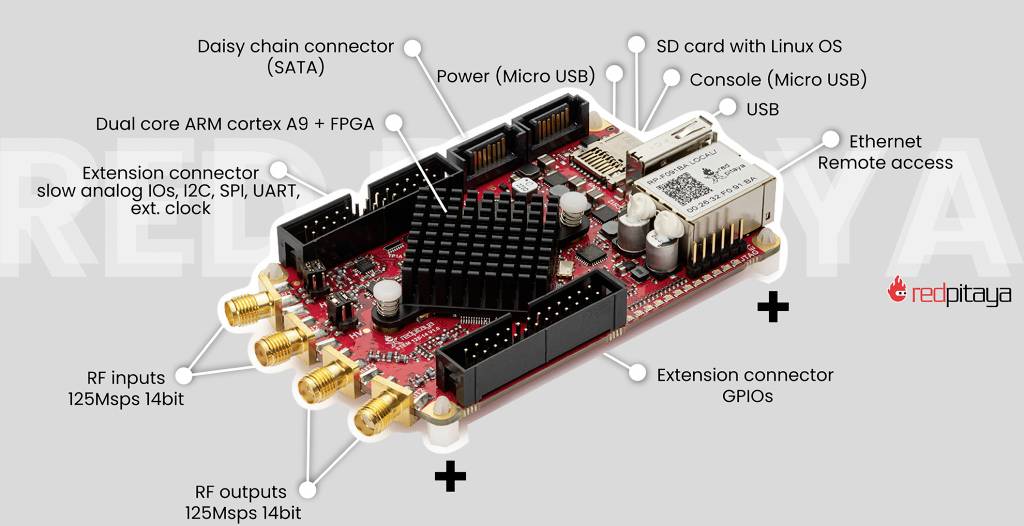

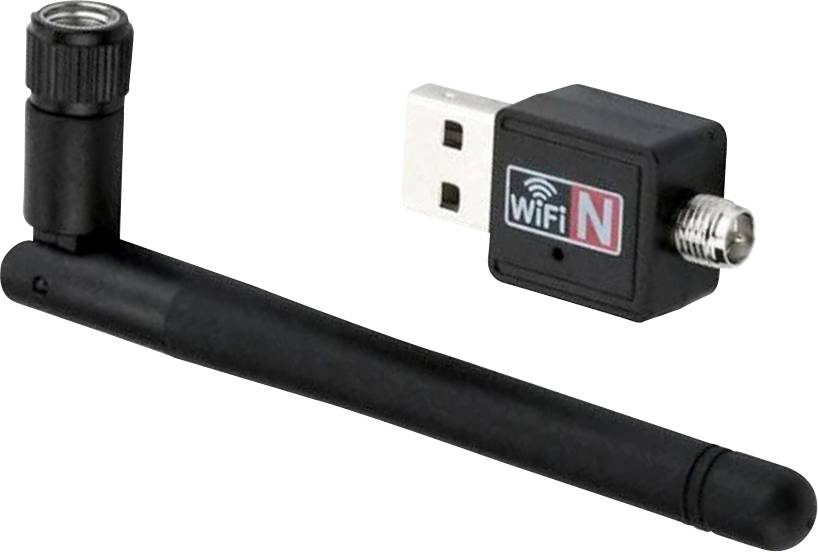

RAM 512 MB (4 GB)System memory: Micro SD up to 32 GBEthernet 1 GbUSB 2.0Wi-Fi: Use a Wi-Fi dongleRF inputs 2 channelsSampling rate 125 MS/sADC resolution 14-bitVoltage range in full: ± 1V / ± 20VInput coupling: Direct current (DC)Bandwidth DC-60MHzInput impedance 1M ΩRF outputs 2 channelsSampling rate 125 MS/sDAC resolution 14-bitVoltage range in full: ± 1VLoad impedance 50 ΩShort-circuit protection: YesTypical rise/fall time: 2V / 10 nsBandwidth DC-60MHzDigital inputs/outputs: 16Analogue inputs: 4 channels 0-3.5V 12 BitAnalogue outputs 4 channels 0-1.8V 12-bitCOMMUNICATION INTERFACES I2C, SPI, UARTAvailable voltages: - 4V, + 3.3V, + 5VTrigger input: Via expansion connectorDaisy chain connection: Via SATA connectionRef. Clock Input: Not availableApplication: Science, industryWeight: 0.5 kgDimensions 22 × 15 × 7 cm

Delivery content

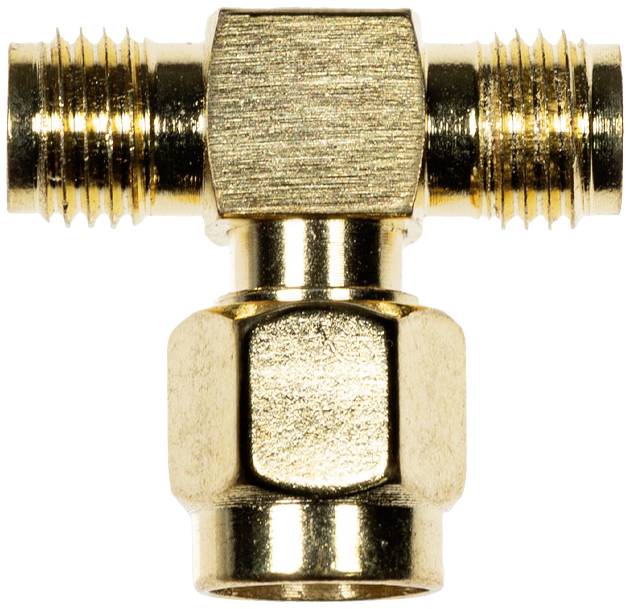

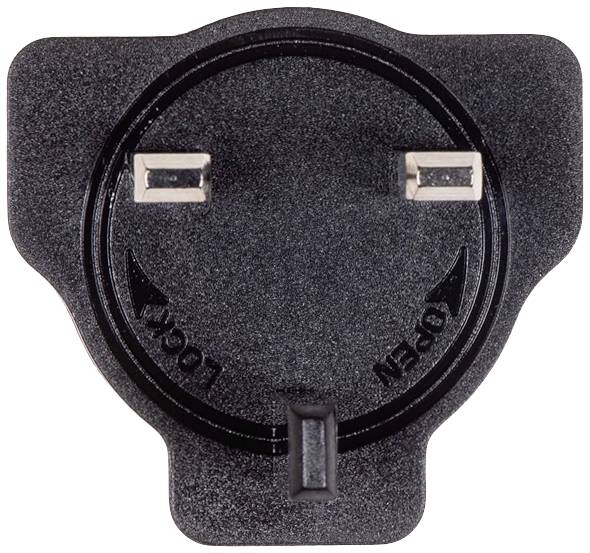

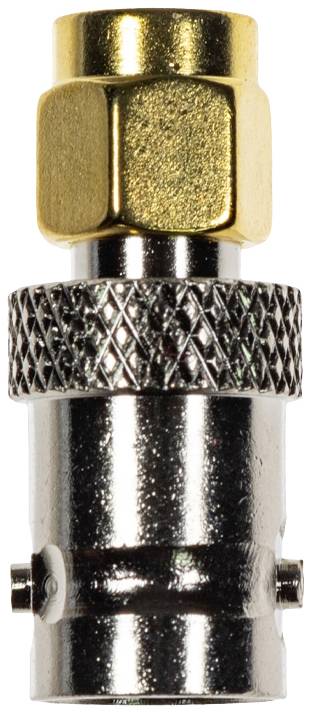

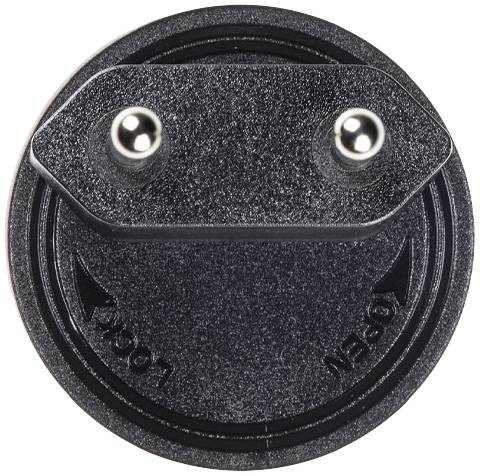

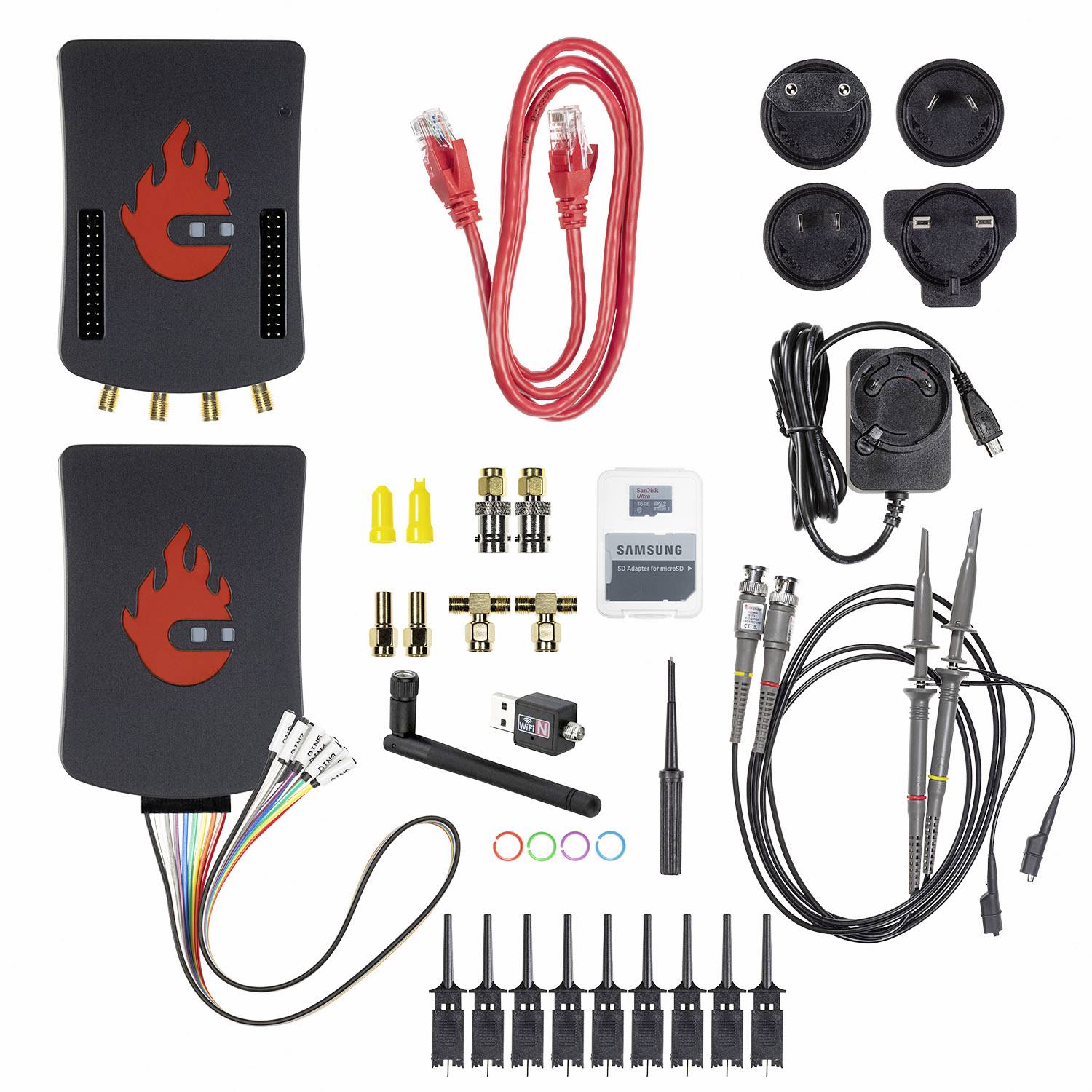

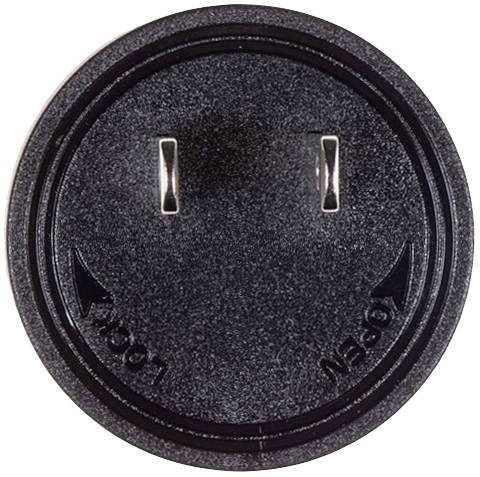

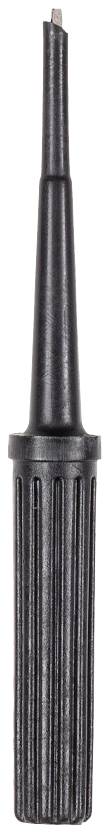

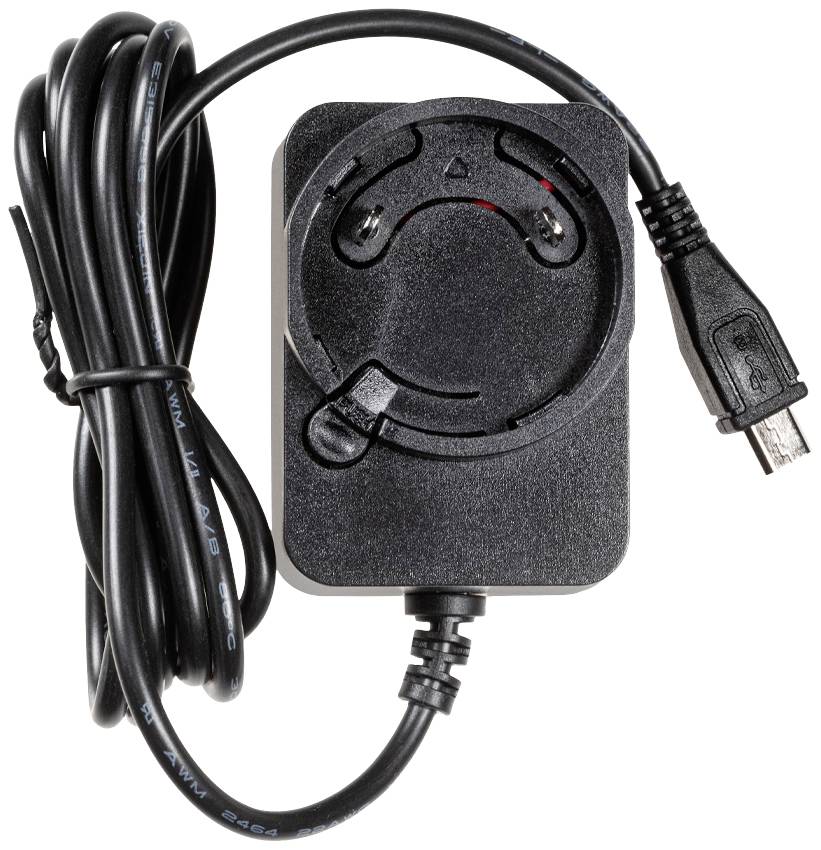

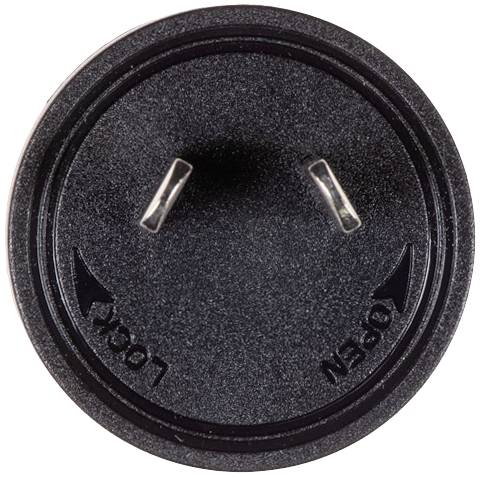

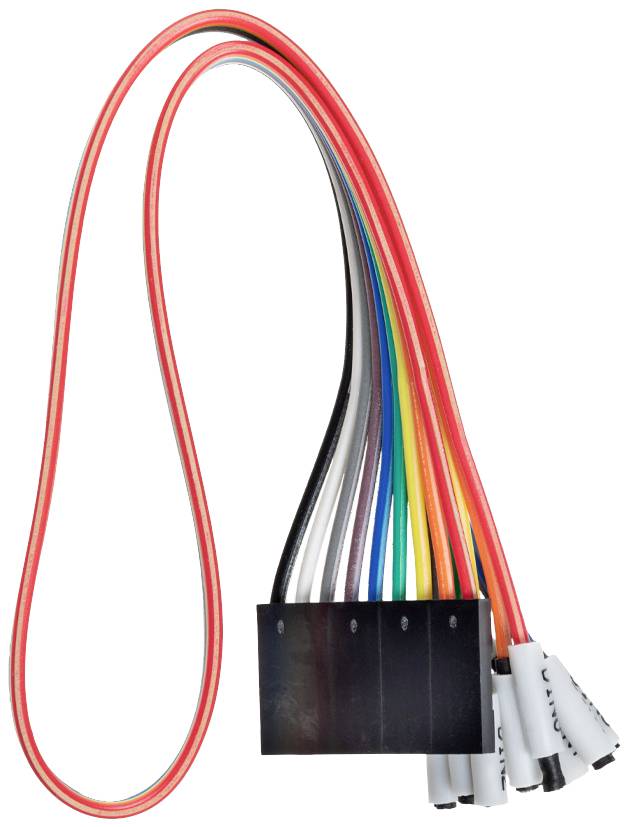

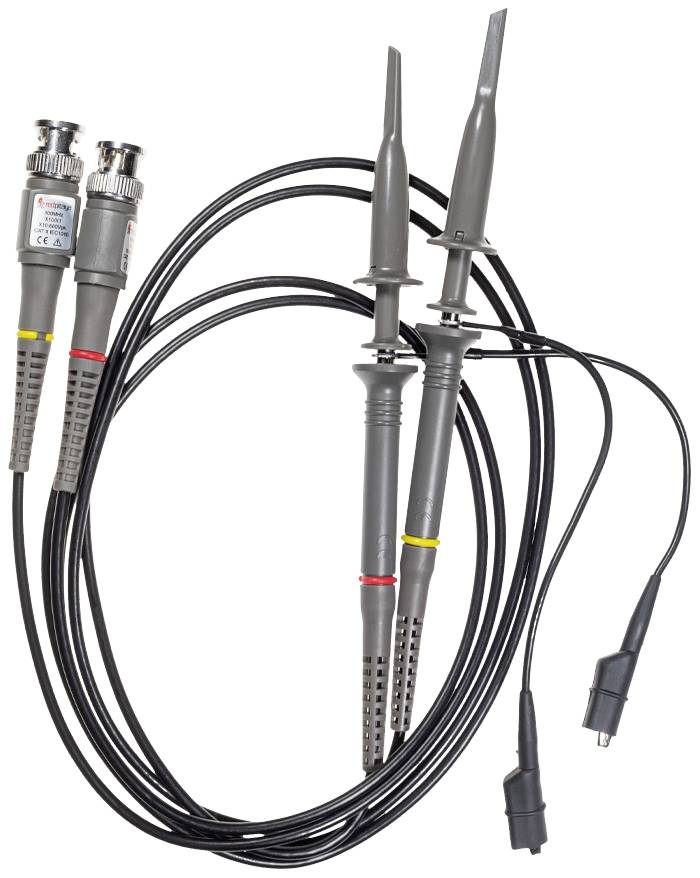

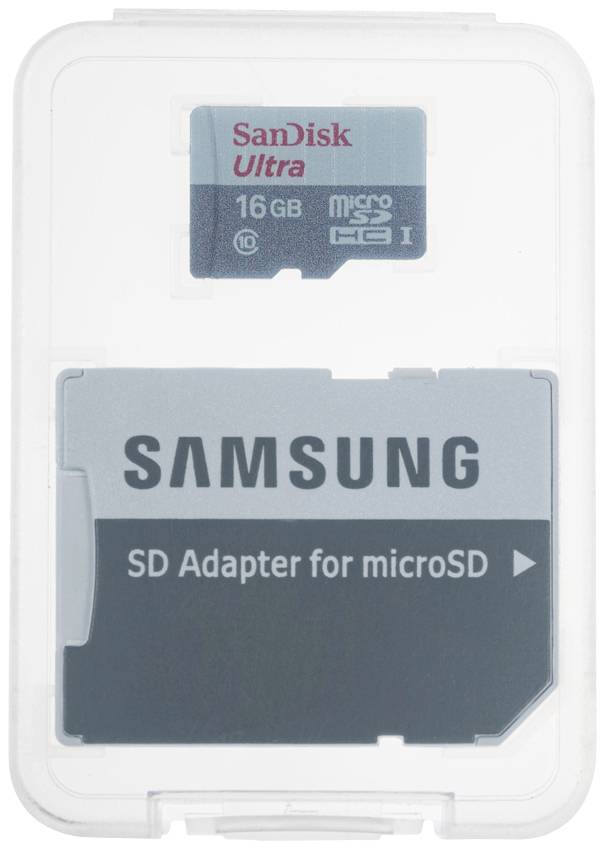

• Red Pitbull Stemlab 125-14 boardSD card (16GB, class 10)Ethernet cable (1m)Power supply (5V, 2A)Aluminium enclosureLogic analyzer extension module2x oscilloscope probes2x SMA to BNC adapter2x 50 ohm t

Requirements

Linux or Windows-PC
