Overview
Output type: Binary output (contact)
Conductivity of the medium max. 20 μS/cm
Plug connection M12 x 1 A-coded
Name of the interface: Bluetooth®
Sensor
Gasket
Process connection
G-outer thread
Approval: Non-explosive area

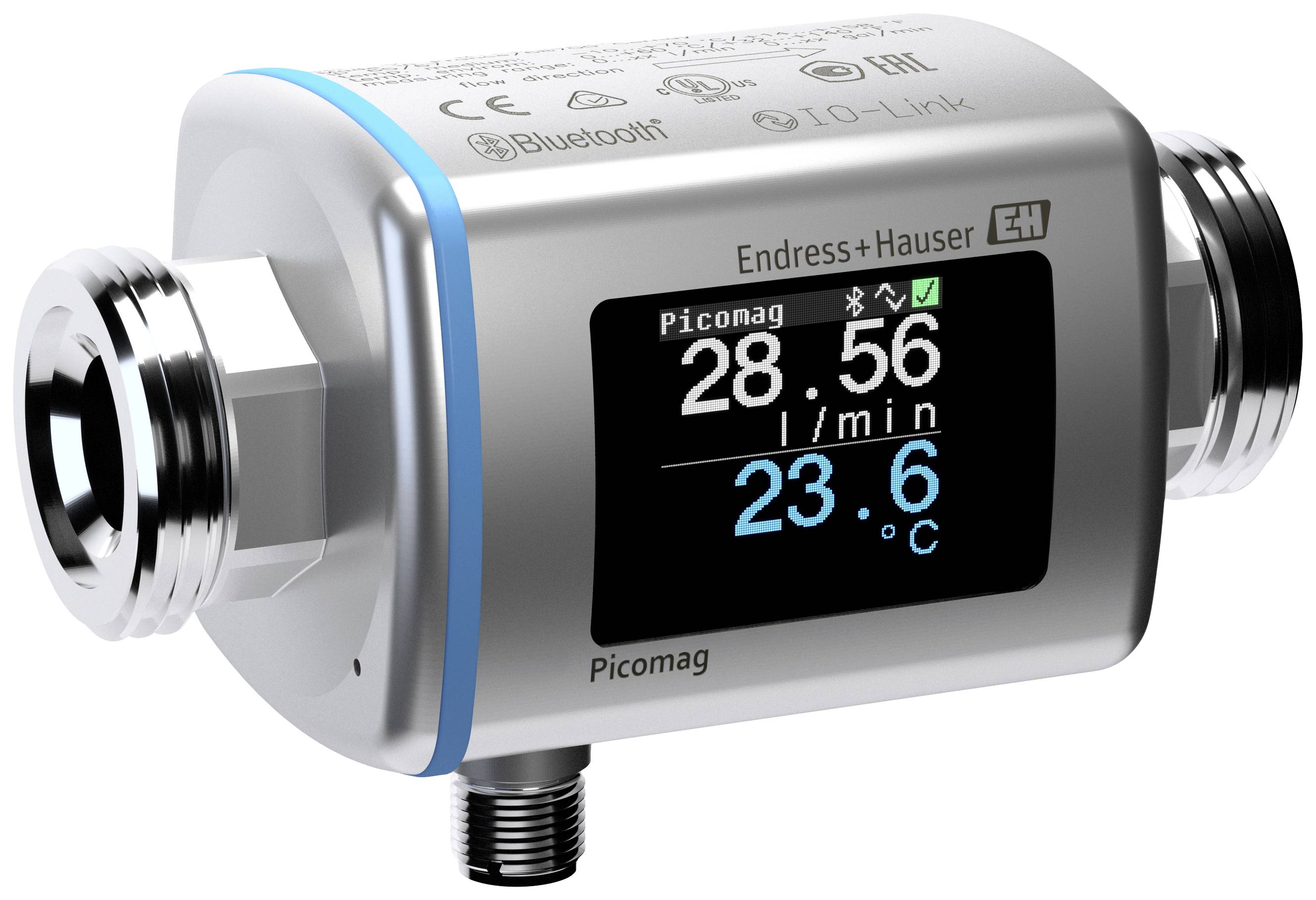

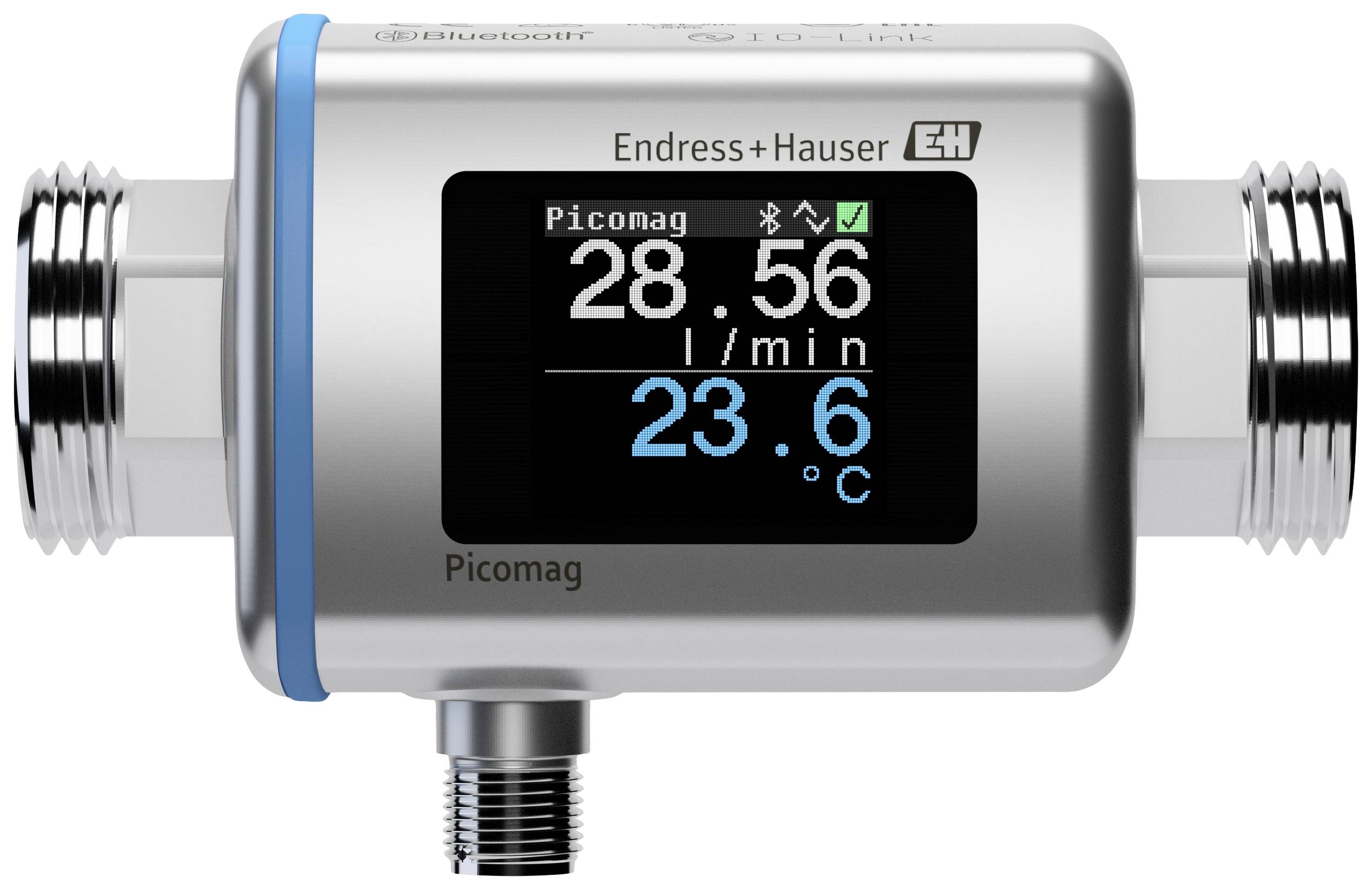

Endress+Hauser Flow meter DMA25 DMA25-AAAAA1 Operating voltage (range): 18 - 30 V Reading range: 0.2 - 150 l/min 1 pc(s)
Image is similar
CHF 593.25
VAT included
plus
Delivery time:
3-4 days
in stock
30 days free return shipment
CHF 593.25
VAT included
plus
Product description
Description
The Picomag DMA25 (diameter DN25 1") is a compact magnetic inductive flow meter that simultaneously measures flow, temperature and conductivity. The device is suitable for applications in secondary circuits with conductive fluids and the bidirectional measurement principle is almost independent of pressure, density, temperature and viscosity. The wireless connection to the SmartBlue app via Bluetooth® ensures quick and easy operation, maintenance and start-up.
Characteristics
Three measurements in one device (volume flow, temperature, conductivity)
Operation via SmartBlue app
User-friendly and automatically rotating display
Digital communication: IO-Link
Keywords
Endress+Hauser, DMA25-AAAAA1, DMA25, flow detector, flow sensor, flow switch
Other notes
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
Image is similar
