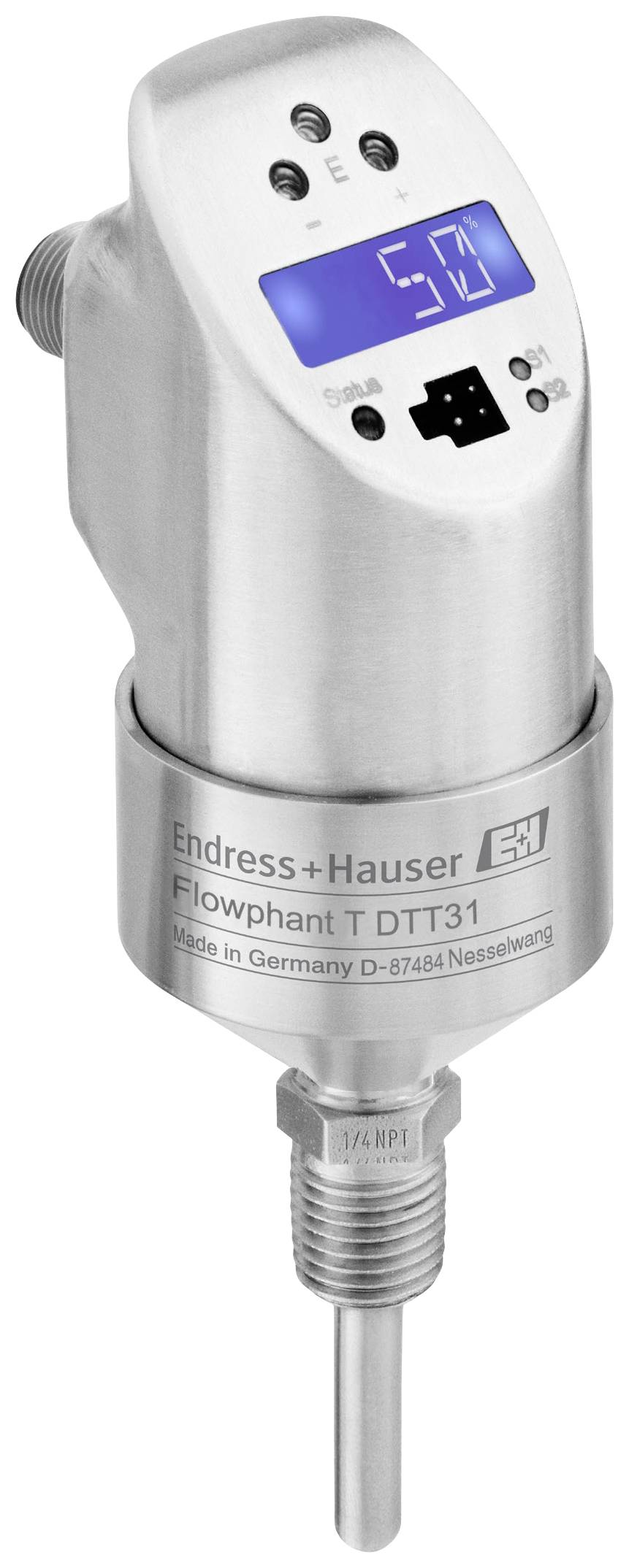

Image is similar
Approval: Non-hazardous area
Electrical connection: M12 connector
Power supply output: 18-30 V/DC; 1x switch PNP
Display 1: Digital
Application Measuring range: 1: Liquid, -20 up to +85 °C, 0.03-3 m/s
Process connection material: G1/2 External thread ISO228; 316L
Mounting length 50 mm
Diameter 6mm
The switch is designed for the safe measurement, display and monitoring of relative mass flow of liquid media virtually without pressure loss. You can choose between one or two switching outputs as well as a switching output and a standardized analog output for flow or temperature values. Typical applications are: Monitoring of cooling water circuits or lubrication systems of pumps and heat exchangers or monitoring of leaks in process lines.
Function check and process information on site via digital display on the device
The upper part of the casing can be rotated by 310° and rotating display enable the reading in all directions
Endress+Hauser, DTT31-A1A111AE2BAB, DTT31, flow detector, flow sensor, flow switch
