Overview
Installation dimensions 96 x 48 mm
3-colour LED display
5 digits
Protection class IP65
Relay outputs

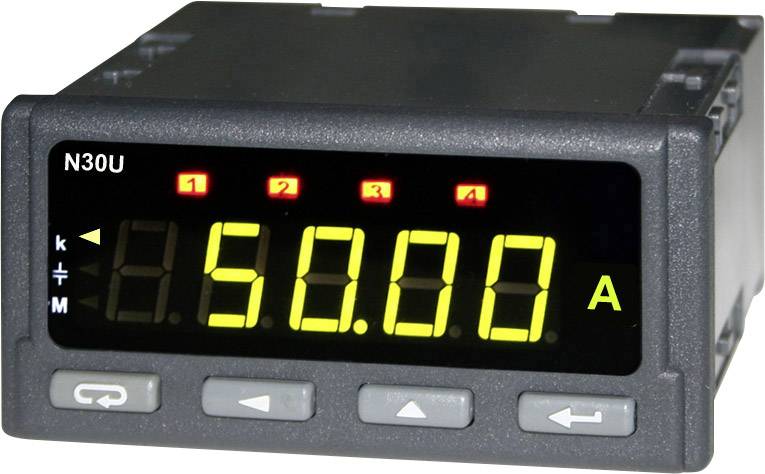

Lumel N30U 120000E0
Product description
Description
Programmable digital built-in measuring device. Universal input for process signals (0 - 10 V, 0 - 60 mV, 0 - 24 mA), thermocouples (type J, K, N, E, R, S) and temperature sensors (Pt100, Pt500, Pt1000, 400 Ω, 4000 Ω). 5-digit display. Relay output.
Characteristics
Panel-mounting measuring instrument - Connection via screw terminal plug.
Information
Sensors not included.
Delivery content
- 4 Screw clamp fastenings - Operating instructions.
Keywords
04016138998849, Lumel, N30U 120000E0, Process display, temperature display
