Overview
High quality light emitting diodes 3 mm in red, blue, green, yellow and warm white
Total content of 100 parts
Quadrios LED set Multi-coloured 3 mm 20 mA 2 V, 3 V
Product description
Description
This experimental and practical assortment with wired standard LEDs diameter 3 mm in red, blue, green, yellow and warm white is ideally suited for immediate start in experiments with semiconductor light.

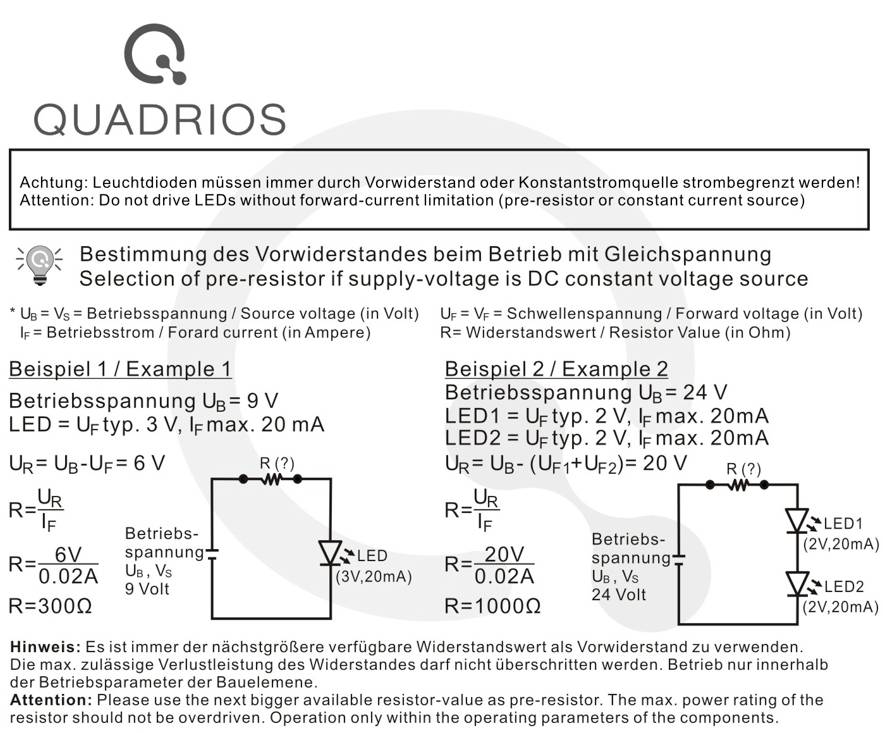

The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that, for example, the LEDs can be operated in their specific parameters because the components are clearly specified. Please note that LEDs must always be current-limited by a series resistor or a constant current source!

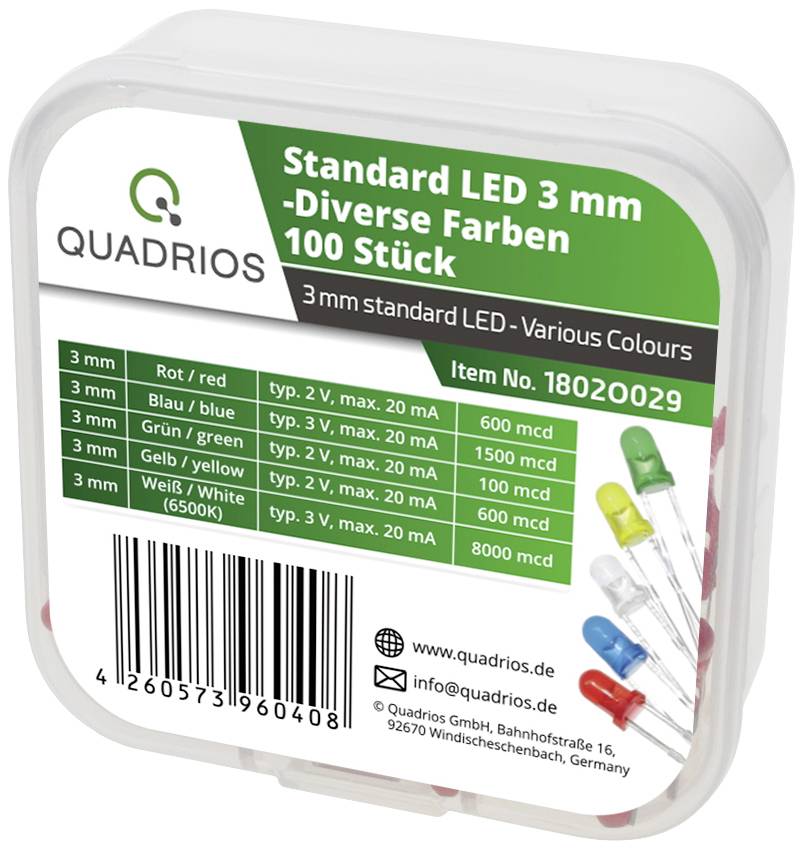

Delivery: Blister pack, 3 mm LEDs (each 20 pieces) in the colors red (IV 600 mcd/ beam angle 30°), blue (IV 1500 mcd/ beam angle 30°), green (IV 100 mcd/ beam angle 30°), yellow (IV 600 mcd/ beam angle 30°), warm-white (IV 9000 mcd/ beam angle 25°).
Information
All standard LED chips require a current-limiting resistor/constant current power source.
Delivery content

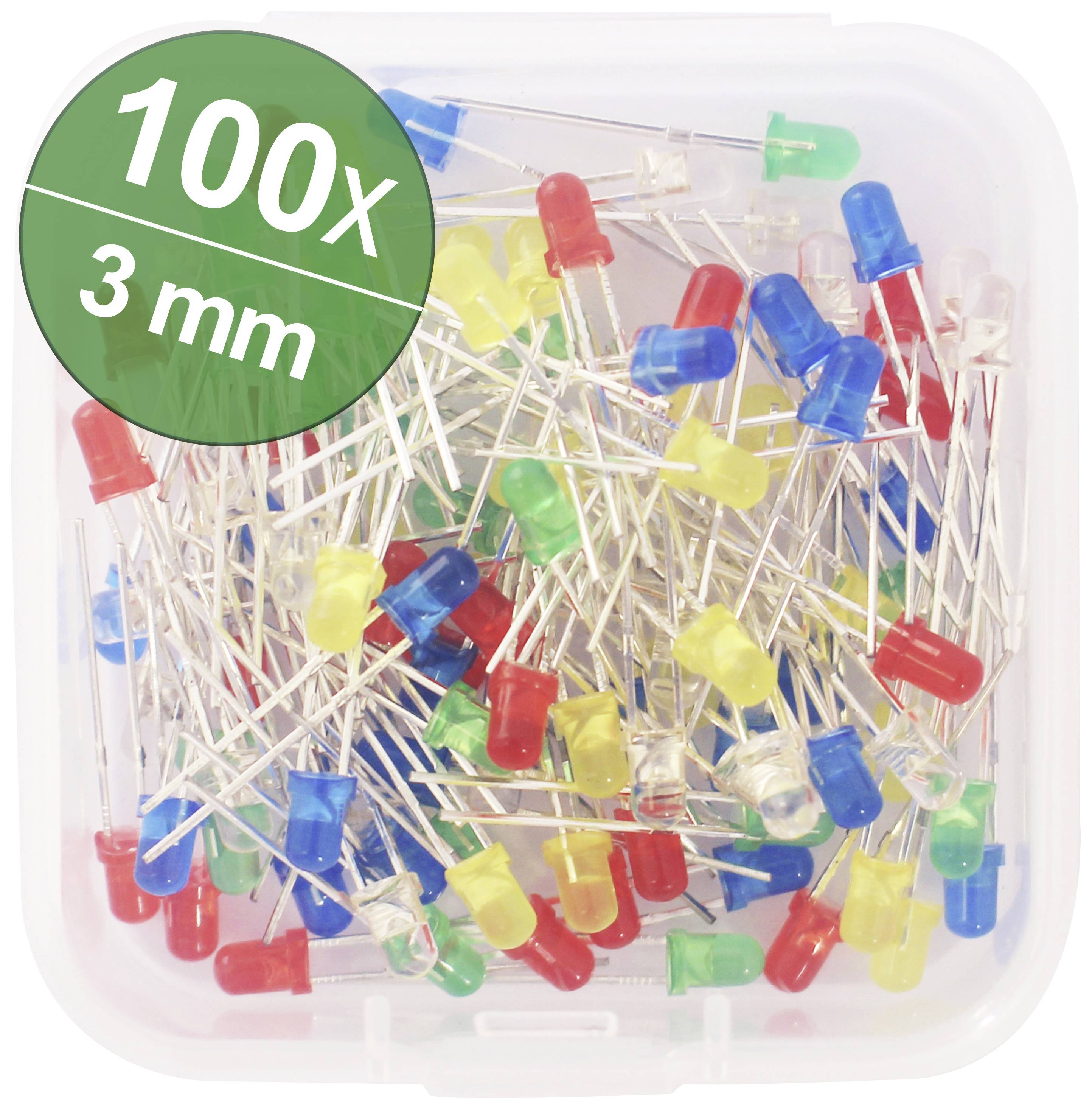

- 100x - 3 mm LEDs (20x per color: Red/green/yellow/blue/warm white)
Keywords
Quadrios, 1802O029, led, smd led, led lighting, light emitting diode
