Description

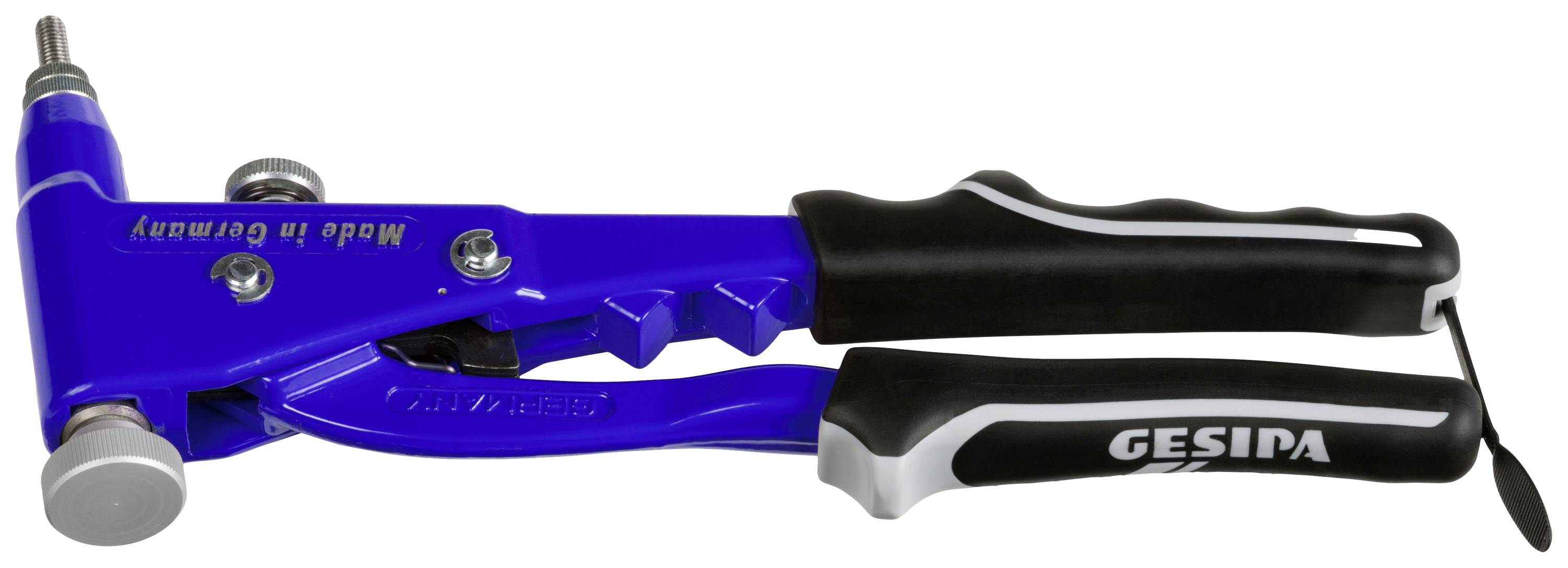

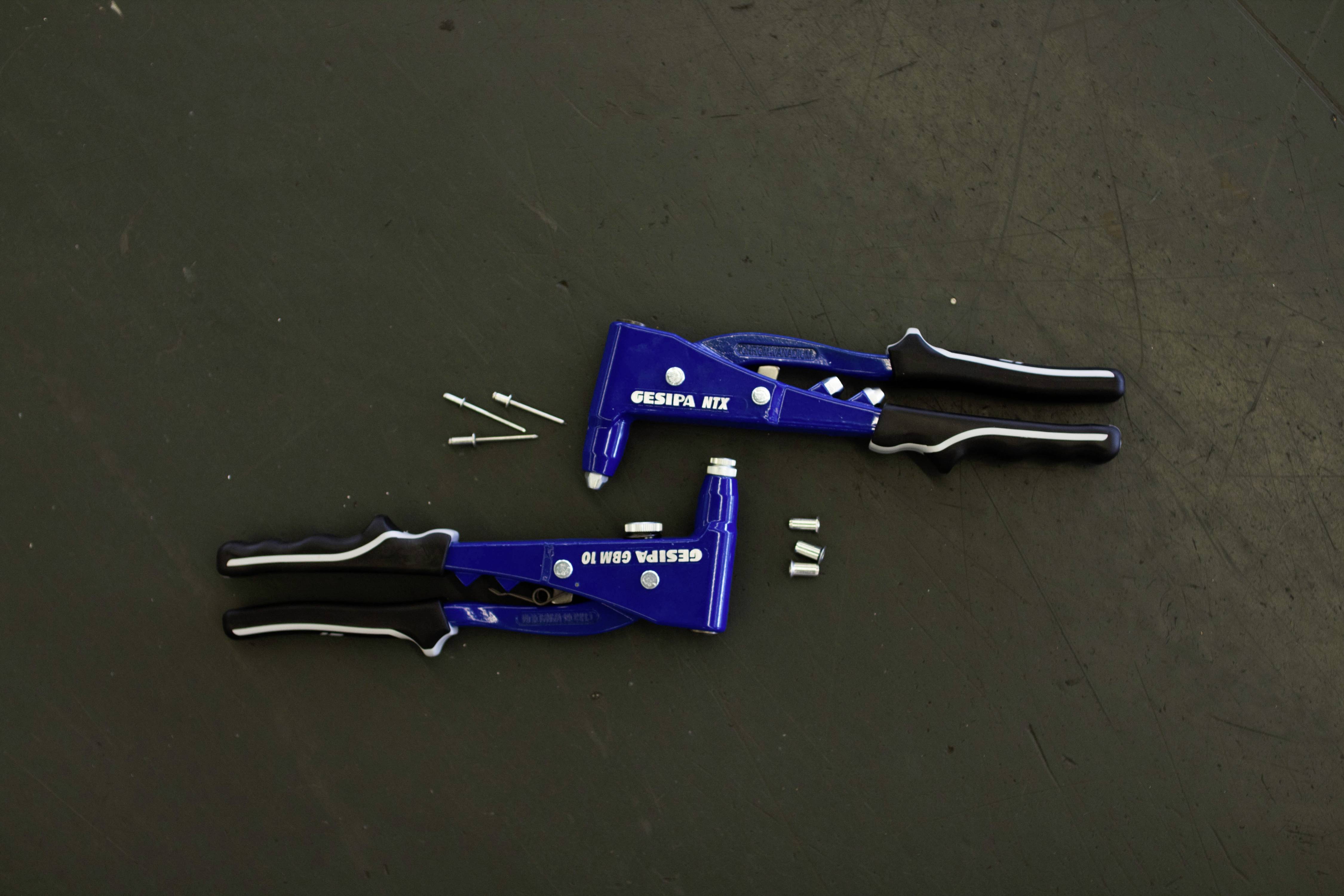

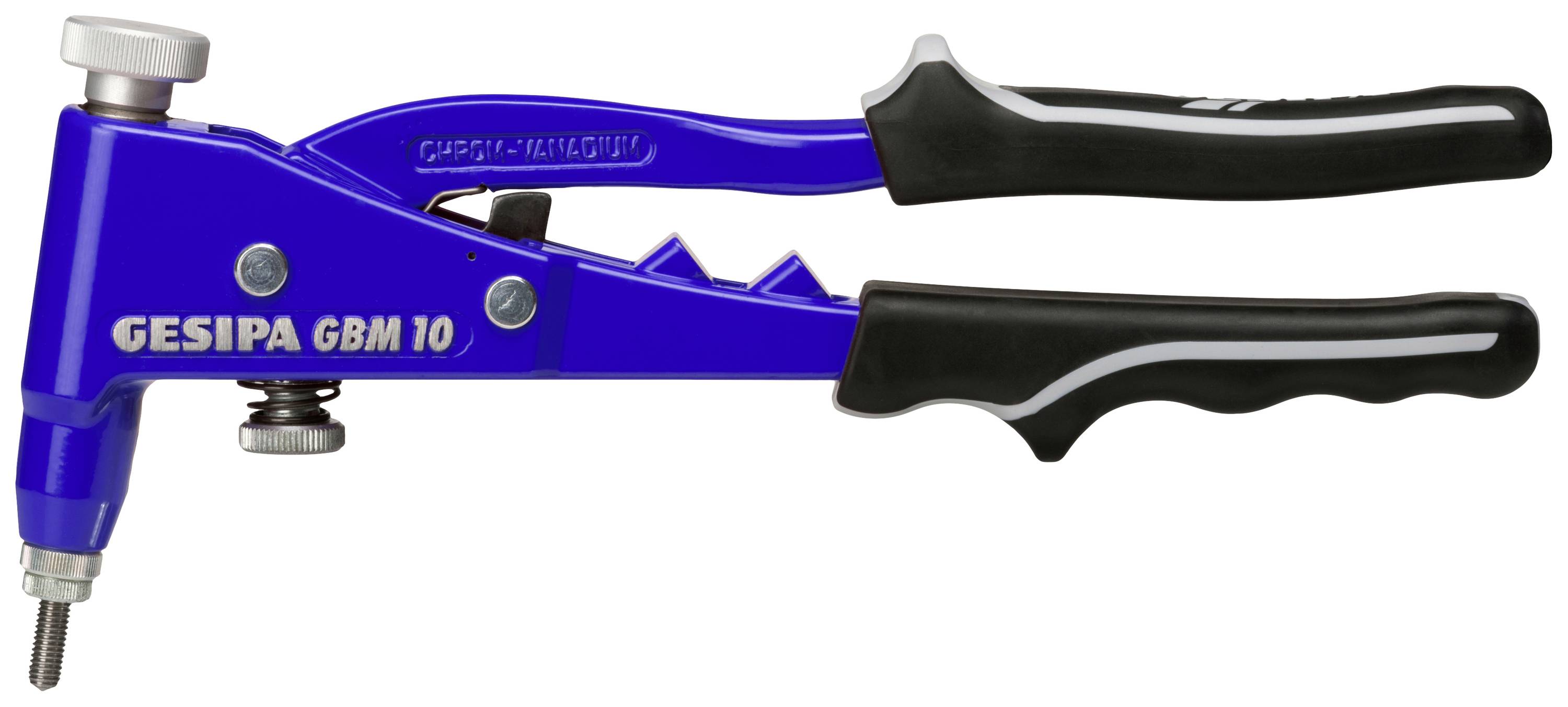

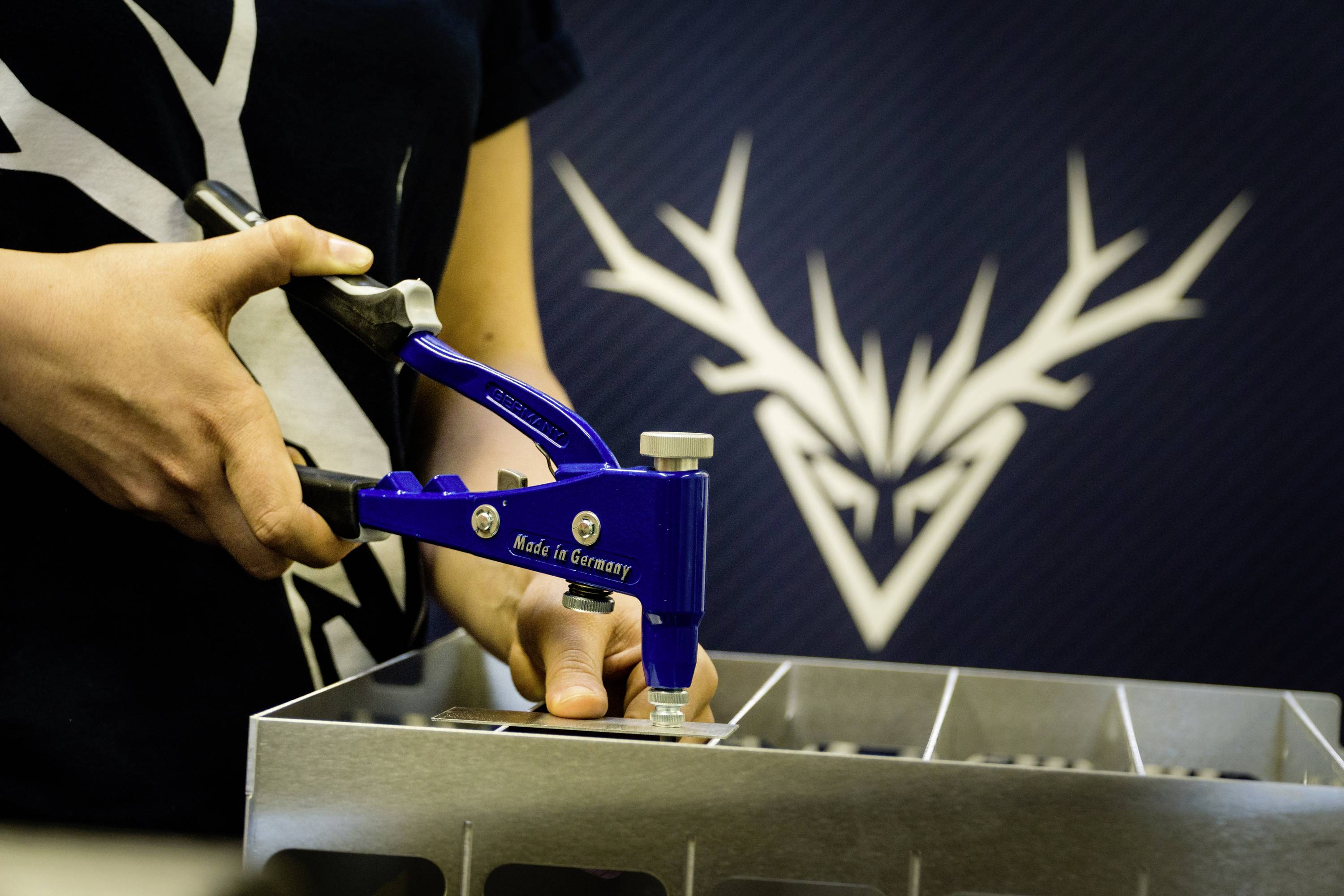

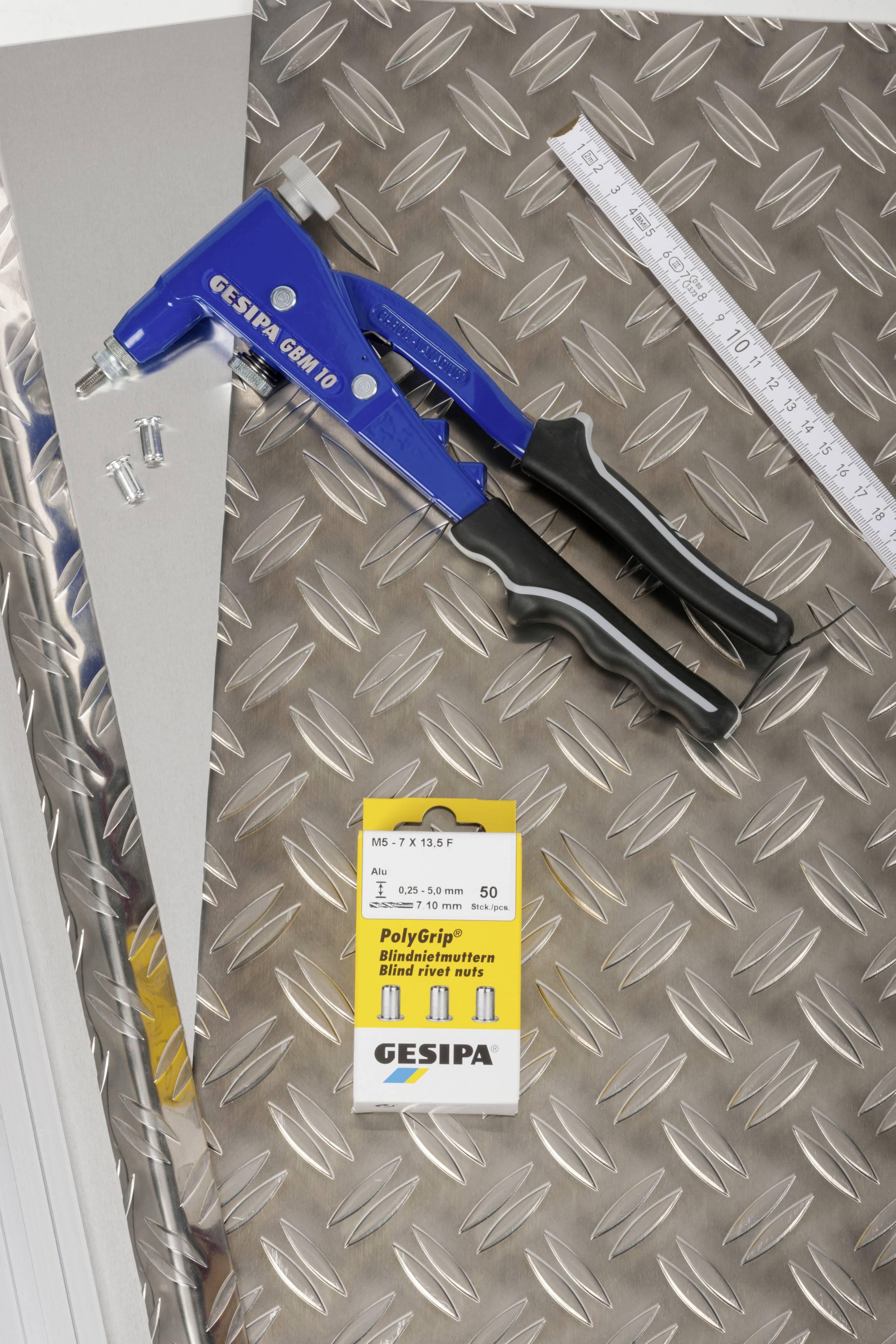

GBM 10 – Manual blind rivet nut setting device
Hand blind rivet nuts setting device with simple height setting
Working range
Sets blind rivet nuts from M3* to M6 aluminum and up to M5 steel, brass and stainless steel.
Technical data
Weight: 600 g
Total length: 260 mm.
Setting stroke 7 mm
equipment
Standard: Threaded pin and mouthpiece (optionally from M4 - M6)
Maintenance instructions and spare parts list
Stroke chart
Design features
- Simple lifting adjustment by knurled nut with stroke scale for safe and complete setting of blind rivet nut
- Threaded pin lock by spring ring for quick change of threaded punches without tools
- With opening spring for easy handling
- Pliers housing made of high-quality die-cast aluminum
- Forged chromium-vanadium steel pliers shaft
- Steel inserts at all high-stress bearing points
- Ergonomic cuffs
