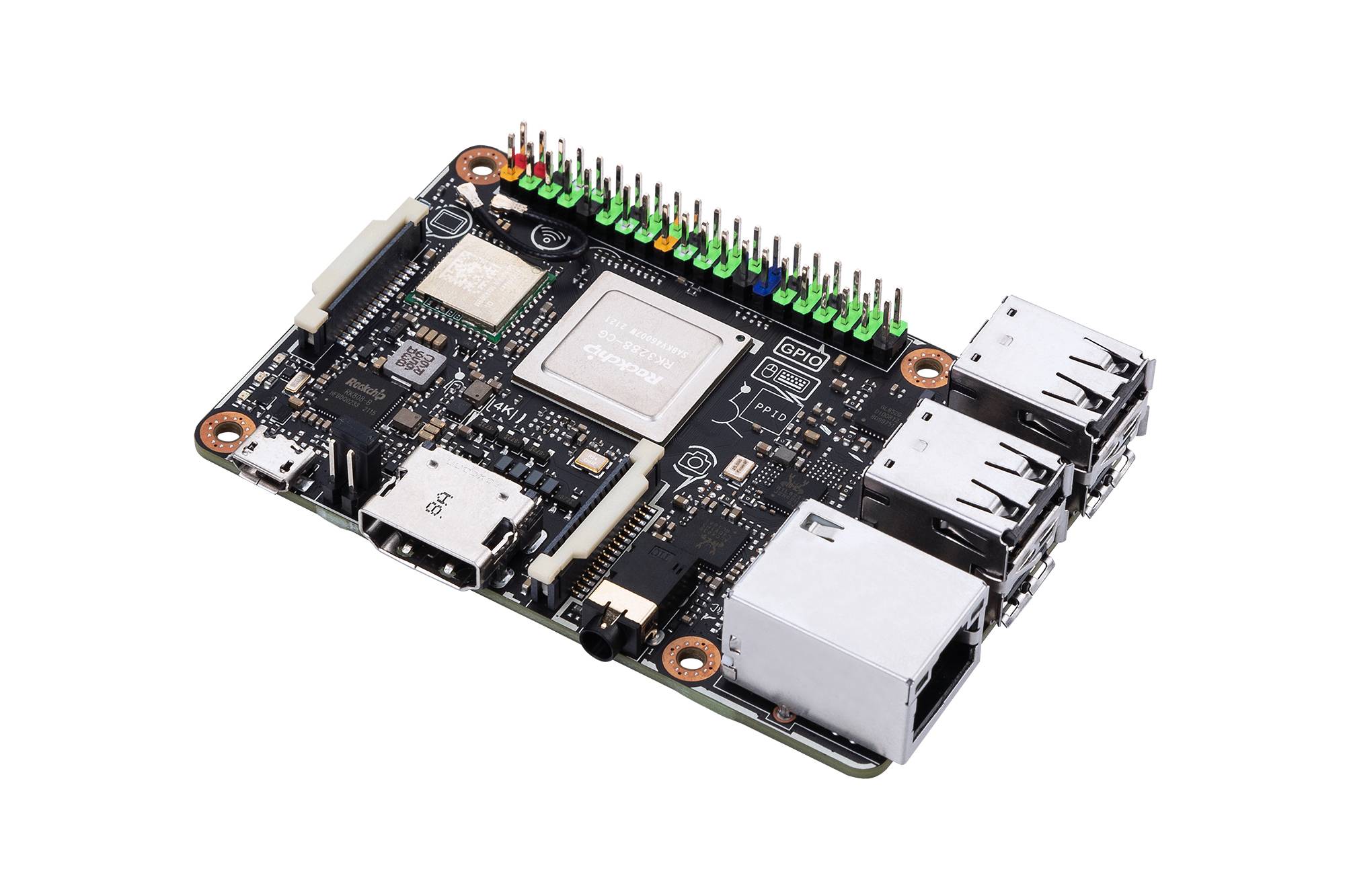

Tinker Board R 2.0
ARM-based SBC with enhanced and improved compatibility
The new and improved Tinker Board S R2.0 is a single-board computer (SBC), which offers higher durability, better stability and an overall improved user experience for handymen and hobbyists everywhere.
First-class performance
With a powerful and modern quad-core ARM-based processor - the RK3288-CG.W - the Tinker Board S R2.0 series offers significantly improved performance compared to other popular SBC boards. The Tinker Board S R2.0 is powered by an ARM-based Mali™ T764 GPU. The Tinker Board S R2.0's GPU and solid-function processors provide a wide range of applications including high-quality media playback, games, computer Vision, gesture recognition, Image stabilization and processing as well as computer-aided photography and more.
* HD & 30 fps UHD video playback on the Tinker Board S R2.0 is currently only possible via the supplied media player. Video players and third-party applications may not provide hardware acceleration, WAS may result in limited or unstable playback performance.
HD audio quality
The Tinker Board S R2.0 series is equipped with an HD codec that supports up to 24-bit/192kHz audio. The built-in audio jack supports an audio output and a microphone input without an expansion module. The audio socket also offers an easy plug-in detection, i.e. it switches the audio output automatically to an audio jack when a loudspeaker or a headset is connected.
Default interface for IOT connectivity
The Tinker Board S R2.0 series has standard connectivity options for manufacturers, including a 40-pin GPIO interface that allows connection to a number of inputs. The Tinker Board S R2.0 series is equipped with a DSI MIPI connection for displays and touch screens. The secondary CSI MIPI connector is used to connect compatible cameras that enable computer Vision and much more.
The Tinker Board S R2.0 series also has Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port provides consistent Ethernet performance. The Tinker Board S's integrated Wi-Fi and Bluetooth controller is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX-antenna connection enables the simple exchange or upgrade of the antenna.
The Tinker Board S R2.0 series also has an HDMI-output in full size. In addition, it has four USB 2.0 ports for extensive peripheral and accessory connections.
Wide range of accessories

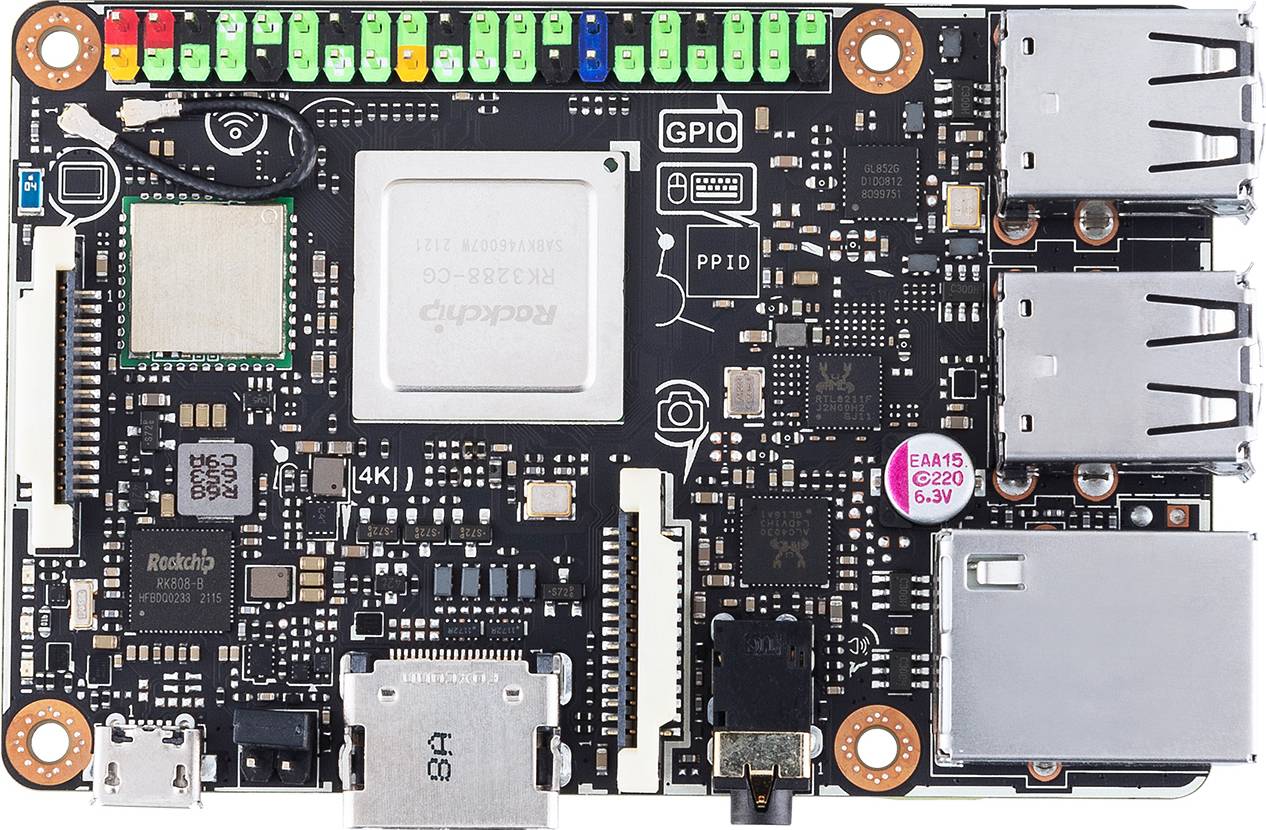

The printed circuit board dimensions and topology of the Tinker Board S R2.0 series comply with the standard SBC boards and enable support of a wide range of enclosures and physical accessories. The circuit board has a screen print with a connection head and position information for better clarity of the connections. The onboard MIPI headers also have color-coded pull tabs.
The Tinker Board S R2.0 series also contains a heat sink that offers a better thermal solution under heavy loads or in hot environments. In addition, an optional metal housing is also available for a solution that is ready for market use. The easy installation and the fan-less aluminum casing help to heat dissipation and ensure that the Tinker Board delivers a first-class performance.
The Tinker Board S R2.0 series offers new possibilities and benefits and supports MIPI Convert Board and PoE Splitter Board to improve comfort and functionality in different scenarios.
