TracoPower TEL 15-4812WIN-HS DC/DC converter 12 V DC 1.3 A 15 W

  • item model number: R049902

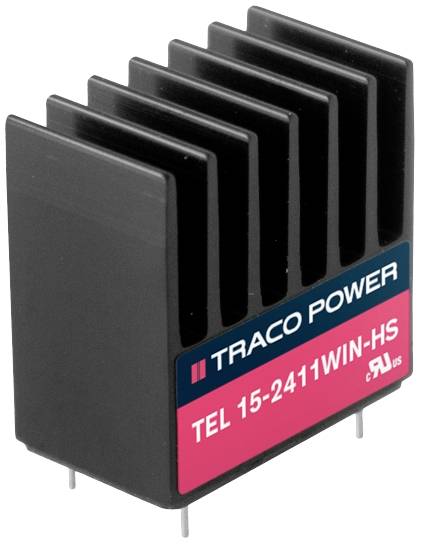

Heat sink with black fin design, marked as 'TRACO POWER TEL 15-2411WIN-HS', serves to dissipate heat from electronic components.
Sold out
TracoPower TEL 15-4812WIN-HS DC/DC converter 12 V DC 1.3 A 15 W
Sold out

Product description

Overview

Output 12 V DC/1.3 A;Power 15 W

Description

The TEL 15WIN-HS series unites the current specifications in terms of reliability and cost efficiency. These DC/DC converters are housed in ultra-compact DIL-16 metal housings. You have an integrated heat sink. Efficiency of up to 87% allows reliable operation with full load at an ambient temperature of up to +70°C. This series is rounded off by a built-in filter according to EN 55032, class A and an ultra-wide 4:1 input range. The TEL 15WIN-HS series offers a low-cost solution for applications in industry, communications and IT areas.

Characteristics

Ultra-compact 15 watt converter in the DIL-16 metallic casing
Ultra-wide 4:1 input
Integrated heat sink
E/A-INSULATION 1500 VDC
Input filter in accordance with EN 55032, class A
Protection against overload and short circuit

Delivery content

  • 10 pieces

Keywords

TracoPower, TEL 15-4812WIN-HS, pcb psu, pcb psus, printed circuit board power supply units
