Foldio Board Starter Kit + Calliope 3.0

Overview

Foldio Starter Kit with CALLIOPE 2.0

Description

Foldio starter set for CALLIOPE mini
The Foldio starter set with CALLIOPE mini enables children to learn early the conscious and critical handling of computer systems and gives them a playful introduction to the world of programming.

In our detailed and illustrated guide around Finn, the Foldio Fuchs and Raja, the Foldio Elk, you will find various exciting stories with associated missions that will gradually introduce children to elementary concepts of computer science. The children can learn and deepen the learning content independently and in a playful way.

This box helps children:
- How the digital world can merge with the physical world
- That they themselves can participate in the design of the digital world
- The basics of the CALLIOPE mini computer board
- A first step into programming
- How programming languages are structured (EVA principle)

Our Foldio starter set is the perfect introduction to the CALLIOPE mini function in a playful and motivating way.

With 6 bits. CALLIOPE 3.0 mini icon
The CALLIOPE mini is a micro-controller, which is used as an educational medium for children starting from the third class, generally under the supervision of adults.
The CALLIOPE mini shows that all can code and that too with a lot of fun. It's easy to get started, so that children, teachers and parents can get started without any prior knowledge. From the first self-programmed flashing through self-propelled robots to wirelessly communicating with CALLIOPE mini-warms: With a few clicks, you can create your own programs for the microprocessor on a connected computer, which bring the CALLIOPE mini to life.

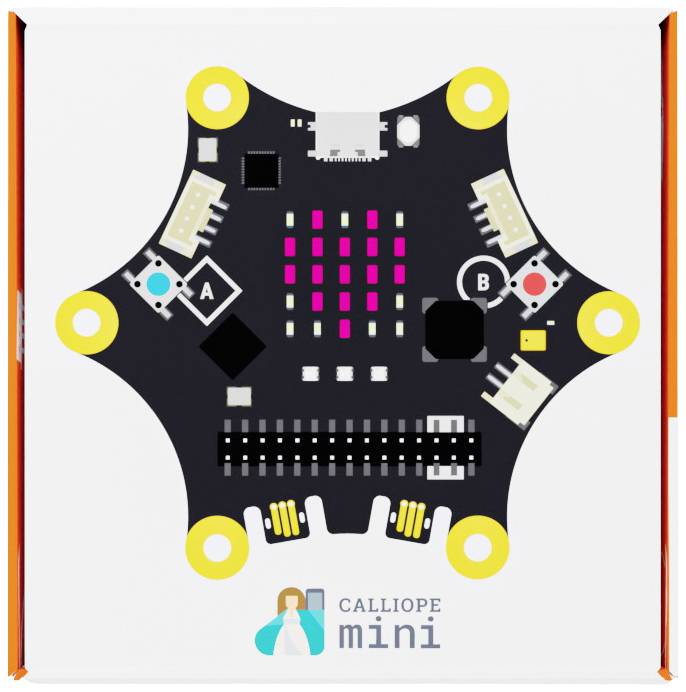

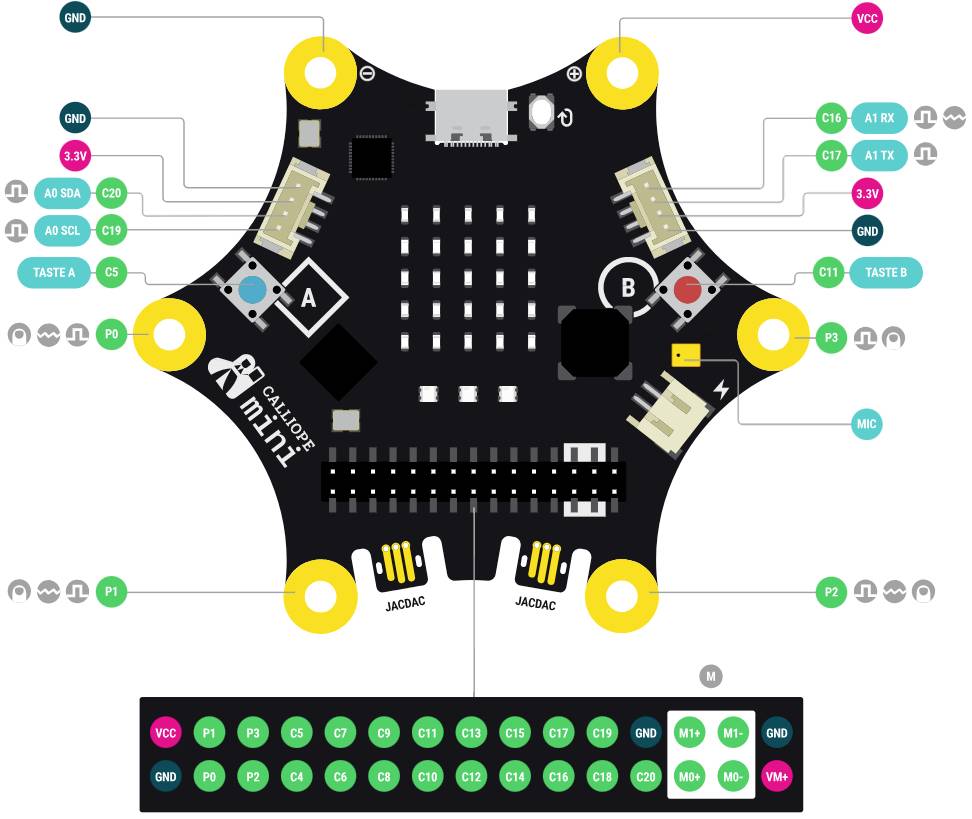

Characteristics

Nordic nRF52833 Bluetooth 5.4 SoC, Bluetooth Low Energy, Bluetooth mesh
64 MHz Arm Cortex-M4 processor, 512 KB Flash, 128 KB RAM
5x5 LED matrix
3x RGB LED (neoprene)
USB-C (programming and power supply)
Acceleration sensor, magnetometer
DC motor driver (2 motors can be controlled independently)
Piezo speaker
MEMS microphone
2 programmable buttons
4 banana plug pins

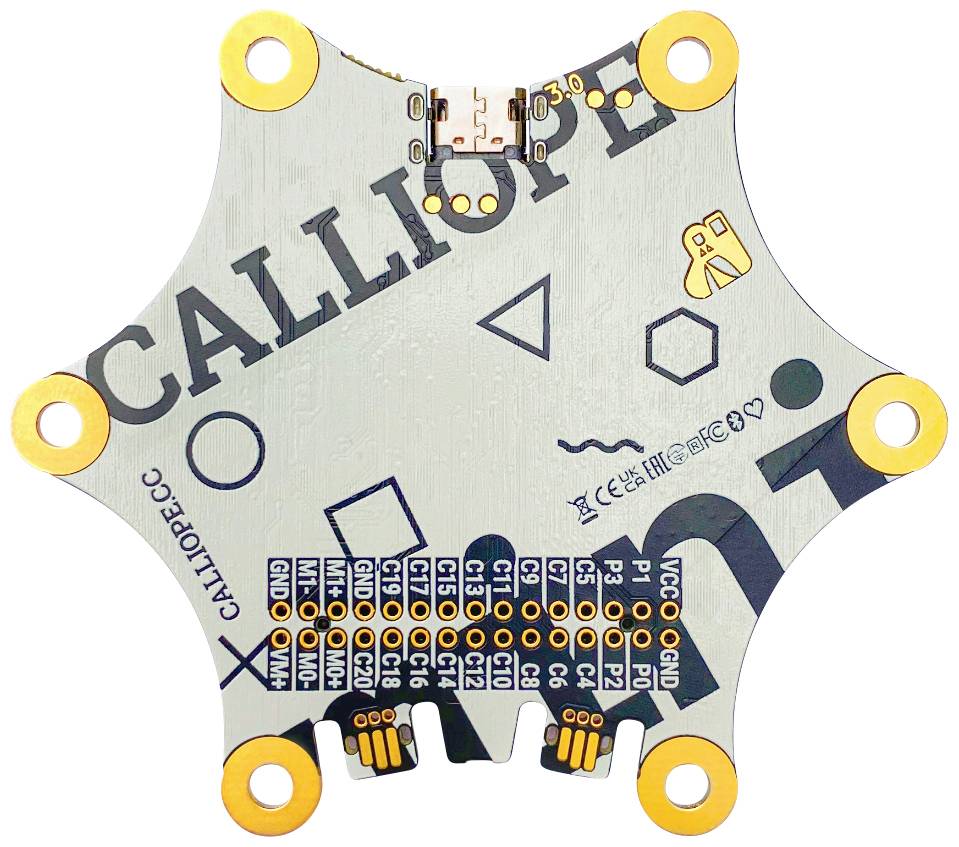

2x15 double pin strip (2.54 pitch)
2x Grove connectors (I2C + Serial/analogue)
2x JacDac connectors
Touch logo (on the back)
Battery connector (3.3V)

Information

The CALLIOPE mini is an instructional material, which is to be used mainly under the supervision of adults in the school enterprise. The CALLIOPE mini was manufactured in accordance with the product safety standard EN60950-1 and/or EN62368-1 tested positive.

Please be sure to observe the following:
The USB connector may be connected to only one computer. Please disconnect from the computer when not in use. The CALLIOPE mini should never be operated simultaneously with USB and battery! If the mini is connected to the computer, the battery holder must not be connected to the mini, or the battery holder must be switched off (switch in "off" position)! In battery operation, the CALLIOPE mini may only be operated with batteries of type AAA or LR03 (battery compartment). The voltage applied to the CALLIOPE mini must never exceed 3.3 volts.
When not in use, always switch off the battery holder ("off"); if you use battery holders without on/off switch, please remove the batteries and disconnect the battery holder from the mini. The external engine support may only be operated with a 9V battery (or 6LR61).
Operation with accumulators is not permitted. During operation, touch only the outer ends and the buttons. Small parts must be kept away from small children.

Notes on the connection of external electronic components:
- 5 mA maximum per connection
- 15 mA maximum load (all connections together)
- 100 mA maximum for connection to edge contacts (+/-), supply of max. 3.3V
- When connecting a LED, please use a resistance of at least 220Ω.
- If the CALLIOPE mini gets hot, disconnect from the power immediately and stop using. If you have any problems with the CALLIOPE mini, please contact us, e.g. at: service@calliope.cc
- Further important information, certification data and contact addresses: Calliope.cc/security

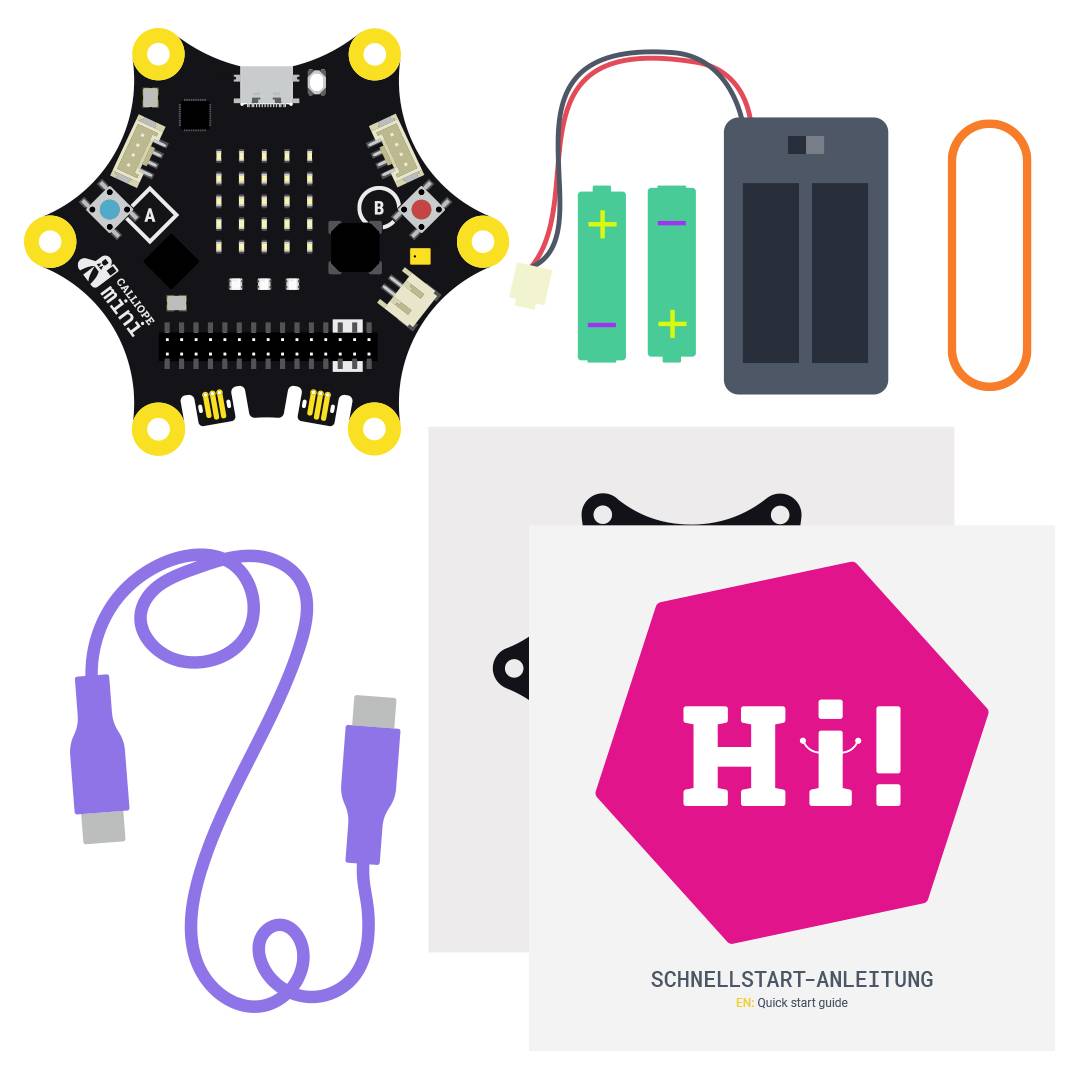

Delivery content

• CALLIOPE mini 3.0
• USB-C cable
• 2x AAA alkaline batteries
• User manual (German/English)
• Rubberband
• Sticker.

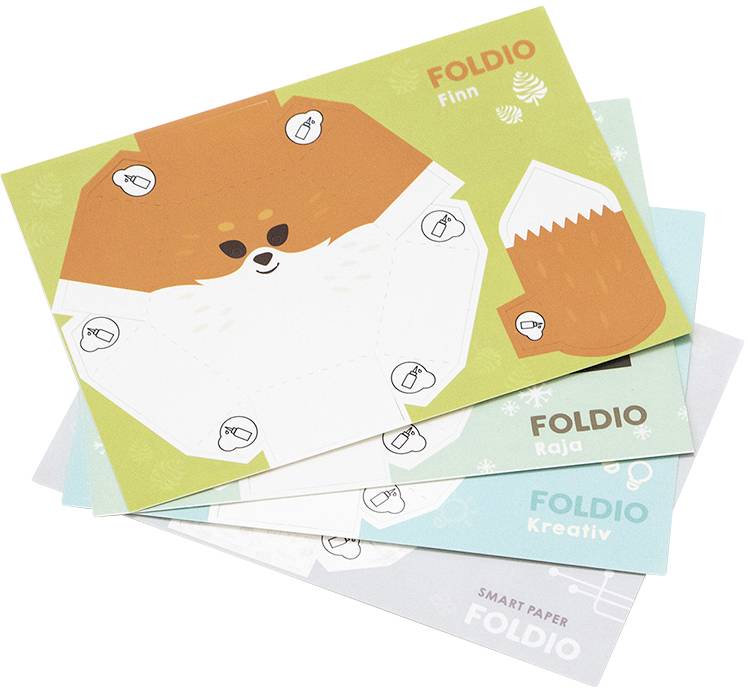

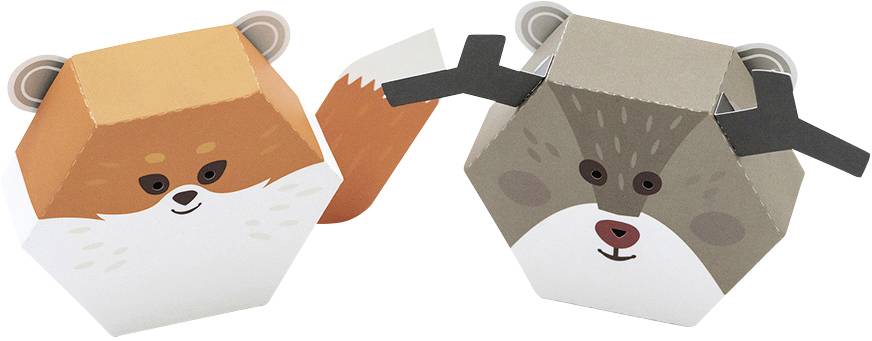

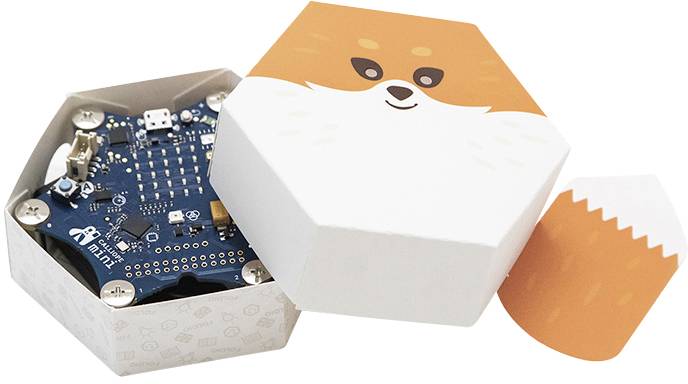

• Foldio Fuchs "Finn" as an interactive folding sheet
• Foldio Moose "Raja" as an interactive folding sheet
• Foldio folding sheet to create your own
• 6 Adapter
• 6 magnets
• Detailed instructions for Finn
• Letter to parents

Keywords

Foldio, Starter Kit + Calliope 3.0, arduino, raspberry pi, raspberry, beaglebone

Other notes

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
