Finder 6M.TA.9.024.1200 6M.TA.9.024.1200 Energy transducer 1 pc(s)

  • item model number: Q521013

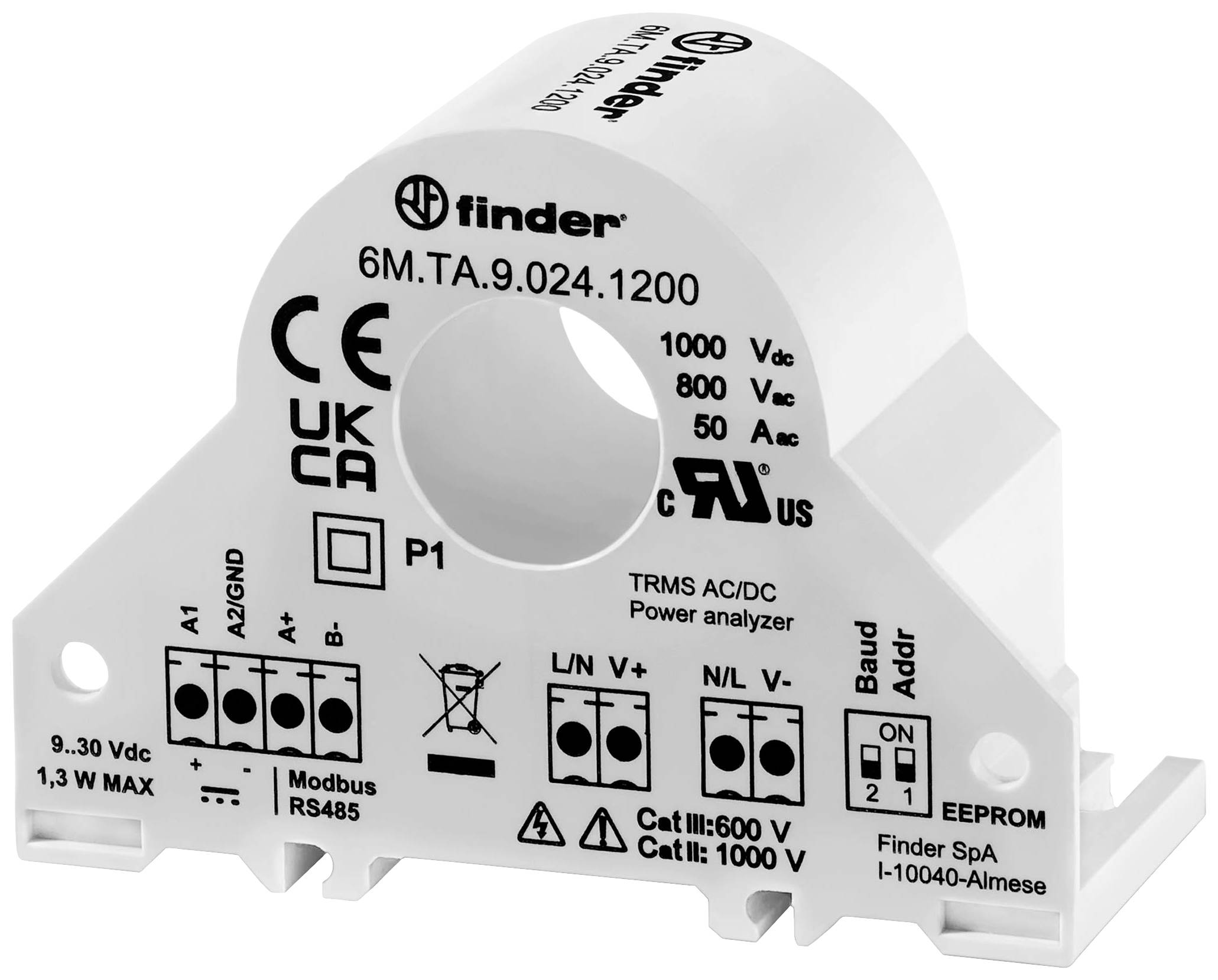

Finder current transformer with CE and UKCA markings, connection terminals and print '6M.TA.9.024.1200', suitable for 1000 VDC. Image is similar
113,38 €
VAT included
plus
Delivery time: 1-2 days
in stock
30 days free return shipment
Finder 6M.TA.9.024.1200 6M.TA.9.024.1200 Energy transducer 1 pc(s)
113,38 €
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : 112,24 € 1,0 % savings
from 5 piece : 111,11 € 2,0 % savings
from 10 piece : 109,97 € 3,0 % savings

Product description

Overview

Input current (current) 50 A

Description

Single-phase energy transducer for TRMS AC and DC measurements 50A - 800 V AC / 1000 V DC. With Modbus RS485 communications interface. Measurement of the instantaneous values of: V (RMS), A (RMS), PF, kW, kVA, kvar, Hz, THD (I), Vpk, Ipk, Cosφ. Bi-directional energy measurement: KWh (accuracy class: 0.5% F.s.) Available measurement registers: MSW first, LSW first or hundredths. Completely configurable via the Modbus RS485 interface. Complies with EN 61010-1/2010. Attachment to 35 mm supporting rail (mounting rail adapter included in accessories).

Keywords

Finder, 6M.TA.9.024.1200, current converter, rogowksi coil, ac converter
