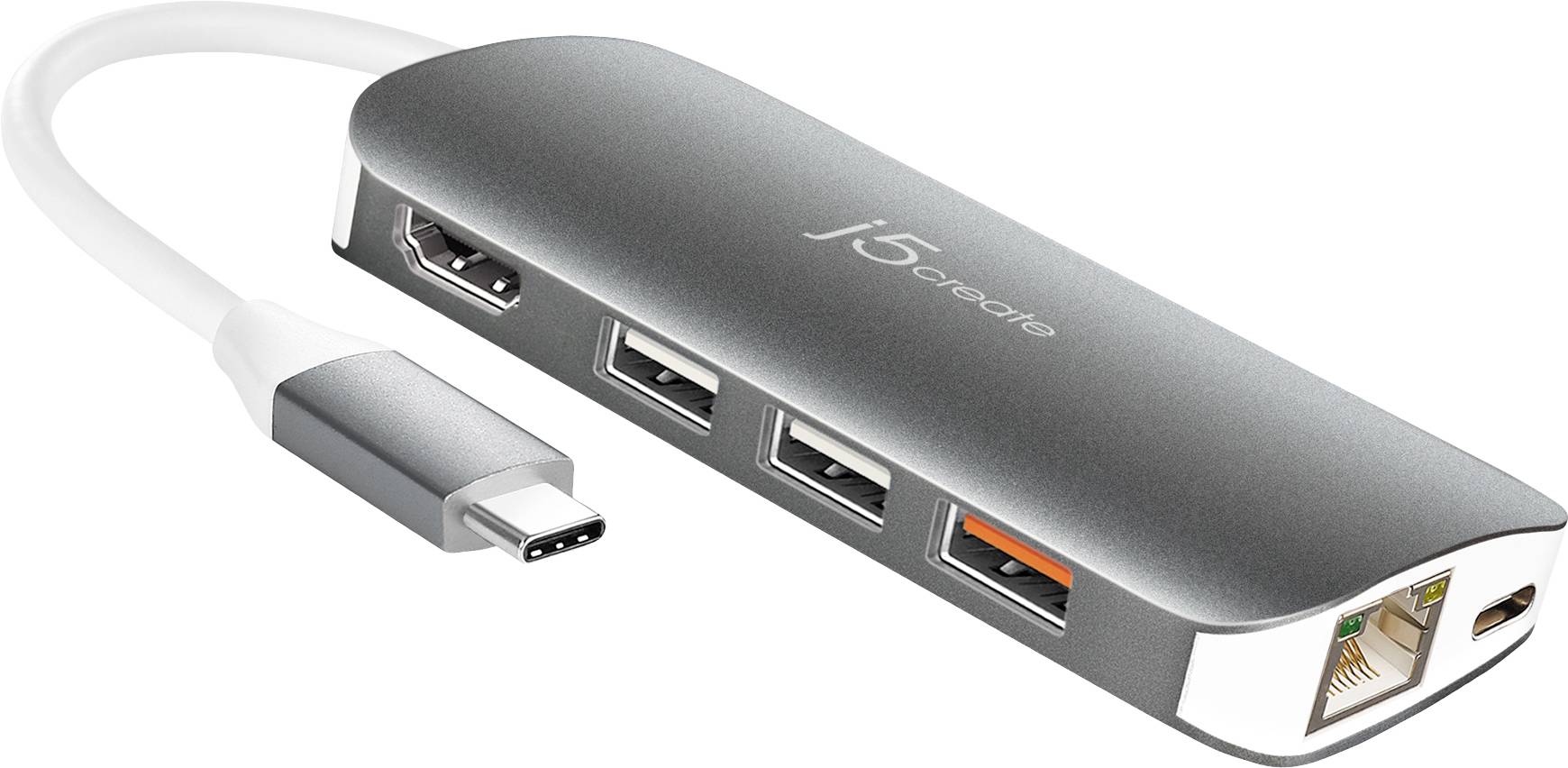

j5create USB-C® docking station JCD383-N Compatible with (brand): Universal

Overview

Connection A (or inputs): USB-C®

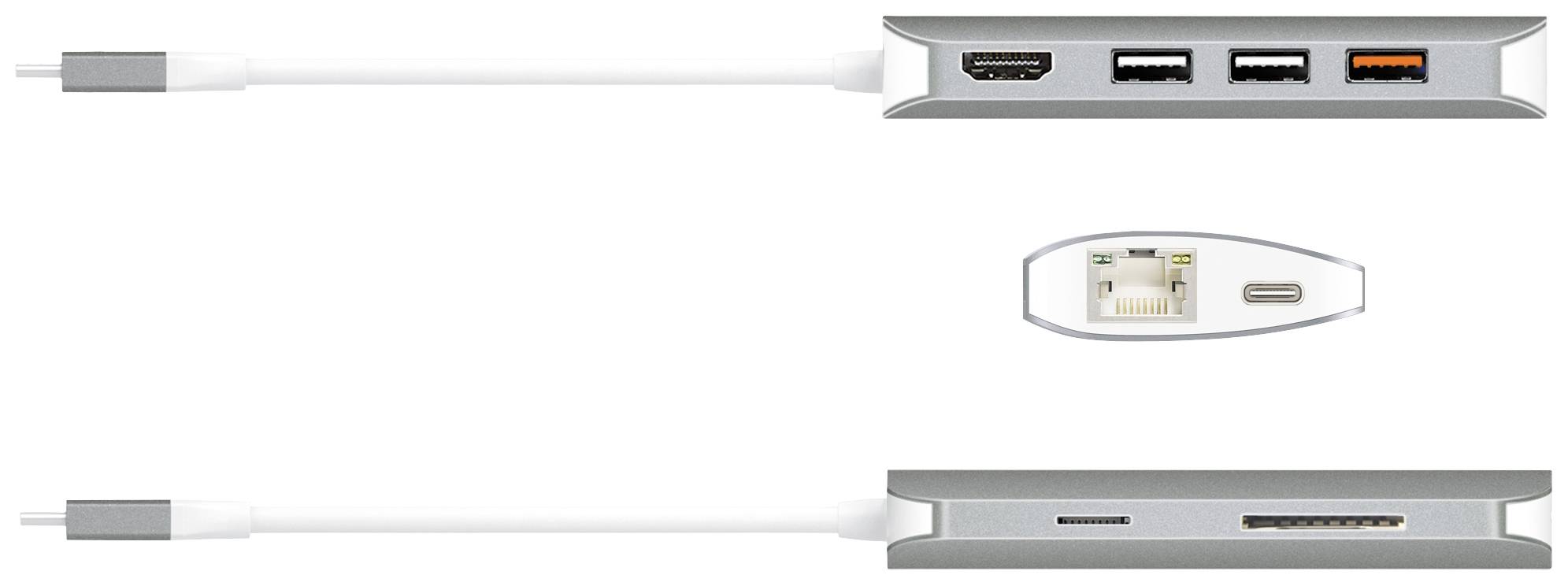

Connecton B (or outputs): USB 3.2 1st Gen (USB 3.0), HDMI®, RJ45, Card reader

Description

This multi-adapter in the pocket format offers all the connections that you need for maximum productivity. It has 9 functions in 1 slim adapters. It allows you to connect your laptop to a 4K monitor. It is also connected to an Ultrawide monitor. The USB-C Multi Adapter™ offers you 2 USB Type A ports for additional peripherals and 1 USB Type A connector™ with BC 1.2 for quick charging of your mobile device.

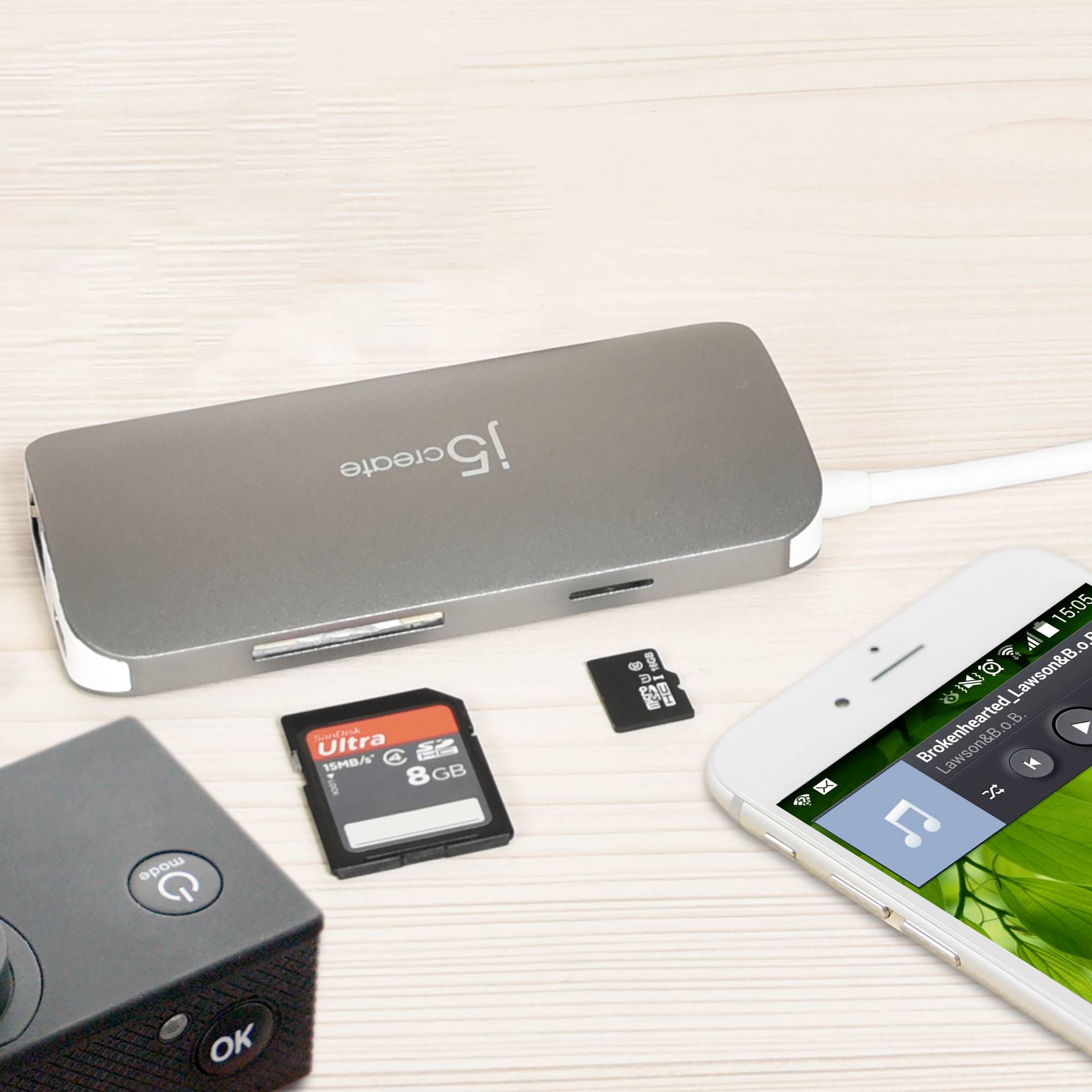

With USB-C Power Delivery 3.0, the adapter offers both upstream and downstream charging when connected to a USB-C power supply®. It also provides direct access to a wired network and your SD and microSD memory cards™

The JCD383 is perfect for small work areas, home offices and while traveling!

Characteristics

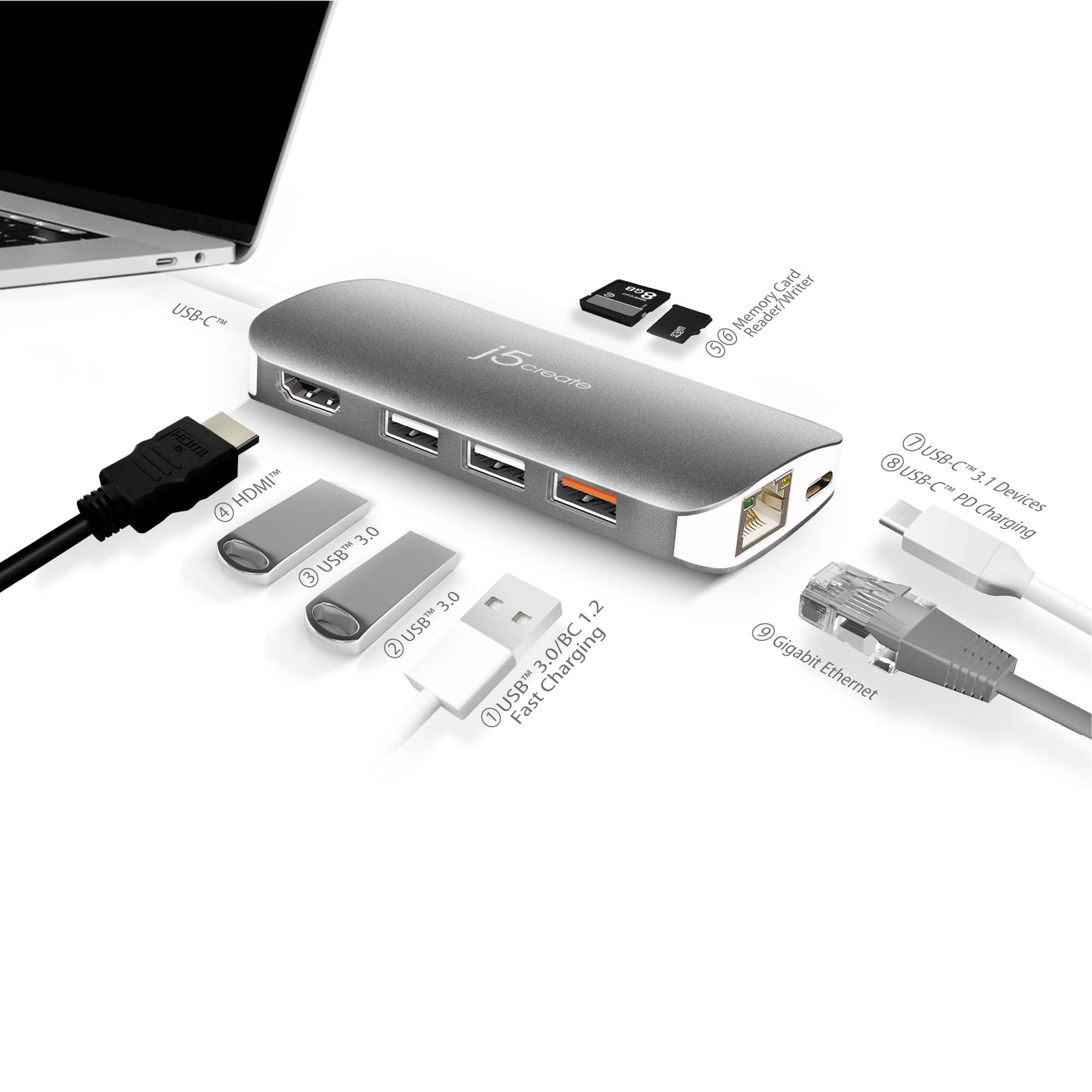

8 ports with 9 functions

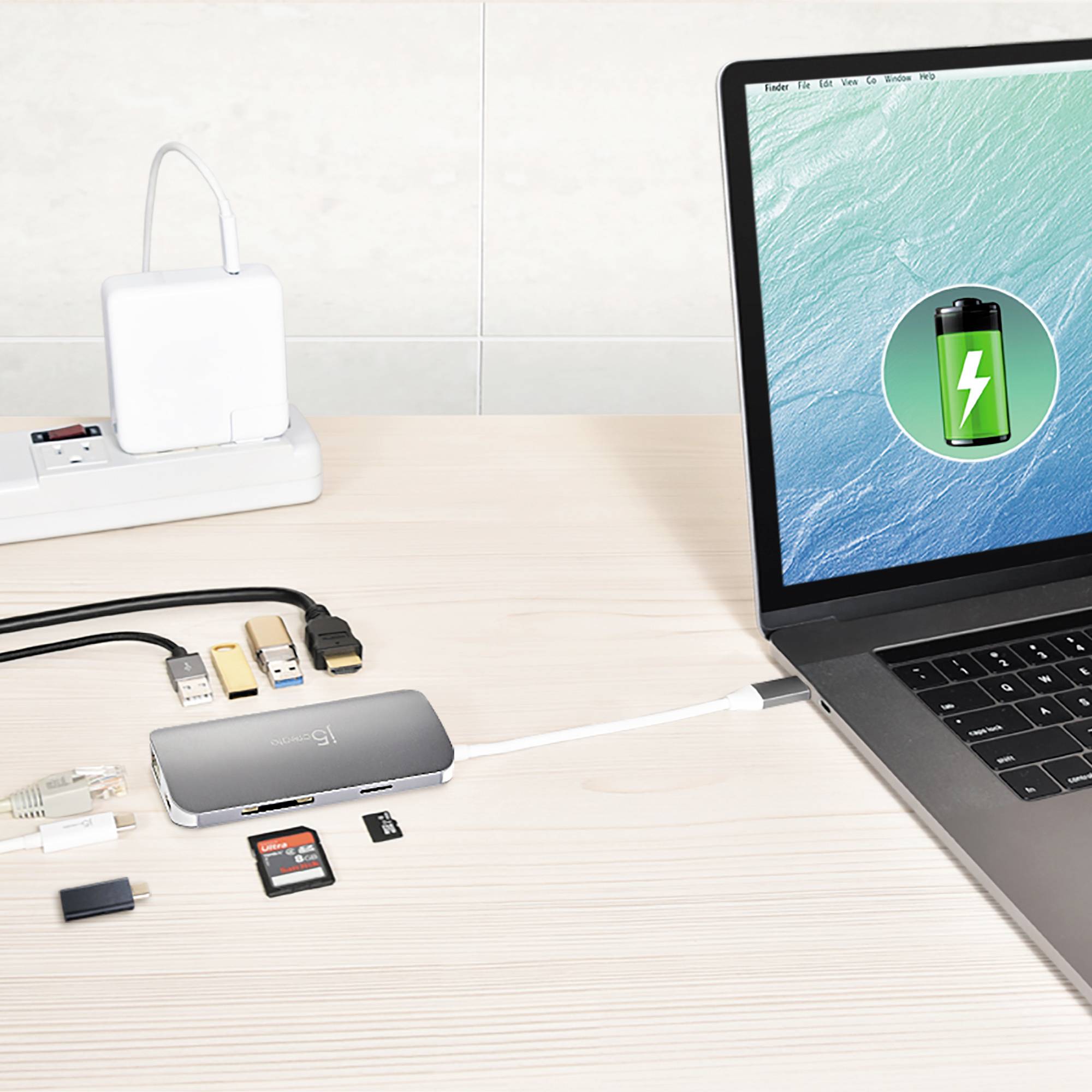

USB-C™ Power Delivery 3.0 provides charging power for the connected devices as well as data transfer

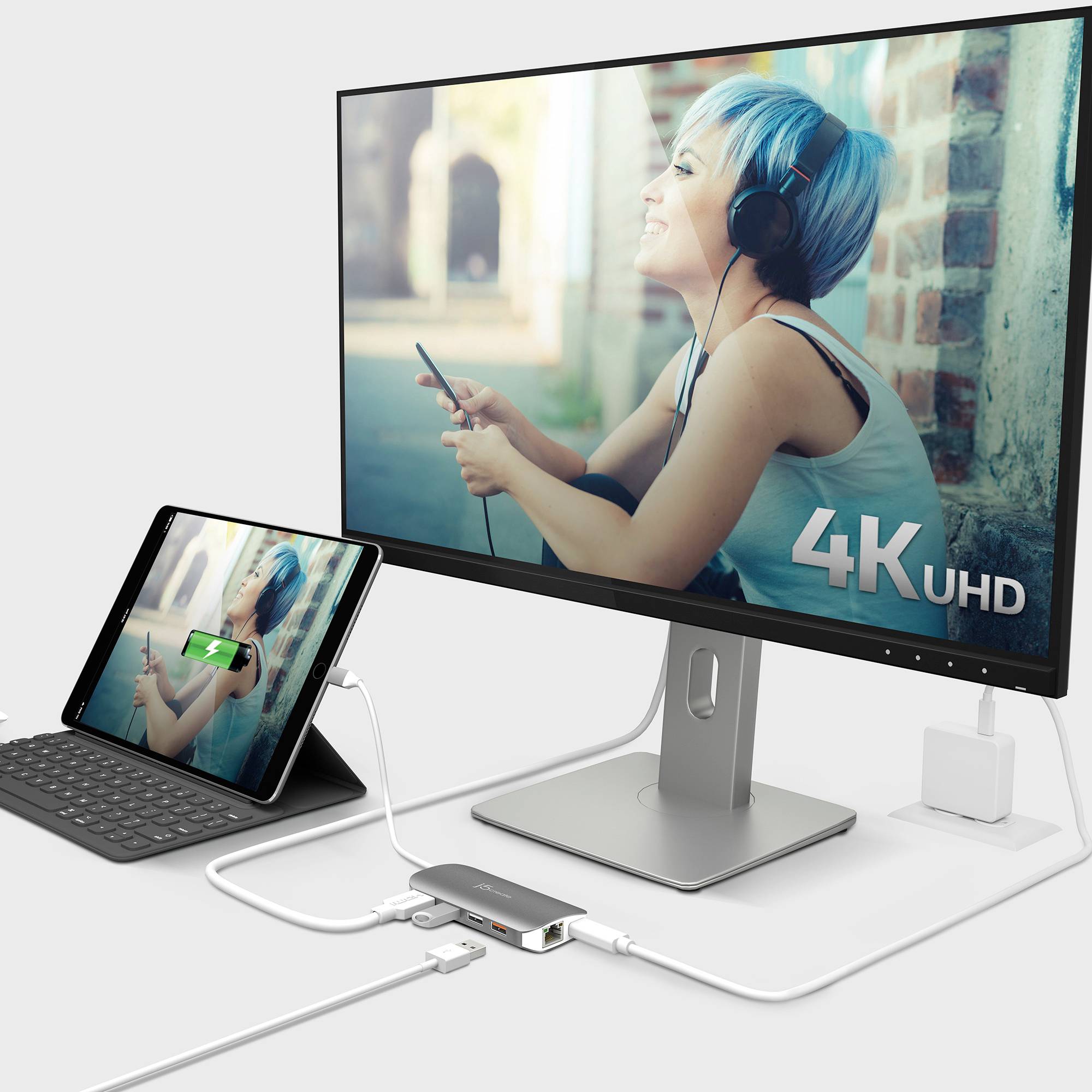

Easily add a 4K HDMI video output™
Reliable network connectivity via the Gigabit Ethernet port
2 - USB™ Type A with BC 1.2 for quick charging of your mobile devices

Information

- The adapter can be connected to a USB-C™ port that does not support Power delivery, but no power is routed through the connected device
- A 4K-enabled display is required to achieve the resolution of 3840 x 2160.
- When using high-performance USB™ devices, connect a USB-C™ power adapter to the Power delivery port for maximum performance. When using your USB-C™ power adapter, the multi-adapter powers the adapter (with attached peripherals) and your laptop
- To ensure full copying of files, do not disconnect the USB-C™ power adapter during the copy process. For maximum performance, use a computer and a USB-C™ power adapter with PD 3.0.
- The device warms up to a moderate amount while large amounts of data are being transferred or a USB-C™ power supply is connected

Delivery content

• 1x JCD383 USB-C 9-in-1 multi adapter
• 1x quick instructions

Requirements

Available USB-C™ port that supports DisplayPort™ Alt-Mode and USB™ Power Delivery 2.0 or 3.0 + For more information about your device, contact the manufacturer of your hardware.
