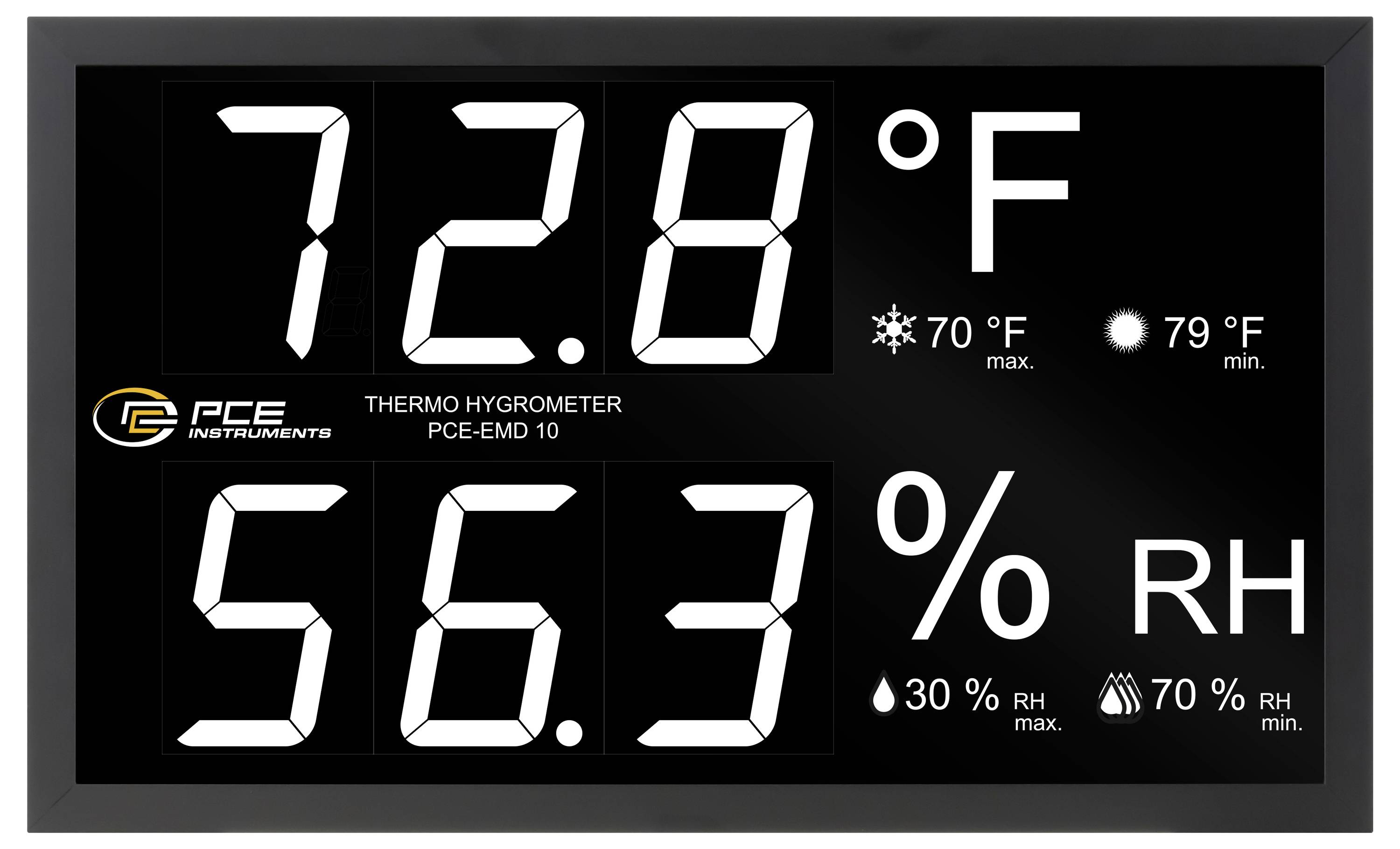

PCE Instruments PCE-EMD 10 PCE-EMD 10 Panel meter 0 up to 99.9 RH

Overview

Digit height of 100 mmMeasuring ranges: 32.0 - 122.0 °FWall mountingConnection of up to four external sensorsAnalogueue 4 - 20 mA input signal

Description

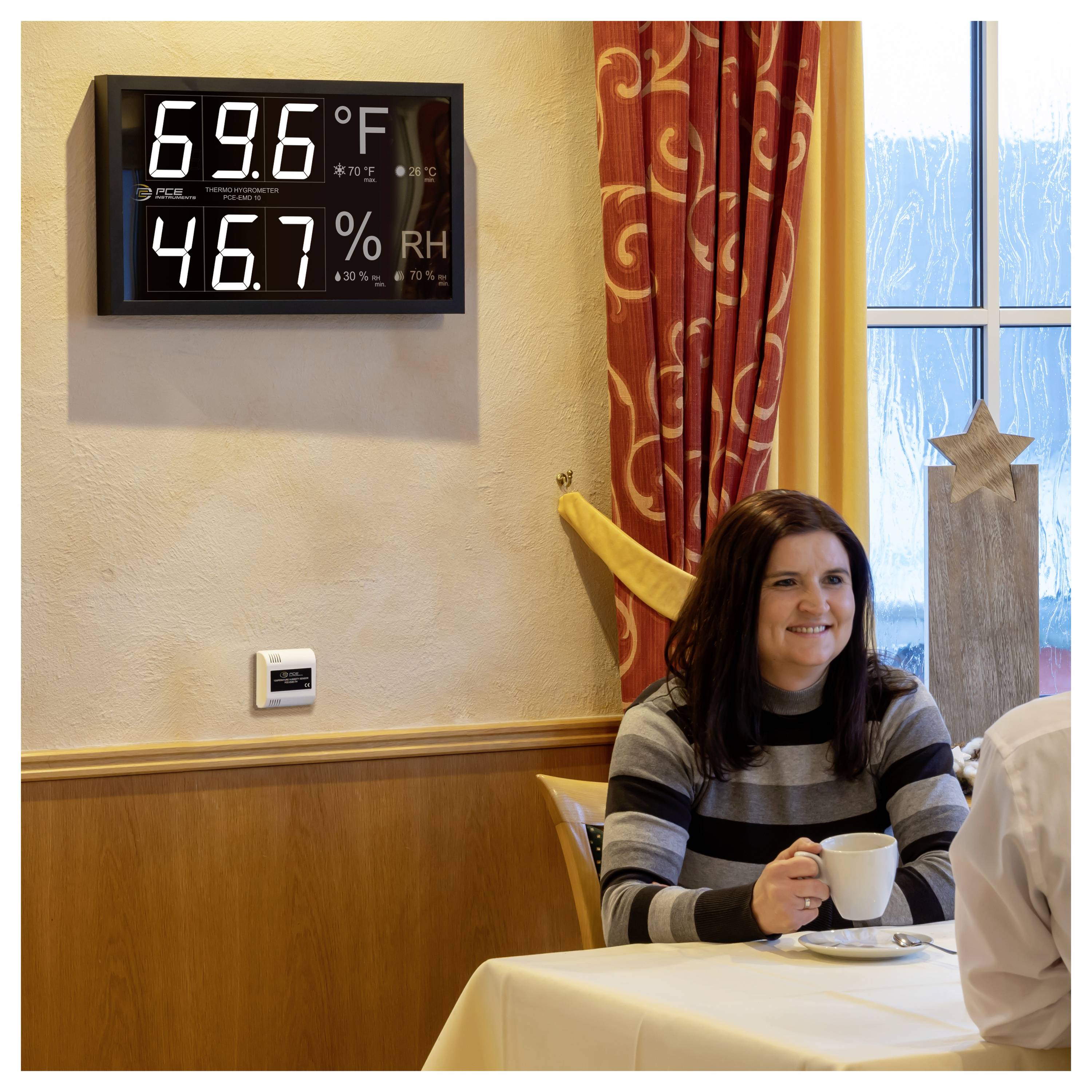

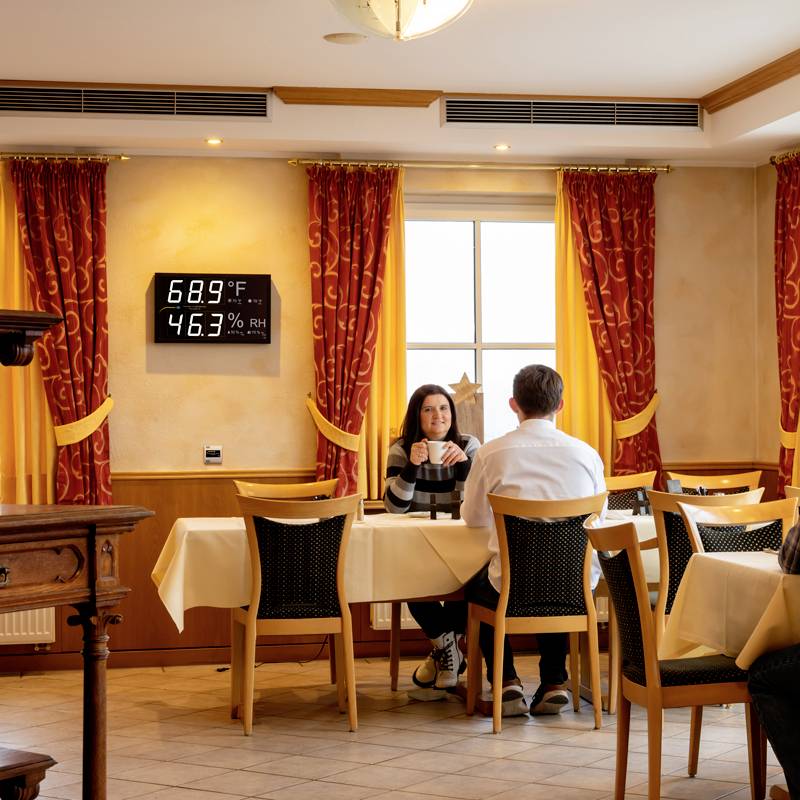

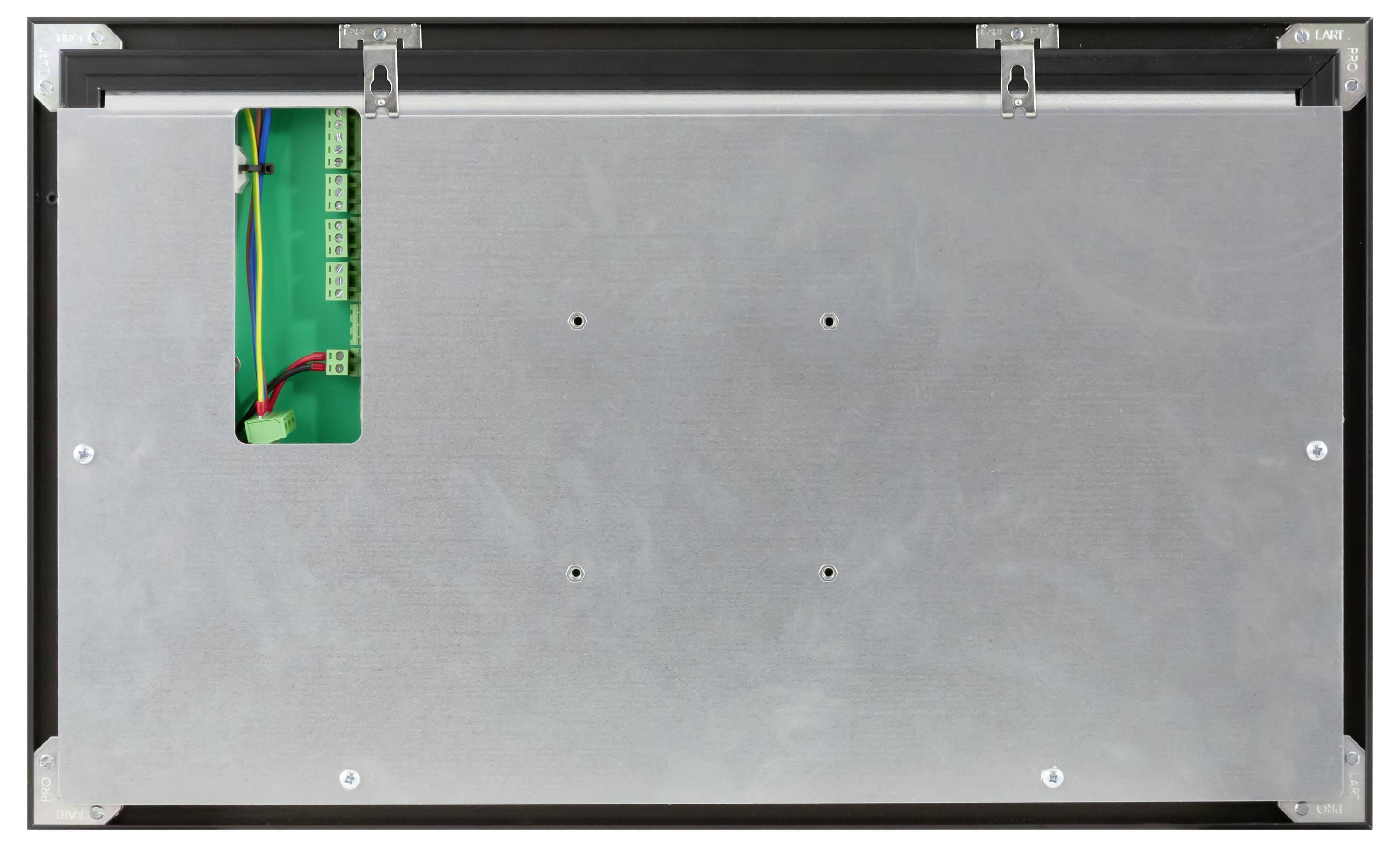

The built-in measuring instrument can be connected to up to four external temperature and humidity modules. The temperature measuring range for the sensors of the built-in measuring instrument is 32.0 - 122.0 °F and the humidity measuring range is 0.0 - 99.9 % RH The power is supplied by the built-in measuring instrument itself via a mains connection of 110 - 220 V AC. The integrated sensor supply can supply the connected sensors with 12 or 24 V DC in the built-in measuring instrument. As soon as the sensors are connected, they are detected automatically by the measuring instrument. The communication between the sensor modules and the measuring instrument takes place via an analogueue 4 - 20 mA signal. If several sensors are connected, the average measurement value of all sensors is displayed on the measuring instrument. This means that the built-in measuring instrument is used, for example, in event halls, restaurants or in public buildings to monitor the ambient conditions. The installation of the measuring instrument as well as the sensor module is done on a wall. If required, the measuring instrument can be mounted on a monitor holder with the mounting dimensions 75 x 75 mm. This allows ideal alignment of the measuring instrument. Optionally, the built-in measuring instrument can be equipped with an ISO calibration certificate.

Delivery content

• 1x panel-mounted measuring instrument PCE-EMD 10
• 2x wall mounting bracket
• 1x SENSOR MODULE PCE-EMD-TH
• 1x user manual

Keywords

04250348728456, PCE Instruments, PCE-EMD 10, logger, data logger
