testo 0563 0002 Pressure gauge

Overview

Compact professional measuring instruments from the Testo Smart Probes series for use with smartphones/tablets - application-specific menus: Target superheating, superheating and subcooling - All required measuring instruments for refrigeration applications in one set - Quick and easy installation at the pressure connection or temperature measuring point - Low refrigerant loss thanks to tubeless application - Measurement data analysis and dispatch via testo Smart Probes App

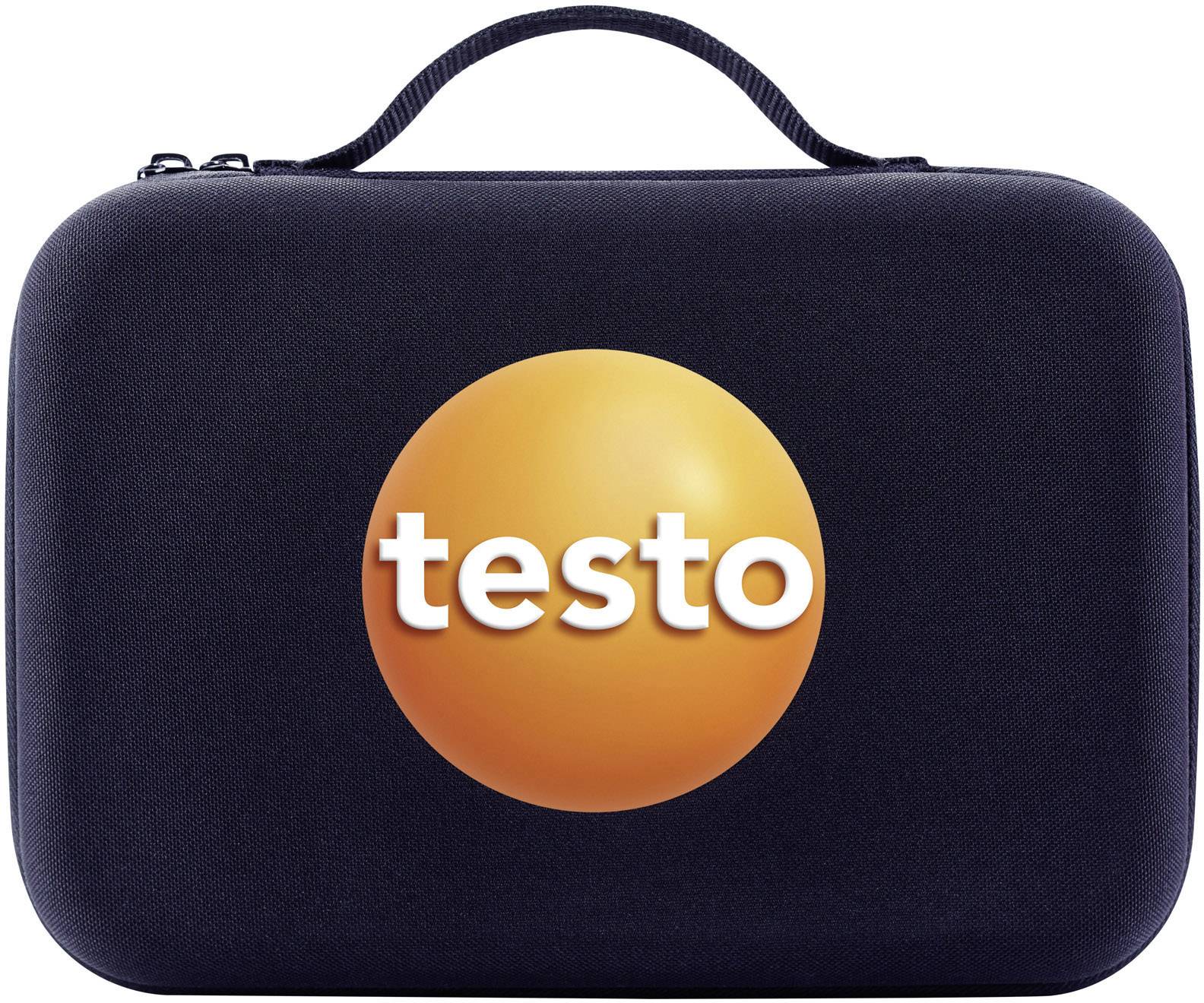

Handheld transport bag testo Smart Case.

Description

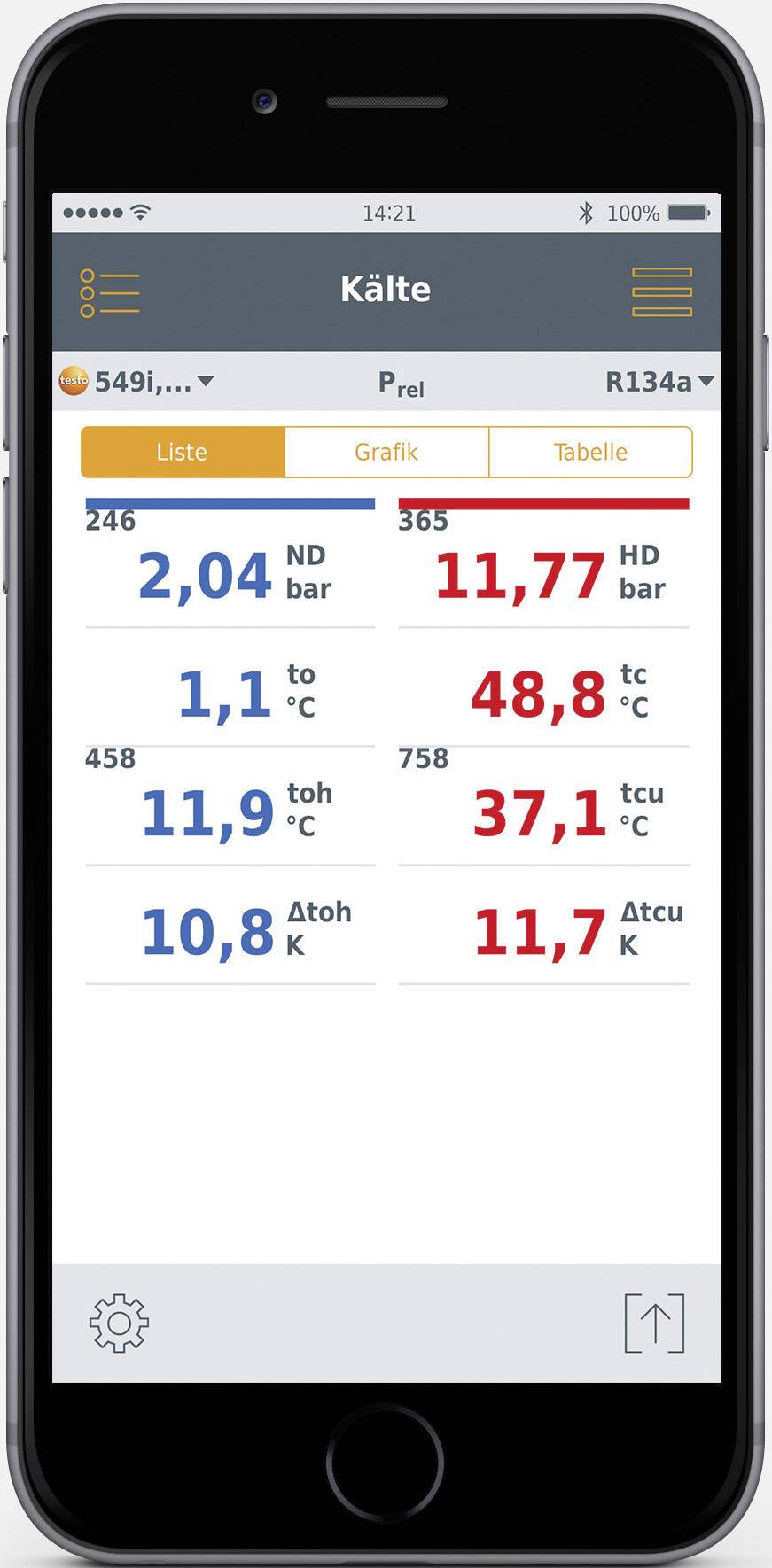

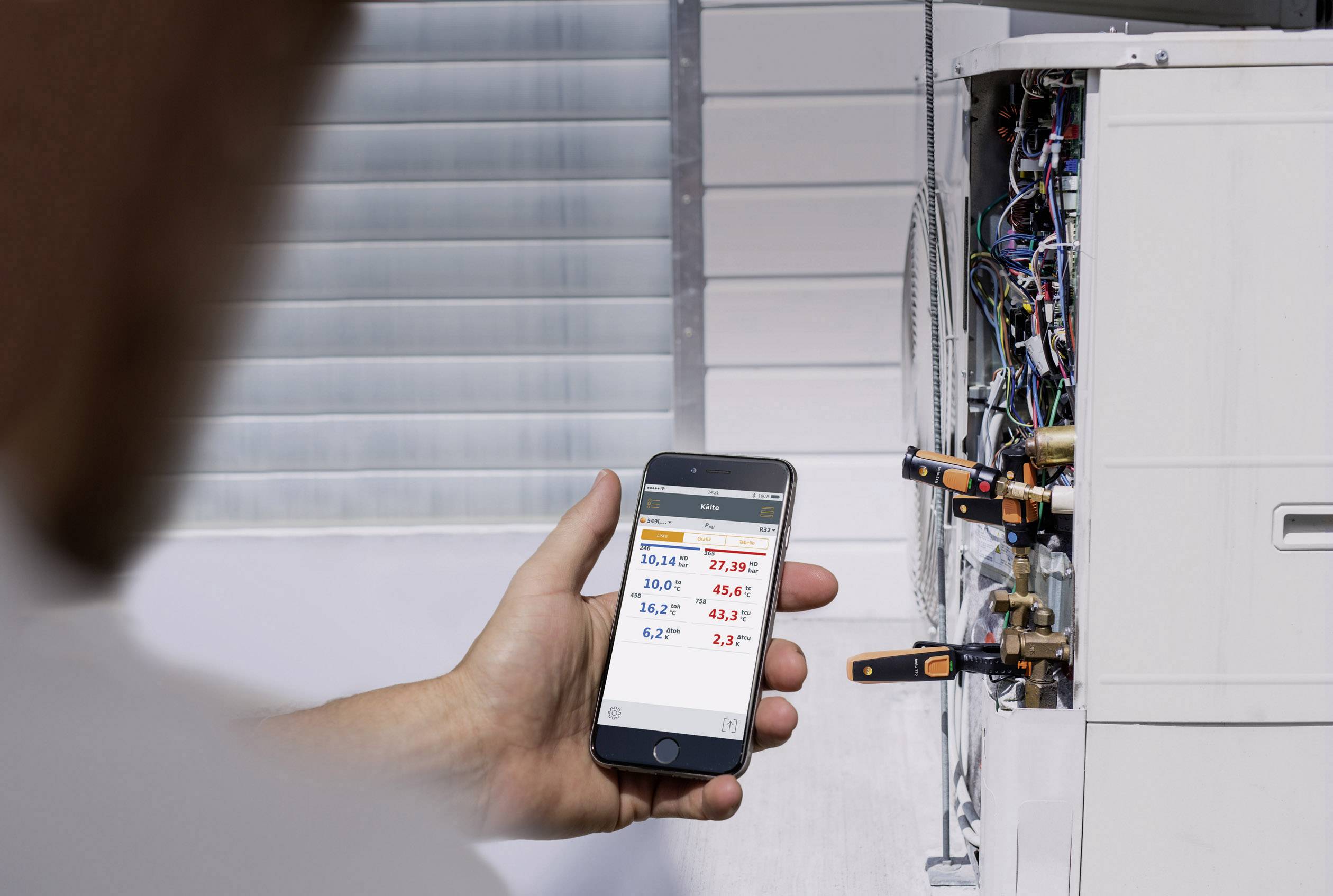

The compact refrigeration set contains the testo 549i high-pressure measuring instrument and the testo 115i clamp thermometer (each in two versions). In combination with a smartphone or tablet, it is ideal for servicing and troubleshooting air conditioning and refrigeration systems and for their installation. Both measuring instruments can be quickly and easily attached directly to the pressure connection or temperature measuring point. When working at measuring points that are far away from each other, they simplify the application considerably - thanks to wireless connection to the smartphone or tablet. The measured values of both devices are sent via Bluetooth connection to the app installed on the end device and can thus be read comfortably and flexibly. In the app, measurement parameters (such as temperature or pressure) can be changed, deleted or added in sequence with just one click. It is also possible to change the displayed measured variables just as quickly. In addition, the app enables the automatic calculation of evaporation and condensing temperatures. All measurement data can be displayed either as a diagram or in tabular form. Finally, the measurement data protocol can be sent directly by e-mail as a PDF or Excel file. In the handy testo Smart Case, the measuring instruments can be conveniently transported and are always there when they are needed.

Delivery content

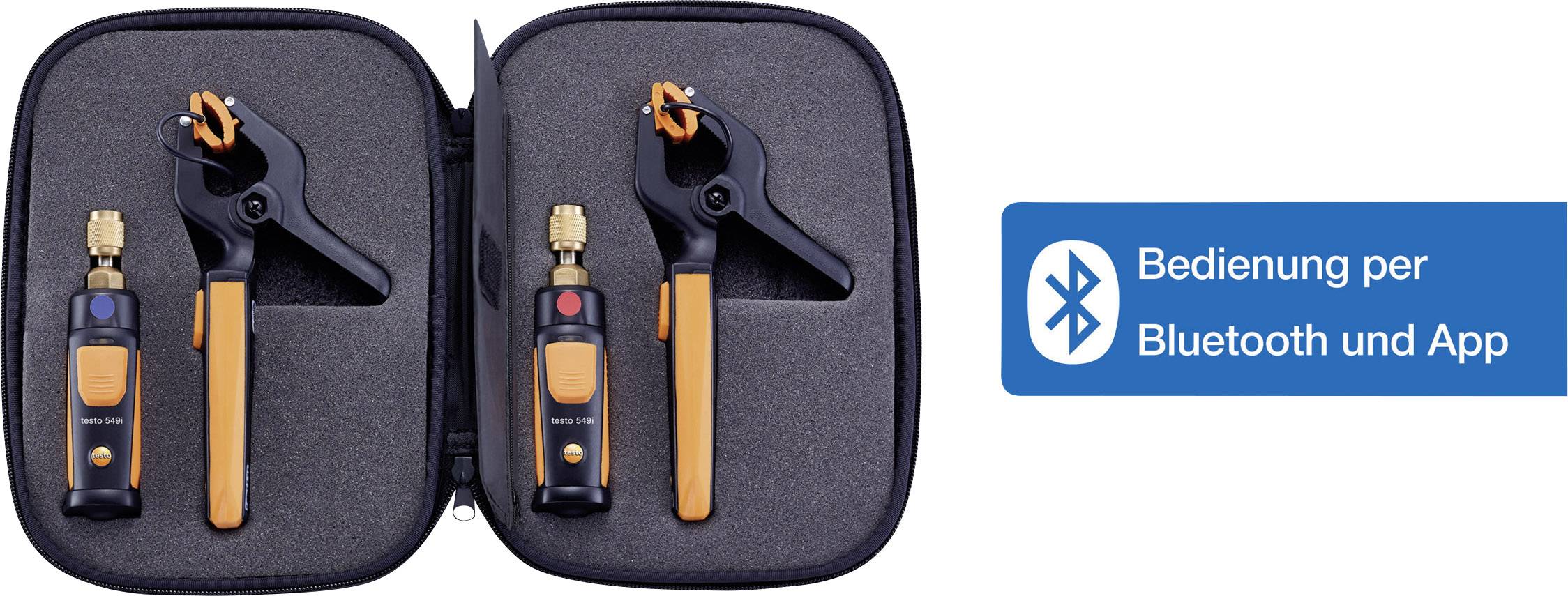

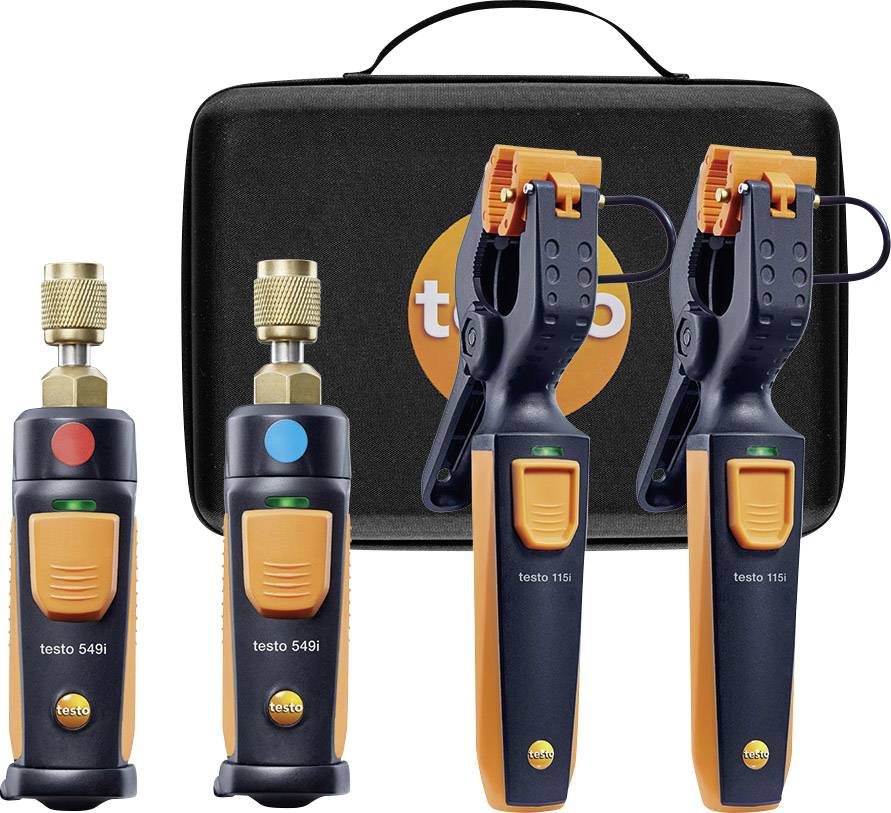

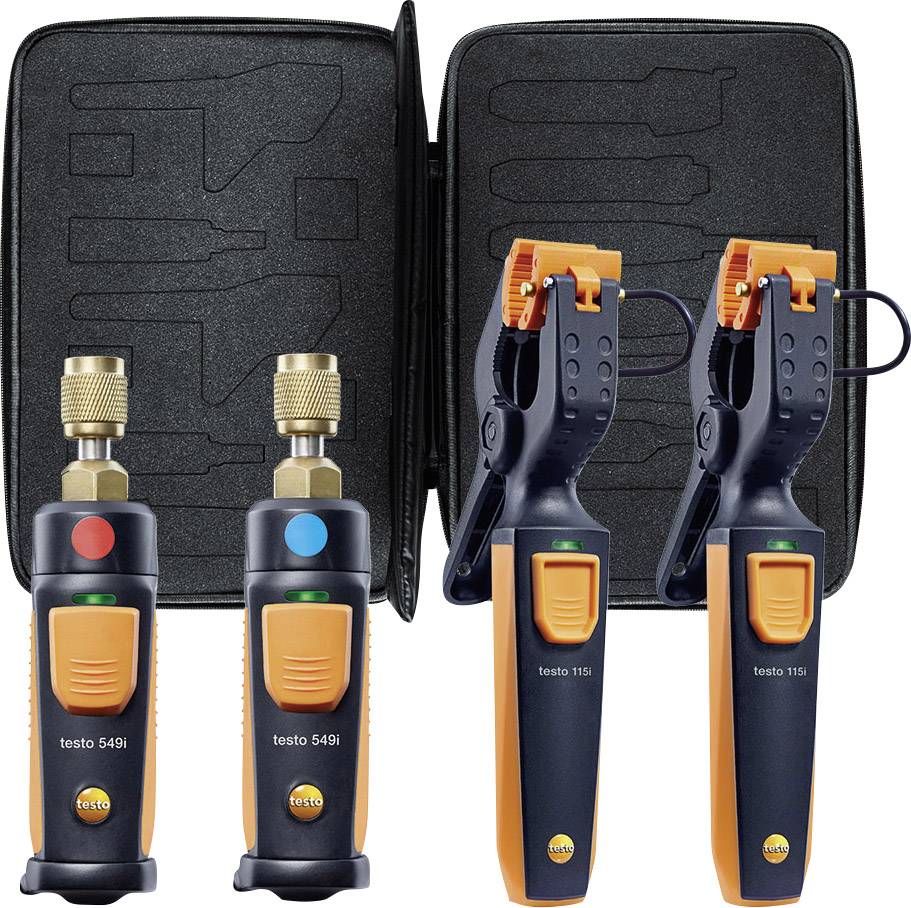

2x clamp thermometer testo 115i + 2x high pressure thermometer testo 549i + batteries

Requirements

mobile device with Bluetooth 4.0 + iOS 8.3 or later + Android 4.3 or later

Keywords

4029547014345, testo, 0563 0002, barometer, manometer

Other notes

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
