Description

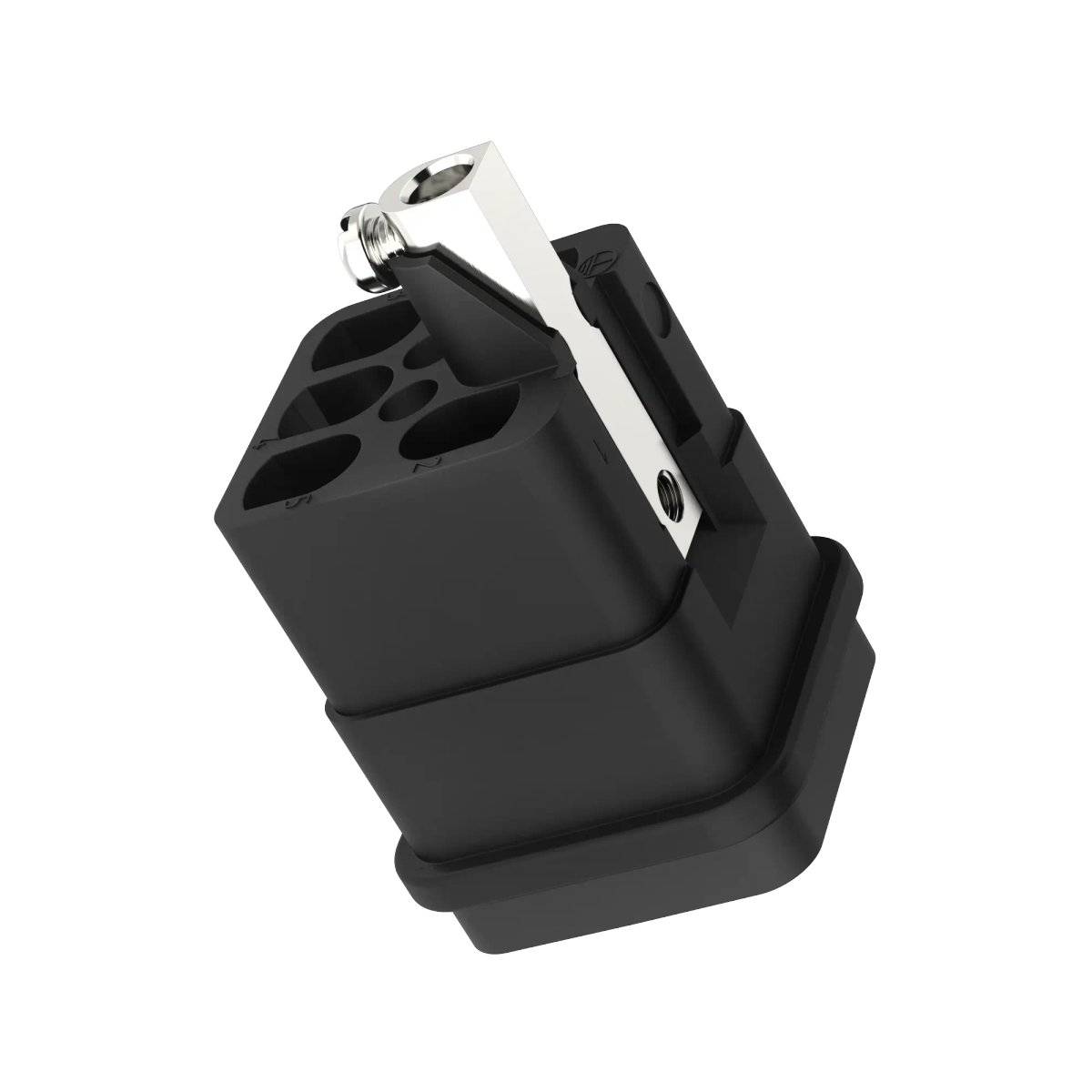

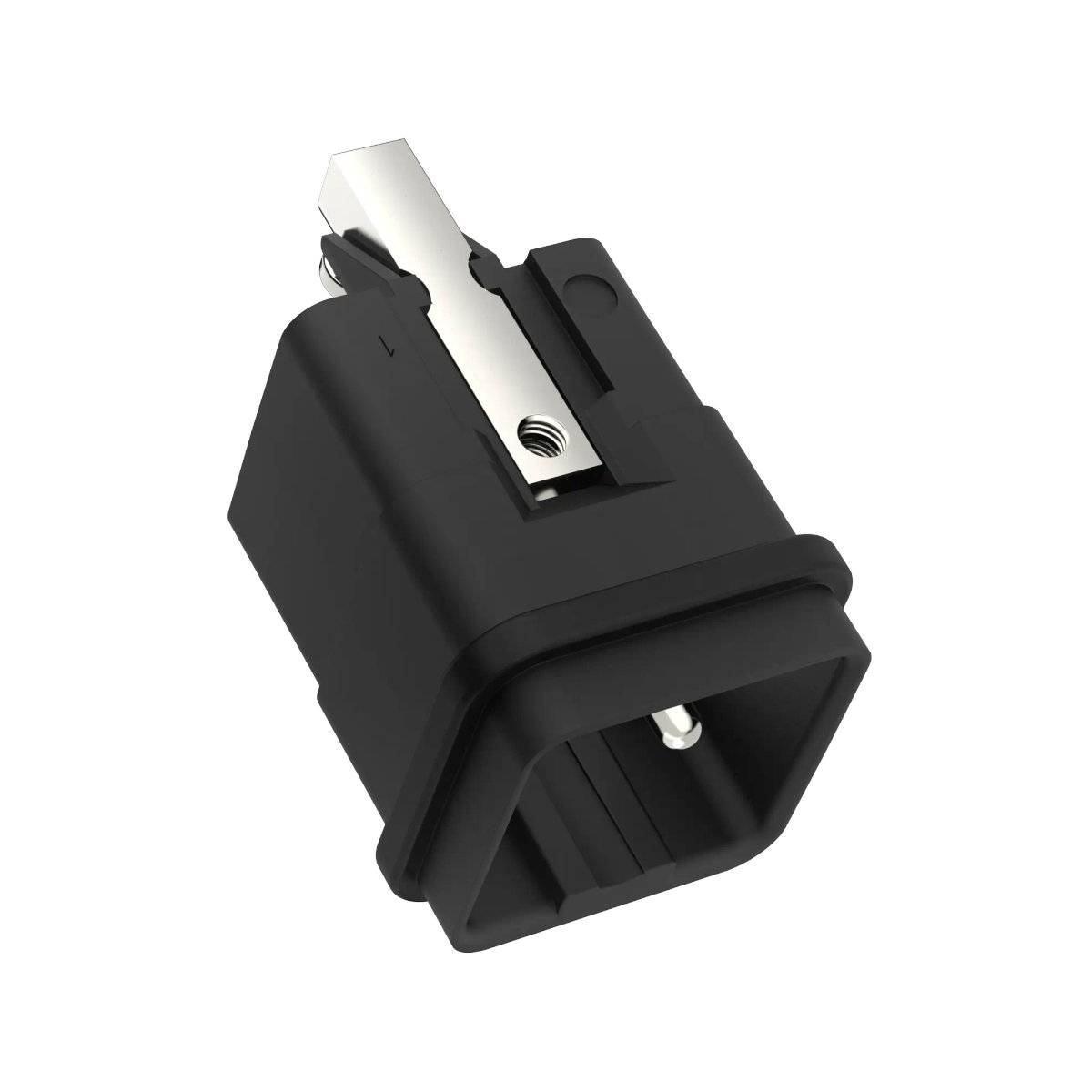

EPIC® H-Q 5 SC PE-S crimp insert; pin crimp insert; number of contacts: 5+PE; size: 3A; 400 V AC RMS / DC to IEC; 30 A to IEC; for cross-section (min./max.): 0.14mm² - 4mm²; polyamide; applications: Suitable for the internal wiring of control cabinets;For connecting power supplies of devices and machines in various applications;For use with many EPIC® rectangular connector housings; benefits: Crimp connection provides a vibration-proof connection HER, provides for maximum contact security between contact and line and is suitable for automatic pre-fabrication ; Suitable for wire cross-sections of 0.14 – 4.00 mm² ; protective conductor (PE) can be connected in two ways: Version "PE-S" can be used with a PE screw contact. Variant "PE-C" with a PE crimp contact;Powerful up to 30 A thanks to a compact arrangement of the 5 power contacts; Special PE crimp contact allows the automated assembly of a completely vibration-proof connector; Plug connector can be plugged into the market standard with connectors
