Controls dimmable LEDs, halogen & bulb lights

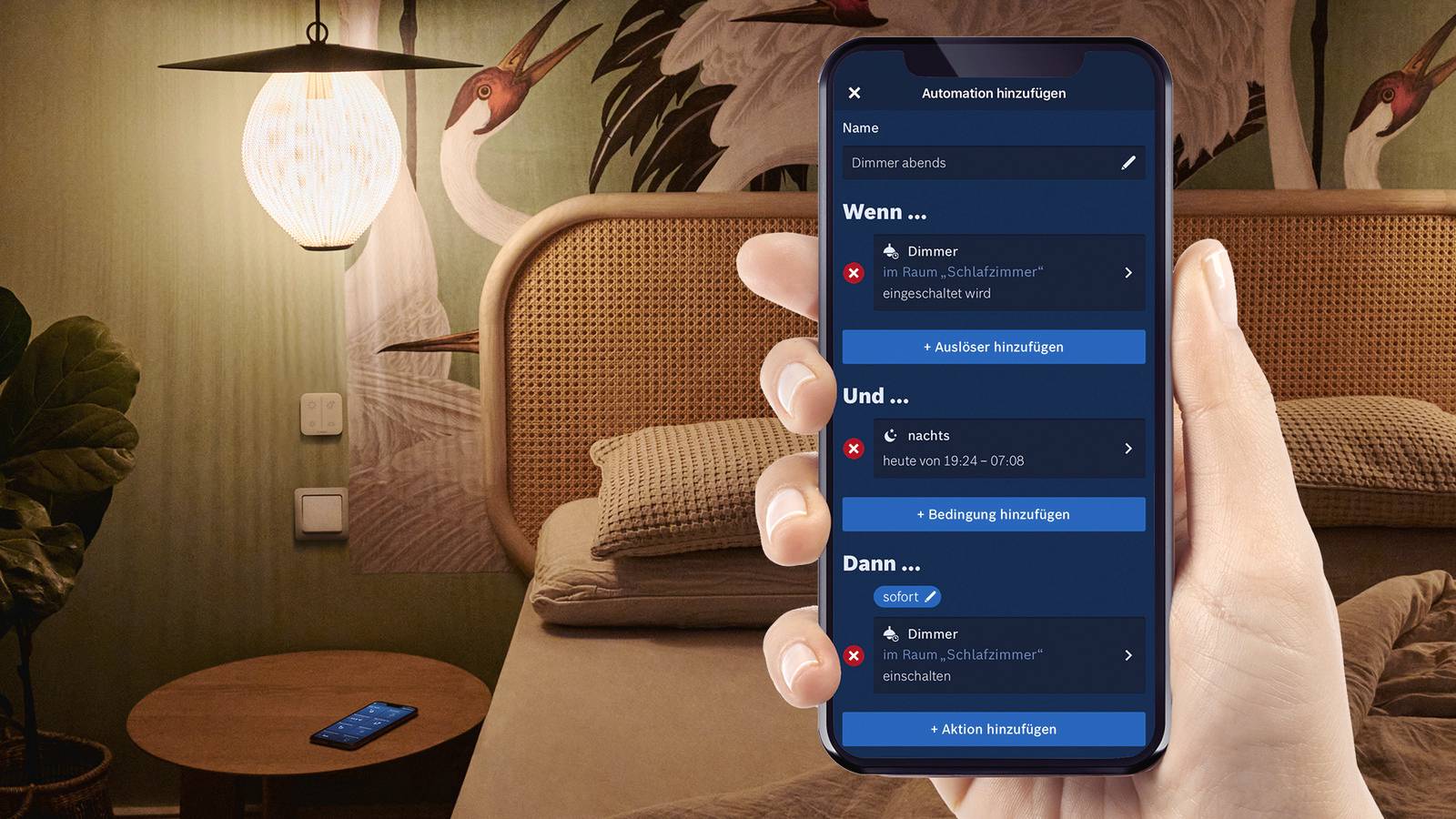

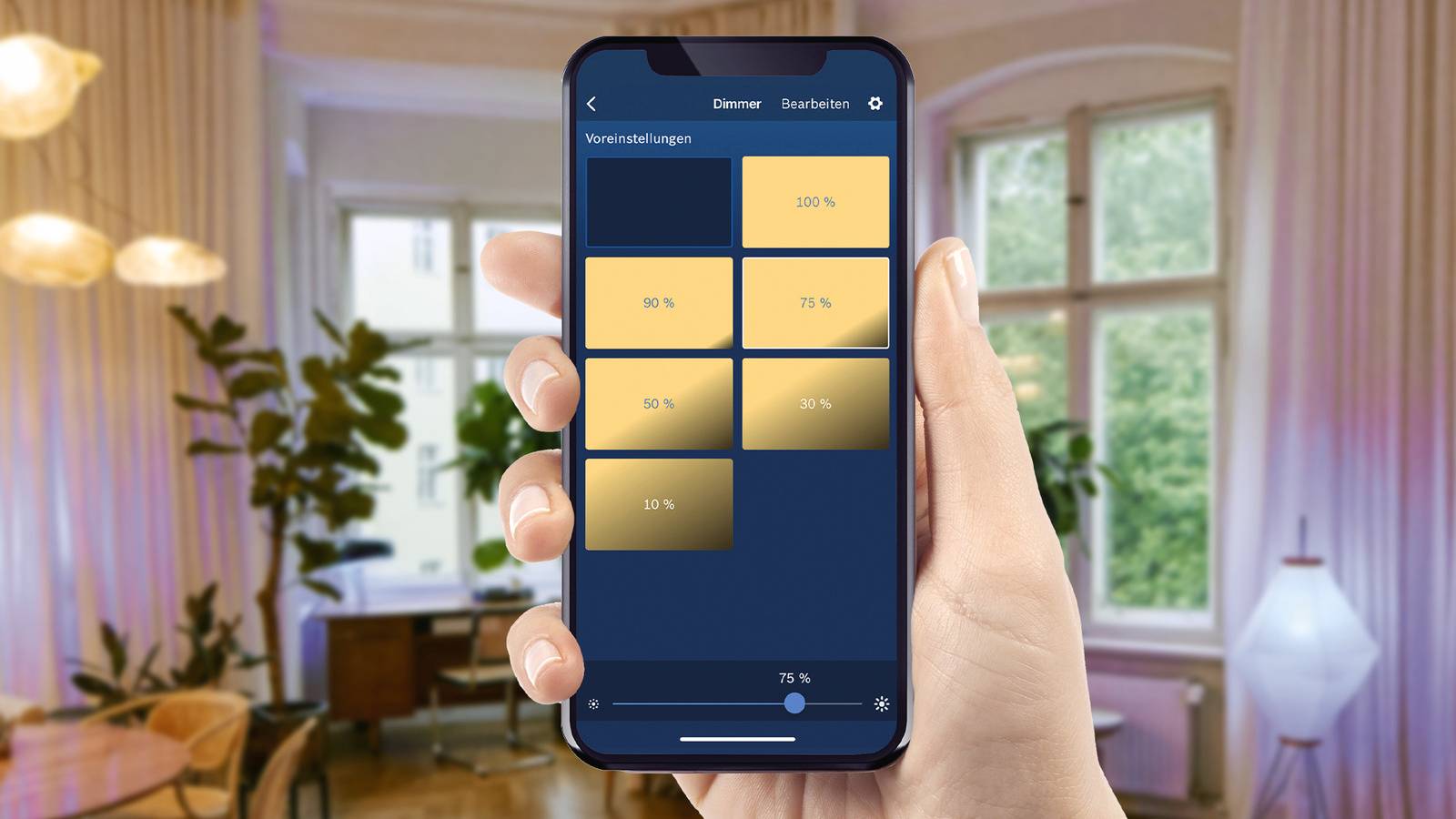

Flexible control (e.g. via button, language, scenarios, automation or via APP)
Can be covertly installed behind switches, in distributor boxes or weather-proof installation boxes (IP66)
Can be controlled by voice (selected functions) with Amazon Alexa, Google Assistant or Siri
The Bosch Smart Home dimmer controls dimmable LEDs, halogen and bulb Smart and precisely. Thereby, it can be controlled flexibly, e.g. via a button, individual scenarios and automation or also mobile via APP. Selected functions can also be controlled via voice control with Amazon Alexa, Google Assistant or Siri.

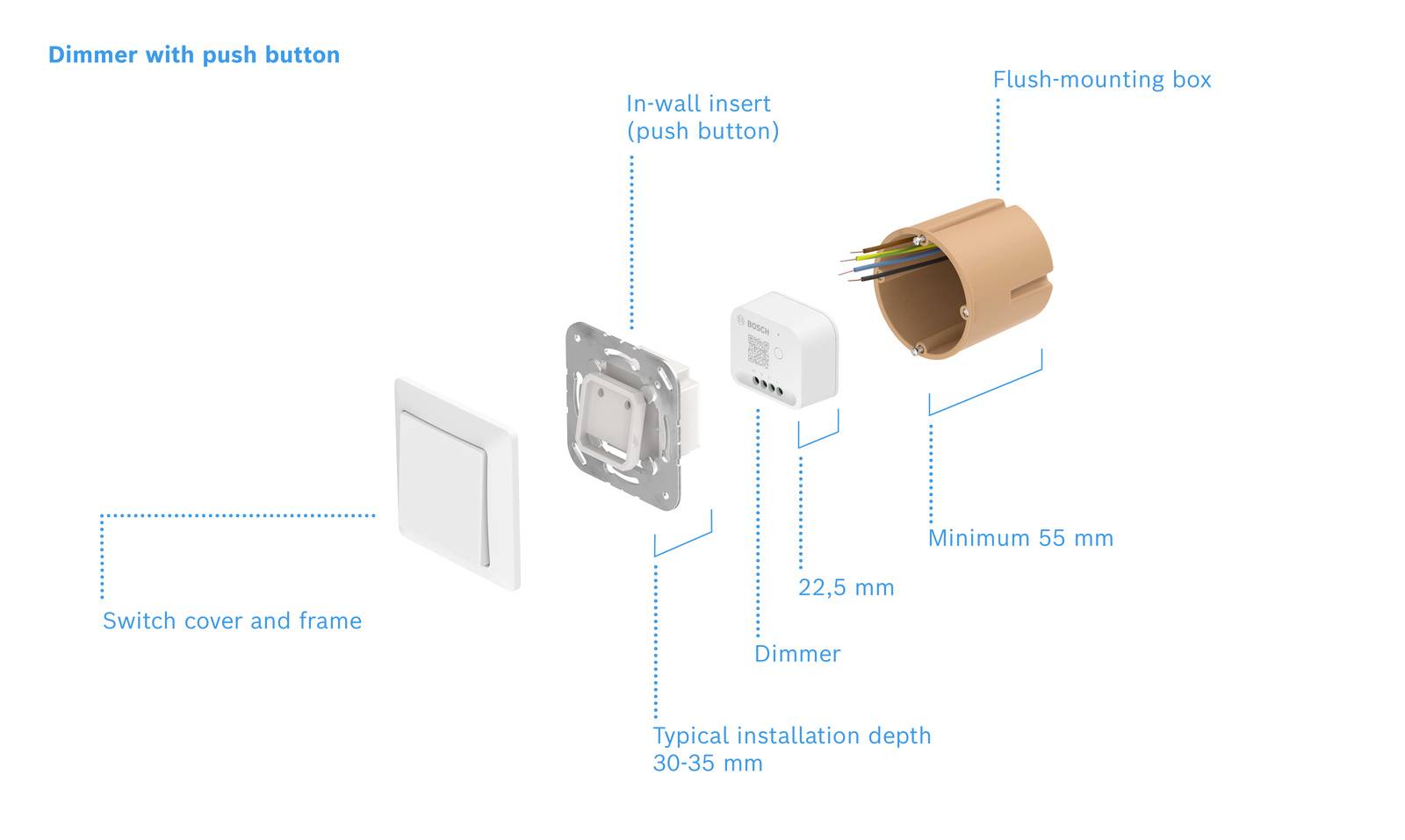

The dimmer lies invisibly in the wall: It is simply installed behind existing buttons or in distributor boxes - with weather-proof installation sockets (IP66) also outdoors. It can also be used as a repeater to amplify the radio signal of certain Bosch Smart Home devices. This extends the range of the Bosch Smart Home system and enables devices to be used even at a greater distance from the controller (e.g. in the cellar).
The smart dimmer can be integrated into Apple home kit, Amazon and Google home. Thus it can be combined also with compatible devices of other manufacturers
Extends the radio signal range of certain Bosch Smart Home devices as repeaters
Can be integrated into Apple home kit, Amazon & Google home for multi-manufacturer combinations
Controls dimmable LEDs (5-120 W) as well as halogen & bulbs (10-200 W). Dim mode according to the phase-to- or section principle adjustable in the APP
Allows the use of conventional buttons in addition to the APP control No button is needed for installation in a junction box

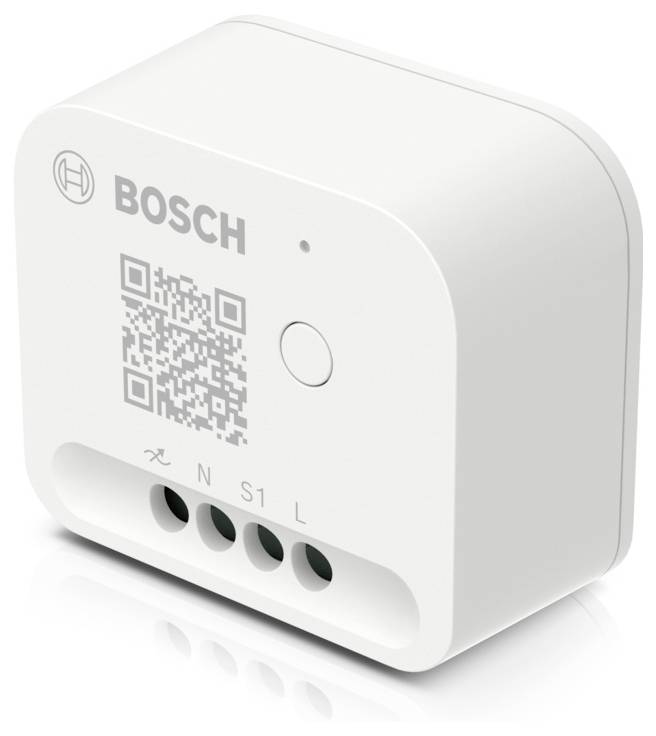

Compact size 40.5 x 47 x 22 mm (H x W x D) Fits in common flush-mounted (at least 50 mm depth) & surface-mounted socket*
Warns when overheating and overload. Switches off automatically and informs via APP
With a function in the APP to lock manual buttons
Easy installation through step-by-step instructions in the APP**
Can only be used in combination with the Bosch Smart Home controller or Bosch Smart Home controller II.
*Additional Notes:
For installation in flush-mounted sockets, a depth of at least 50 mm is required. For optimum installation, a box depth of 60 mm or more is recommended.
For a power supply of the dimmer a permanent 230 V power supply with a conductor and neutral conductor is necessary.
**230 V AC appliances must only be installed by authorized specialists.
Bosch Smart Home, 8750002080
