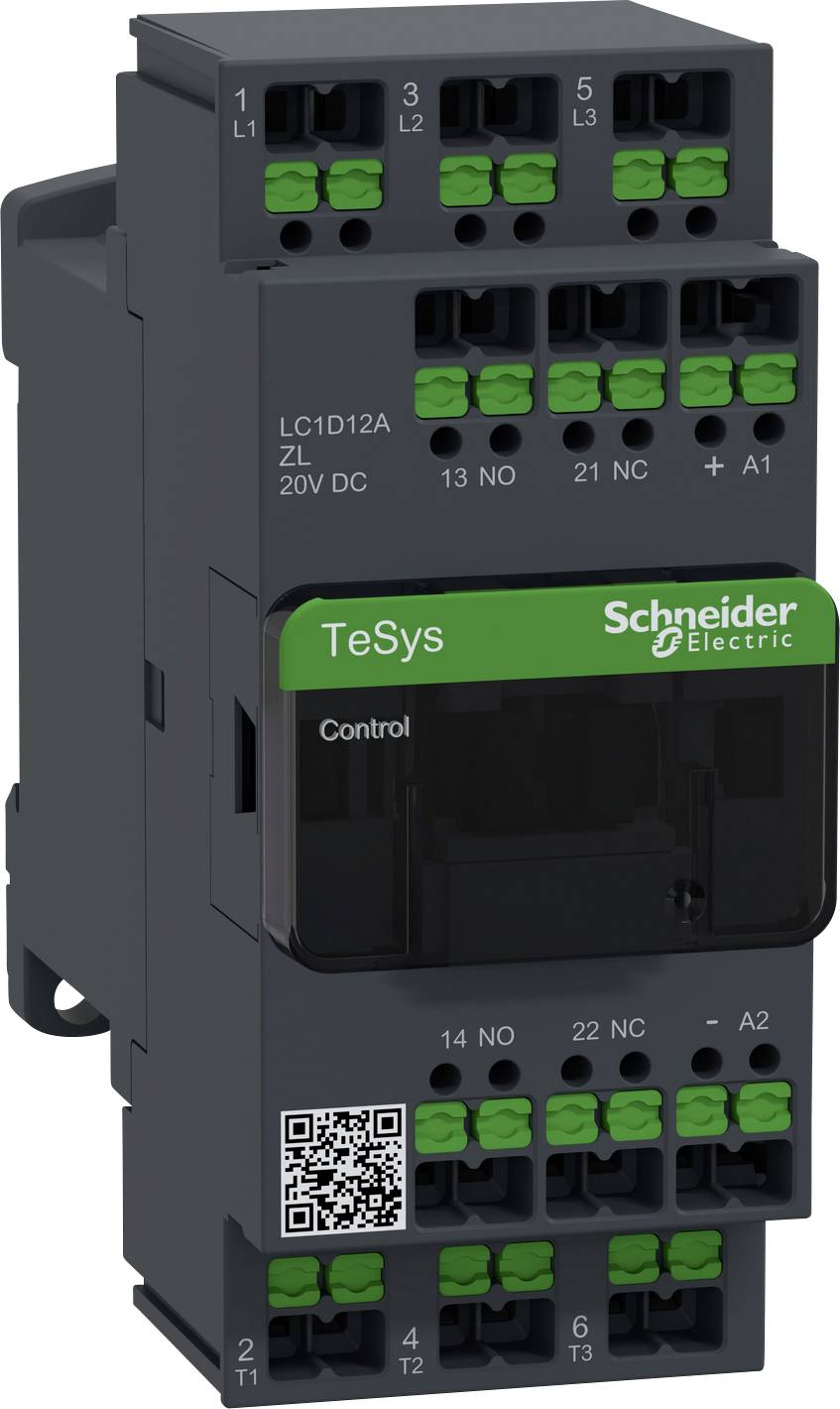

TeSys DECA contactors and motor circuit breakers with innovative snap-in connection technology
The snap-in connection terminal closes with one click once the conductor has been correctly inserted
Visual and haptic feedback of the wiring
Flexible and rigid conductor can be inserted without wire end sleeve
Tool-free and intuitive to use
Secure wiring even in case of strong vibrations, no retightening needed
"Ready to Robot" e.g. for automatic control cabinet construction

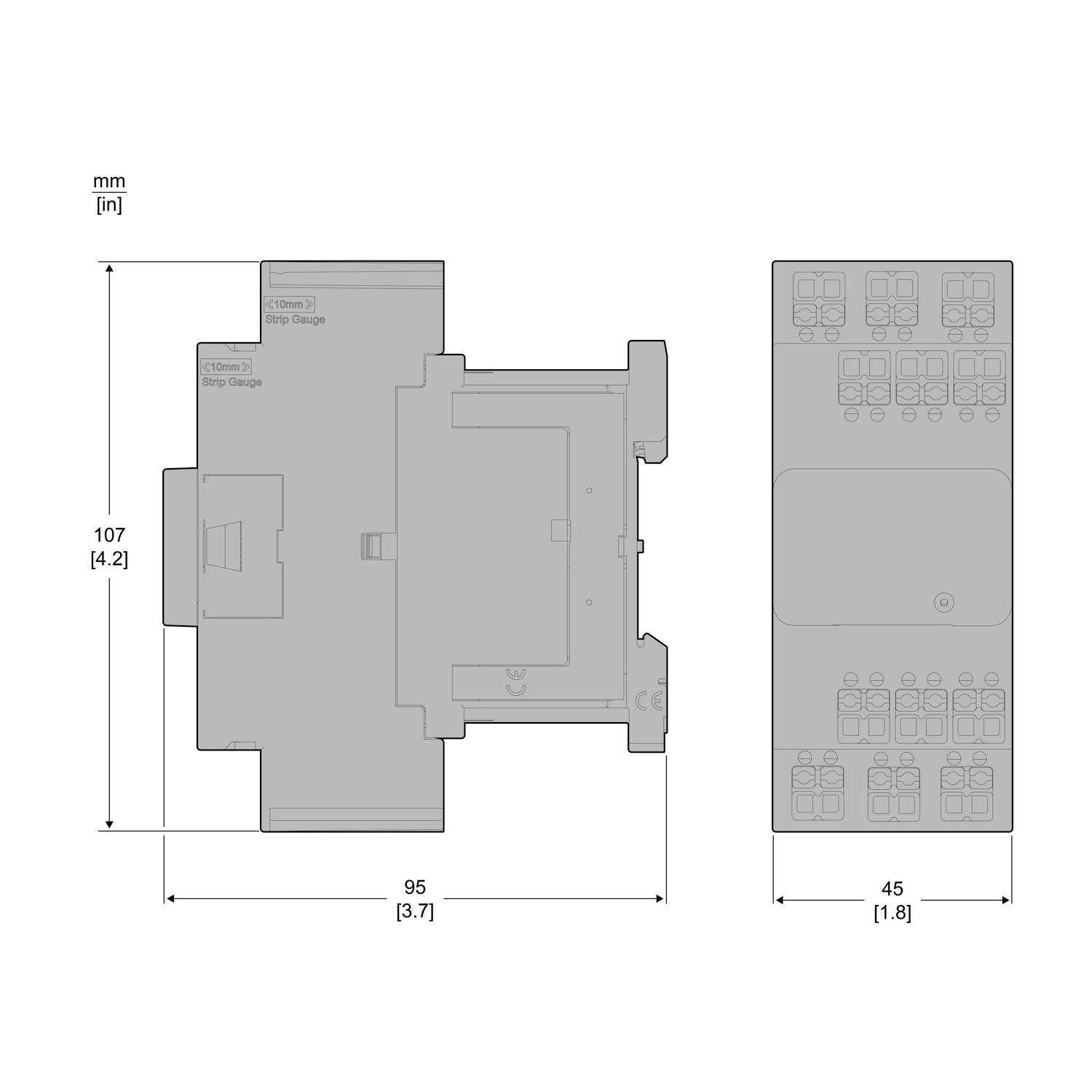

Power protection TeSys DECA. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO + 1 NC, rated operating power at AC-3, 400 V 5.5 kW, rated operating current Ie at AC-3, 400 V 12 A, coil 20 V DC low power consumption. Dimensions (WxHxD) 45x107x95 mm, weight 0.32 kg. CATEGORY AC-3, AC-1, AC-4. Integrated bi-directional amplitude limiter diode. Fast, safe and maintenance-free power connection with Snap In connection terminal Suitable for security applications thanks to mechanically coupled contacts and mirror contacts.
Schneider Electric, LC1D12AZL, contactor, electrical contactor, contactors, electrical contactors
