Schneider Electric LC1D32AEL Electrical contactor 1 pc(s)

  • item model number: W958803

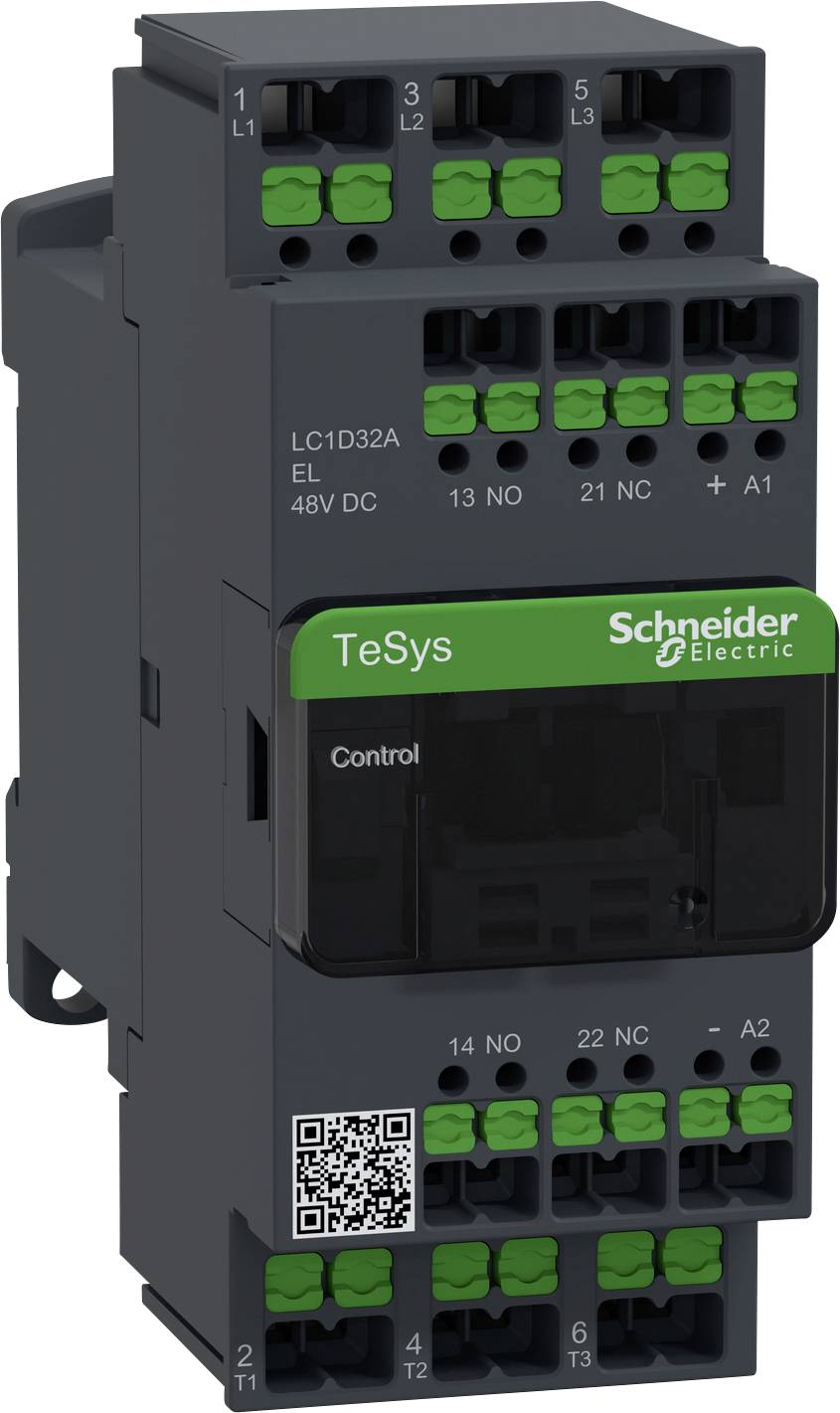

Industrial contactor from Schneider Electric, TeSys model, shows green connection terminals and labels for electrical control.

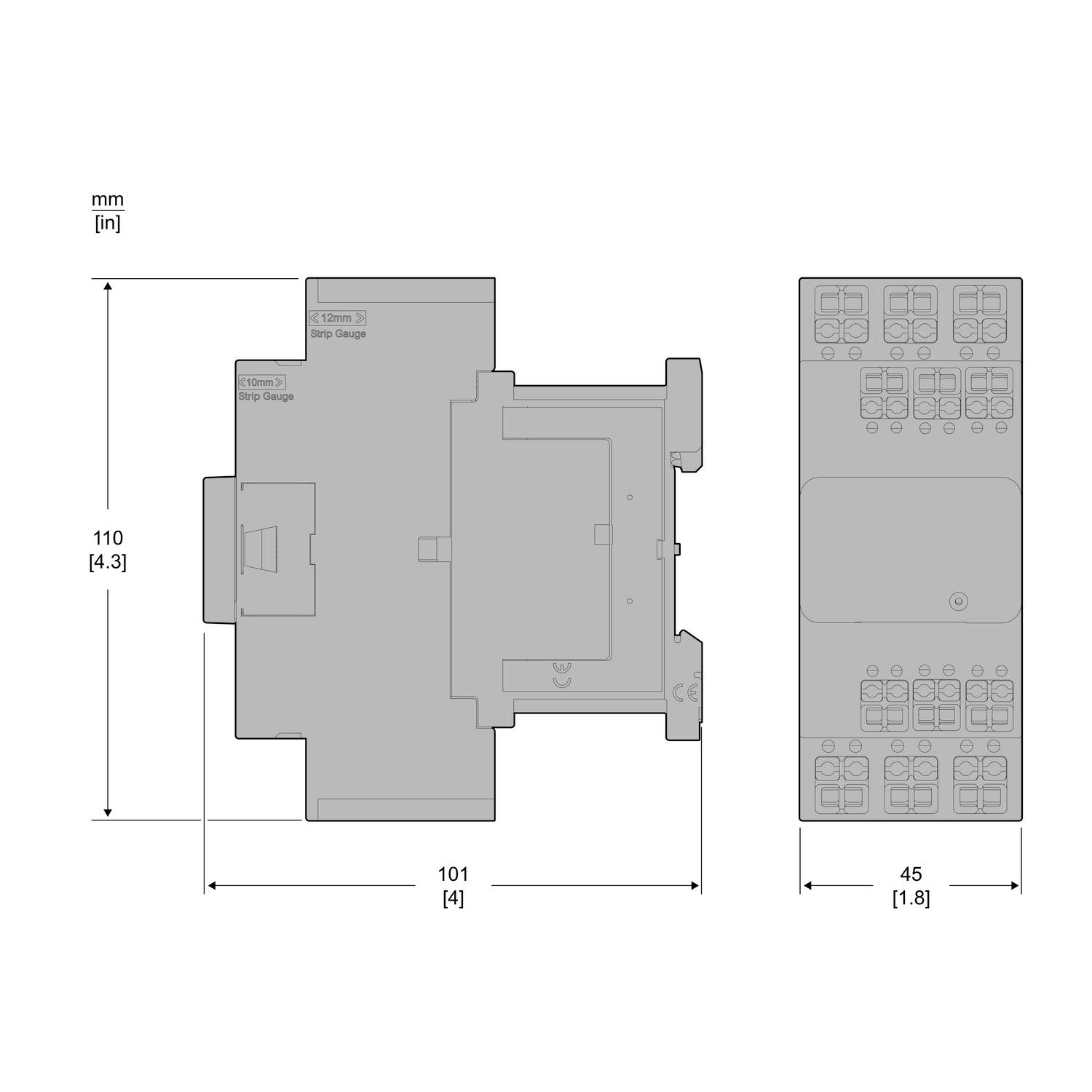

Diagram of a compact, rectangular device with dimensions: height 110 mm, width 101 mm, depth 45 mm. It contains two views: front and side view, with measurements in mm and inches.
CHF 182.05
VAT included
plus
Delivery time: 3-4 days
available from 02/10/2026
30 days free return shipment
Schneider Electric LC1D32AEL Electrical contactor 1 pc(s)
CHF 182.05
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 180.22 1,0 % savings
from 5 piece : CHF 178.40 2,0 % savings
from 10 piece : CHF 176.58 3,0 % savings

Product description

Overview

TeSys DECA contactors and motor circuit breakers with innovative snap-in connection technology
The snap-in connection terminal closes with one click once the conductor has been correctly inserted
Visual and haptic feedback of the wiring
Flexible and rigid conductor can be inserted without wire end sleeve
Tool-free and intuitive to use
Secure wiring even in case of strong vibrations, no retightening needed
"Ready to Robot" e.g. for automatic control cabinet construction

Description

Power protection TeSys DECA. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO + 1 NC, rated operating power at AC-3, 400 V 15 kW, rated operating current Ie at AC-3, 400 V 32 A, coil 48 V DC. Dimensions (WxHxD) 45x110x95 mm, weight 0.32 kg. CATEGORY AC-3, AC-1, AC-4. Integrated bi-directional amplitude limiter diode. Fast, safe and maintenance-free power connection with Snap In connection terminal Suitable for security applications thanks to mechanically coupled contacts and mirror contacts.

Keywords

Schneider Electric, LC1D32AEL, contactor, electrical contactor, contactors, electrical contactors

Industrial contactor from Schneider Electric, TeSys model, shows green connection terminals and labels for electrical control.
Diagram of a compact, rectangular device with dimensions: height 110 mm, width 101 mm, depth 45 mm. It contains two views: front and side view, with measurements in mm and inches.
