Description

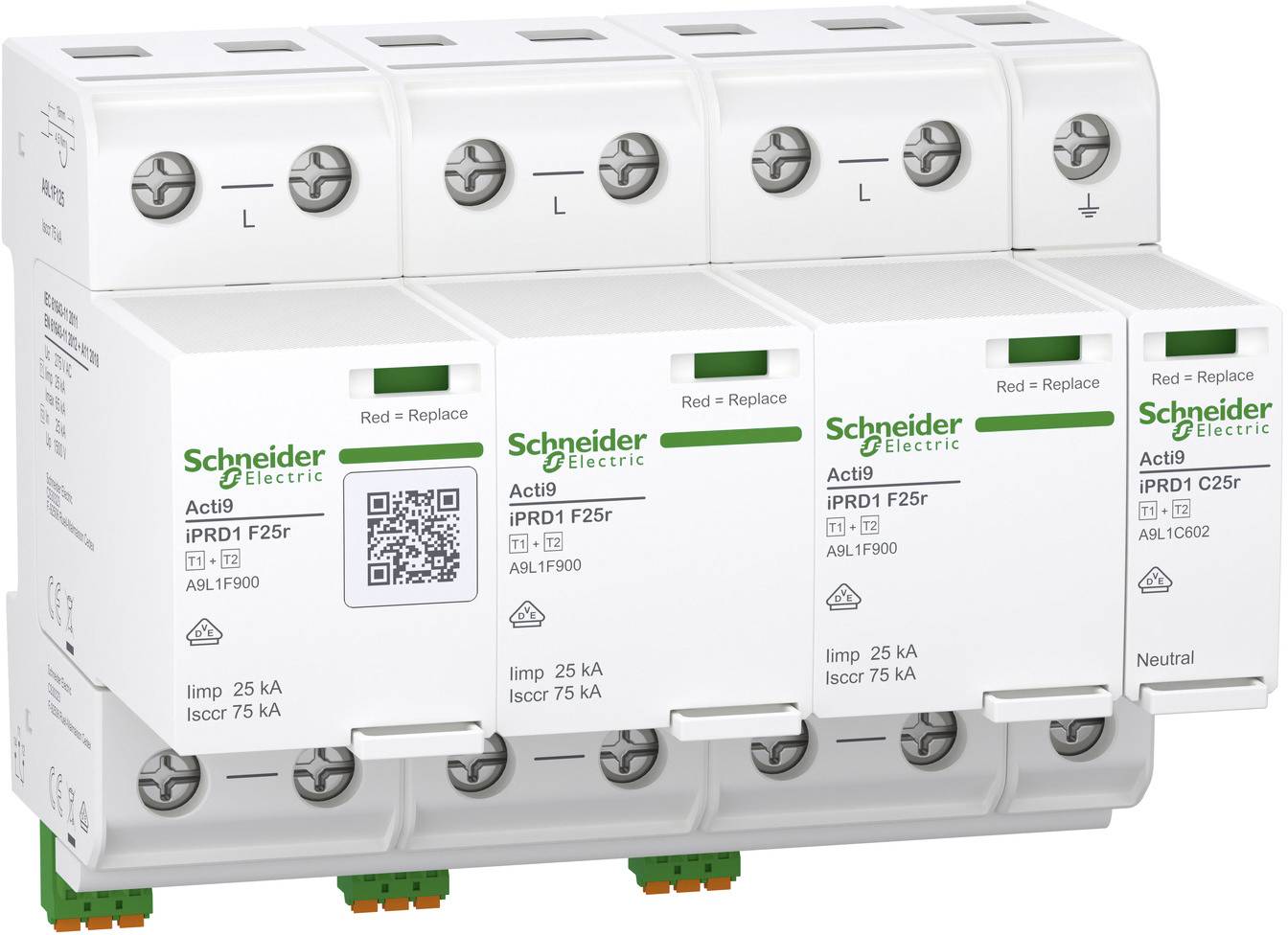

Acti9 iPRD1 F25r modular combination conductor for use in lightning protection class I+II. Integrated fuse in the device, no earth leakage circuit breaker necessary (safety-proof). Telecommunication contact. Optical function/defect display of arrester and integrated fuse (green OK/ red device defective). Suitable for TN-S and TT networks. U0 nominal voltage 240 V AC (50 Hz). UC maximum continuous voltage 305V AC (N-PE) / 255V AC (L-N). In-nominal leakage surge current 25/100 kA (L-N)/(N-PE). Imax maximum leakage surge current 65/150 kA (L-N)/(N-PE). IIMP 25/100kA (L-N/N-PE). Up protection level 1.5 kV (L-N/N-PE). DIN-Rail mount Dimensions (W) 126mm x (H) 105mm x (D) 86mm. Weight 1,187kg Protection class IP20 integrated. Operating temperature: -40 to +85 oC. COMPLIES WITH IEC 61643-11:2011, EN 61643-11:2012+A11:2018.
