Description

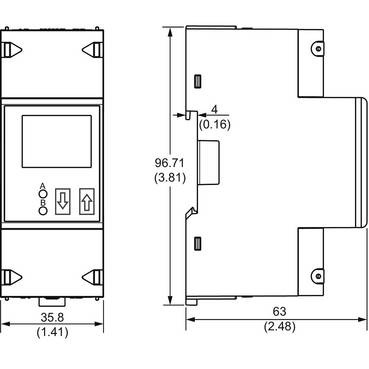

The energy meter iEM2435 is a single-phase energy meter mounted on DIN rail for consumption measurement. With this product family the power consumption can be monitored for each area, each unit or workshop and the electrical installation can be managed for the building management. It has a 7-digit LCD-display and a red LED-display for showing the measured electrical parameters. With the accuracy of class 1 active energy in accordance with standard IEC 62053-21, the meter measures active and reactive power, active and reactive energy, voltage and current. Suitable for a 230VAC network with a supply voltage range from 96 to 276 VAC at 50Hz or 60Hz. Direct current measurement up to 100 A with 32 samples per cycle only in one configuration with one phase and one neutral conductor. Communication protocol is M-Bus. You can switch between 2 tariffs via the communication bus. Product dimensions are as follows: Width 35.8 mm, depth 63 mm, height 96.71 mm and product weight 220 g. This version complies with EN 50470-3 Class B standard, Measuring instrument guideline (MID). Compatible with power management software to take advantage of digital installation.
