Description

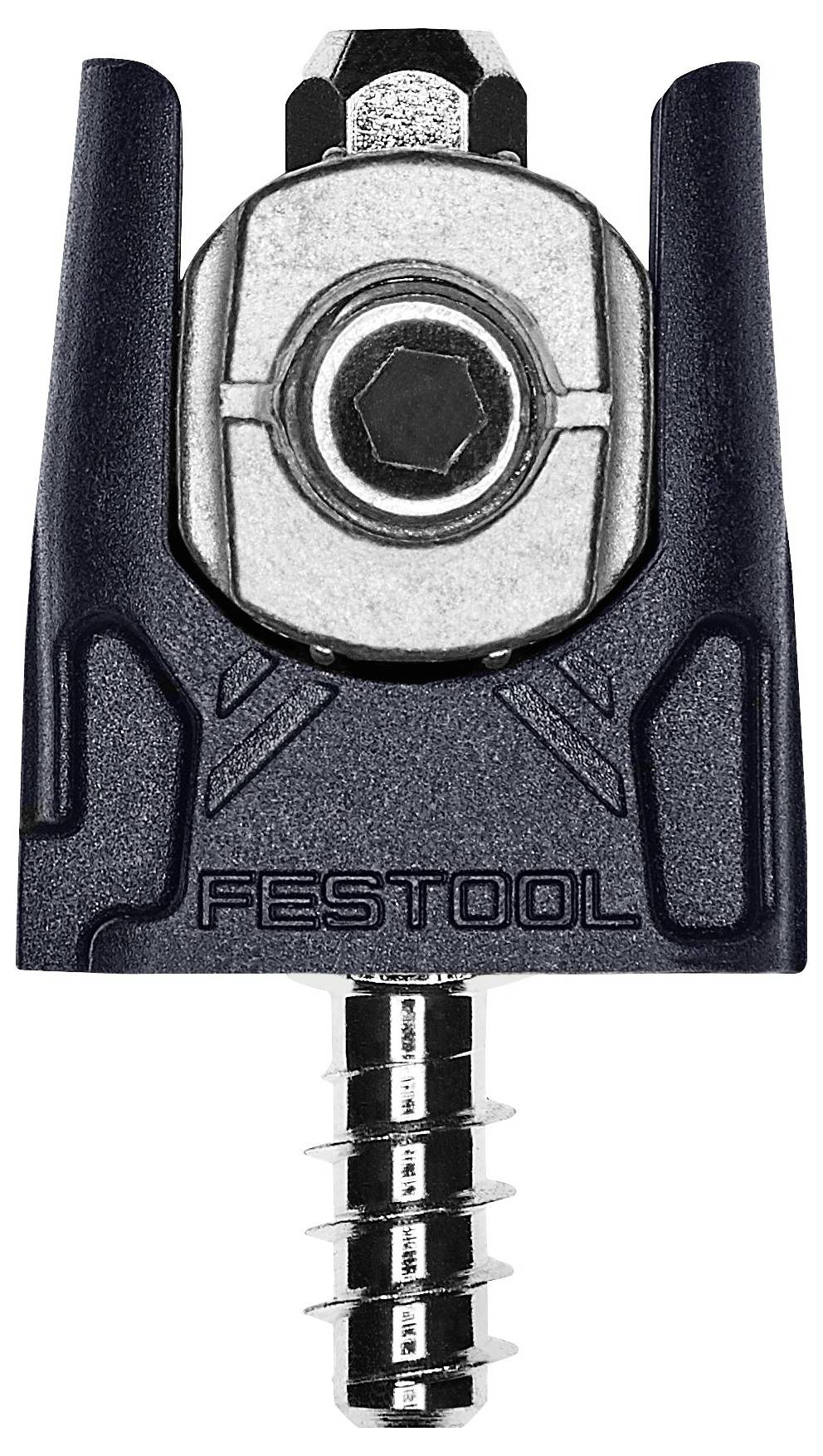

The perfect connection. The versatile body and furniture connector for the dowel cutter DOMINO DF 500.

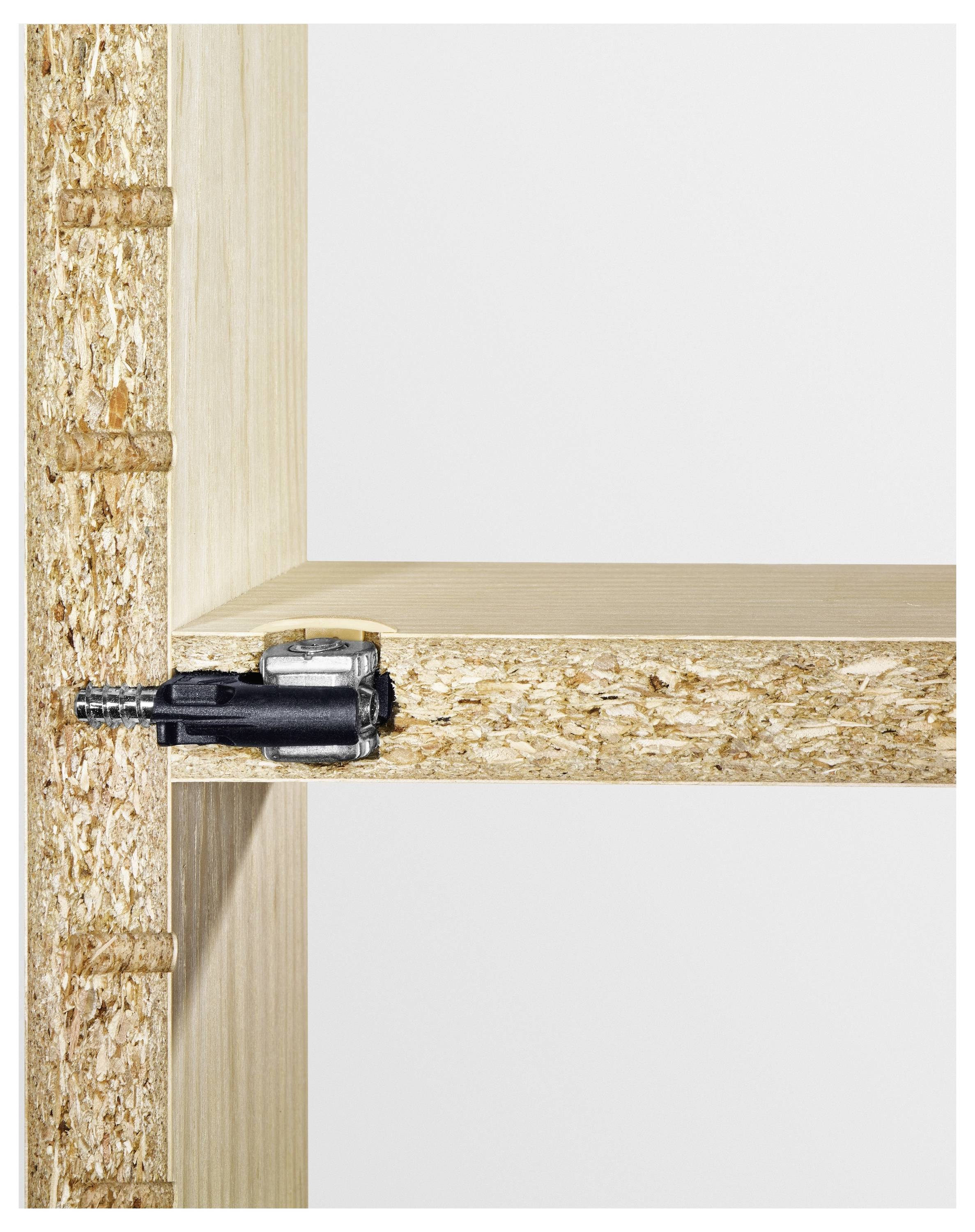

The DOMINO corpus and furniture joints enable stable and nevertheless flexible and removable furniture structures. Owing to their great versatility they offer a very large area of application - from corner on middle side to series of holes. For unique flexibility, speed and efficiency.
The clever DOMINO system enables very simple and accurate positioning of the connections and thus makes additional stops and positioning aids unnecessary For efficient and quick working

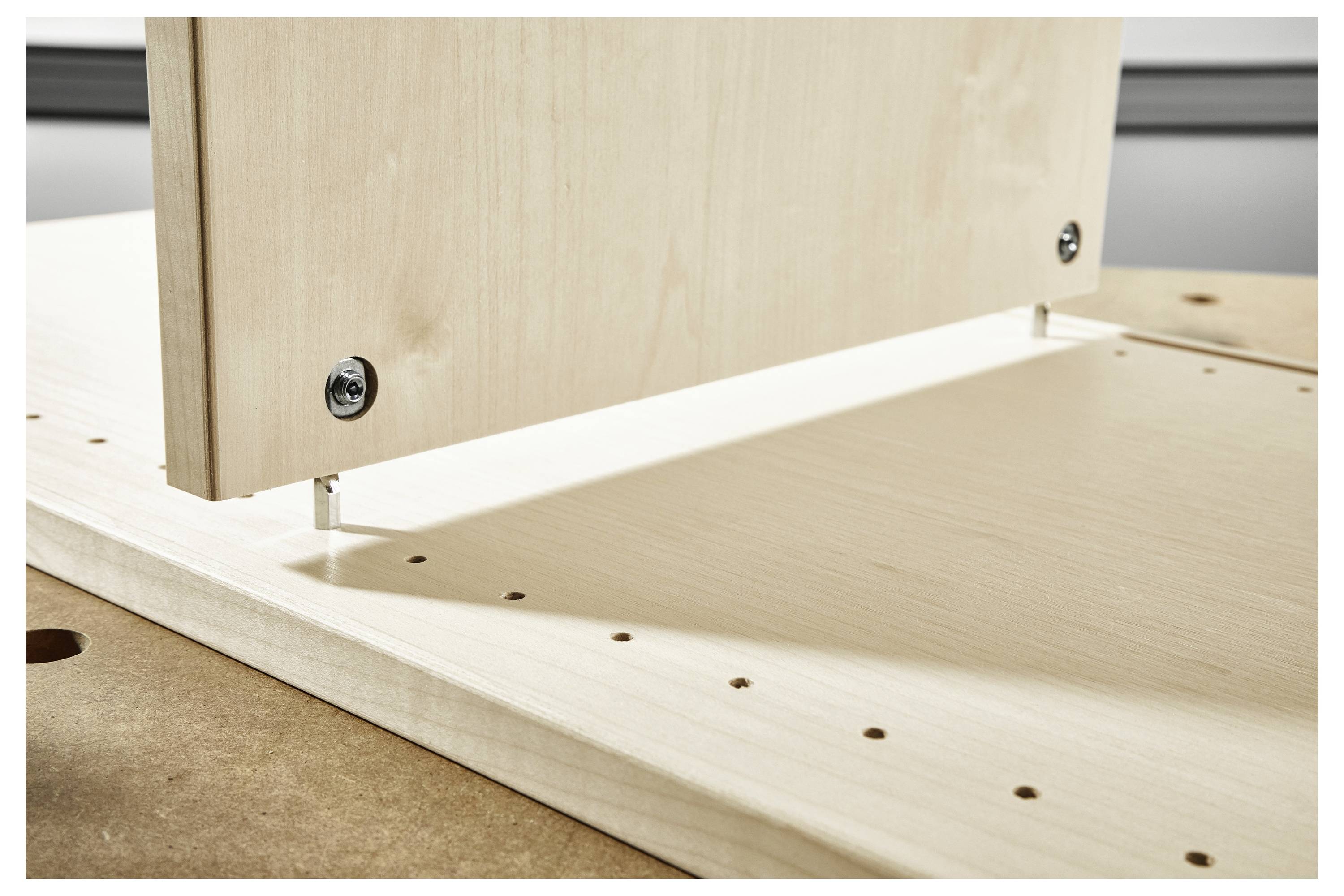

The large tightening path and the long bolts of the connector make the furniture construction extremely easy. Thus the cabinet structure is also no problem by itself
The flush fitting elements protect against scratching of individual furniture parts
Cutting and cutting tolerances up to 1.4 mm are easily compensated by the fitting
The removable DOMINO corpus and furniture connectors are ideal for panel thickness from 18 to 28 mm
For 50 corner connections with the DF 500 and hole series

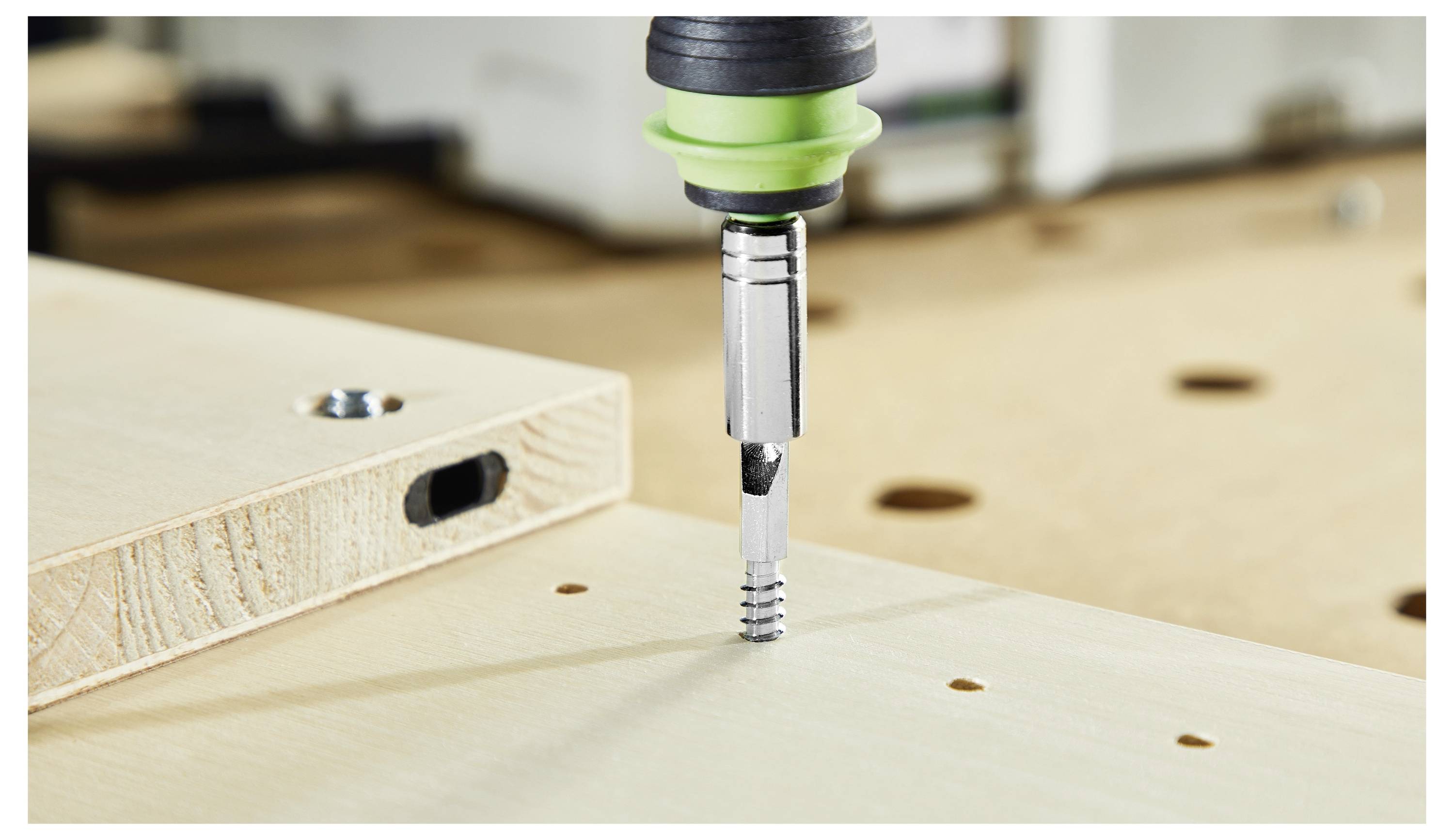

The DOMINO / LR 32 connector KV-LR 32 D8/50 is positioned in the side of the cabinet in a 5 mm hole series bore and in the construction floor with the DOMINO dowel cutter DF 500
Without cover caps
