Overview
Plug & Play Plug module
Electrically insulated RS485
Industrial bus capability (Modbus RTU)
Built-in Bus & ESD Protection
Optimized for DPM8600 Series
Joy-it Communication unit - /
Product description
Description

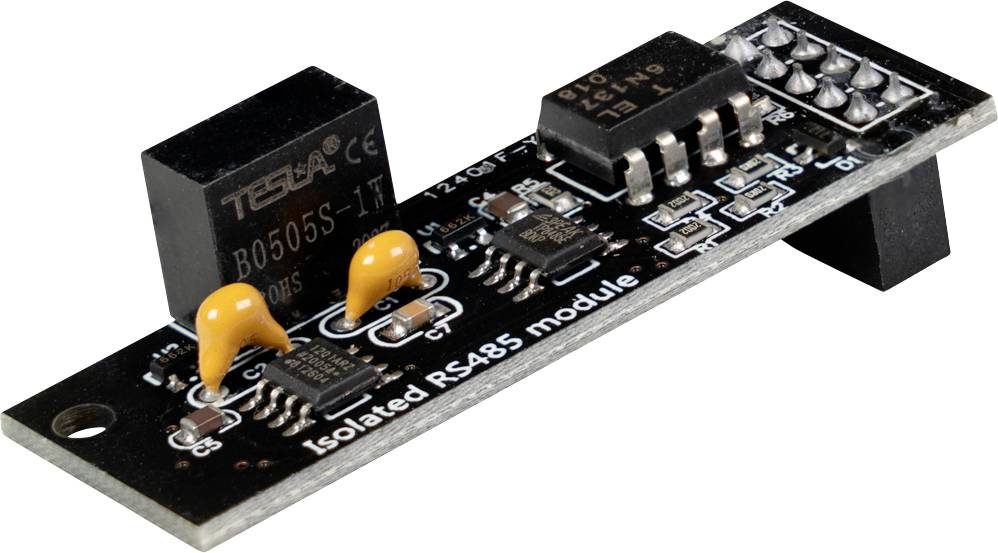

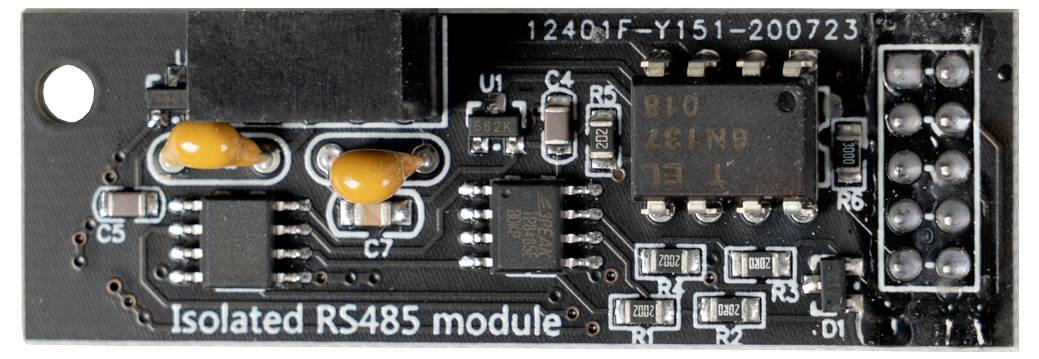

The TTL-to-RS485 communication module has been specially designed
enables
Simple, reliable integration into industrial applications
Communication networks. Because of the exact fit
The module is directly on the back side by plug design
The device is installed and ready to use immediately. A
Complex wiring or additional
Hardware adjustments are not required, which means
Significantly reduce integration time and error sources.
During operation, the module converts the internal TTL-UART interface
Of the device into a robust RS-485 interface
And thereby supports the widespread Modbus
RTU protocol. This allows the individual or several
Devices in higher-level control,
Include surveillance or automation systems.
Larger networks with many participants can also
stable and reliable.
A special feature of the module is the galvanic
Separation between equipment electronics and fieldbus. This
Insulation effectively protects the connected equipment
Ground loops, overvoltages and electromagnetic
Interferences from the bus environment. This is supplemented
Integrated protection mechanisms such as ESD and
Overvoltage protection, for safe operation as well
Under harsh industrial conditions.
Thanks to its device-specific design this is
Communication module electrical, mechanical and
Functionally optimally tuned to the DPM8600-Series.
It is a professional and reliable solution,
For measurement and power supplies in modern, distributed systems
And is suitable for Ideal applications in
Industrial, laboratory, development and automation technology.
Information
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
Delivery content
- Module
