VOLTCRAFT LSG-4 Cable locator

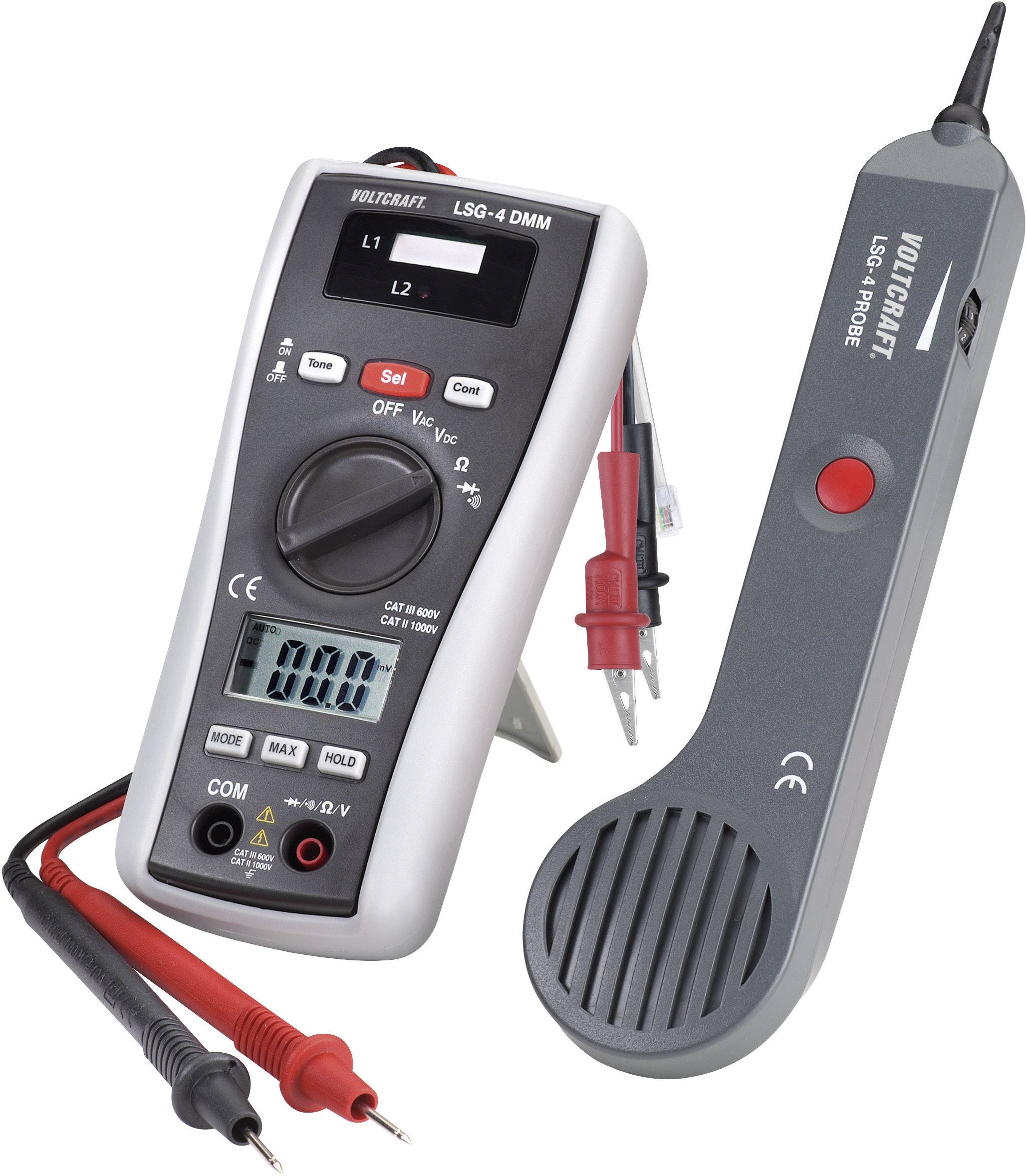

A digital multimeter and a voltage tester for electrical measurements. Displays and controls are visible.

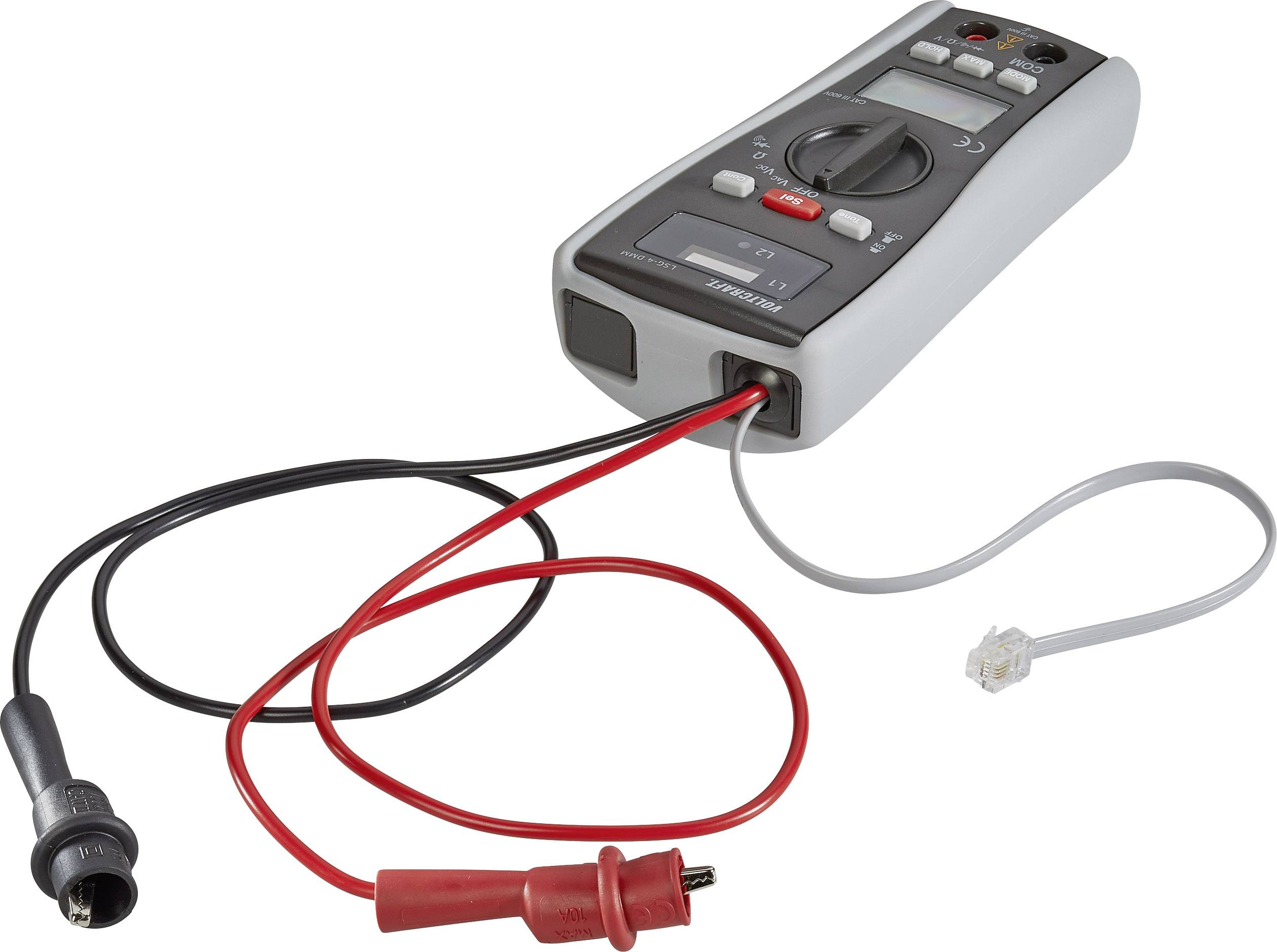

A digital multimeter is lying on a table. It has a grey casing with a rotary dial and several sockets for test leads.

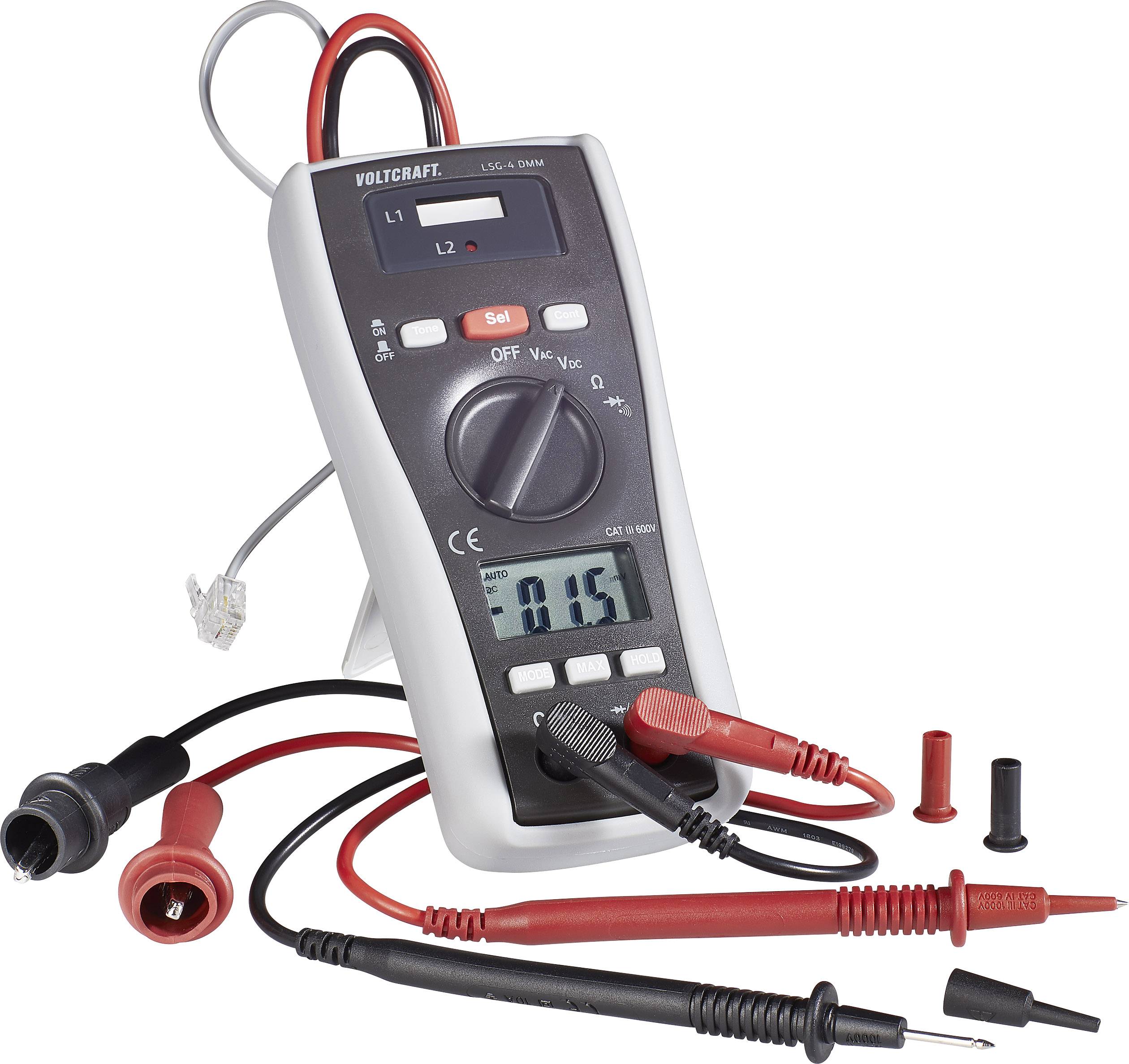

Digital multimeter with display, showing '0.15'. Includes test leads and rotary dial for various measurements.

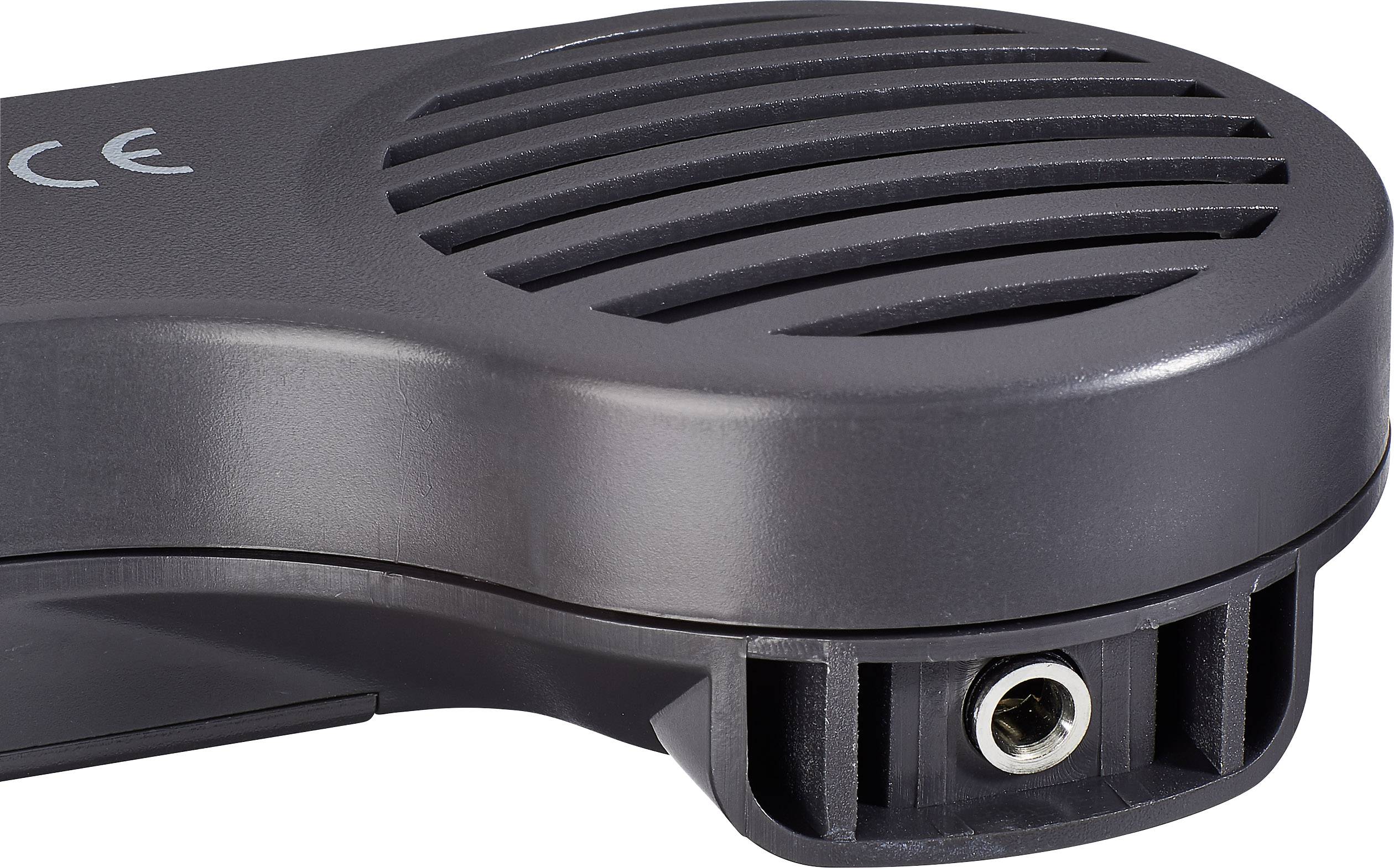

Schwarzes elektronisches Gerät mit einem runden, geriffelten Bereich und einem Anschluss an der Seite.

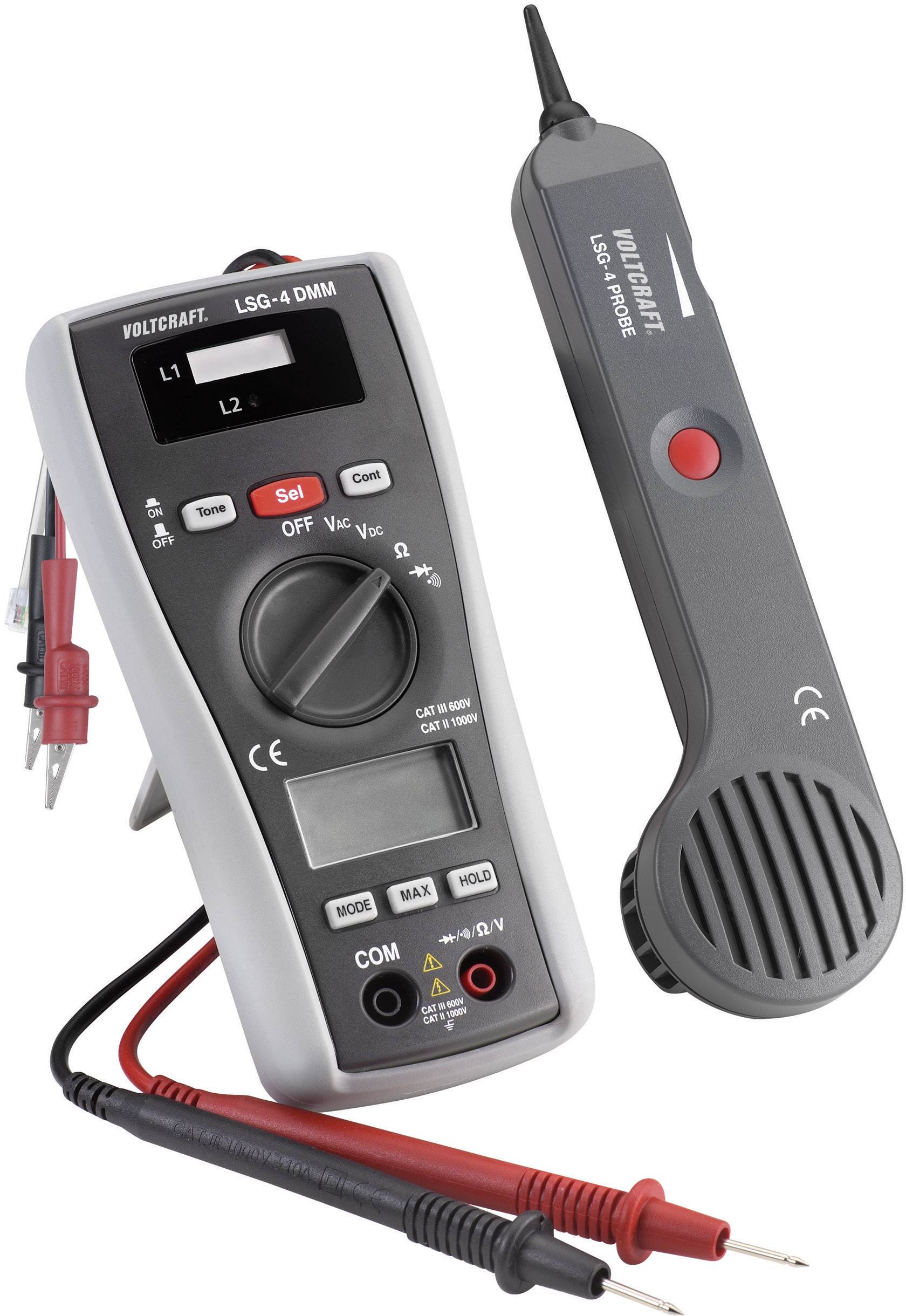

Multimeter and testing device with cables for measuring electrical values, in black and red.
Sold out
VOLTCRAFT LSG-4 Cable locator
Sold out

Product description

Overview

Adjustable sensitivity
Multimeter with all Standard Functions

Description

Save the cables and conductors with the LSG-4 DMM The LSG-4 uses a high-frequency tone generator which modulates a HF signal on the test cable. It also includes a highly sensitive inductive receiver, which can detect cables up to 15 cm inside a wall. This allows you to track cable layouts precisely. the Signal of the sound generator can be feeded alternatively via a RJ11 connector or via an alligator clip in the conductor that has to be measured Furthermore, the device is available with various functions of a Multimeter No need to buy an extra device. The rubber protection makes the LSG-4 DMM suitable for construction site use.

Characteristics

Sound signal switch-able (period/pulse) · continuity and voltage tester on the searching conductor · Measuring functions V/AC, V/DC, Ω, audio continuity tester and Diode test · Max and Hold Function.

Delivery content

LSG-4 DMM · Receiver probe · 2 Micro Batteries (AAA) · 2 x 9 V Block · 1 set of measuring leads · operating instructions

Keywords

VOLTCRAFT, LSG-4 DMM, LSG-4

A digital multimeter and a voltage tester for electrical measurements. Displays and controls are visible.
A digital multimeter is lying on a table. It has a grey casing with a rotary dial and several sockets for test leads.
Digital multimeter with display, showing '0.15'. Includes test leads and rotary dial for various measurements.
Schwarzes elektronisches Gerät mit einem runden, geriffelten Bereich und einem Anschluss an der Seite.
