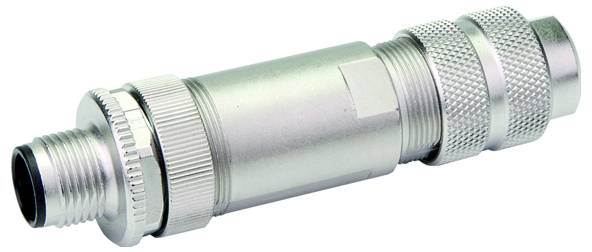

Image is similar
Description
The M12x1 connector series can be used to implement applications such as safety and video surveillance (CCTV), passenger information systems (PIS), production facilities and production monitoring with high-resolution cameras. Users can connect X-ray machines for baggage checking at airports encapsulated and tamper-proof at the very fast interface with the M12 round connector. The M12 is also a real asset in rail vehicles: The increasing amount of data can be distributed reliably and transferred to all systems and devices connected in the train, such as cameras or switches. As a 4-pin, D-coded compact connector in CAT.5, the M12 from Telegärtner can transfer data rates up to 100 Mbit/s in the PROFINET environment.
Specifications:
D-coding according to plug connector standard IEC 61076-2-101,
Fast-Ethernet according to IEEE 802.3,
Suitable for 4PPoE according to IEEE 802.3bt,
CAT.5 according to ISO/IEC 11801; DIN EN 50173-1,
Multiple shield contact,
Connection without special tools,
Suitable for different cable types,
IP67protection class
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: 4-pin, D-coded, straight, plug set, 360° shielding, Screw terminal connection, field-assembly possible
Name: STX M12x1 KS D-cod. CAT 5
Short name: CP4D180-3-5SCT700FA000
