Telegärtner 100007455 Sensor/actuator connector RJ45 plug enclosure 1 pc(s)

  • item model number: D196723

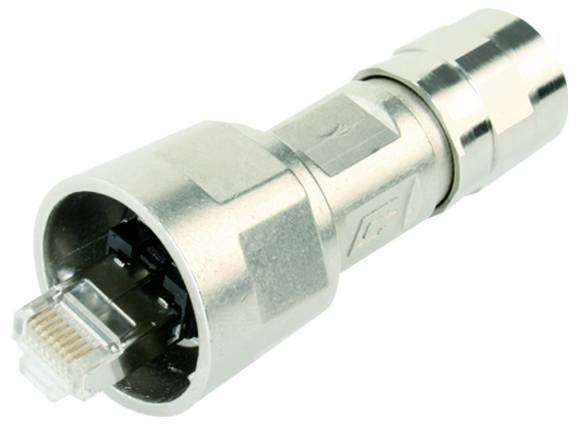

Close-up of a metal RJ45 Ethernet cable connector plug on a white background. Image is similar

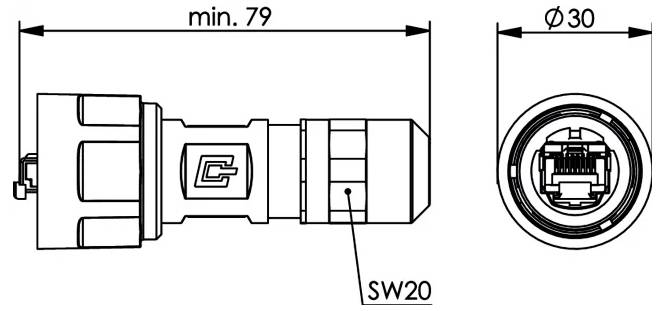

Technical drawing of a cylindrical connector, side and front views, labeled min. 79, Ø30, and SW20.
CHF 41.00
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Telegärtner 100007455 Sensor/actuator connector RJ45 plug enclosure 1 pc(s)
CHF 41.00
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 40.59 1,0 % savings
from 5 piece : CHF 40.18 2,0 % savings
from 25 piece : CHF 39.36 4,0 % savings

Product description

Description

Specifications:
Accepting cables with diameters of 5...10 mm,
Easy mounting of flanges with central screw connection or 4 screws,
NBR snap cord on the protective cap,
Field for marking signs,
With kink protection spiral available to comply with the bend radii with fiber optic cables and Cu cables,
Robust die-cast zinc or plastic housing,
IP67protection class
Variant 1 to IEC 61076-3-106,
Pre-assembled plug and set articles for easy installation,
Available with RJ45 CAT.6A (ISO/IEC), CAT.6 Class EA (ISO/IEC), USB or fiber optic module

Notes: Without bend protection spiral
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Name:STX V1 RJ45-plug set CAT.6A (ISO/IEC)
Housing: metal
Full wire/strands AWG24-27

Keywords

Telegärtner, 100007455

Close-up of a metal RJ45 Ethernet cable connector plug on a white background. Image is similar
Technical drawing of a cylindrical connector, side and front views, labeled min. 79, Ø30, and SW20.
