Description
The M12x1 connector series can be used to implement applications such as safety and video surveillance (CCTV), passenger information systems (PIS), production facilities and production monitoring with high-resolution cameras. Users can connect X-ray machines for baggage checking at airports encapsulated and tamper-proof at the very fast interface with the M12 round connector. The M12 is also a real asset in rail vehicles: The increasing amount of data can be distributed reliably and transferred to all systems and devices connected in the train, such as cameras or switches. As a 8-pin, X-coded, compact connector in CAT.6A (ISO/IEC), the M12 can transfer data rates up to 10 Gbit/s from Telegärtner.
Specifications:
X-coding according to connector standard IEC 61076-2-109,
10 Gigabit Ethernet according to IEEE 802.3an,
Suitable for 4PPoE according to IEEE 802.3bt,
CAT.6A (ISO/IEC) according to ISO/IEC 11801; DIN EN 50173-1,
UL listed
IP67protection class
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: Plug face 1: 8-pin, X-coded, straight; plug face 2: 8-pin, X-coded, straight; CAT.6A (ISO/IEC)
Name: STX M12x1-M12x1 KU X-cod. CAT.6A (ISO/IEC)
CODE: CO-8X-180-8X-180-C6A000

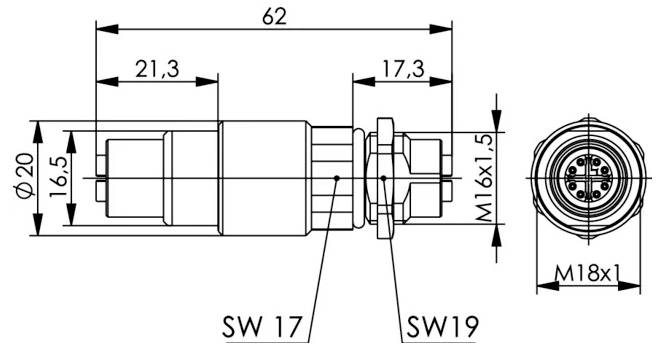

Mounting dimensions Z161
