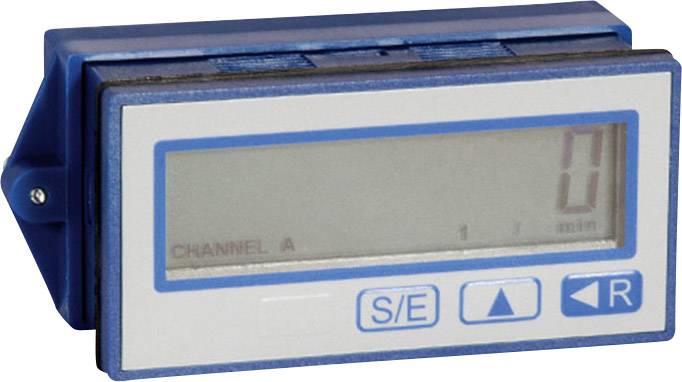

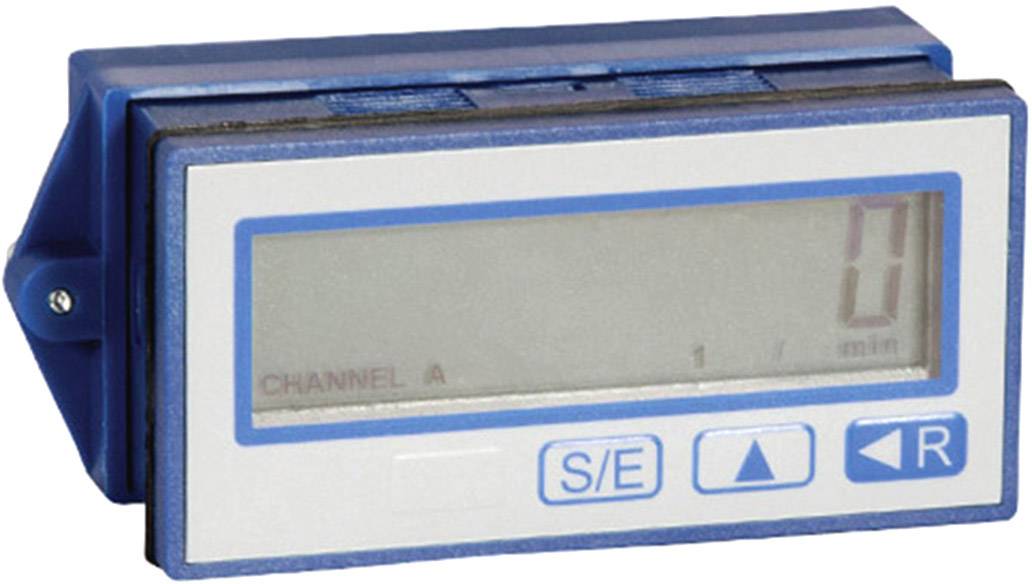

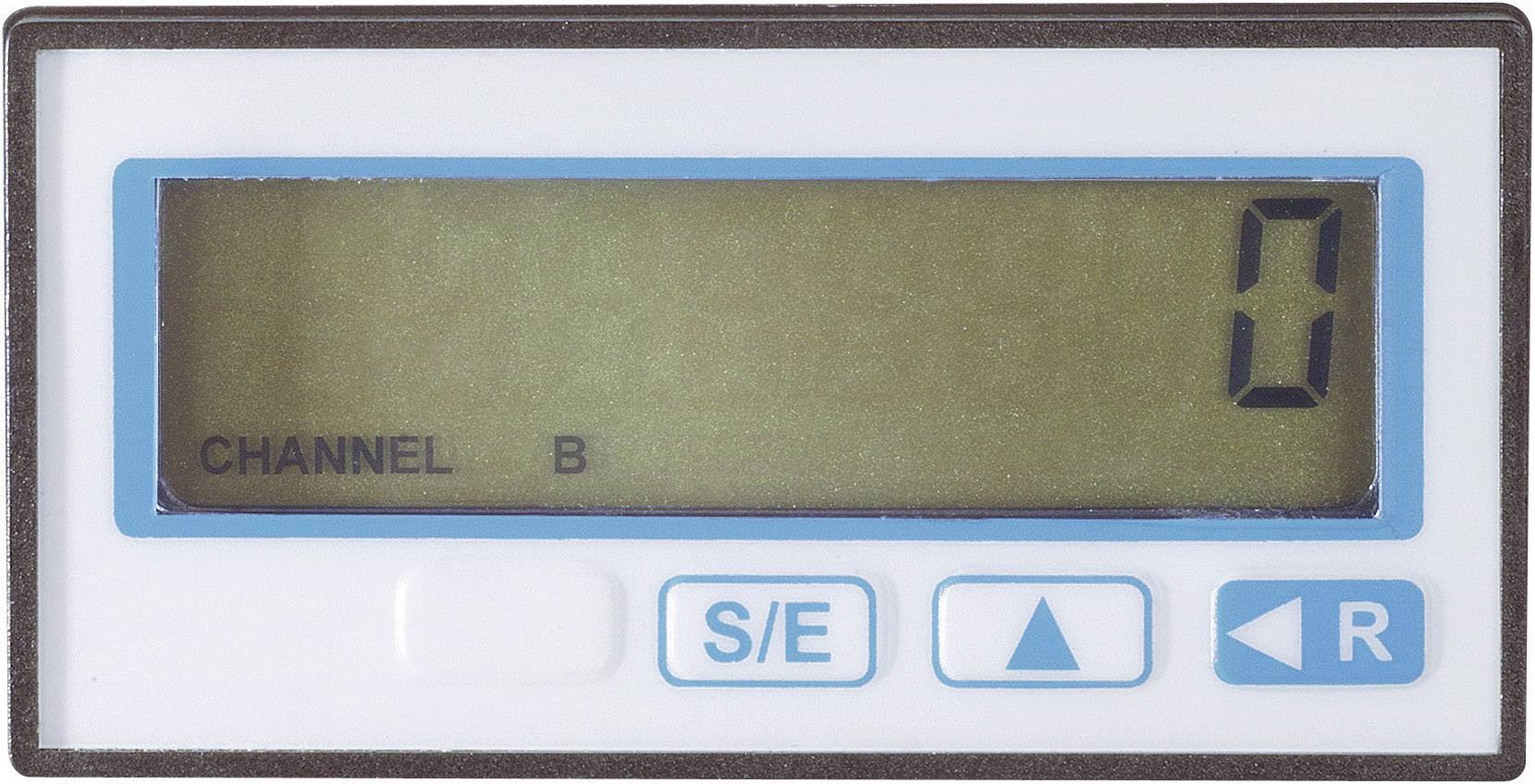

With 2 counter inputs for measuring instantaneous and total flow. The ARS 260 is a microprocessor-controlled, universal display and analysis unit for reading two separate pulse meters. The compact and rugged unit is specifically designed for industrial use. The device can detect any pulse shape from 5 to 24 V/DC. Programmable scale.
1 input for tachometer function (F max: 10 kHz, duty cycle 1:1) · 1 input for pulse counter (F max: 10 kHz, duty cycle 1:1).
Powered by integral lithium battery with a lifetime of approx. 5 years. Battery is disabled if the device is connected to an external power supply. Input for tachometer function. Guarded screw terminal connections on the rear.
Physical units: l/s, l/min, l/h, gal/s, gal/min, gal/h, 1/s, 1/min, 1/h.
Housing not included
Display unit + Spring frame + Operating instructions
B.I.O-TECH e.K., ARS 260, BioTech
