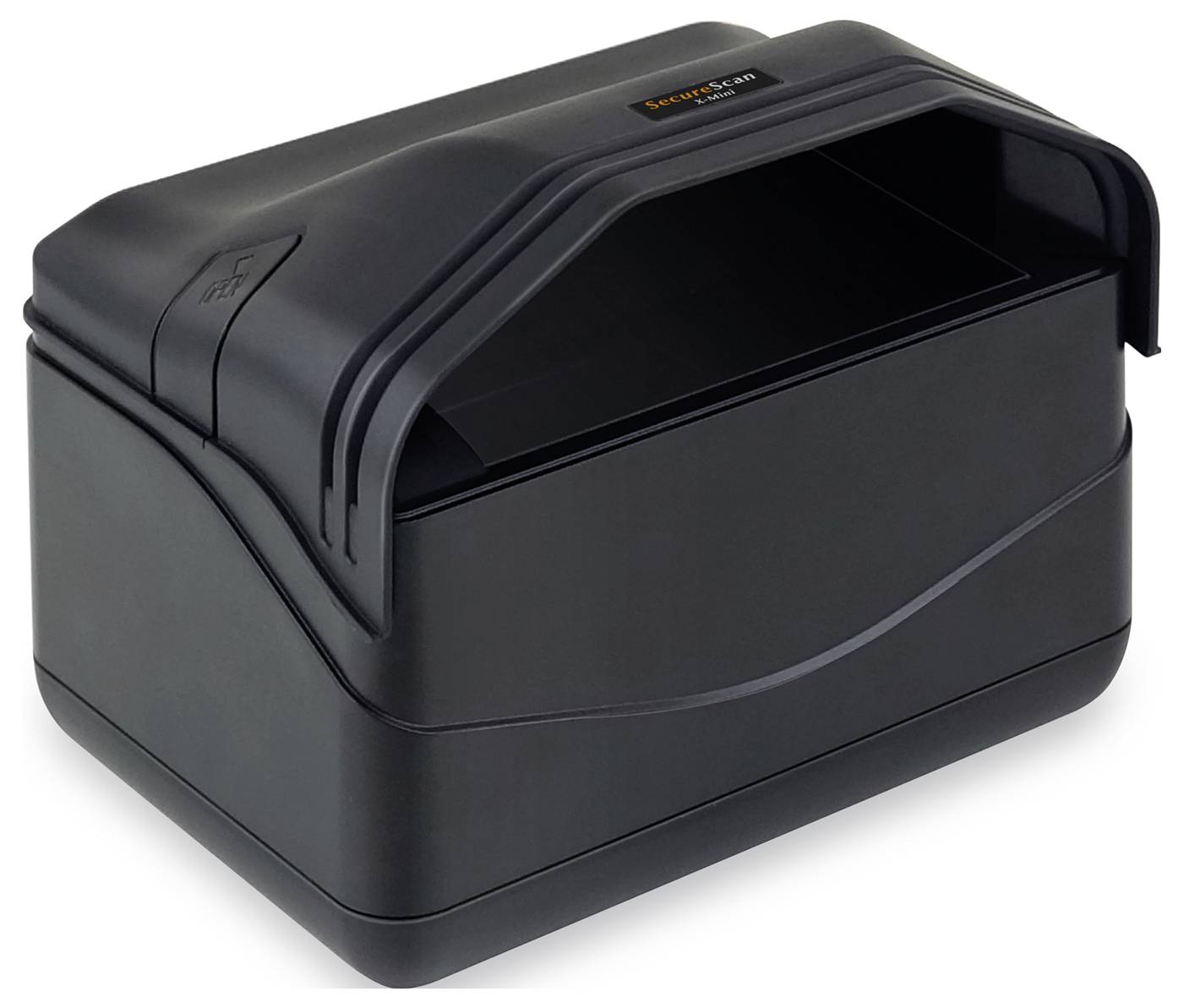

Plustek SecureScan X-Mini 2000 Document scanner 60 pages/min USB

Overview

Two light sources: Detects ID documents under both visible and infrared light
Integrated data detection – reads and extracts data from the machine-readable area (MRZ).
Automatic triggering: Records data immediately as soon as a document is detected – no buttons, no delays.
The highly precise 5-Megapixel-optics provides for fast, exact scanning with pin-sharp image quality
All ID and passport documents.
Easy integration in kiosk systems and switches
BUS power supply: Easy connection and operation via a single USB cable - no external power supply required.

Description

SecureScan is a program that scans travel documents
How identity cards are simplified. It allows you to customize
Pre-configure scan settings for a "non-contact" scanning experience
Documents automatically sent directly to a printer or to detect machine-readable
Travel documents (MRTDs). SecureScan is a further feature
Manager a special data management software that works on the
SecureScan scan results are tailored. To ensure data security, it has a password-protected login
mechanism. SecureScan Manager also offers customizable scan
Configurations, including resolution, image output file format, and storage path. For efficient data retrieval, enables
Quick Search tool allows users to find matching results in seconds by simply typing keywords.

Characteristics

Image sensor CMOS
Lamp white LED / IR LED
Optical resolution 5 megapixels
Focus Fixed
24-bit color, 24-bit output scanning process
IR: 24-bit input, 8-bit output"
Scanning speed Approx. 1 seconds (capture color, full-page image of rice pass)
Scanning range (W x L) Maximum 127 x 95 mm
Supported Tormat (B x L) Maximum 125 x 88 mm
Power supply USB-current 5V DC
Function keys Dual auto detection sensors
Connection USB 2.0 type B
Net weight 0.86 kg
Dimensions (W x D x H) 195 x 139 x 100 mm
With cover 195 x 139 x 153 mm"

System requirements "2.0 GHz CPU processor or higher[1]
Windows recommended: 2.8 GHz Intel® Core™ i5 processor with 4 CPU cores or higher
At least 4 GB RAM (8 GB or more recommended)
6 GB hard disk storage for the program installation
1 free USB 2.0 port
Display dimensions of 1024 x 768 or larger"

Information

Scan speed (if stated) refers to A4-sized documents.

Delivery content

• Scanner, USB cable accompanying software "Plustek SecureScan,
• Plustek SecureScan Manager"

Requirements

Windows 7 / 8 / 10 / 11
LINUX for System Integrators. Please contact your local sales department: sales@plustek.com (SDK only)

Keywords

Plustek, 0336, SecureScan X-Mini 2000
