SIMATIC S7-200 is easy: programming software with Windows user interface
instructions for quick access to PLC technology
easy installation onto a top hat profile rail
SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
own S7-200 net with PPI protocol
freely programmable interface.

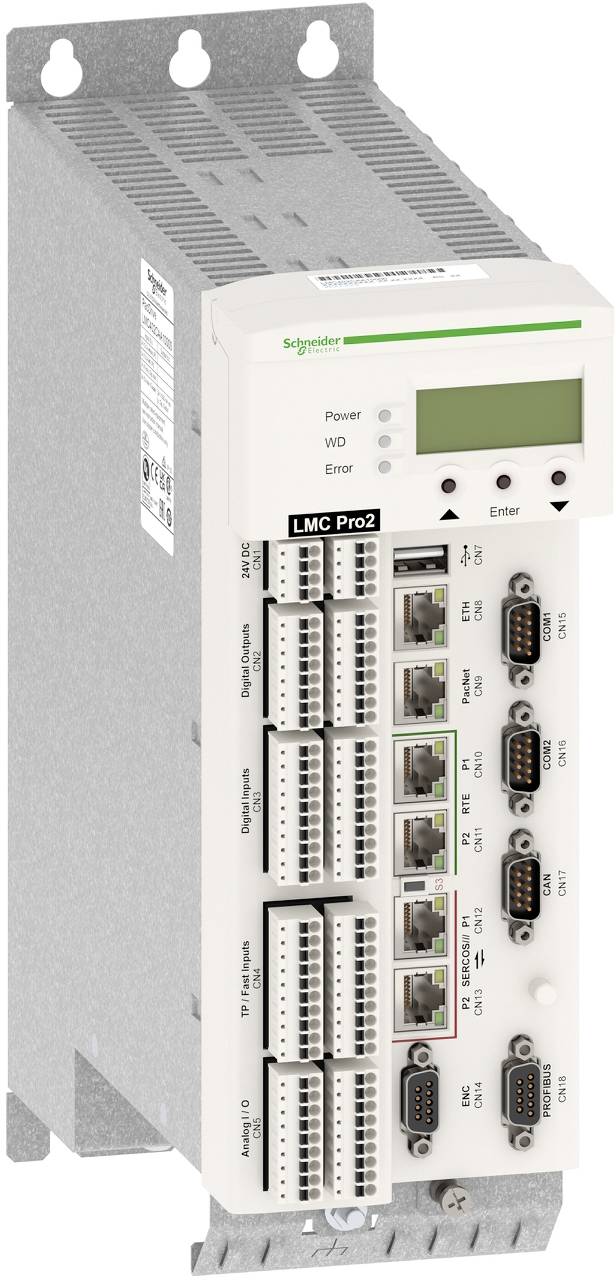

Motion controller LMC Pro2 for motion-based automation with PacDrive 3 for flexible drive architectures in multi-axis systems. This control is designed for operation of up to 16 synchronous axes. To implement modular machines, the controller communicates with the servo controllers via the Motionbus Sercos III. In addition to a PacNet interface, the following field buses are available depending on the configuration: Profibus DP Master/Slave, RT Ethernet or CANopen. For the installation of additional communication modules 2 slots are available, which are both unfitted. 16 touch probe, 4 interrupt, 20 digital and 2 analogue inputs are available, as well as 16 digital and 2 analogue outputs. A Hiperface Master encoder or an incremental Master encoder can be connected to the Master encoder interface. The network connection is via Ethernet. An OPC UA server is integrated. The necessary connectors and a CF-card are included in the accessories set.
