Description

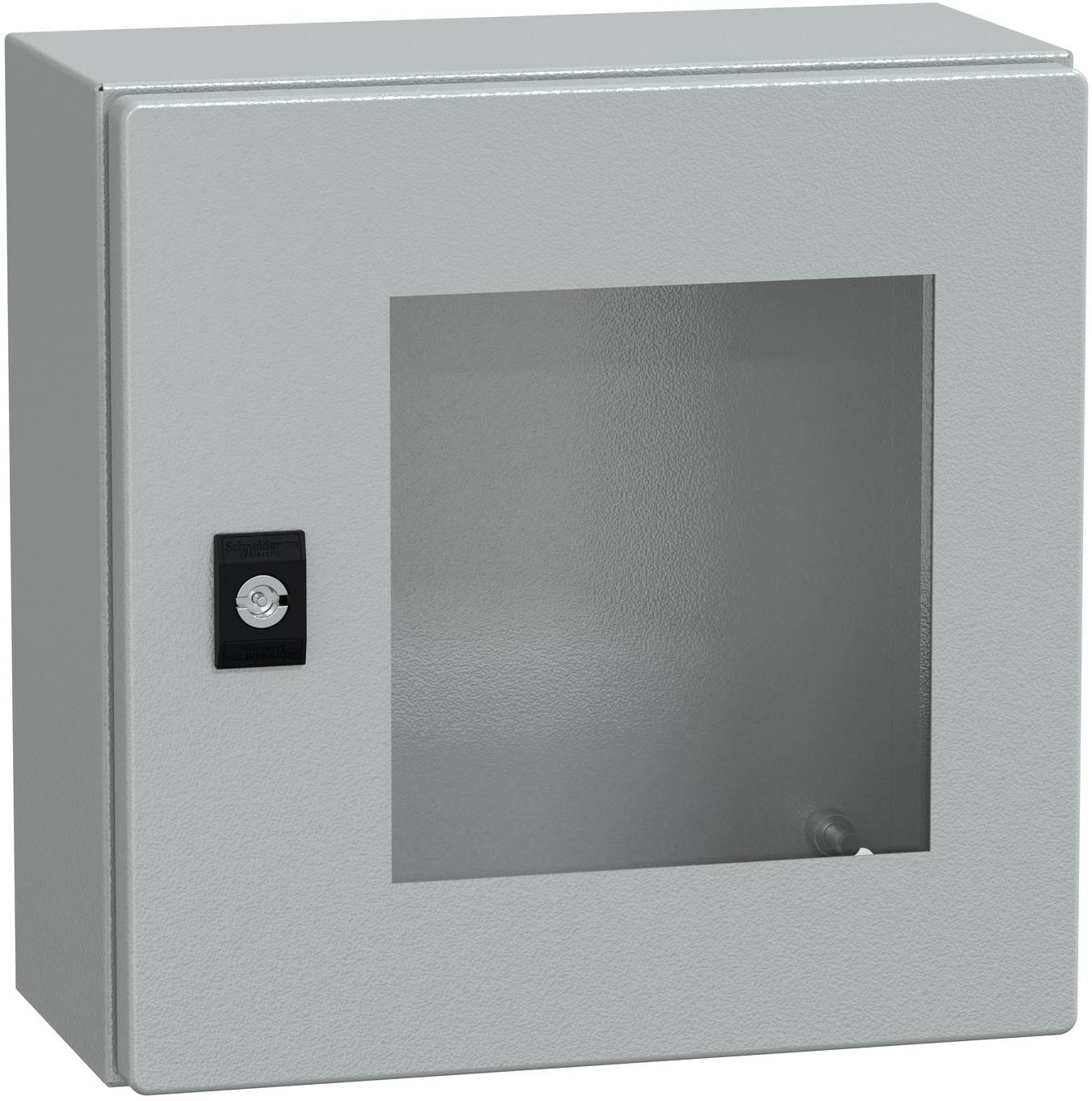

PanelSet CRN steel wall housing for versatile applications. Designed for use in harsh environments and resistant to shocks according to IK08 (IEC 62262) as well as to dust and water according to IP66 (IEC 60529). The cabinet has a nominal height, width and depth of 300 mm, 300 mm and 150 mm. The cabinet is gray (RAL 7035) and has an epoxy-polyester powder coating. The cabinet consists of a body, a cable entry plate, a sight door and a lock. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door is equipped with a three-point locking system with a 3-mm double-bit insert. The door, cable entry plates and mounting plate can be removed for maintenance purposes. The door is made of steel and safety glass. The net weight of the cabinet is 4.399kg. This compact cabinet is cUL certified.
