Description

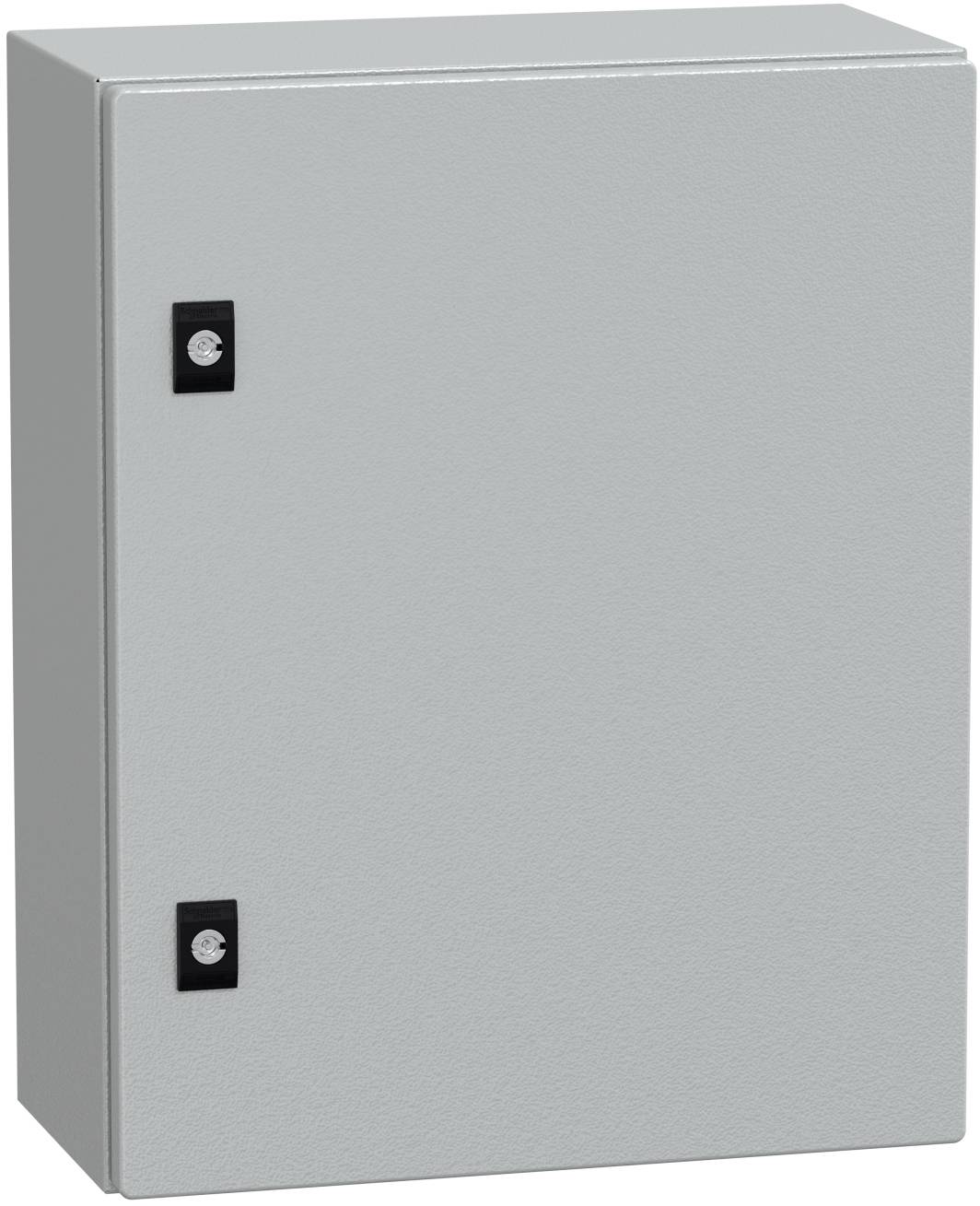

PanelSet CRN steel housing for wall mounting for versatile applications. Designed for high impact resistance and classified with IK10 (IEC 62262) and IP66 (IEC 60529) for use in harsh environments. The cabinet has a nominal height, width and depth of 500 mm, 400 mm and 200 mm. The cabinet is gray (RAL 7035) and has an epoxy-polyester powder coating. The cabinet consists of a body, a cable entry plate, a simple door with lock and a mounting plate. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door is equipped with a three-point locking system with a 3-mm double-bit insert. The door and cable entry plate can be removed for maintenance purposes, the mounting plate can be removed by means of fasteners. The net weight of the cabinet is 10.928kg. The sides of the cabinet are a single edged profile and the back is welded to a double profile, creating a protected sealed area. Front-side operability is possible.
