Overview
Laser category: 3R
Laserfuchs Plumb dot laser
CHF 185.95
VAT included
plus
Delivery time:
3-4 days
available from 28/09/2026
30 days free return shipment
CHF 185.95
VAT included
plus
Product description
Characteristics
Point laser, green, 532nm, 5mW, laser class 3R, Focus collimated, 3V DC, 16x90mm, inc. Mains adapter
Point laser, green, 520nm, 1mW, laser class 2, Focus 5m, 3V DC, 19x19 86mm, battery operation

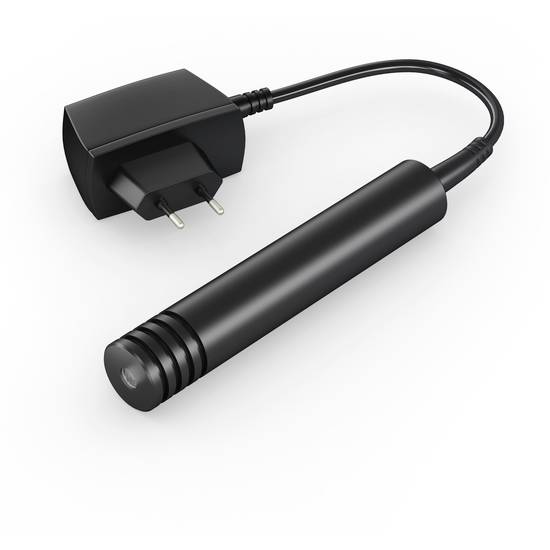

The LFD532-5-3(16x90) NT type is a green dot laser with a wavelength of 532nm. This laser module is characterized by its solid design (16x90mm). The service life of the laser module is greater than 5,000 hours. Due to the collimated laser beam, the generated spot size increases steadily slightly with increasing working distance. The accompanying power supply provides a stable and reliable power supply HER. This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. For industrial, handicraft, hobby and the show area. Typical usage areas are low-cost applications. This module falls into the laser class 3R.
Radiation characteristic: Elliptical dot, point size 5mm@10m
Optical power: 5mW (Class 3R laser); focus: Collimated
Compact design: 16x90mm; Axle deviation: Up to 3.0°; DC-hollow plug 2.5mm
For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, handicrafts, Hobby and the show area.
The power supply unit included in the delivery is connected separable with the laser module.
Including a Picotronic power supply LFNT-3-C.
Keywords
Laserfuchs, 70107142, LFD532-5-3(16x90)-NT, laser, laser module, laser technology
