Overview
Laser category: 3R
Picotronic Plumb dot laser
CHF 75.95
VAT included
plus
Delivery time:
3-4 days
available from 25/09/2026
30 days free return shipment
CHF 75.95
VAT included
plus
Product description
Characteristics
Point laser, red, 650nm, 5mW, laser class 3R, Focus 1m, 3V DC, 8x21mm, shaft parallel

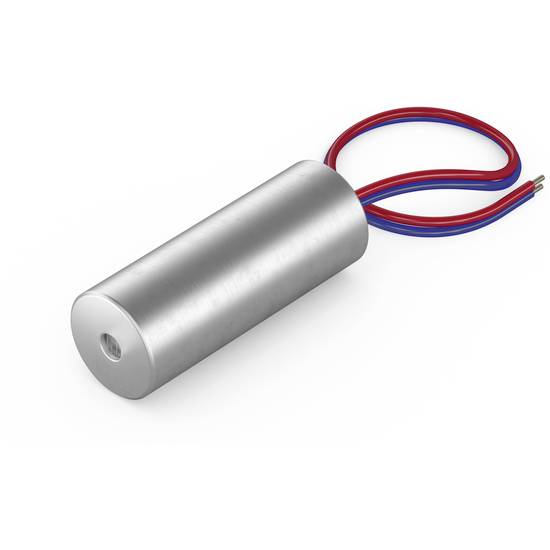

The type DI650-5-3(8x21)-AP is a laser for projection of a red laser point. The laser module emits 650nm wavelength radiation. The laser has a very compact design (8x21 mm). The module has a fixed adjustment optics and is aligned axially (0.1°). This product can be used excellently in e.g., component positioning or pointer applications, in industry, trade, hobby and show areas. This module falls into the laser class 3R.
Radiation characteristic: Elliptical dot, point size 2.5mm@1m
Optical output: 5mW (laser class 3R); focus 1m
Compact design: 8x21mm; shaft deviation: 0.1°
For applications in e.g. component positioning or pointer applications, in industry, trade, hobby and show area.
Power supply 3V. For power supply you can use our mains adapter Picotronic LFNT-3.
Keywords
Picotronic, 70112566, DI650-5-3(8x21)-AP, laser, laser module, laser technology
