Overview
For switching between a DVB-T- and BK-signal
Including DC blocker SZU 14-01

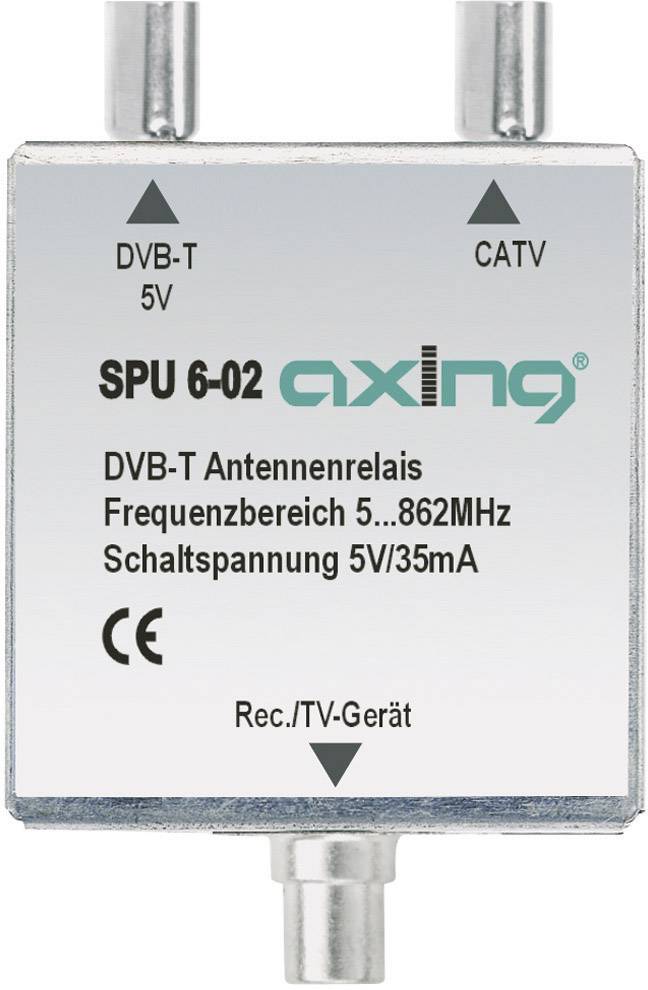

Axing SPU 6-02 DVB-T switcher
Product description
Characteristics
Trigger criterion: 5V 35 mA · Bypass
Information
For the operation of the DVB-T-antenna relais SPU 6-02 lightning protection, a voltage of 5 V is needed. Not all televisions with built-in DVB-T receiver supply a 5V voltage. Please pay attention to the maximum power supply of your television sets with built-in DVB-T receiver.

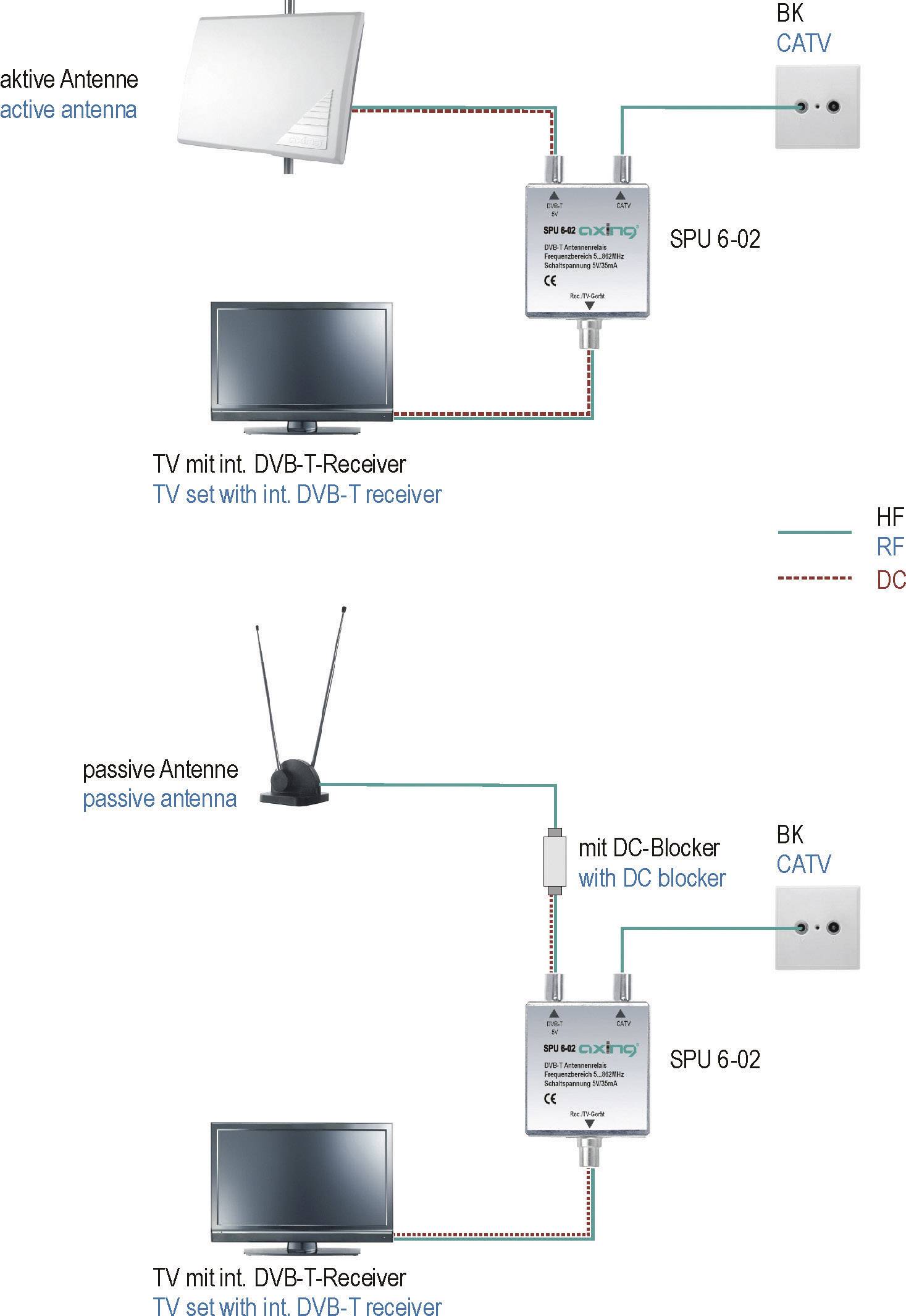

Make sure, whether a DVB-T antenna voltage of 5 V is needed. If this is not the case (passive antenna), turn on the supplied DC Blocker between SPU 6-02 and DVB-T antenna.
Delivery content
Antenna relais SPU 6-02 + DC-Blocker + Operating instructions.
Keywords
7611682001099, Axing, SPU 6-02, SPU 6-02
