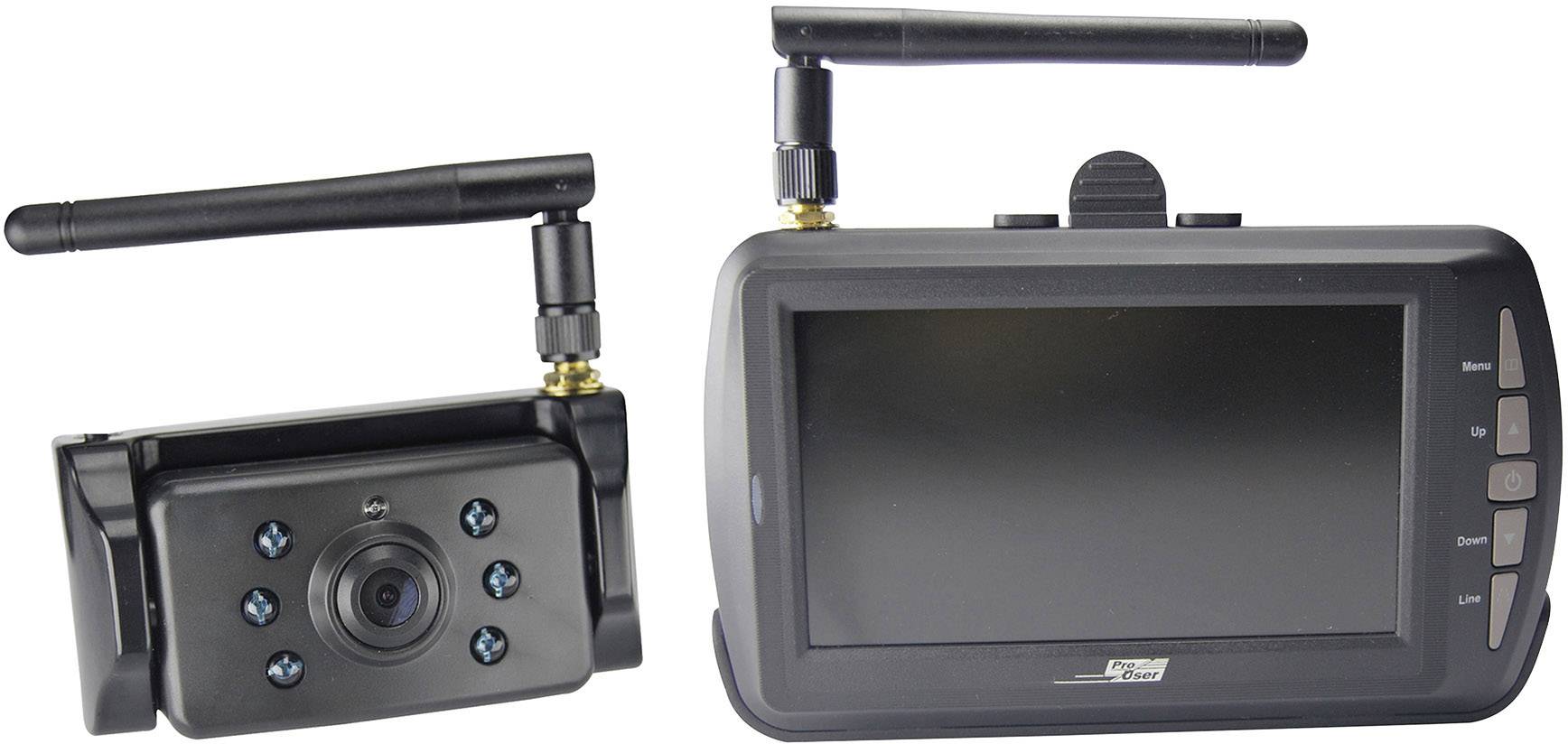

ProUser DRC 4340 Wireless reversing camera system 2 camera inputs

Overview

Distance auxiliary lines
Range up to 50 m

Description

Digital wireless rear view camera system with LCD display (4.3'') for 12 V and 24 V systems with external antennas for perfect range. Ideal for horse trailers, caravans, mobile homes, tractors and trucks.
The digital technology allows a perfect image without interference from WiFi or Bluetooth. With the external antennas at the monitor and at the camera, a perfect transmission range is guaranteed (tested on a 40'' steel sea container)
The rear view camera system helps with parking, checking the rear parking possibility and observing the traffic behind the vehicle and has been specially designed for use with carriages, horse trailers, caravans, mobile homes, buses and trucks.
The installation is very simple and the radio transmission from the camera to the receiver in the vehicle interior eliminates the need for expensive wiring. Only the power cable for the monitor and the camera must be connected.

Characteristics

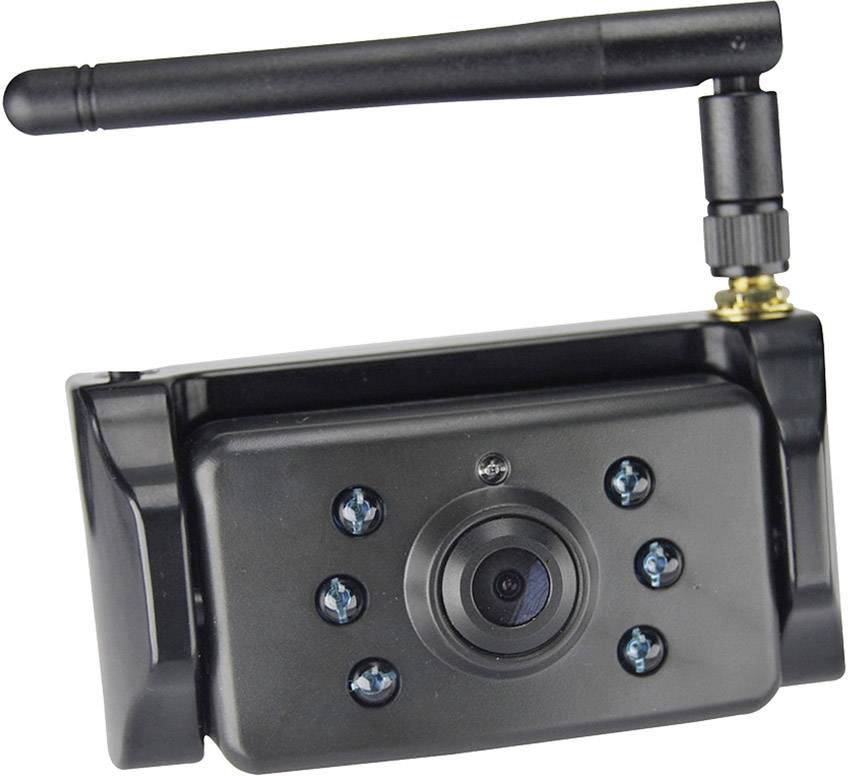

Camera:
Robust colour camera with ¼" colour sensor - IR-LEDs for night vision function - Camera can be mounted on license plate with supplied mounting plate or with mounting bracket on flat surfaces - Waterproof housing (IP Level 65) - Camera with a radius of approx. 110 degrees - Integrated transmitter in camera module - External antenna for perfect range (digital 2.4 GHz RF module with a transmission range of up to 50 meters) - Automatic switch-on of the system when engaging reverse gear - For 12V and 24V systems - Size (WxHxD): 85 x 40 x 35 mm

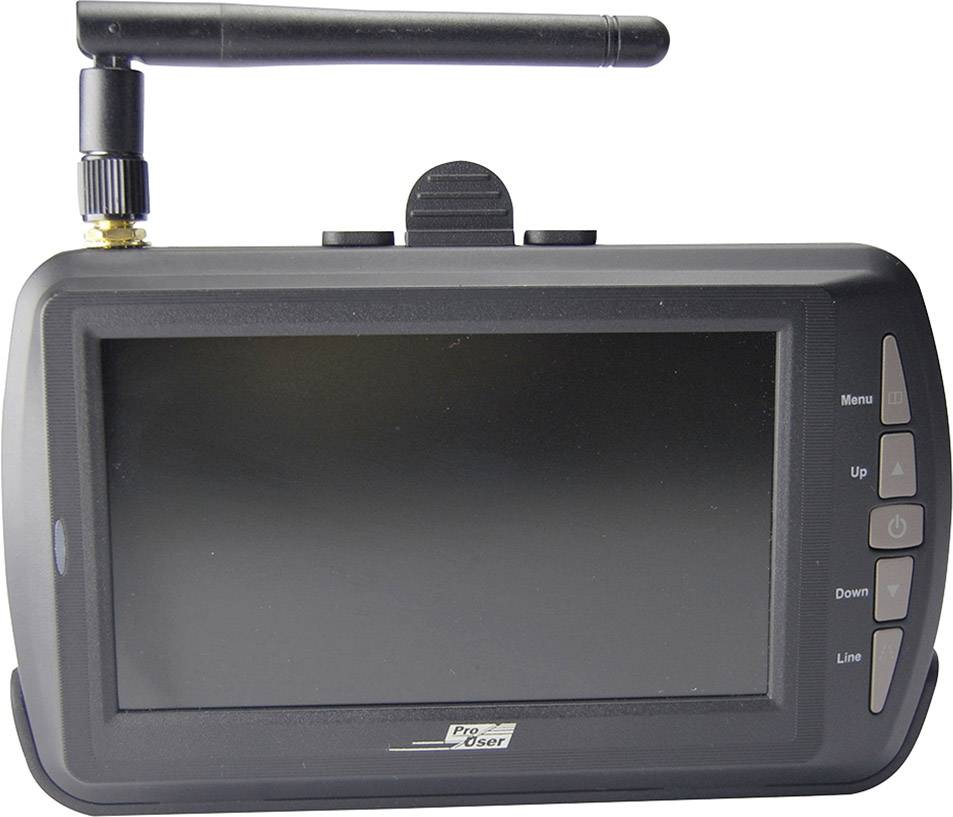

Monitor:
4.3 inch colour LCD monitor - Optional second camera can be connected, choice between the cameras or both images via split screen (article number 20137 camera for DRC4340) - With external antenna for perfect range - Resolution: 320 x 240 pixels - Viewing angle: 90° - Mounting on windscreen with suction cup - Connection to 12V or 24V electrical system via cigarette lighter - Size (WxHxD): 140 x 85 x 25 mm

Delivery content

• Camera - Monitor with mounting foot - Mains cable for camera - Mains cable for camera - Mounting material

Keywords

ProUser, 16254, DRC 4340, Rear-view camera, Parking distance control, PDC

Other notes

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
