Homematic IP Wireless Blinds actuator HmIP-FBL

  • item model number: S891531

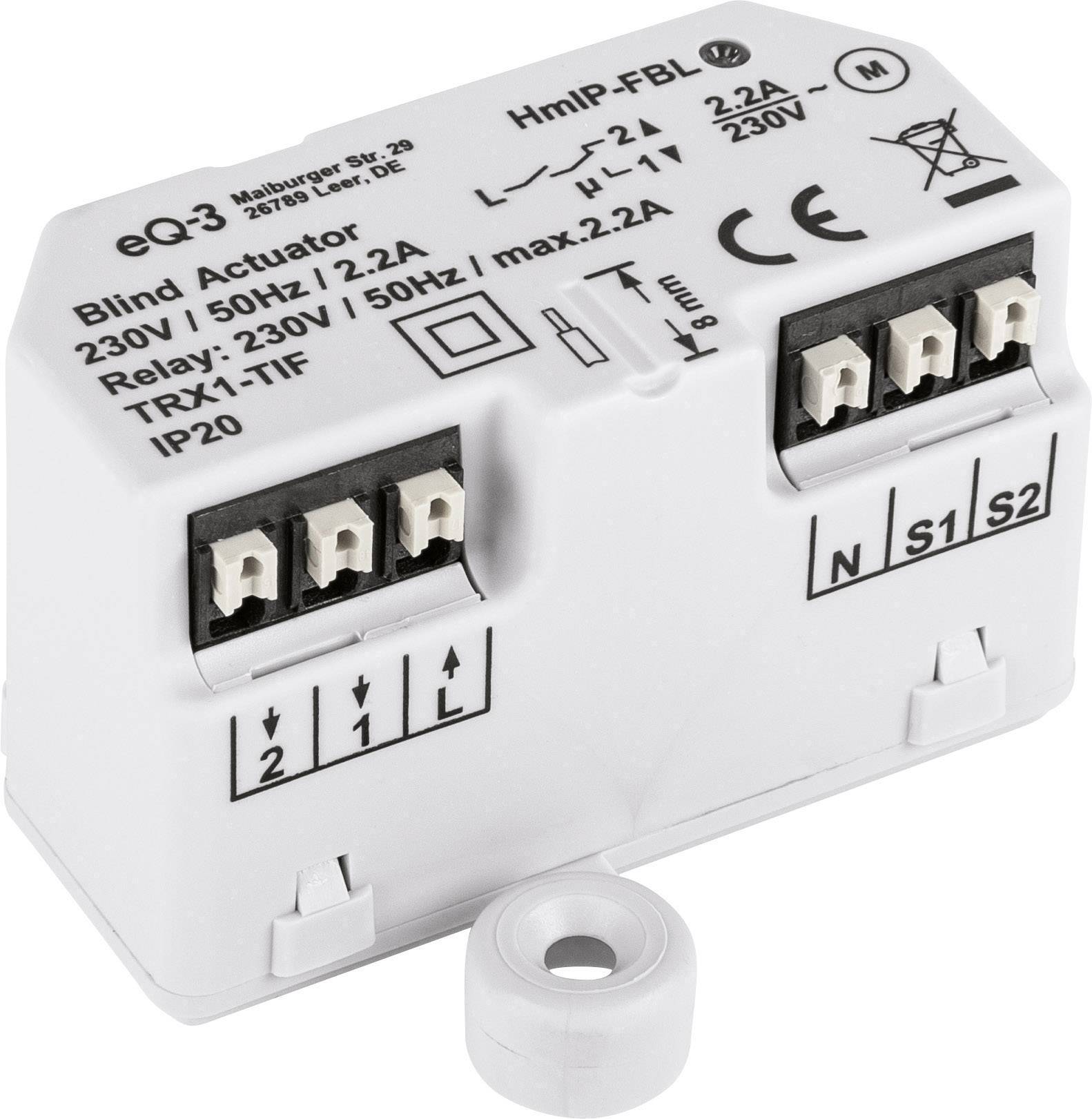

A white roller shutter actuator by eQ-3 for 230V/50Hz, maximum current 2.2A, with connection terminals and various labels.

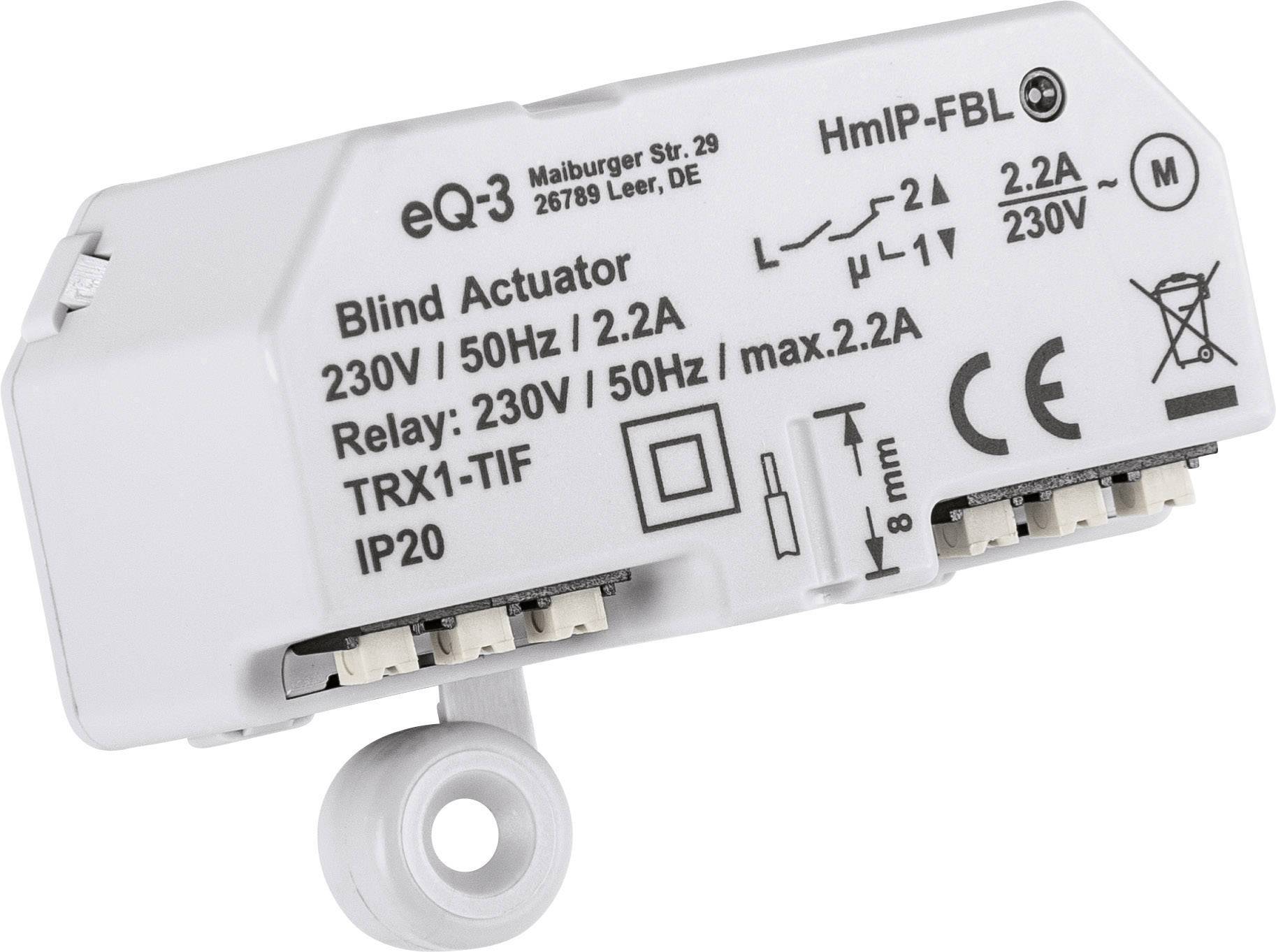

'Blind Actuator' Device with Specifications: 230V, 50Hz, 2.2A, IP20. Manufacturer: eQ-3, HmIP-FBL. Main Function: Blind Control.
White blind/shutter actuator for smart home systems, identifiable by technical labelling and connections on the top surface.

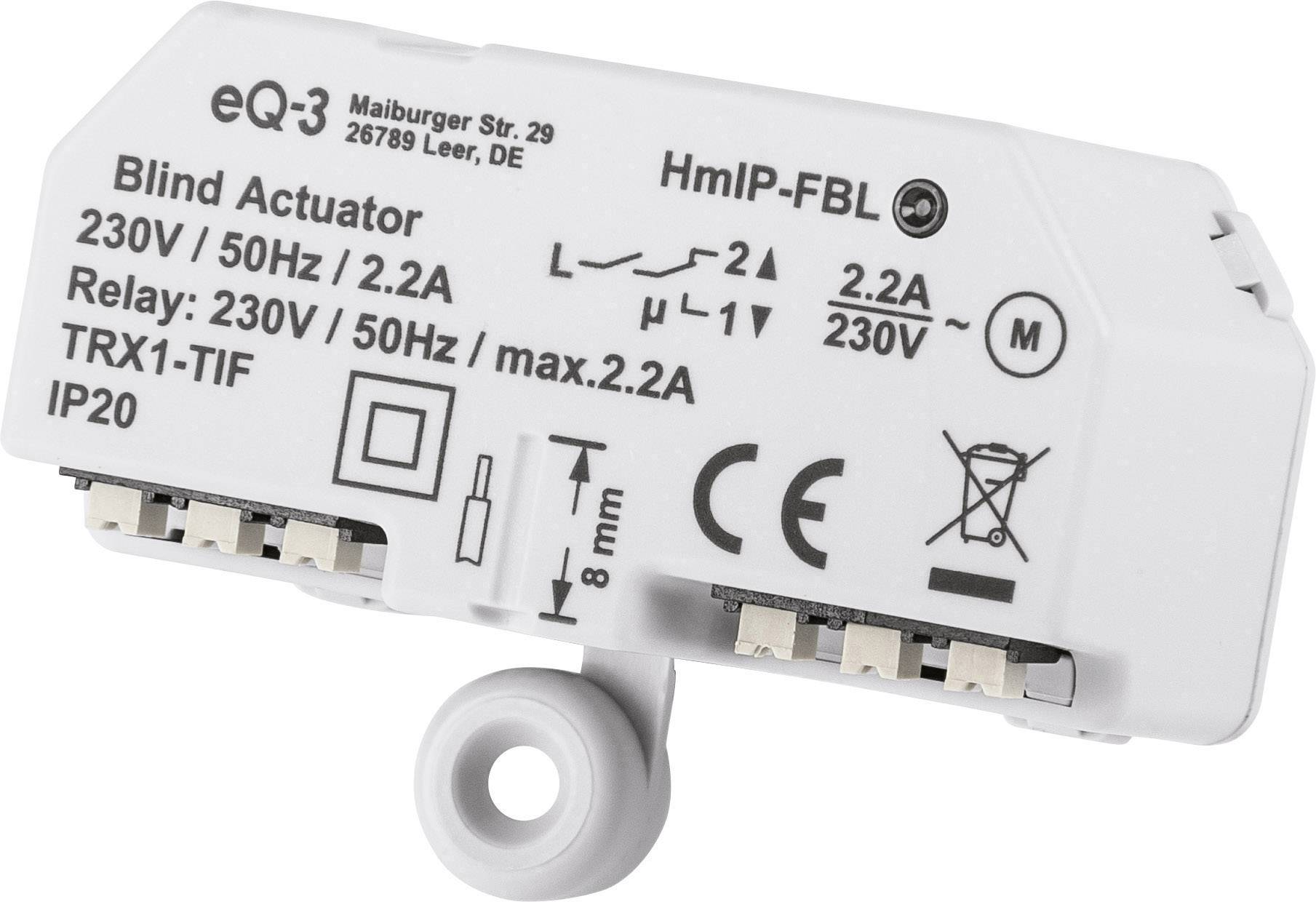

A white venetian blind actuator with technical specifications: 230V/50Hz, max. 2.2A, IP20. Manufacturer: eQ-3, Model: HmIP-FBL.

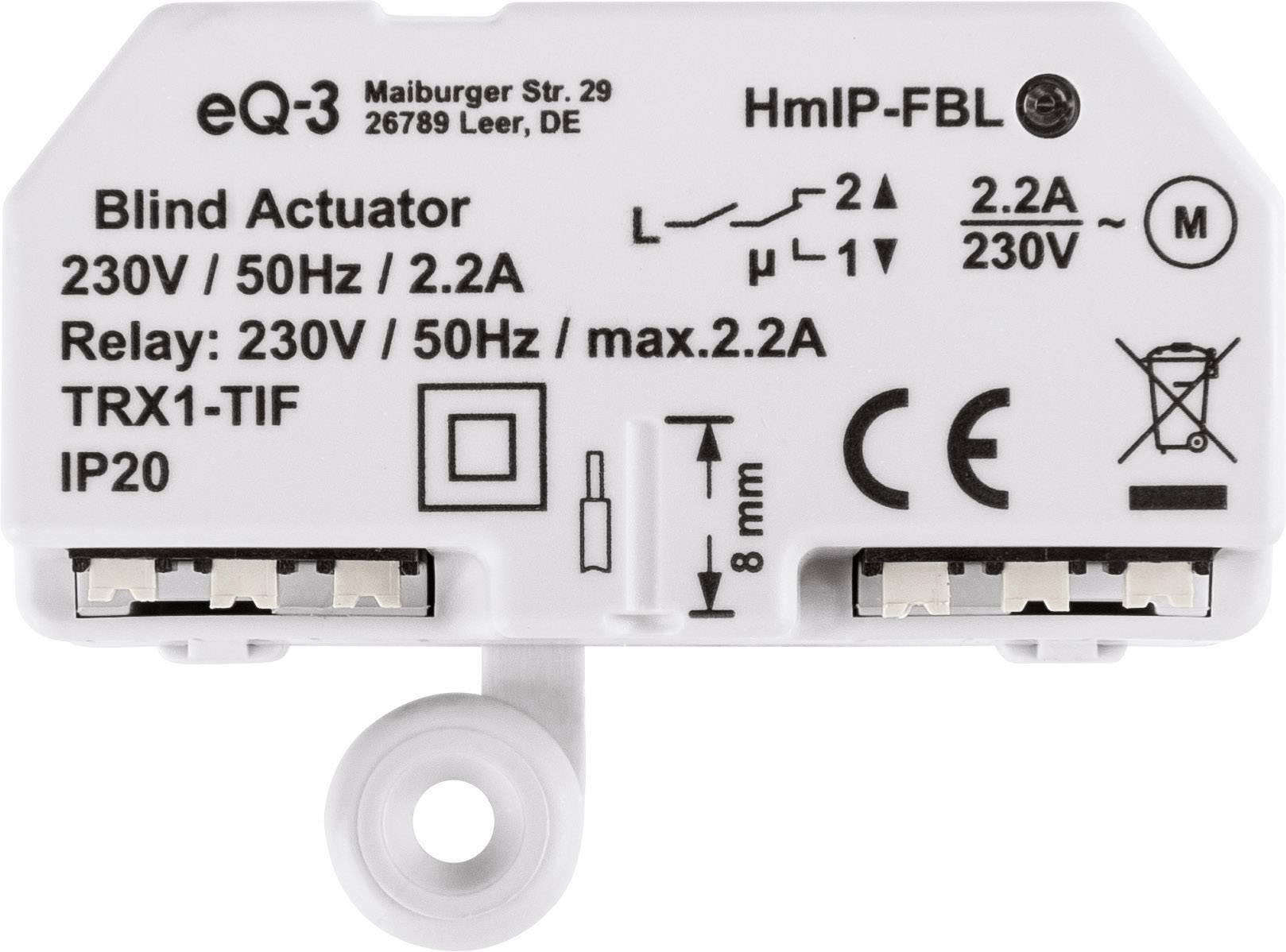

'Blind Actuator' device for controlling blinds, 230V/50Hz, with technical symbols and specifications on white housing.

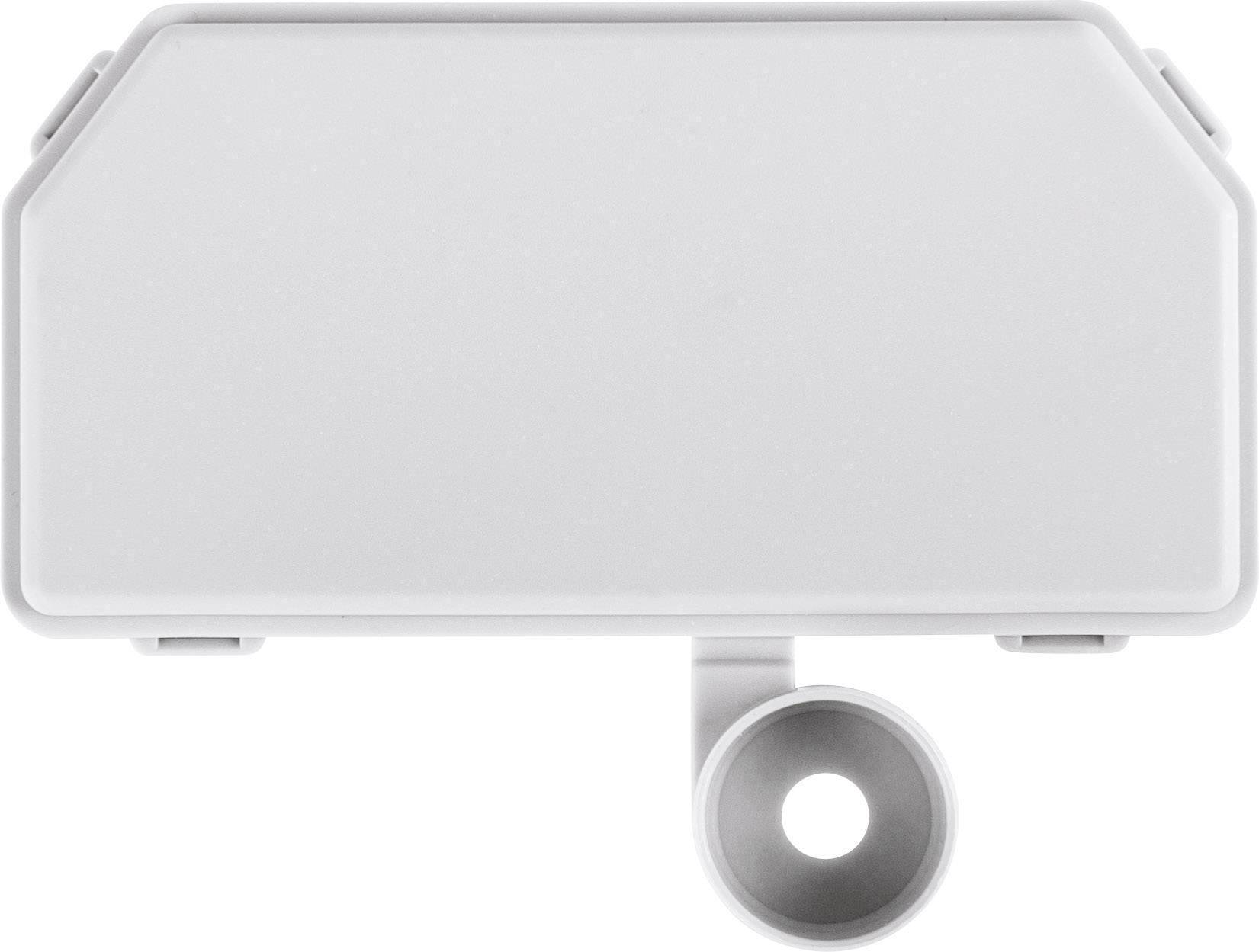

Grey rectangular object with a round cut-out at the bottom, against a white background.

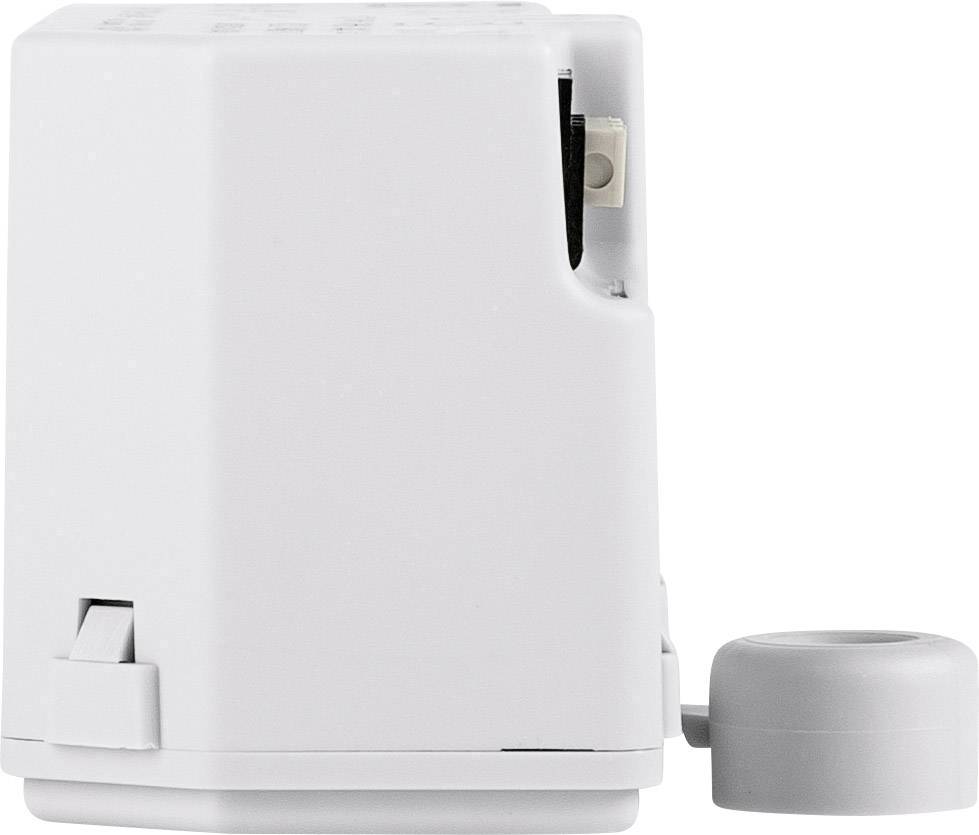

A white electric pencil sharpener with a removable collection container to the left of the device. The front side is not visible.

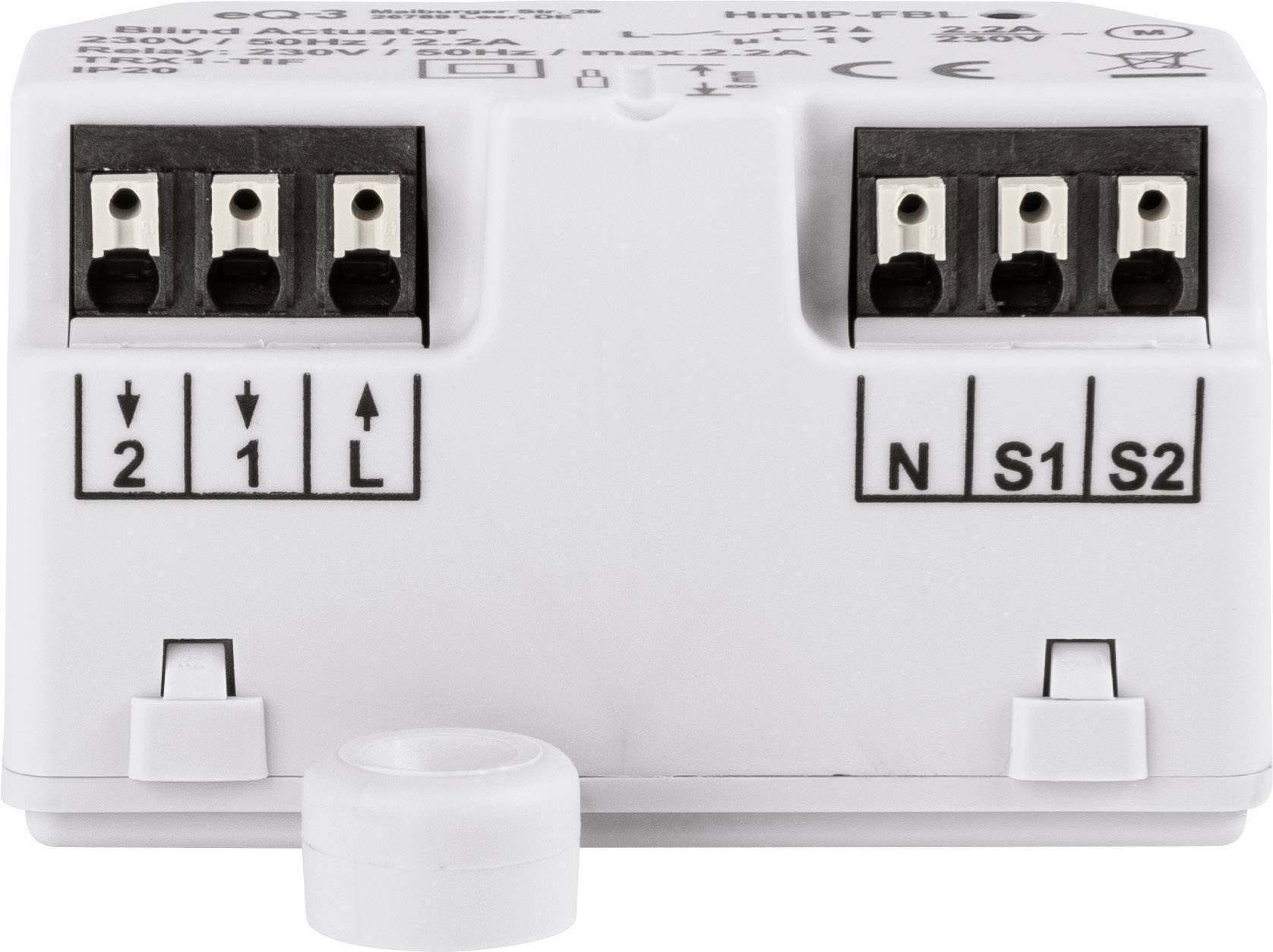

Electrical component with two terminal rows, labelled '2', '1', 'L' on the left side and 'N', 'S1', 'S2' on the right.
CHF 50.65
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Homematic IP Wireless Blinds actuator HmIP-FBL
CHF 50.65
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 50.14 1,0 % savings
from 5 piece : CHF 49.63 2,0 % savings
from 10 piece : CHF 49.13 3,0 % savings

Product description

Overview

Actuator for the automated control of blinds, external blinds, roller shutters
Allows the exact setting of the slat position
Individual configuration of a weekly profile

Description

The Homematic IP flush-mounted blind actuator is part of the Homematic IP Smart Home system and enables automated control of blinds, external blinds, roller shutters and awnings via all common tubular motors.

The small actuator is mounted in the flush-mounted box and wired to the existing tubular motor. After commissioning, individual weekly profiles can be defined, also depending on sunrise and sunset. On weekdays, for example, the blinds are raised after sunrise but not before 6:30 a.m. The blinds actuator is characterised by the precisely adjustable slat position of the venetian blinds and venetian blinds. In addition, lockout, storm and heat protection is possible in combination with the Homematic IP App and other devices.

Once installed, the shade dispenser can be operated via the Homematic IP App, with the aid of the Homematic IP remote control or in the classic way via two buttons connected with screwless terminals.

Thanks to the low standby power consumption of a maximum of 0.2 watts, there is no need to worry about running energy costs.

Characteristics

Flush-mounted actuator for controlling Venetian blinds, Venetian blinds, roller shutters and awnings - Enables exact adjustment of the slat position for Venetian blinds or venetian blinds - Convenient operation via app or remote control - Individual weekly profiles enable time-controlled switching - Convenient control depending on sunrise and sunset - Lock-out, Storm and heat protection possible - Simple commissioning thanks to automatic calibration travel - Suitable for all common tubular motors - Connection of two push-buttons via screwless terminals for local operation - Compact design for installation in flush-mounted boxes or in surface-mounted distribution boxes.

Information

A neutral conductor must be provided for the installation.

Delivery content

  • Homematic IP shutter actuator - manual.

Keywords

04047976513987, Homematic IP, 151398A0A, HmIP-FBL, Home automation, radio

A white roller shutter actuator by eQ-3 for 230V/50Hz, maximum current 2.2A, with connection terminals and various labels.
'Blind Actuator' Device with Specifications: 230V, 50Hz, 2.2A, IP20. Manufacturer: eQ-3, HmIP-FBL. Main Function: Blind Control.
White blind/shutter actuator for smart home systems, identifiable by technical labelling and connections on the top surface.
A white venetian blind actuator with technical specifications: 230V/50Hz, max. 2.2A, IP20. Manufacturer: eQ-3, Model: HmIP-FBL.
