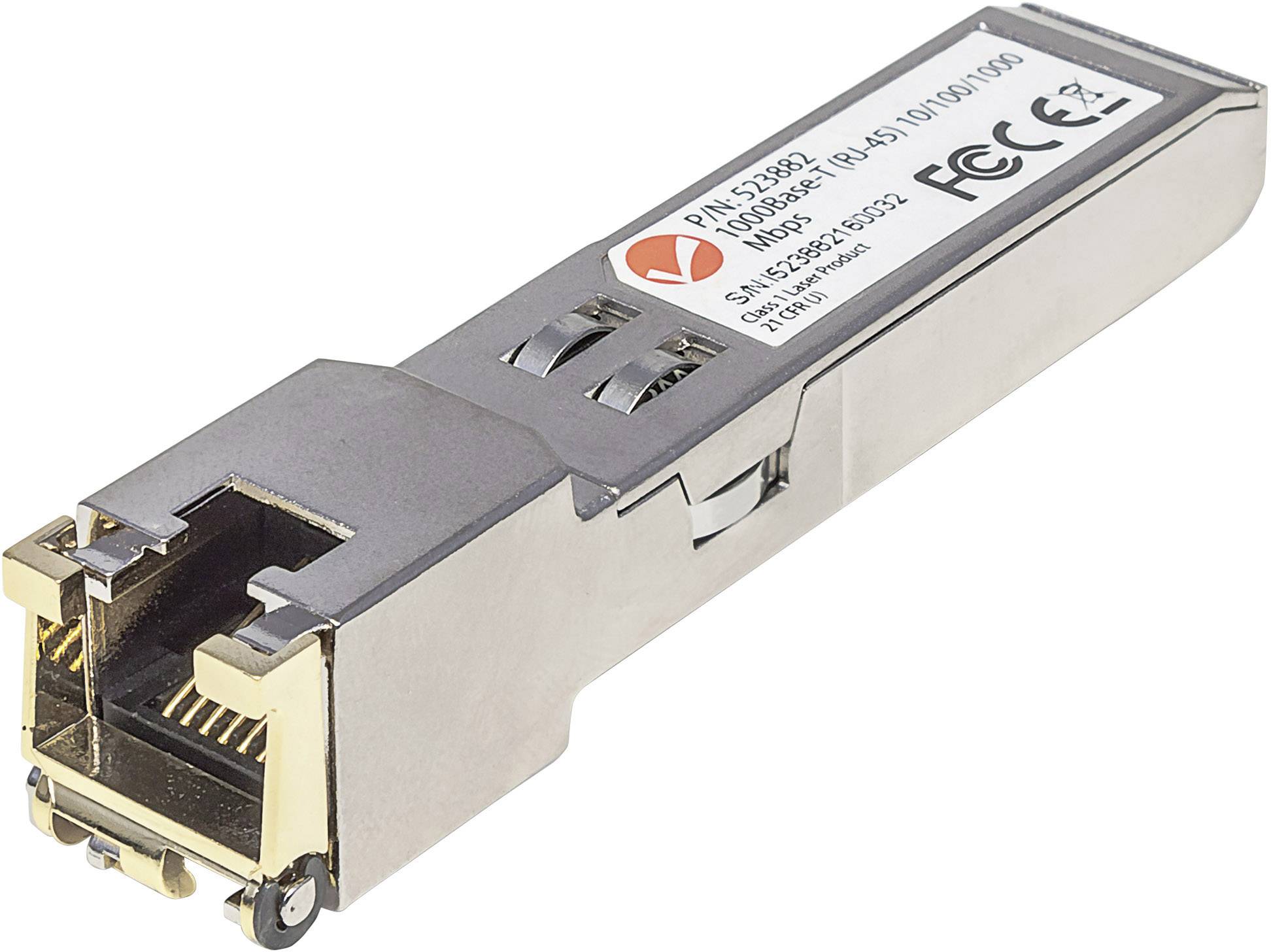

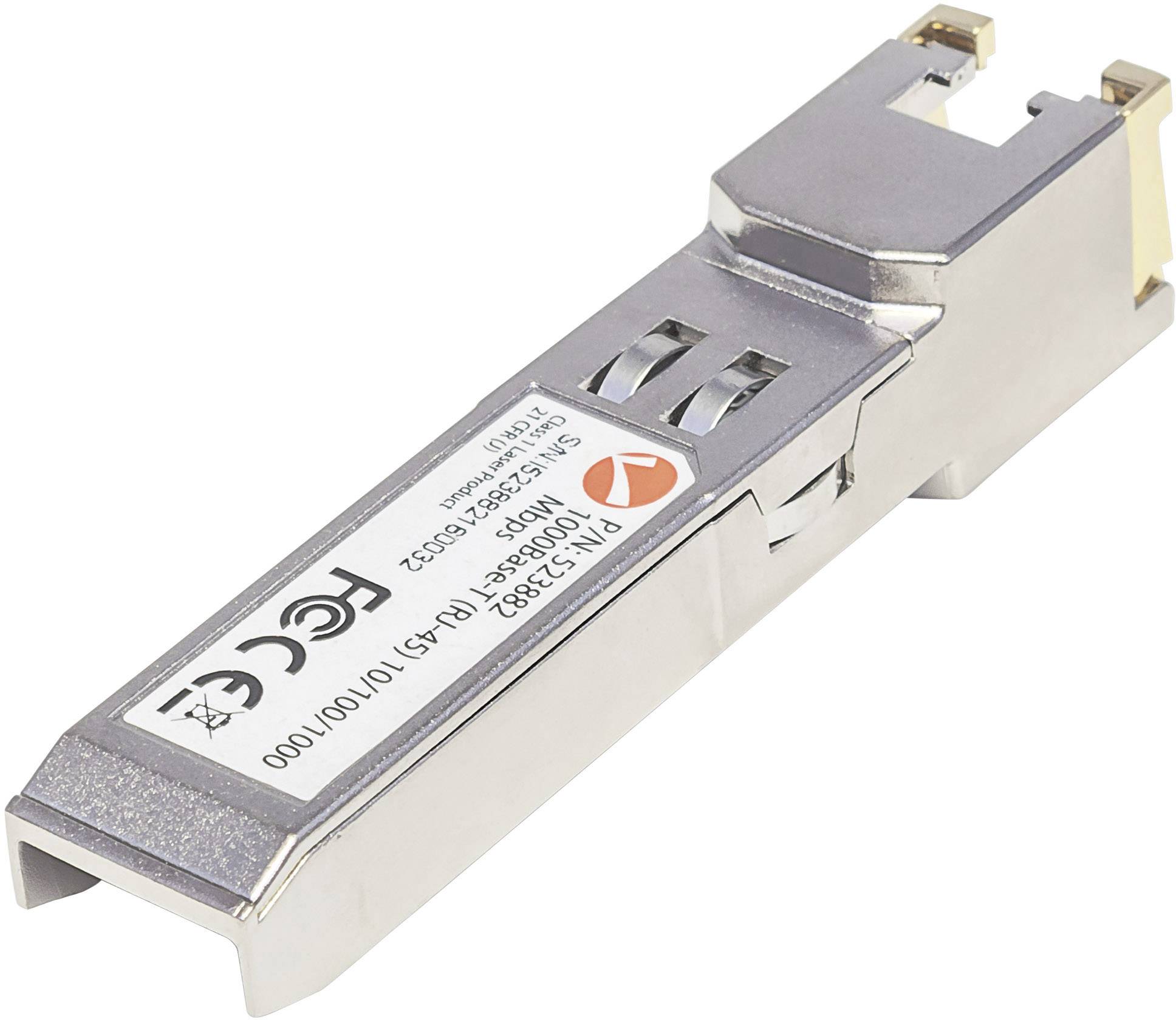

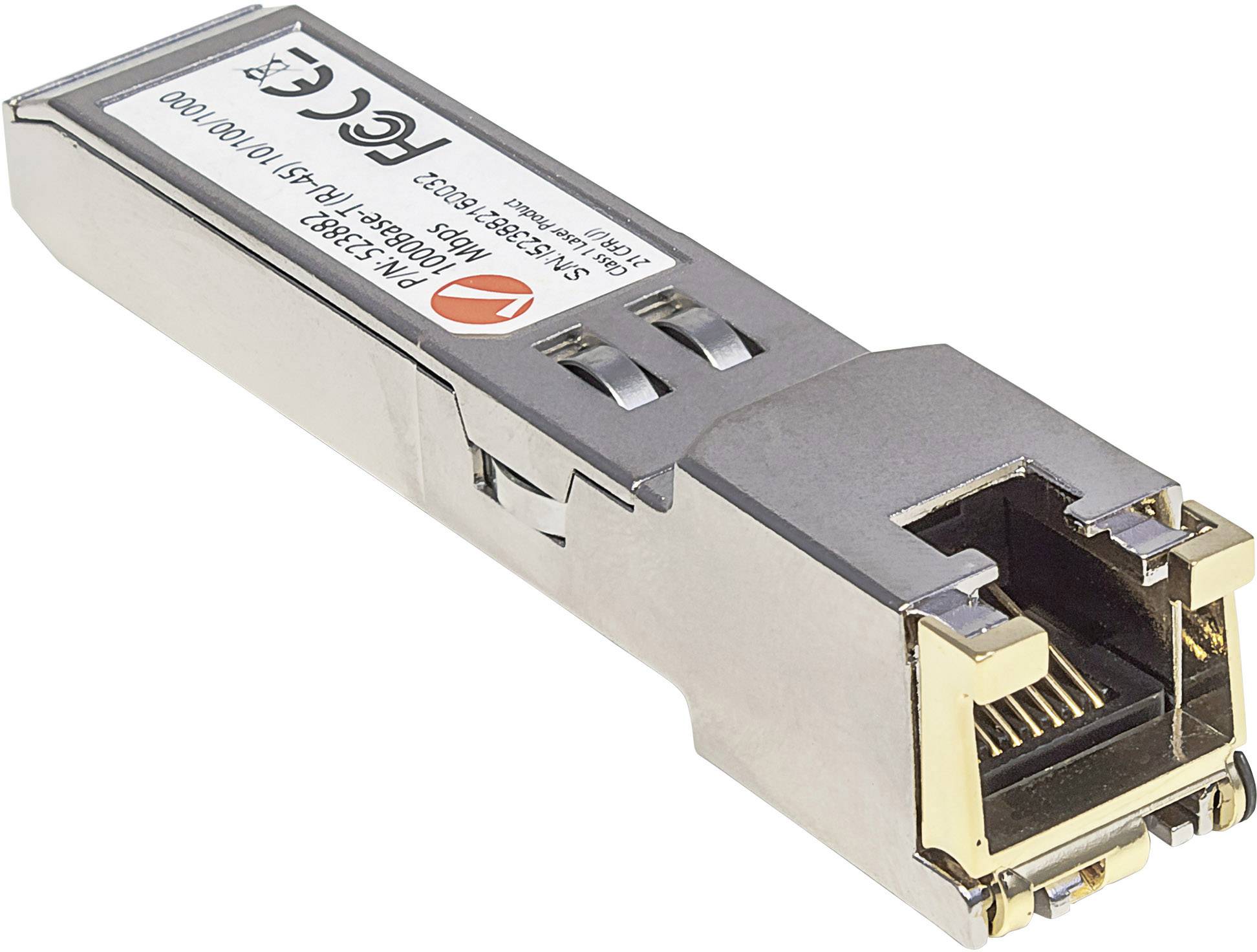

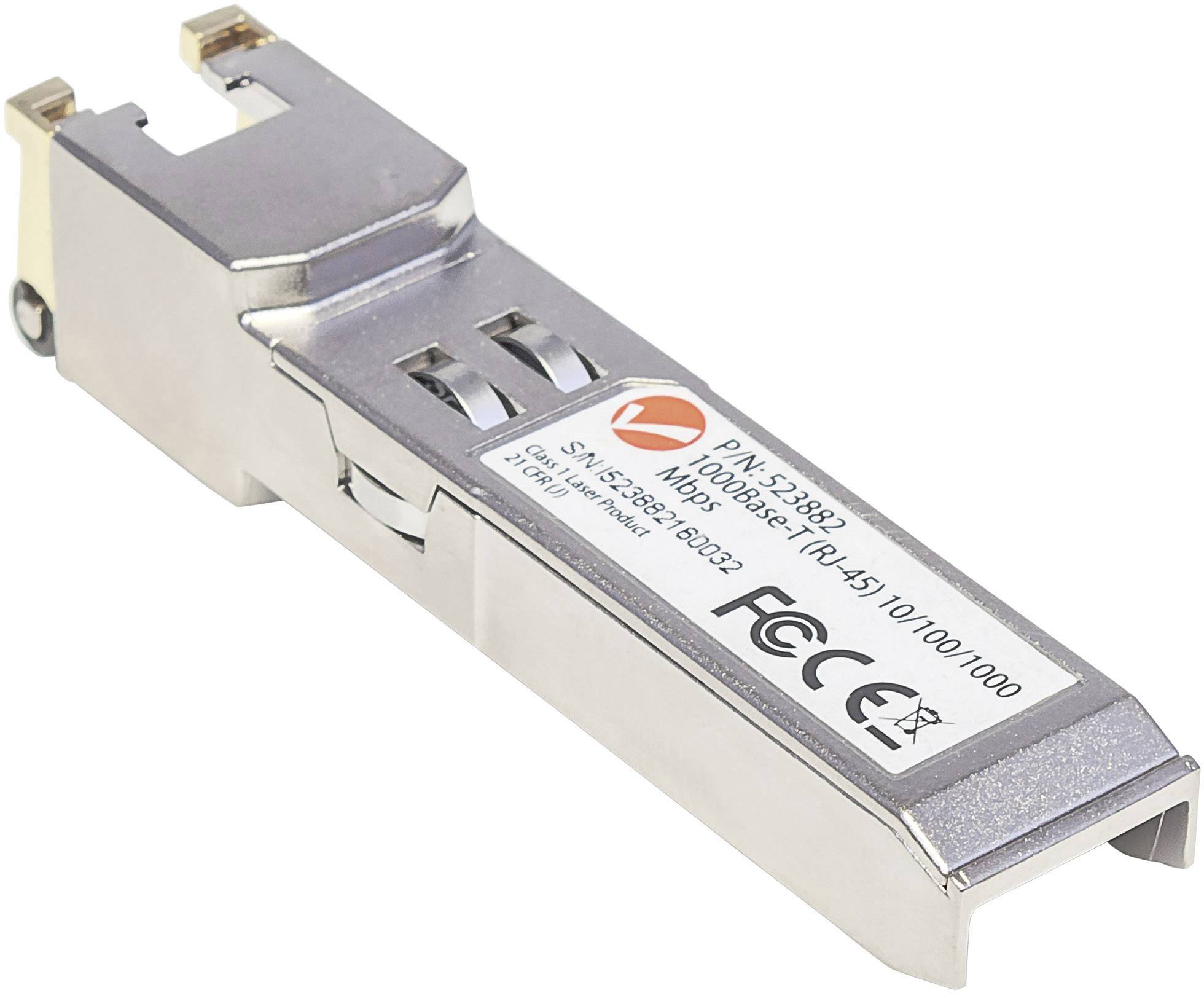

Intellinet 523882 523882 SFP transceiver module 1 GBit/s 100 m

  • item model number: S119221
Intellinet 523882 523882 SFP transceiver module 1 GBit/s 100 m
Intellinet 523882 523882 SFP transceiver module 1 GBit/s 100 m
Intellinet 523882 523882 SFP transceiver module 1 GBit/s 100 m
Intellinet 523882 523882 SFP transceiver module 1 GBit/s 100 m
39,39 €
VAT included
plus
Delivery time: 1-2 days
in stock
30 days free return shipment
Intellinet 523882 523882 SFP transceiver module 1 GBit/s 100 m
39,39 €
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : 38,99 € 1,0 % savings
from 5 piece : 38,60 € 2,0 % savings
from 10 piece : 38,20 € 3,0 % savings

Product description

Overview

Universally compatible with all Intellinet Gigabit switches with SFP module ports as well as to all Cisco or MSA-compliant SFP ports
10/100/1000 Mbit/s auto-sensing Gigabit RJ45 port with Auto MDI/MDI-X support
Extends a switch or media converter with SFP port to a Gigabit connection for RJ45 cable
Supported Range: up to 100 m
Compliant with the SFP multi-source agreement (MSA)
Compatible with Cisco, HP, and more
SFP standard form factor
Low power consumption (average 1.05 watts)
Metal casing reduces electromagnetic interference
Up to 1.25 Gbit/s bi-directional communication
Supports Hot plugging

Description

Converts an SFP slot in a RJ45 Ethernet port with 10/100/1000 Mbit/s.
The Intellinet mini-GBIC transceiver offer one of the best price-performance ratios in the industry. The biggest advantage is the in networks such an important compatibility. In contrast to many other suppliers are the intellinet GBICs not only with switches the own brand compatible, but also with other MSA-compliant brands as well as universally with all Cisco switches. The physical quality is second to none - the metal casing reduces electromagnetic interference and increases the life of the product.
This Intellinet Gigabit SFP mini-GBIC transceiver provides for RJ45 connectivity with up to 1000 Mbit/s at an SFP slot. This can be either a Fast Ethernet Switch to a port on Gigabit-speed upgrade or a gigabit switch to an additional 1000 Mbit/s port.

Hot Gable
This mini-GBIC is "hot-pluggable", i.e., it can be installed without the network switch must be restarted. This will not interrupt the traffic in your company.

Characteristics

IEEE 802.3 (Twisted Pair Ethernet)
IEEE 802.3u (Twisted Pair/Fiber Optic Fast Ethernet)
IEEE 802.3ab Gigabit Ethernet (twisted pair)
1000Base-T RJ45 UTP/STP CAT5e or higher
10/100Base-TX 10/100Base-TX CAT3 or higher UTP/STP RJ45
Connection: RJ45/SFP port
Range: 100 m
Design: SFP (Small Form-Factor Pluggable), 1.25 Gbit/s
Cisco GLC-T-compatible
Certificates: FCC Class B, CE mark, RoHS
Voltage: 3.3 V
Power consumption: 1.2 W (max.)
Operating temperature: 0 - 70°C
Humidity: 10 - 85%, non-condensing
Storage temperature: -40 °C - 85 °C
