Overview
For sensors with standard signals (4 - 20 mA)
Scaling of the measured values
Dust-proof and splash-water protected (IP65)
Display color green
akYtec ITP11-G-W Meter
189,99 €
VAT included
Free shipping
Delivery time:
1-2 days
in stock
30 days free return shipment
189,99 €
VAT included
Free shipping
Product description
Description

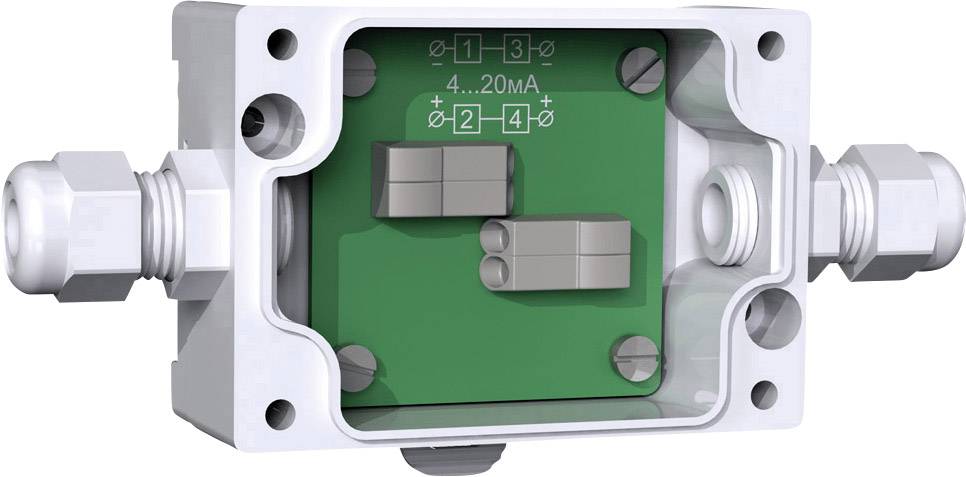

The ITP11-W is a universally usable display for monitoring industrial processes. The displayed measured values can be scaled and there is also a function to calculate the square root. The ITP11-W is for any sensors or transmitters with 4 - 20 mA output. It requires no separate auxiliary voltage, but is directly via the measuring power. It has a compact housing, which is suitable for wall mounting as well as for DIN-rail mounting is suitable. In addition, the device on pipes with up to 200 mm diameter.
Areas of application:
The 4 - 20 mA process display ITP11-W is very well suited for quick and convenient structure of visualisation systems for different processes, for example, in the water supply or in the thermal processing. The ITP11-W is characterised by minimum dimensions and can be used as a low-cost additional display of the measured values on site as well as a component of a complex visualization.
Characteristics
Measurement and display of the standard signal 4 - 20 mA · 4-set, 7-Segment LED display (character height 14 mm) · Attenuation of the measuring signal. · Calculation of the square root · Error display in case of exceeding the measuring limit · Password protection against unauthorized access · Attaching to a pipe (ø 20 - 200 mm), on a wall or on the DIN-rail.
Keywords
02050005021584, akYtec, ITP11-G-W, voltage display, panel meter
