The new OmegaGT XA series includes four model variants for professional use in the most demanding applications. All models support user accounts, which means that one device can be used by multiple users. The model variants cover the following test areas: portable devices, welding devices, medical devices and the professional testing of PRCD devices. All devices have an extended, integrated user interface that allows the execution of predefined AUTOSEQUENCEs® created by the user. The large storage capacity (8 GB microSD card) enables the user to store and archive data for long periods of time. All devices are specially designed for long-term testing as their memory structure allows easy searching through the device archives and quick repetition of (periodic) tests. Great importance was attached to the support of peripheral devices such as printers and barcode or QR code scanners and RFID readers (in Bluetooth and cable versions). In addition, all device versions are supported by our Metrel ES Manager PC software.
Characteristics
25 A visual inspection · Fuse Check · Continuity Protective conductor resistance 200 mA · Continuity Protective conductor resistance 10 A, 25 A (25 A, only M, F) · Insulation resistance (riso, riso-S) · Leakage current · Leakage current-S · Differential leakage current · PE leakage current · Contact current · Insulation resistance IEC/EN 62353 · Contact current IEC/EN 62353 · Device leakage current (direct, differential, alternative) IEC/EN 62353 · Applied part leakage current (direct, alternative), IEC/EN 62353 · Insulation resistance, IEC/EN 60974-4 (optional A 1422) · Welding Circuit Leakage, IEC/EN 60974-4 (optional A 1422) · Primary leakage current, 1422) IEC/EN 60974-4 (optional A · Open-circuit voltage, IEC/EN 60974-4 (optional A 1422) · Power (P, S, Q, PF, THDu, THDi, CosØ, I, U,) · PRCD test [2-pin, 3-pin, K/Di (varistor), S (3-pin)] · PRCD PE-probe tip, open cable testing, the earthing conductor test · RCD testing, (type A, AC, B, B+, F)
Information
Supplied with German license.

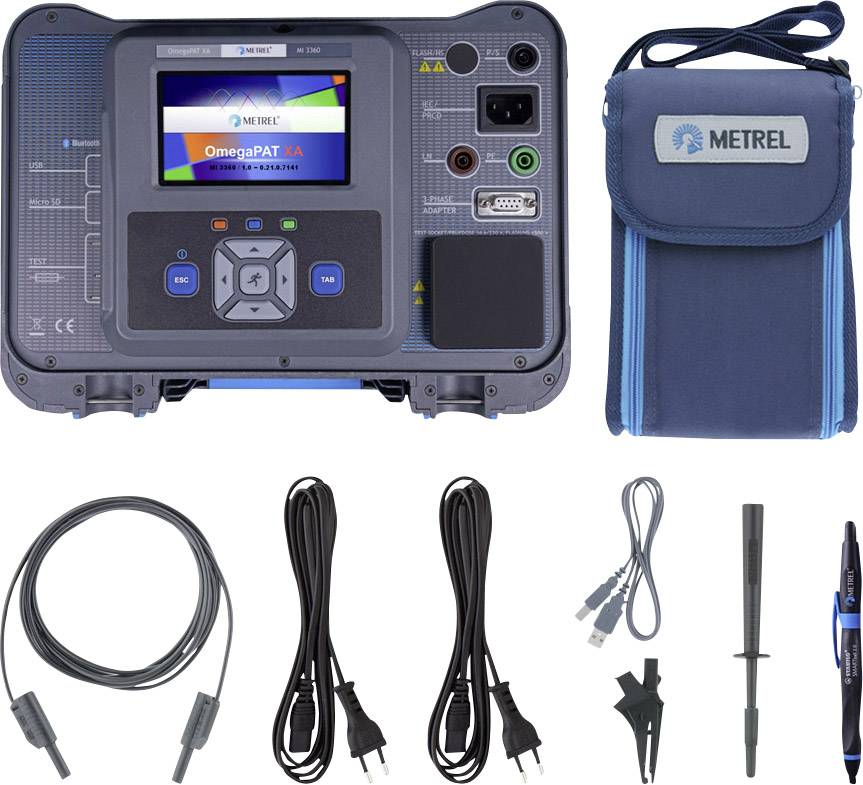

Delivery content
Standard delivery MI 3360
MI 3360 (25A, M, F) OmegaGT XA
bag for accessories
smart ball pen with touch screen function
flash probe (MI 3360 F only)
crocodile clip, red (MI 3360 F only)
IEC test cable, 2 m
test lead, black
Test probe, black
Crocodile clip, black
Power cord
USB cable
Calibration certificate
Quick reference guide
CD with manual and PC-SW Metrel ES Manager
License code for the extended Metrel ES Manager (only for DE Standard)
Keywords
Metrel, 20992601, MI 3360 25 A, bgv, bgva3, dguv
Other notes
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
