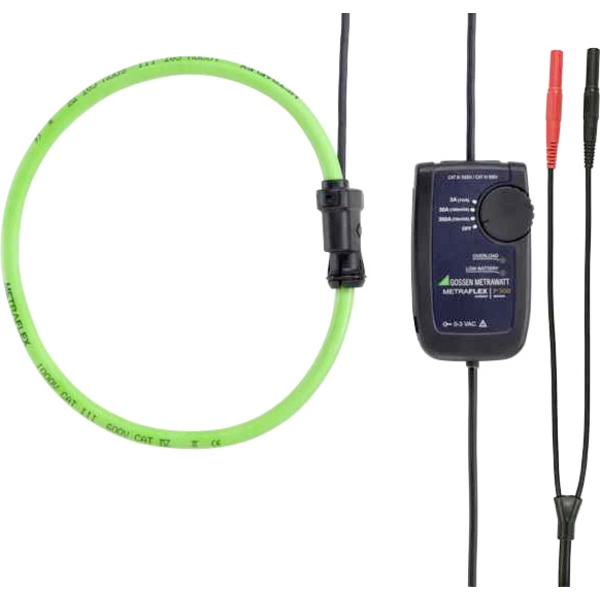

Gossen Metrawatt METRAFLEX P300 Clamp meter adapter A/AC reading range: 0.01 - 300 A Flexible

Overview

Flexible current sensor 3/30/300 A, 1 V-10mV/A, loop length 450 mm

Description

The flexible current sensor is used in conjunction with measuring instruments up to 3 V AC measuring input.
The sensor loop can be laid around one or more conductors of any design (insulated cables, busbars, pipes).
For autonomous operation, the measuring amplifier is supplied by internal batteries.
Technical features
Wide range of application, 3 measuring ranges 3/30/300 A AC, but not for power measurement
High bandwidth 20 Hz ... 4 kHz for harmonic analysis
Accurate measurement even at low currents, due to wide dynamic range and high sensor sensitivity
Low positional influence of the conductor and minimal external field influence
Simple application in confined spaces due to small sensor cross-section of 9.9 mm and slim end cap 13,6 mm
Safe handling even with protective gloves - Sensor opening and measuring range adjustment in one-hand operation
Current sensor with protection class IP65, measuring amplifier with IP40
High user safety, measuring category 1000 V @CAT III, 600 V @ CAT IV and unlimited overload capability

Delivery content

• 1 Flexible current sensor METRAFLEX P300
• 1 Set of batteries
• 1 Instruction manual
