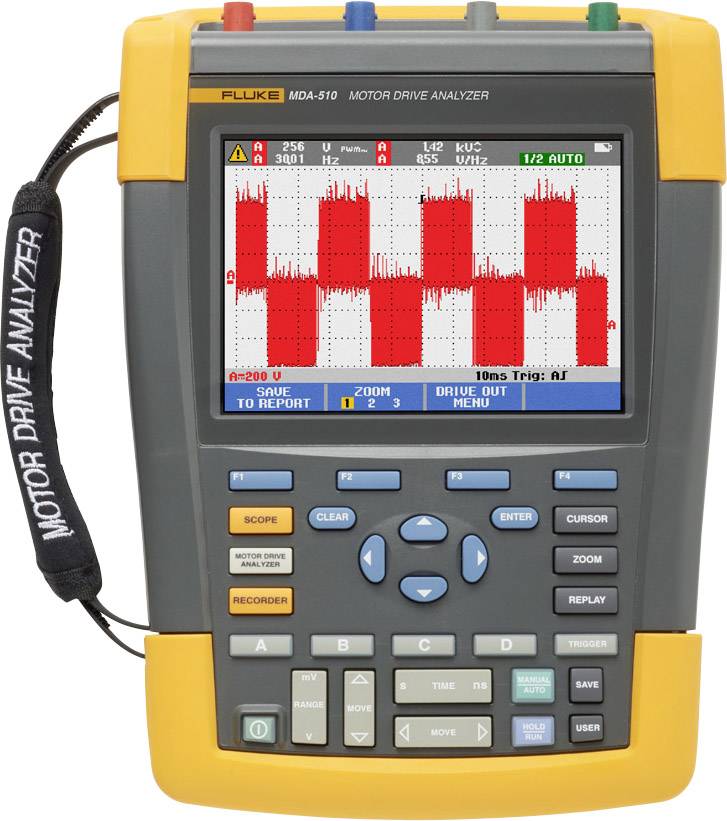

Fluke MDA-510 Motor drive analyzer 500 MHz 1 pc(s)

  • item model number: C224461
Fluke MDA-510 Motor drive analyzer 500 MHz 1 pc(s)
Sold out
Fluke MDA-510 Motor drive analyzer 500 MHz 1 pc(s)
Sold out

Product description

Overview

500 MHz
No. of analogue inputs 4
Measurement of the most important parameters of the motor drive, including
Voltage, current, DC bus voltage level and AC ripple, voltage and current unbalance and voltage modulation
In addition, measures the MDA-500 harmonics and voltage discharges to the motor shaft and is supplied with accessories for the implementation of this measurements
The MDA-550 is also suitable to implement extended harmonic measurements, the effects of harmonics low and high order on the power supply system to recognize

Description

The new Fluke MDA 510 and MDA 550 motor drive analyzers save time, eliminate the complexity of complex test set-ups and simplify troubleshooting. You simply select the measurement you want to perform and the device shows you step-by-step how to make the voltage and current connections, while preset measurement profiles ensure that you capture all the data you need for each critical section of the motor drive - from input to output, for the DC bus as well as for the motor itself. From basic to advanced measurements, the MDA-500 Series provides everything you need, and with an integrated report generator you can quickly and easily generate reports on the situation before and after your intervention.

MDA-510 and MDA-550 are ideal portable motor drive analyzers and can help you safely locate and resolve typical problems with inverter-type motor drives.

Characteristics

Measurement of inverter output voltage, DC bus voltage and ripple voltage, harmonics, unbalance - Three powerful measuring instruments in one: Motor drive analyzer, waveform analyzer and data logger - Four input channels for voltage and current signals - The instrument is easy to set up and preset measurement profiles automatically trigger data acquisition based on the selected test method - Reports can be created quickly and easily to perfectly document troubleshooting and facilitate collaboration with colleagues - With the features of a 500 MHz oscilloscope and multimeter and additional recording functions, you can perform all electrical and electronic measurements on industrial equipment - USB A and USB Mini B ports.

Information

Note: not all functions are included in all models.

Delivery content

1x Li-ion battery pack BP 291 - 1x charger/power supply BC190 - 3x VPS 100:1 high voltage probes with crocodile clips - 1x
VPS410-II-R 10:1 500MHz voltage probe - 1x i400s AC
clamp - 1x C1740 carrying case - 1x 2 GB USB stick with manuals and FlukeView™ 2 Software.

Keywords

0095969870962, Fluke, 4984691, MDA-510, 179-7956, oscilloscope
