Overview

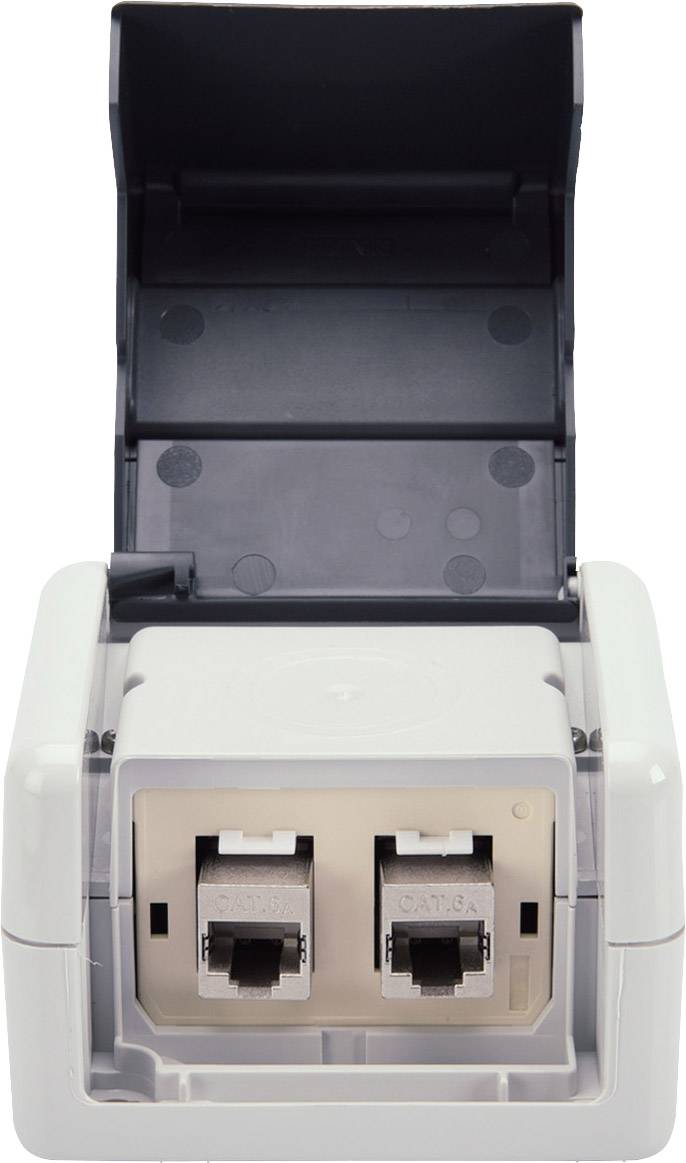

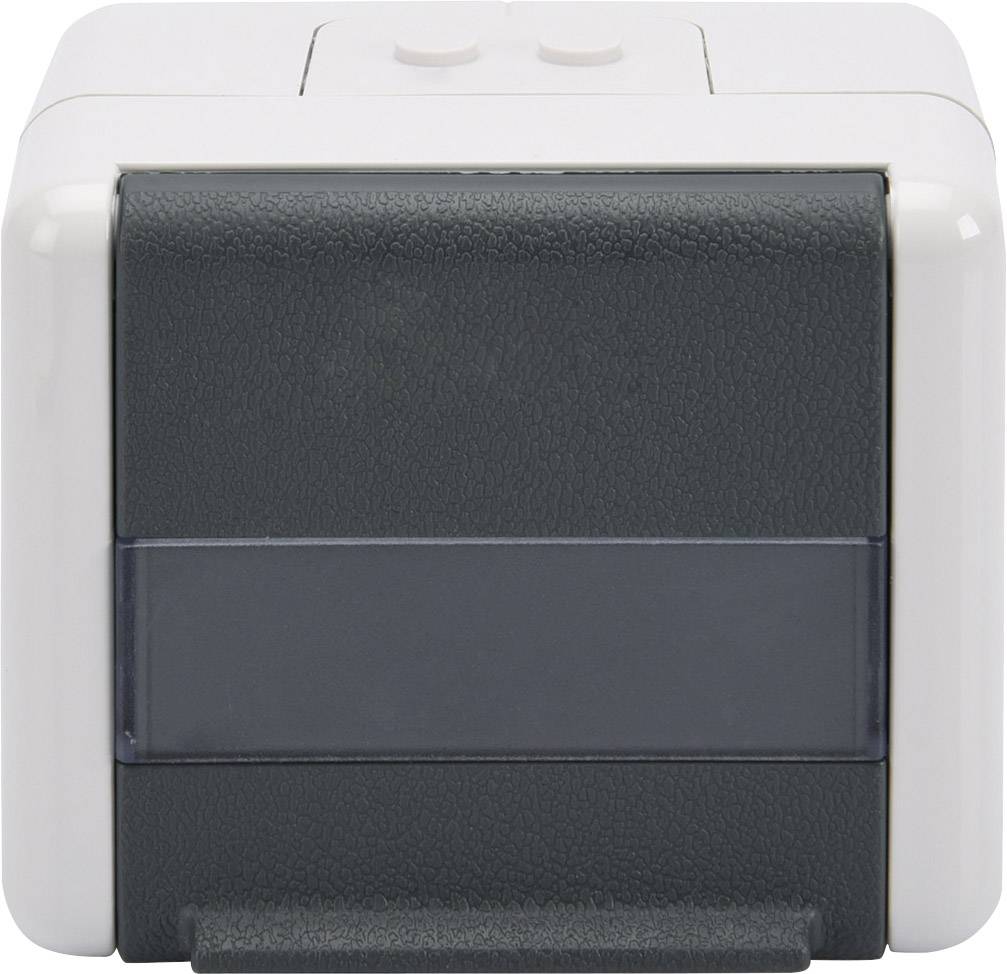

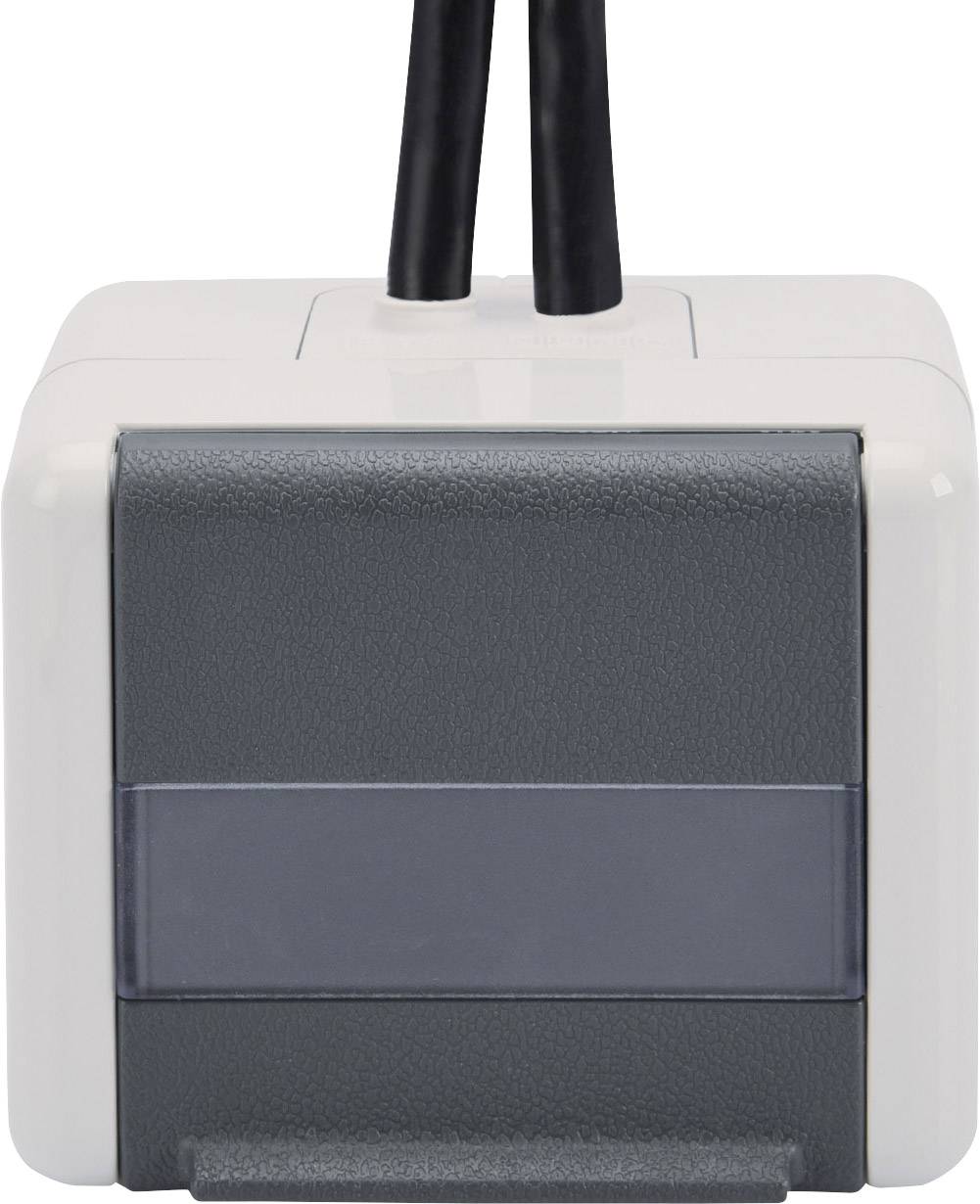

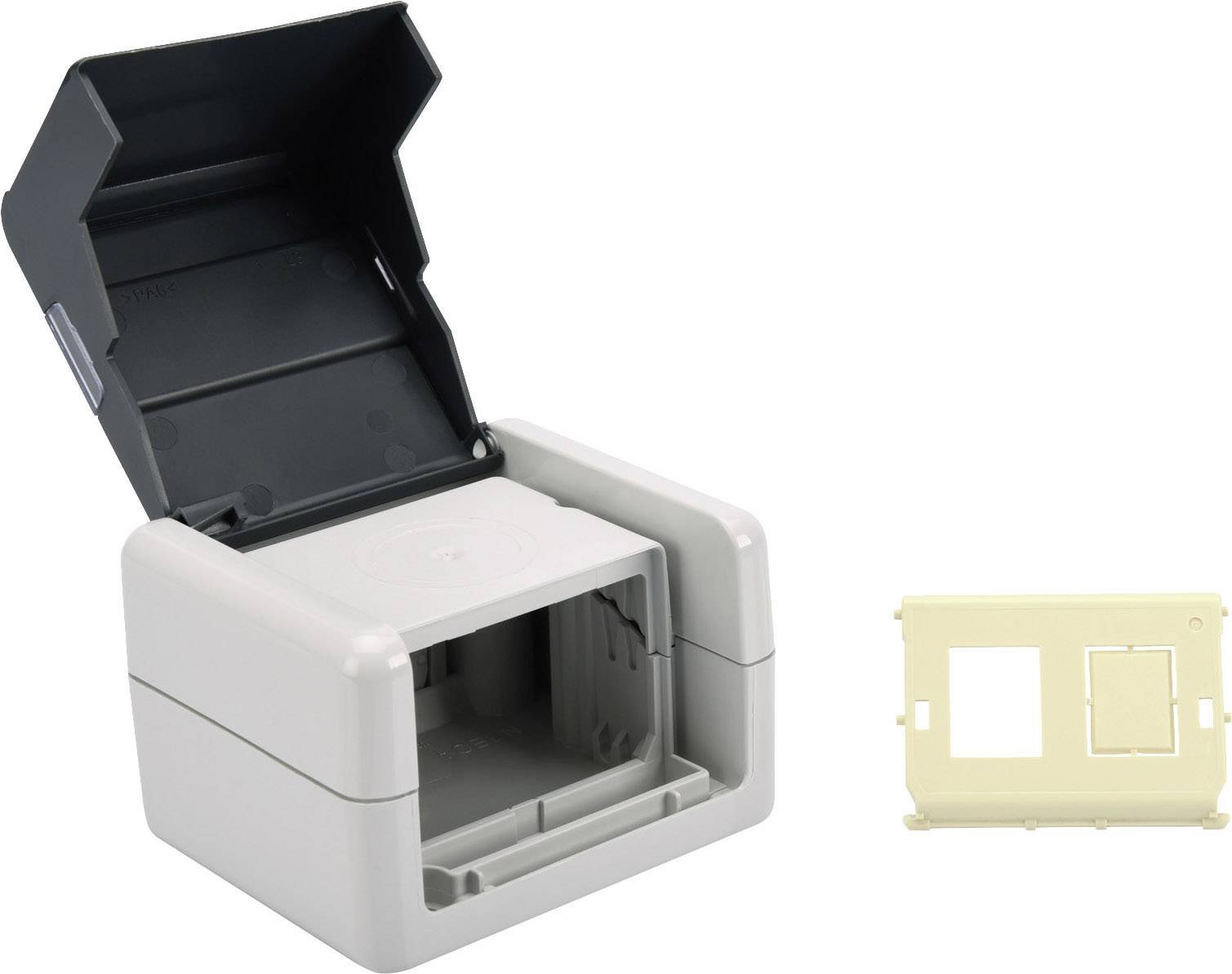

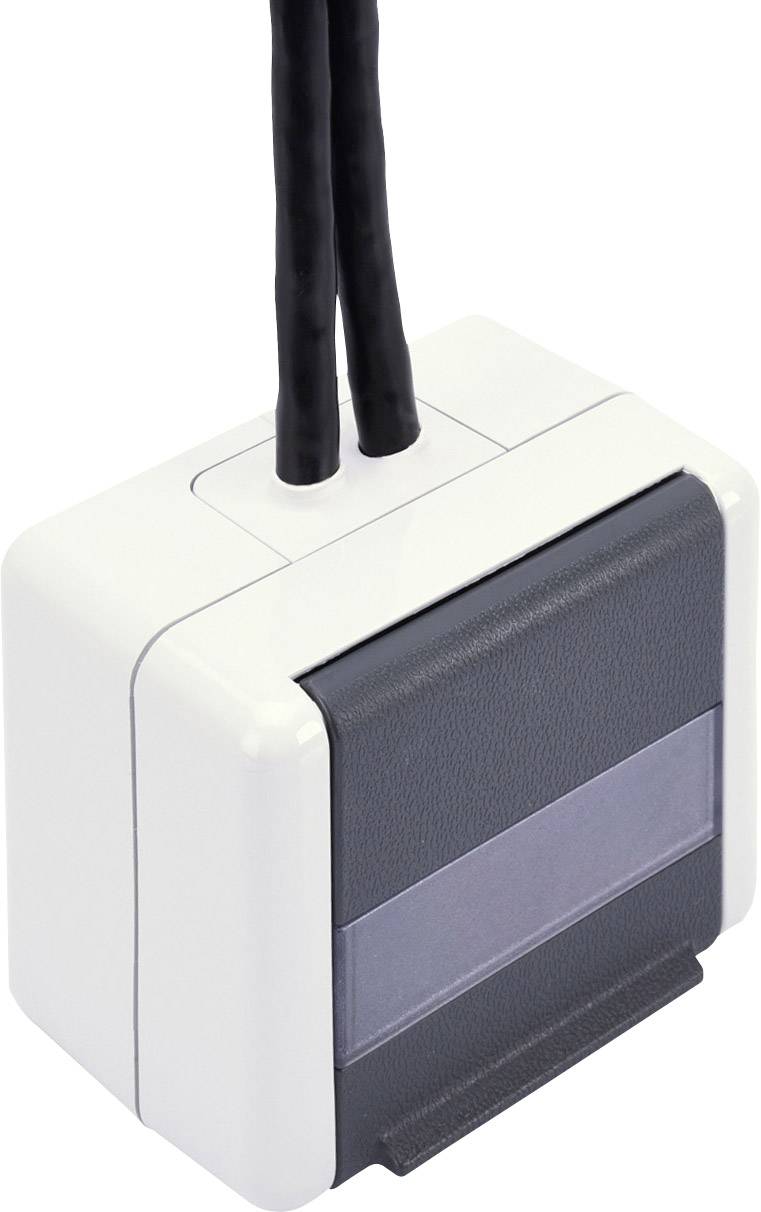

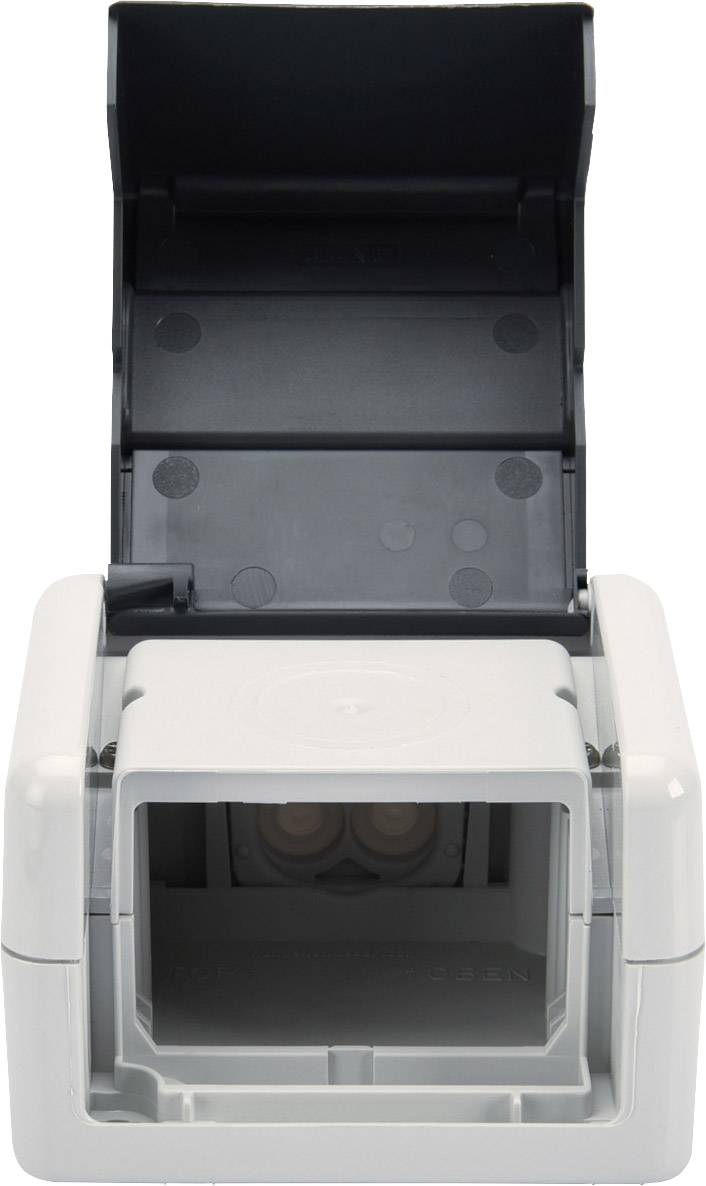

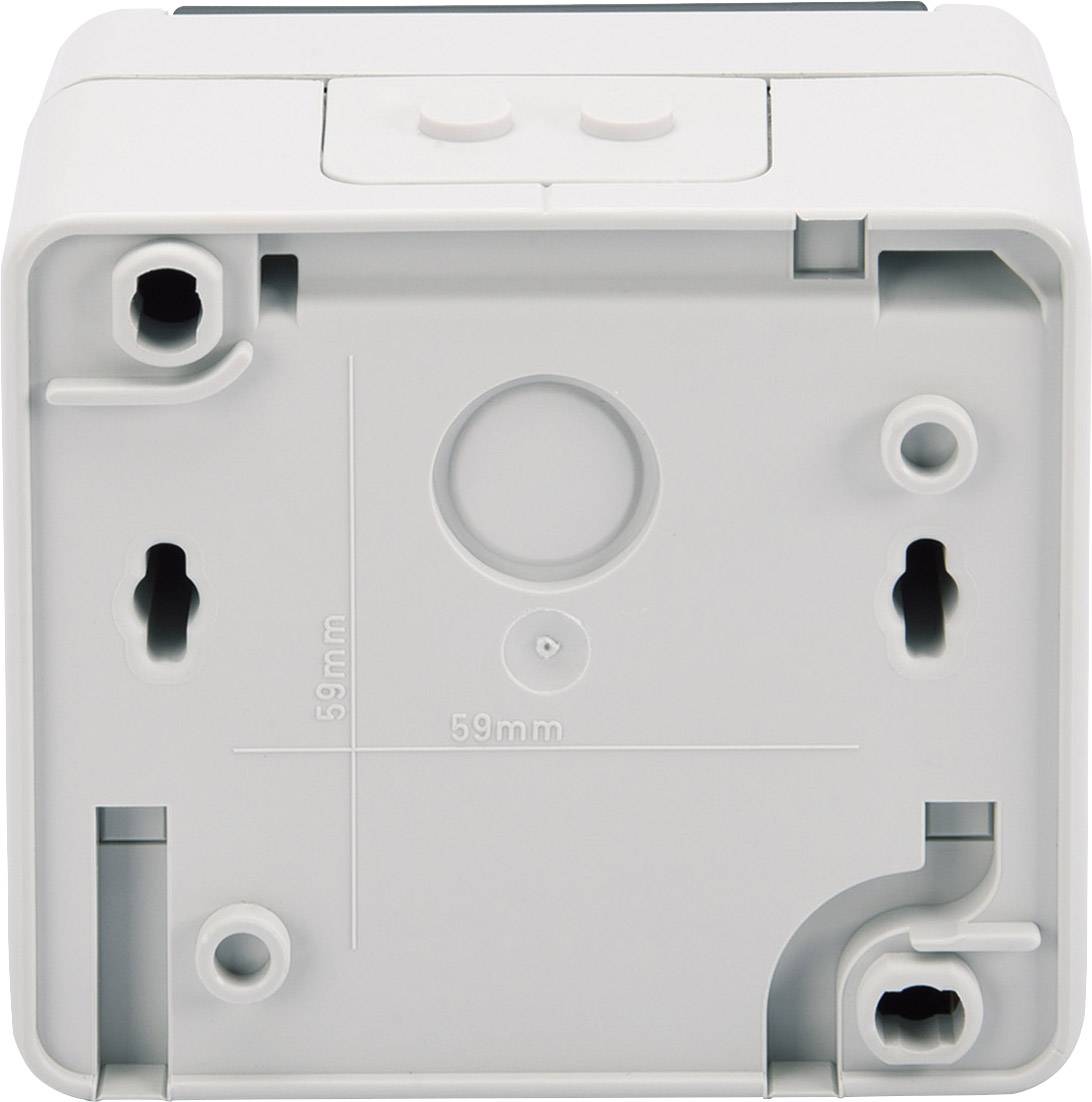

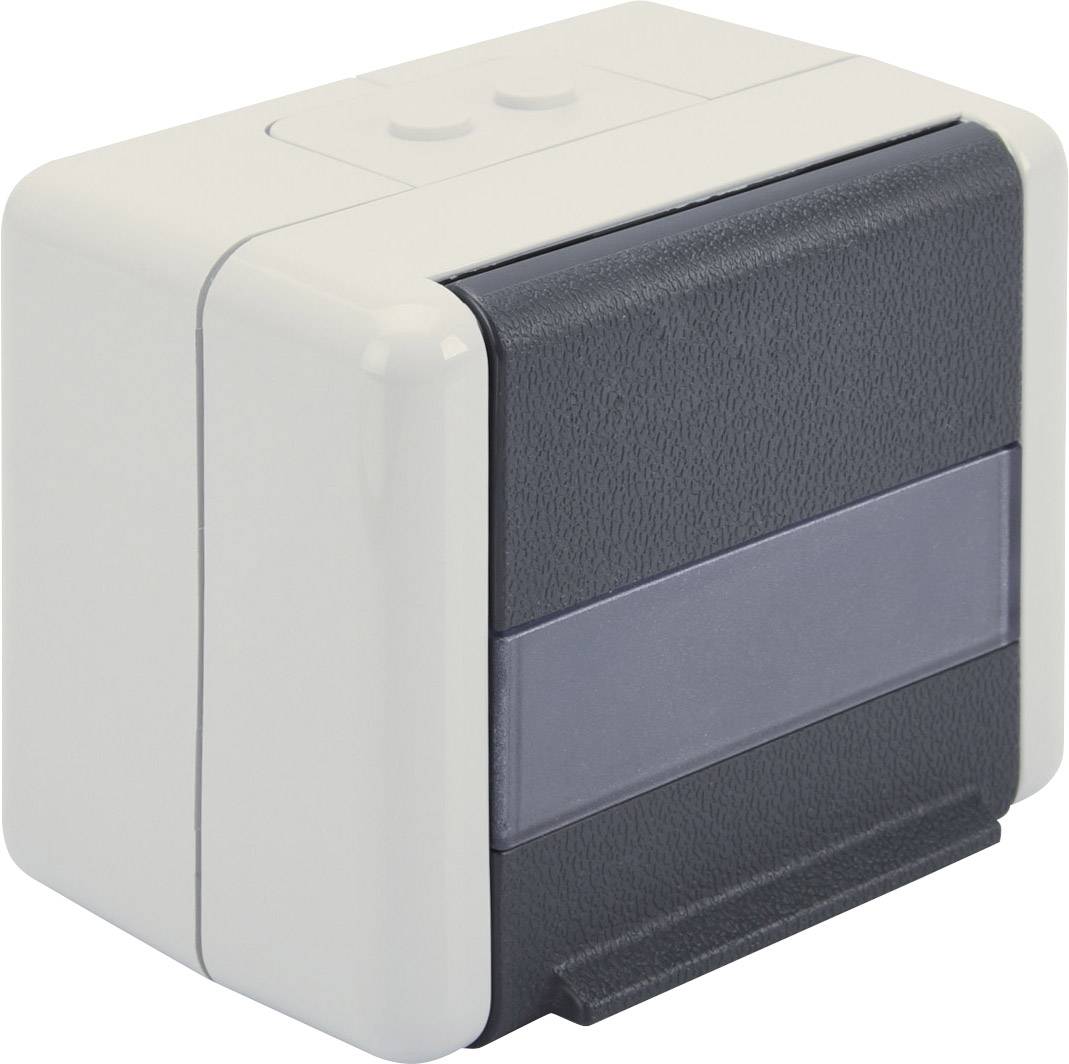

IP44 wall outlet for Keystone Modules
Digitus Network outlet Surface-mount 2 ports Grey
Product description
Description
The DIGITUS® IP44 Wall Outlet for Keystone Modules convinces with an easy installation by screw mounting and a vertical outlet for data cables. The Keystone Module connections are covered by hinged lid. Individual Prints are possible with the integrated labeling field. The Mounting Inlet for the Wall Outlet is separately available (DN-93844-OD-1).
· Layout keystone entry: 90° outlet
· Area of application: Outdoor section, industrial sector
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for outdoor section and industrial sector usage, IP44
· Integrated top cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Thermoplast, ABS UL 94V-0
· Top cover material: Thermoplast, ABS UL 94V-0
· Inlet material: Thermoplast, ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Characteristics
With labeling field, no label
Halogen-free
Optional: DN -93844-OD-1 2-port used for Keystone module
Information
Sold Separately Montageeinstaz DN -93844-OD-1 is necessary
