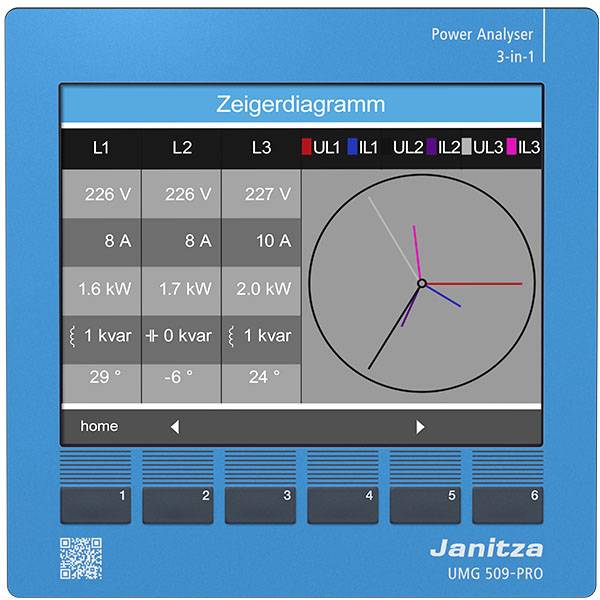

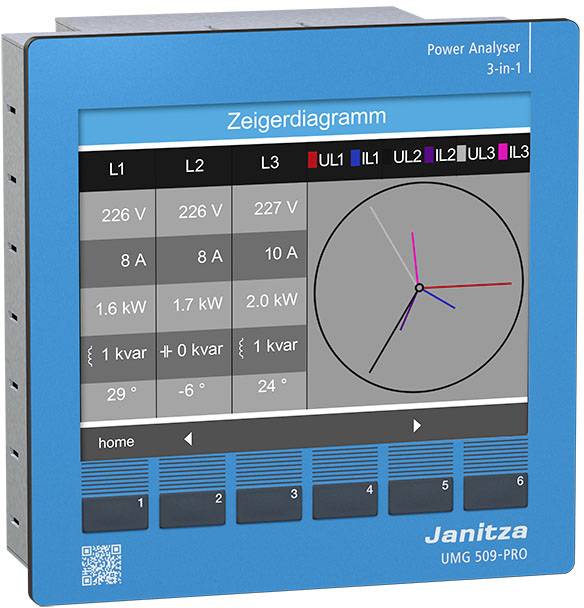

Janitza UMG 509-PRO Power quality analyzer

Overview

Master device for energy management systems, (e.g. ISO 50001)
Measurement, monitoring and control of electrical characteristics in energy distribution systems
Consumption data collection
Monitoring of the voltage quality (harmonics, short-term interruptions, transients, starting currents ...)
Transmitter for building control systems or PLCs
Control tasks, for example, depending on the measuring or limit values reached
Peak load optimization
Ethernet gateway for subordinate measuring points
Remote Monito

Description

The new PRO series combines the latest technology with outstanding functions and an attractive design. The greater variety of functions and extensive display methods make it easier to analyze and interpret measurement data and measurement results. With the help of the pre-installed Janitza-Apps data can be processed, visualized and analyzed.

Characteristics

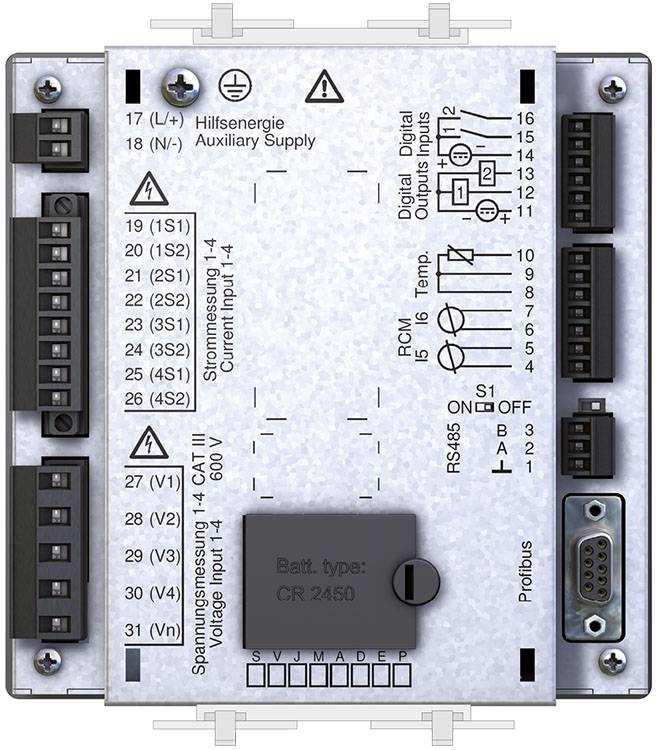

Supply voltage 95 - 240V (50 - 60Hz); 80 - 280V DC
Installation category: 300V CATIII
4 voltage measuring inputs,
Measurement category: 600V CATIII
Measurement in three-phase 4-wire systems up to 417V/720V,
Measurement in three-phase 3-wire systems up to 600V,
Measurement range: L - N: 10 - 600V; 40 - 70Hz
Measuring range: L - L: 18 - 1000V; 40 - 70Hz
4 current measuring inputs for current transformers ../1 or ../5A
Measurement range 0.001 .. 7Arms
2 digital inputs, 2 digital outputs
1 temperature input, 2 RCM inputs
Data storage: 256MB Flash,
Interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX

Incl.Web-Server as well as the following APP`s:
App Measured value monitor: Graphic display of online & historical measured values
App IEC 61000-2-4 Watchdog Light PRO: Monitoring of the voltage quality limit values according to IEC 61000-2-4

Information

Programming software GridVis Basic is available as a download on the manufacturer's page.

Delivery content

• Cross Patch cable, CAT5e, 2 m
• Slotted screwdriver, ESD
• RS485 terminating resistor 120 Ω
• Quick Guide UMG 604 (incl. safety instructions and Quick Guide software GridVis
• Installation and commissioning instructions
• 2x mounting clamps
