Format 76 x 36 mm
Three-digit backlit LCD display with special characters
Measurement input for resistance thermometers, thermocouples, current or voltage unit signals
1 x 10A relay (changeover contact) or 2 x 5A relay (normally open contact)
Customer-specific linearization via table function
Heating, cooling mode or limit value monitoring
Integrated defrost function
Adjustable switching hysteresis
Operating hours, service counter
Configuration with setup program

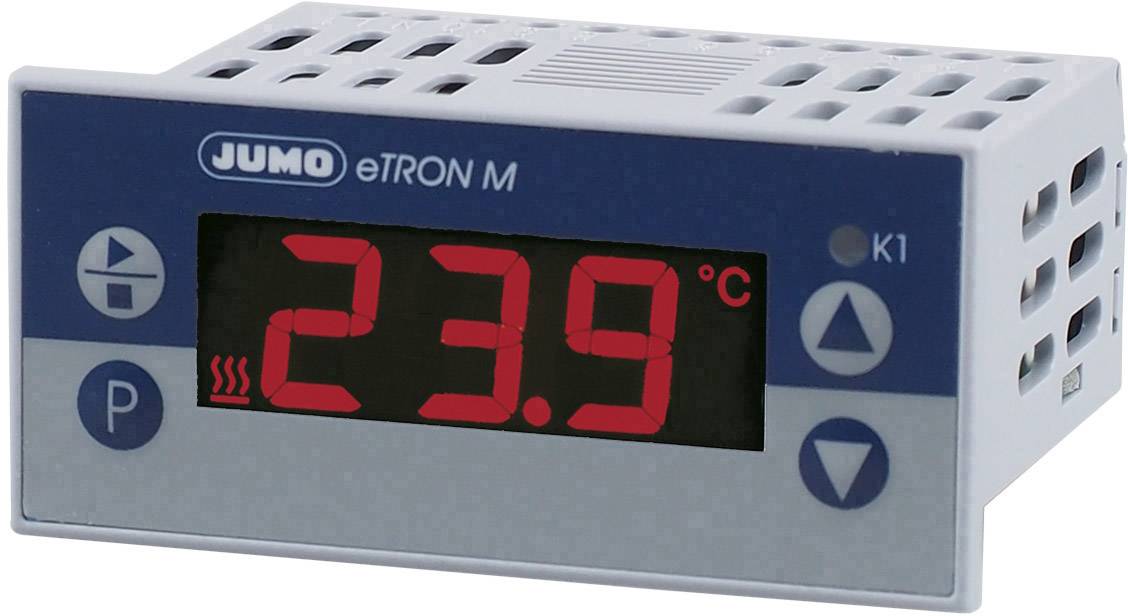

The JUMO eTRON M is a digital electronic microstat for simple temperature control (heating or cooling). Depending on the hardware version, either resistance thermometers, thermocouples, current or voltage unit signals can be connected to the measuring input. The actual value is displayed on a three-digit backlit display. The switching states of the relays are signaled with LEDs.
The device has an defrost function and an operating hours counter integrated, which can record the runtime of a cooling compressor, for example. The operation is done on the front via 4 buttons. A freely configurable operator level allows quick access to important parameters. The electrical connection is made via screw terminals.
A setup program and a PC interface are available as accessories for easy configuration and parameterization on the PC.
