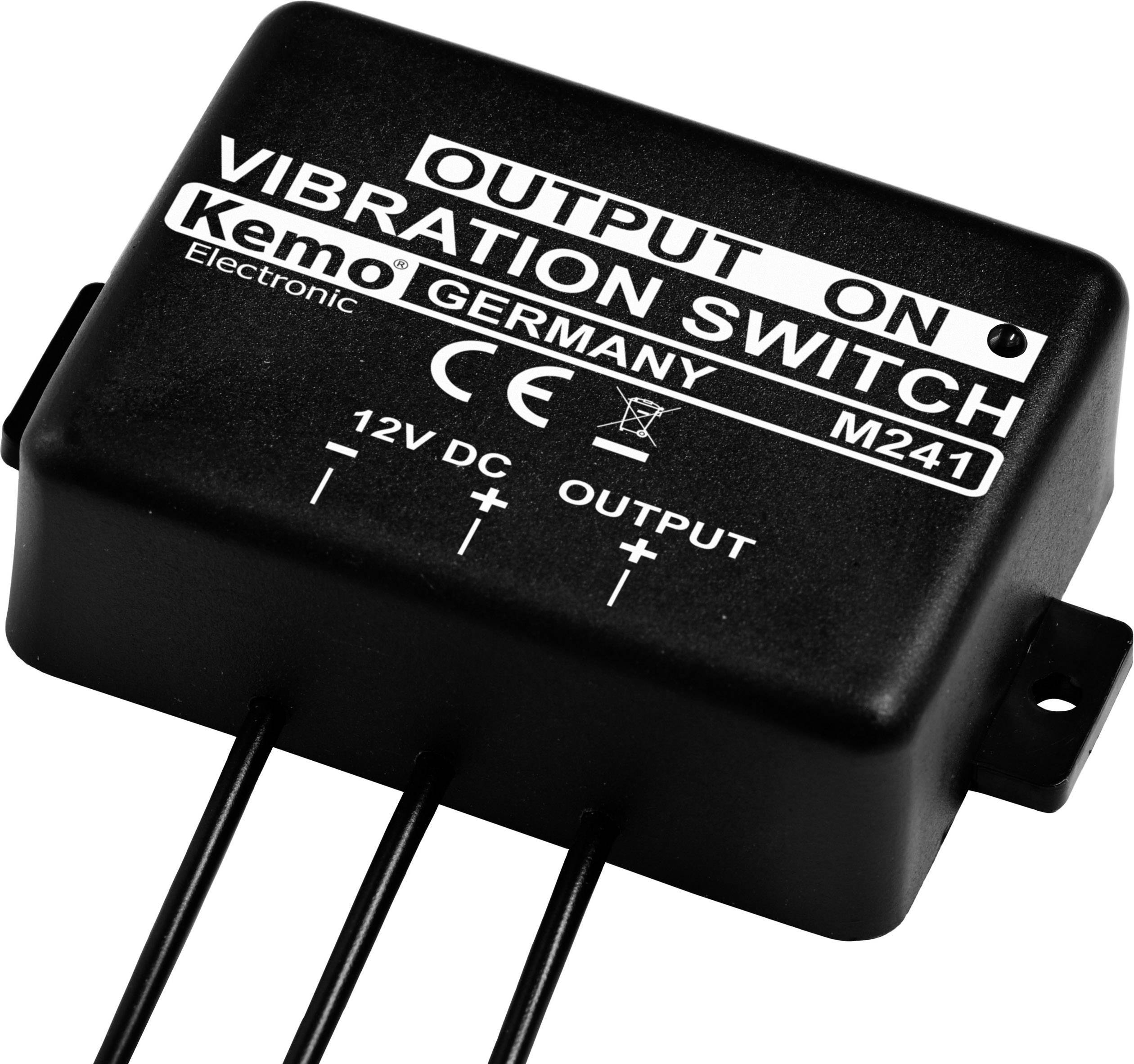

Kemo M241 Vibration detector Assembled

Description

Vibration switch, switches 12 V devices off in case of vibrations (e.g. motor running noises) and switches them on with a time delay in case of standstill. Operating voltage 11 - 15 V. for devices up to a current consumption of approx. 1000 mA. Display via a flashing LED. The vibration switch switches on, for example, the signal horns when a machine (e.g. pump) goes out and no longer vibrates. Or a rodent repellent if the vehicle no longer has engine vibrations or driving shocks and parks.

Characteristics

Operating voltage 11 - 15 V DC
Own current consumption: In case of vibrations, engine running (LED off) : approx. 0.000005A ( 5μA)
At rest , no vibrations (LED flashes): Approx. 0.000008A ( 8μA)
Max. Switching current (max. current consumption of the connected device): 1 A.
At rest (no vibrations), the input voltage (11 - 15 V/DC) is switched through to the output and the connected device is in operation
Switch-off delay during movement: Approx. 3 seconds (depending on the intensity of the vibrations)
Switch-on delay at end of motion: Approx. 22 seconds
Switching sensitivity: Adapted to the vibrations of approx. one car combustion engine
Operating temperature range: Approx. -20°C to +70°C.

Delivery content

• Vibration switch
• User manual.
