Do you need to connect a device to a Controller Area Network (CAN) for communication within a vehicle and with other CAN devices? The Arduino MKR CAN shield enables CAN connectivity in the automotive sector!

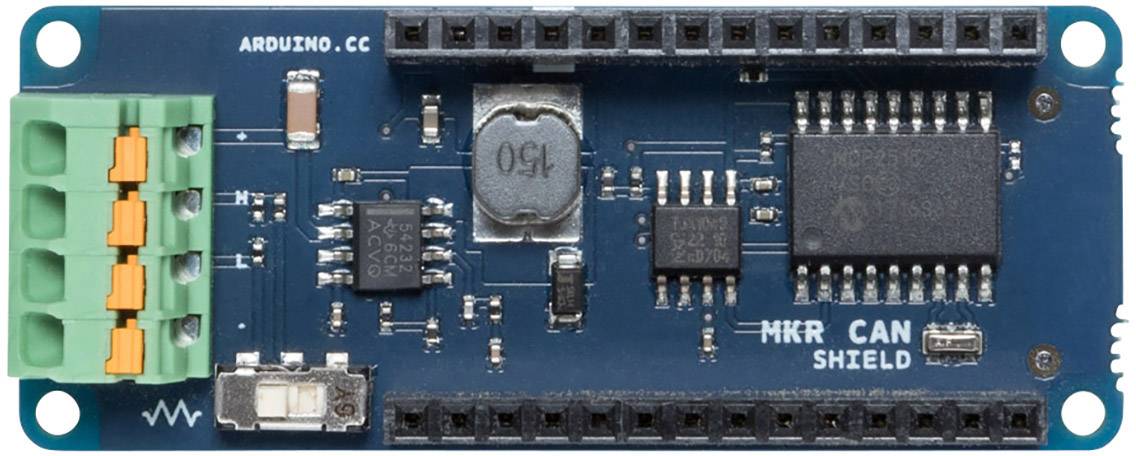

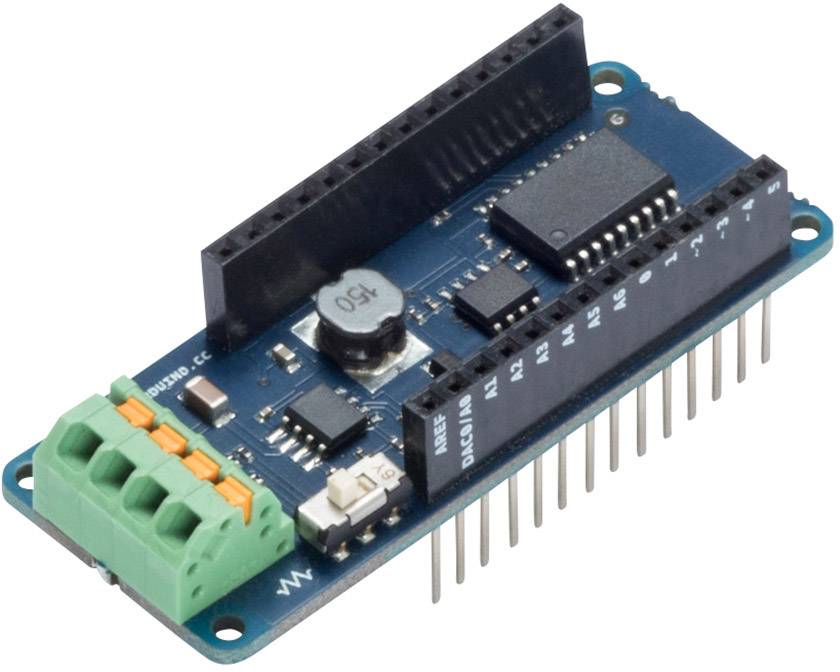

Arduino MKR CAN Shield Development board
Product description
Description
With this Shield, you can easily connect an Arduino Board MKR to a CAN (Controller Area Network) bus. Discover new ways to interact between your Arduino MKR board and the CAN ecosystem!
The MKR CAN Shield can simplify the connection of the MKR boards with industrial systems and especially with automotive applications. This sign opens up a number of new applications such as intelligent vehicles, autonomous cars and drones. A CAN-connection also offers the possibility to connect an MKR board directly with different types of industrial height sensors, motors and displays.
Characteristics
Protocol CAN-Bus
Interface SPI
Circuit Operating Voltage 3.3 V
Controller Microchip MCP2515 (Data Sheet)
Transceiver NXP TJA1049 (Data Sheet)
Buck Converter Texas Instruments TPS54232 (Data Sheet)
Vin (Screw Connection) 7 V - 24 V
Vin (Head) 5 V
Compatibility MKR Size
Switchable Onboard Terminator
Delivery content

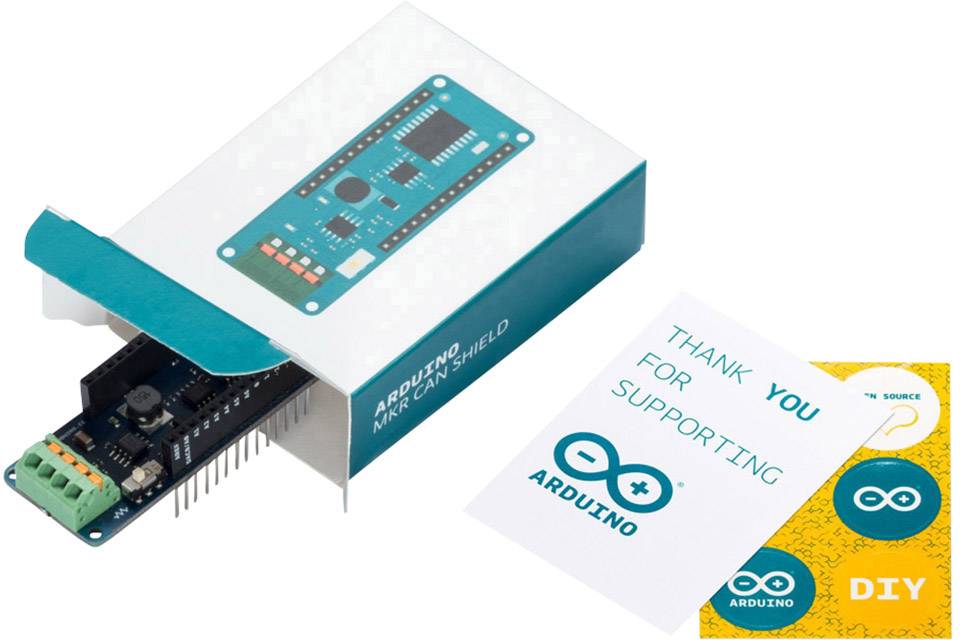

- Arduino® Shield MKR CAN
